GMC SAFARI 1999 Manual PDF

1-59
Larger ChildrenChildren who have outgrown child restraints should
wear the vehicle's safety belts.
If you have the choice, a child should sit next to a
window so the child can wear a lap
-shoulder belt and
get the additional restraint a shoulder belt can provide.
Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.

Children who aren't buckled up can be thrown out in
a crash.

Children who aren't buckled up can strike other
people who are.

1-60

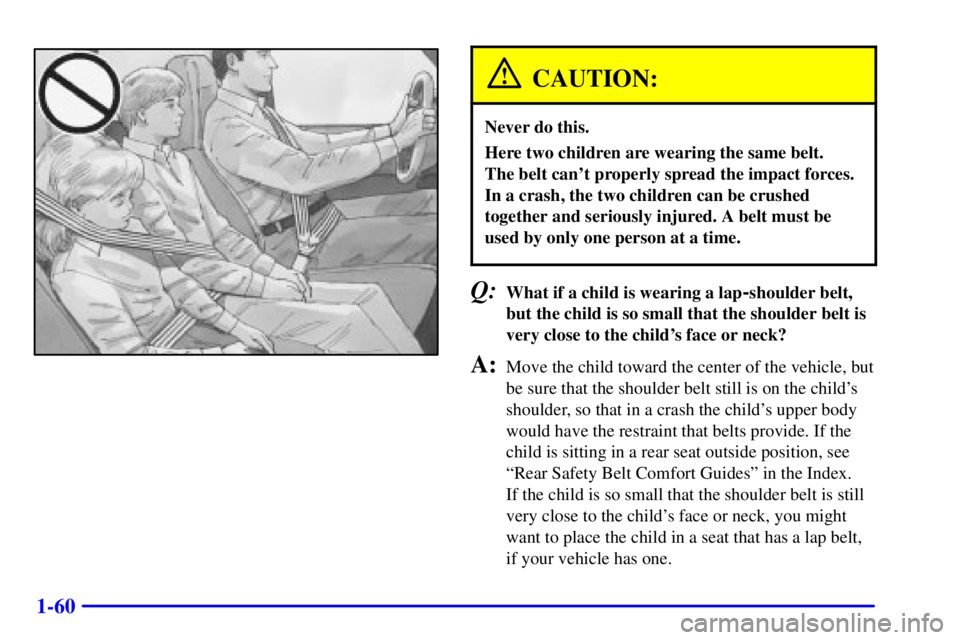

CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can't properly spread the impact forces.
In a crash, the two children can be crushed
together and seriously injured. A belt must be
used by only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide. If the
child is sitting in a rear seat outside position, see
ªRear Safety Belt Comfort Guidesº in the Index.
If the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.

1-61

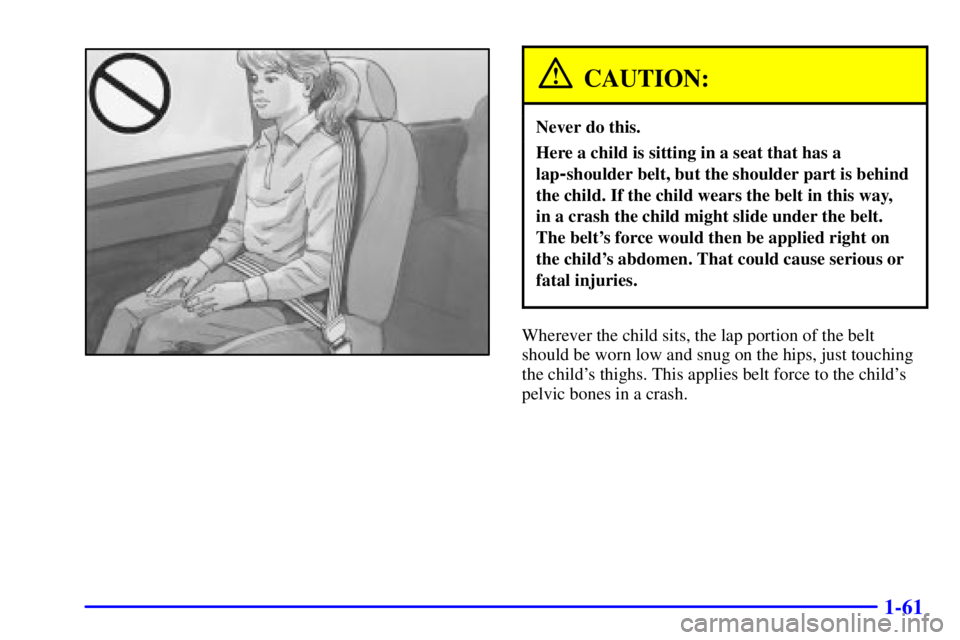

CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap
-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way,
in a crash the child might slide under the belt.
The belt's force would then be applied right on
the child's abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child's thighs. This applies belt force to the child's
pelvic bones in a crash.

1-62
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)

1-63
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If you ever see a label on the driver's or the right front
passenger's safety belt that says to replace the belt, be
sure to do so. Then the new belt will be there to help
protect you in a collision. You would see this label on
the belt near the latch plate.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier
in this section.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Front Doors
2
-4 Rear Doors
2
-6 Door Locks
2
-8 Keyless Entry System (Option)
2
-11 Sliding Door
2
-14 Hatch
2
-15 Theft
2
-16 Passlock

2-16 New Vehicle ªBreak-Inº
2
-17 Ignition Positions
2
-18 Starting Your Engine
2
-20 Engine Coolant Heater (If Equipped)
2
-21 Automatic Transmission Operation
2
-24 Parking Brake
2
-25 Shifting Into PARK (P)
2
-28 Shifting Out of PARK (P)
2
-28 Parking Over Things That Burn
2
-29 Engine Exhaust2
-29 Running Your Engine While You're Parked
2
-30 Locking Rear Axle
2
-30 All-Wheel Drive (Option)
2
-31 Windows
2
-33 Horn
2
-33 Tilt Wheel (If Equipped)
2
-33 Turn Signal/Multifunction Lever
2
-39 Exterior Lamps
2
-41 Interior Lamps
2
-42 Mirrors
2
-44 Storage Compartments
2
-52 Ashtrays and Cigarette Lighter
2
-53 Sun Visors
2
-53 Accessory Power Outlets
2
-54 HomeLink
Transmitter (Option)
2
-58 The Instrument Panel - Your
Information System
2
-61 Warning Lights, Gages and Indicators

2-2
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-3
This vehicle has one
double
-sided key for the
ignition and door locks. It
will fit with either side up.
When a new vehicle is delivered, the dealer provides the
owner with a pair of identical keys and a bar
-coded tag.The bar
-coded tag has a code on it that tells your dealer
or a qualified locksmith how to make extra keys. Keep
this tag in a safe place. If you lose your keys, you'll be
able to have new ones made easily using this tag.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

2-4
Front Doors
To open the front side door from the outside, grasp the
handle and pull the door open.
To open the front side door
from the inside, pull the
lever toward you and push
the door open.
Rear Doors
If you have the Dutch doors, you must open the hatch
first. See ªHatch Releaseº in the Index.
Rear doors can only be
opened from the outside.
Open the passenger's side
rear door first. Grasp the
handle and pull the
door open.
Cargo Door Shown

2-5
To open the driver's side
rear door, pull on the latch
release handle located on
the inside of the door.
To close the rear doors, close the driver's side door first.
Check to make sure both doors are completely closed.
The rear doors have a check assembly to keep the doors
from opening beyond 90 degrees.To fully open the rear doors,
push in on the clip and lift
the check assembly up off
the mounting bracket.
Do this on each door. Replace the check assemblies on
the mounting brackets before closing the doors.
See ªSwing
-Out Windowsº in the Index for important
safety cautions.
