clock GMC SAFARI 2002 User Guide

3-20
Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance to the right and left
speakers, push and release the AUDIO knob until BAL
appears on the display. Turn the knob clockwise to move
the sound to the right speakers and counterclockwise to
move the sound to the left speakers.
To adjust the fade to the front and rear speakers, push
and release the AUDIO knob until FADE appears on the
display. Turn the knob clockwise to move the sound to
the front speakers and counterclockwise to move the
sound to the rear speakers.
To adjust the balance and fade to the middle position,
push the AUDIO knob then push it again and hold it
until the radio produces one beep. The balance and fade
will be adjusted to the middle position and the display
will show the speaker balance.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. The radio will produce
one beep and display ALL with the level display in the
middle position.Using RDS
Your audio system is equipped with a Radio Data System
(RDS). RDS is a system that receives data along with
the audio of the FM station you are currently tuned to.
You can use RDS to display program information and to
control your radio. With RDS, the radio can do the following:

Seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies, and

receive and display messages from radio stations.
RDS features are only available on FM stations that
broadcast RDS information. The RDS features of your
radio rely on receiving specific RDS information from
these stations. These features will only work when the
RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, contact the radio station.
When you are tuned to an RDS station, the station name will
appear on the display, instead of the frequency. Most RDS
stations provide their station name, the time of day and a
Program Type (PTY) for their current programming. Some
stations also provide the name of the current program.

3-21
Finding RDS Stations
To find RDS stations perform the following steps:
1. Push the SEEK TYPE button or turn the P
-TYPE
LIST knob to display the program type list.
2. Turn the knob either clockwise or counterclockwise
to select a program type. The list is alphabetical. If
you select ANY TYPE your radio will seek to the
first PTY available.
3. Push the SEEK TYPE button to activate search.
VOL (Volume): Turn this knob clockwise to increase
volume when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.
DISP (Display): Press this knob to change what appears
on the display while using RDS. Pressing this knob will
also display an RDS station frequency or program type
when the radio is on. The display options are station
name, station frequency, PTY and the name of the
program (if available). Pressing and holding this knob
will activate the RDS default display.Finding a PTY Preset Station
P
-TYPE LIST (Program Type): Turn this knob
clockwise or counterclockwise to select the Program
Type (PTY) you want to listen to. TYPE and a PTY
will appear on the display. Press the TYPE button and
the radio will seek to the first RDS broadcaster of the
selected program type. If the radio cannot find the
desired program type, NONE will appear on the display
and the radio will return to the last station you were
listening to.
AM FM (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with the
same program type. Press and hold AM FM for two
seconds to turn alternate frequency on. AF ON will appear
on the display. The radio may switch to stronger stations.
Press and hold AM FM again for two seconds to turn
alternate frequency off. AF OFF will appear on the
display. The radio will not switch to other stations. When
you turn the ignition off and then on again, the alternate
frequency feature will automatically be turned on.
SEEK TYPE: Press this button to go to a station with
the last selected PTY; TYPE and the last selected PTY
will appear on the display, if it is not already showing.
Press SEEK TYPE a second time to seek. If a station
with the selected PTY is not found, the radio will return
to the original station and display NONE.

3-25
Cassette Tape Messages
CHK TAPE (Check Tape): If CHK TAPE appears on
the radio display, the tape won't play because of one of
the following errors.

The tape is tight and the player can't turn the tape
hubs. Remove the tape. Hold the tape with the open
end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.

The tape is broken. Try a new tape.

The tape is wrapped around the tape head. Attempt
to get the cassette out. Try a new tape.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in and the disc should begin playing.
The display will show the CD symbol. If you want to
insert a compact disc with the ignition off, first press
DISP or EJT.
If an error appears on the display, see ªCompact Disc
Messagesº later in this section.
1 PREV (Previous): Press this pushbutton to go to
the previous track if the current track has been playing
for less than eight seconds. If this pushbutton is pressed
and the current track has been playing for more than
eight seconds, it will go to the beginning of the current
track. TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
2 NEXT: Press this pushbutton to go to the next track.
TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving forward through
the disc. The sound will mute while seeking.

3-28
PWR (Power): Press this button to turn the rear seat
audio system on or off. The rear speakers will be muted
when the power is turned on. You may operate the rear
seat audio functions even when the primary radio power
is off.
VOL (Volume): Press this knob lightly so it extends.
Turn the knob clockwise to increase volume and
counterclockwise to decrease volume. Push the knob
back into its stored position when you're not using it.
The upper knob controls the upper headphone and the
lower knob controls the lower headphone.
AM FM: Press this button to switch between AM, FM1
and FM2. If the front passengers are already listening to
AM FM, the RSA controller will not switch between the
bands and cannot change the frequency.
Press AM FM to return to listening to the radio when a
cassette tape or CD is playing. The inactive tape or CD
will remain safely inside the radio for future listening. SEEK : While listening to AM, FM1 or FM2,
press the up arrow to tune to the next station and stay
there. Press the down arrow to tune to the previous
station and stay there. The sound will mute while
seeking. This button is inactive if the AM, FM1 or
FM2 mode on the front radio is in use.
While listening to a cassette tape, press the up arrow to
hear the next selection on the tape. Press the down arrow
to go back to the previous selection. The SEEK button is
inactive if the tape mode on the front radio is in use.
While listening to a CD, press the up arrow to hear
the next track on the CD. Press the down arrow to go
back to the start of the current track (if more than eight
seconds have played). The SEEK button is inactive if
the CD mode on the front radio is in use.
To scan preset stations, press and hold SEEK until the
radio goes into scan mode. The radio will go to a station,
play for a few seconds, then go on to the next station.
Press either SEEK arrow again to stop scanning. The
scan function is inactive if the AM, FM1 or FM2 mode
on the front radio is in use.

4-11
An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o'clock positions, you can
turn it a full 180 degrees very quickly without removing
either hand. But you have to act fast, steer quickly, and
just as quickly straighten the wheel once you have
avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving at
all times and wear safety belts properly.
Off-Road Recovery
You may find that your right wheels have dropped off the
edge of a road onto the shoulder while you're driving.
If the level of the shoulder is only slightly below the
pavement, recovery should be fairly easy. Ease off the
accelerator and then, if there is nothing in the way, steer so
that your vehicle straddles the edge of the pavement. You
can turn the steering wheel up to one
-quarter turn until the
right front tire contacts the pavement edge. Then turn your
steering wheel to go straight down the roadway.

5-14 How to Add Coolant to the Radiator
You can remove the
radiator pressure cap
when the cooling
system, including
the radiator pressure
cap and upper
radiator hose, is
no longer hot.
1. Turn the pressure cap slowly counterclockwise
until it first stops. (Don't press down while turning
the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
2. Then keep turning the
pressure cap, but now
push down as you
turn it. Remove the
pressure cap.

5-19 Removing the Spare Tire and Tools
The jacking equipment you'll need is stored by your
vehicle's rear doors, along the passenger's side wall.
1. Remove the jack cover by pulling it away from the
side wall and down to release the tabs securing the
top of the cover.
2. Remove the wheel blocks by turning the top nut
counterclockwise. Remove the nut and washer, then
pull the wheel blocks off the bolt.
3. Push down on the bolt and remove the hooked end
from the slot. Slide the jack toward the front of the
vehicle and lift it from the mounting. Remove the
extension and the ratchet from the pouch.

5-21
5. Put the flat end of the extension on an angle through
the hole in the rear door frame, above the bumper.
Be sure the flat end connects into the hoist shaft.
6. Turn the ratchet counterclockwise to lower the
compact spare tire to the ground. Keep turning the
ratchet until the spare tire can be pulled out from
under the vehicle.
7. When the tire has been
lowered, tilt the retainer
plate at the end of the
cable and pull it through
the wheel opening.
8. Pull the tire out from under the vehicle.
NOTICE:
To help avoid vehicle damage, do not drive the
vehicle before the cable is restored.

5-24
4. Attach the ratchet to the extension with the UP side
facing you.
5. Turn the ratchet clockwise. That will raise the jack
lift head a little.6. Position the jack under the vehicle.

5-27

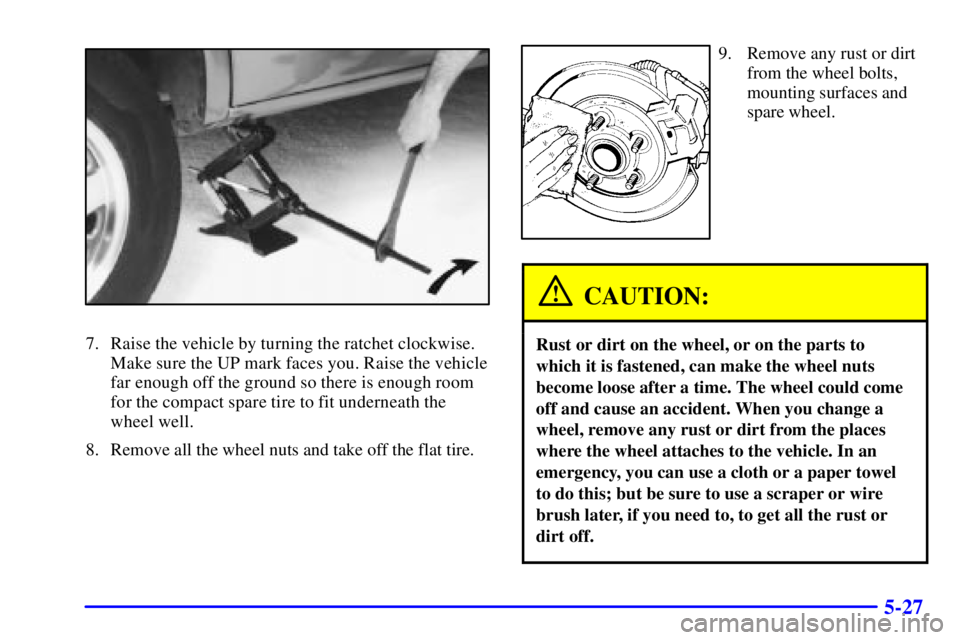

7. Raise the vehicle by turning the ratchet clockwise.
Make sure the UP mark faces you. Raise the vehicle
far enough off the ground so there is enough room
for the compact spare tire to fit underneath the
wheel well.
8. Remove all the wheel nuts and take off the flat tire.
9. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
