key GMC SAFARI 2002 Owner's Manual

1-9
Removing the Rear Seats
To remove the rear seats, do the following:
1. If you are removing the
center seat, remove the
right lap
-shoulder belt.
To do this, press the tip
of a key into the release
hole of the safety belt
attachment while pulling
up on the safety belt.
2. If you have a safety
belt guide on your seat,
pull the safety belt all
the way out through
the guide.
3. To store the safety belt while the second row bench
seat is removed, pull the belt out and put both
buckles in the passenger's side rear storage bin.
Route the belt out of the forward edge of the storage
bin. Close the cover to retain the belt.
4. Pull up on the seatback latch on the right rear of the
seat. Push the seatback down until it locks into place.

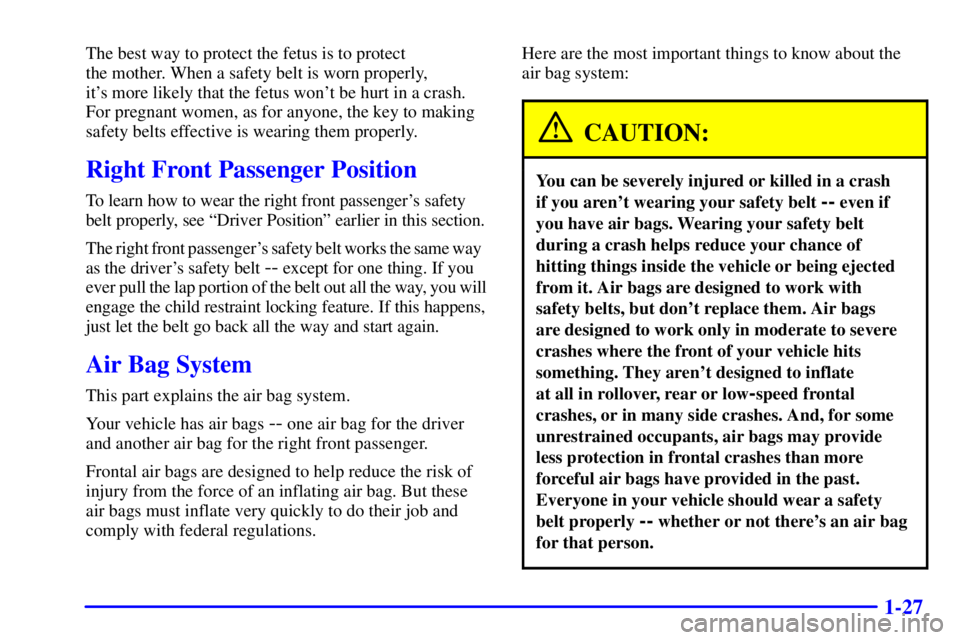

1-27
The best way to protect the fetus is to protect
the mother. When a safety belt is worn properly,
it's more likely that the fetus won't be hurt in a crash.
For pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's safety
belt properly, see ªDriver Positionº earlier in this section.
The right front passenger's safety belt works the same way
as the driver's safety belt
-- except for one thing. If you
ever pull the lap portion of the belt out all the way, you will
engage the child restraint locking feature. If this happens,
just let the belt go back all the way and start again.
Air Bag System
This part explains the air bag system.
Your vehicle has air bags
-- one air bag for the driver
and another air bag for the right front passenger.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inflating air bag. But these
air bags must inflate very quickly to do their job and
comply with federal regulations.Here are the most important things to know about the
air bag system:
CAUTION:
You can be severely injured or killed in a crash
if you aren't wearing your safety belt
-- even if
you have air bags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being ejected
from it. Air bags are designed to work with
safety belts, but don't replace them. Air bags
are designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren't designed to inflate
at all in rollover, rear or low
-speed frontal
crashes, or in many side crashes. And, for some
unrestrained occupants, air bags may provide
less protection in frontal crashes than more
forceful air bags have provided in the past.
Everyone in your vehicle should wear a safety
belt properly
-- whether or not there's an air bag
for that person.

1-33

Your vehicle is equipped with a crash sensing and
diagnostic module, which records information about
the air bag system. The module records information
about the readiness of the system, when the system
commands air bag inflation and driver's safety belt
usage at deployment. The module also records speed,
engine rpm, brake and throttle data.

Let only qualified technicians work on your air bag
system. Improper service can mean that your air
bag system won't work properly. See your dealer
for service.
NOTICE:
If you damage the covering for the driver's or the
right front passenger's air bag, the bag may not
work properly. You may have to replace the air
bag module in the steering wheel or both the air
bag module and the instrument panel for the
right front passenger's air bag. Do not open or
break the air bag coverings.
Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag system in several places
around your vehicle. You don't want the system to
inflate while someone is working on your vehicle.
Your dealer and the service manual have information
about servicing your vehicle and the air bag system.
To purchase a service manual, see ªService and Owner
Publicationsº in the Index.
CAUTION:
For up to 10 minutes after the ignition key is
turned off and the battery is disconnected, an
air bag can still inflate during improper service.
You can be injured if you are close to an air bag
when it inflates. Avoid wires wrapped with yellow
tape or yellow connectors. They are probably part
of the air bag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you is qualified to do so.
The air bag system does not need regular maintenance.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Front Doors
2
-6 Rear Doors
2
-8 Door Locks
2
-10 Keyless Entry System (Option)
2
-13 Sliding Door
2
-16 Rear Hatch/Rear Doors
2
-17 Theft
2
-18 Passlock

2-18 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-20 Starting Your Engine
2
-22 Engine Coolant Heater (If Equipped)
2
-23 Automatic Transmission Operation
2
-26 Parking Brake
2
-27 Shifting Into PARK (P)
2
-30 Shifting Out of PARK (P)
2
-30 Parking Over Things That Burn2
-31 Engine Exhaust
2
-31 Running Your Engine While You're Parked
2
-32 Locking Rear Axle (If Equipped)
2
-32 All-Wheel Drive (Option)
2
-32 Horn
2
-33 Tilt Wheel (If Equipped)
2
-33 Turn Signal/Multifunction Lever
2
-40 Exterior Lamps
2
-43 Interior Lamps
2
-45 Mirrors
2
-46 Storage Compartments
2
-55 Ashtrays and Cigarette Lighter
2
-56 Sun Visors
2
-56 Accessory Power Outle
2
-57 HomeLink
Transmitter (Option)
2
-60 The Instrument Panel - Your
Information System
2
-63 Warning Lights, Gages and Indicators

2-4
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

2-5
This vehicle has one
double
-sided key for the
ignition and door locks. It
will fit with either side up.
When a new vehicle is delivered, the dealer provides the
owner with a pair of identical keys and a bar
-coded tag.
The bar
-coded tag has a code on it that tells your dealer
or a qualified locksmith how to make extra keys. Keep
this tag in a safe place. If you lose your keys, you'll be
able to have new ones made easily using this tag.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.
If you ever do get locked out of your vehicle, call GM
Roadside Assistance Center. See ªRoadside Assistanceº
in the index.

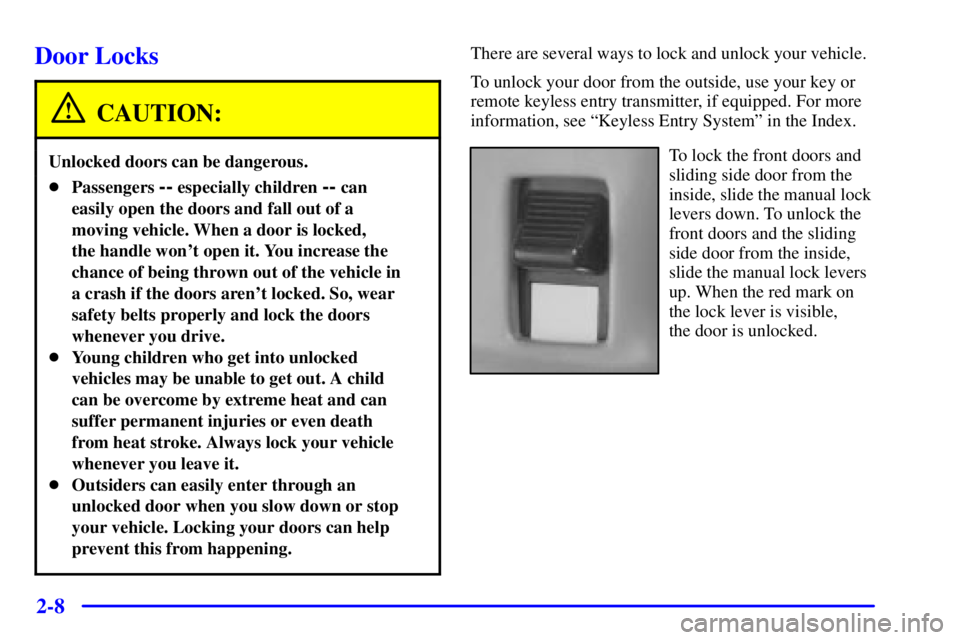

2-8
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
To unlock your door from the outside, use your key or
remote keyless entry transmitter, if equipped. For more
information, see ªKeyless Entry Systemº in the Index.
To lock the front doors and
sliding side door from the
inside, slide the manual lock
levers down. To unlock the
front doors and the sliding
side door from the inside,
slide the manual lock levers
up. When the red mark on
the lock lever is visible,
the door is unlocked.

2-9 Power Door Locks (If Equipped)
If your vehicle has power
door locks, press the power
door lock switch located on
the door panel to lock or
unlock all the doors at once.
The power door lock switch will lock or unlock the rear hatch
and Dutch doors. See ªHatch Releaseº in the Index.
When a door is locked, the inside door handle will not
open the door. This will help stop a door from being
accidentally opened.
If the sliding door is open and you press the power door
lock switch, the sliding door will not lock immediately.
After you close the door, the system comes on and locks
the sliding door in about five seconds.
When the key is in the ignition and the power door lock
switch is pressed with a door open, all doors are locked
while the driver's side door remains unlocked.
Programmable Automatic Door Locks
(If Equipped)
Your vehicle is equipped with an auto lock/unlock
feature which enables you to program your power
door locks.
Your vehicle left the factory programmed to have all the
doors lock automatically when the shift lever is moved
out of PARK (P). All of the doors will unlock when the
shift lever is moved back into PARK (P). The following
instructions detail how to program your door locks.
To enter the program mode you need to do
the following:
1. Begin with the ignition in OFF. Then, pull back on
the turn signal/multifunction lever all the way toward
you and hold it while you perform the next step.
2. Turn your key to ON and OFF twice. Then, with the
key in OFF, release the turn signal/multifunction
lever. Once you do this, you will hear the lock switch
lock and unlock.

2-10
3. You are now ready to program the automatic door
locks. Select one of the following four programming
options and follow the instructions. You will have
thirty seconds to begin programming. If you exceed
the thirty second limit, the locks will automatically
lock and unlock to indicate that you have left the
program mode. If this occurs, repeat the procedure
beginning with Step 1. You can exit the program
mode any time by turning the ignition to ON (the
locks will automatically lock and unlock to indicate
that you are leaving the program mode). If the
lock/unlock switches are not pressed while in the
programming mode, the auto lock/unlock setting will
not be modified.
The following is a list of the available programming options:

All doors lock/Only the driver's door unlocks:
Press the lock side of the power lock switch on the
door panel once and then the unlock side once.

All doors lock/All doors unlock: Press the lock side
of the power lock switch on the door panel once, and
then the unlock side twice.

All doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
once, and then the unlock side three times.
No doors lock/None of the doors unlock: Press the
lock side of the power lock switch on the door panel
twice. This turns off the automatic lock feature.
For more information, see your dealer.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System (Option)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

2-11
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
UNLOCK: When you press
UNLOCK, the driver's door
will unlock automatically,
the parking lamps will
flash and the interior lights
will go on.
If you press UNLOCK again within three seconds, all
doors will unlock, the parking lamps will flash and the
interior lights will go on.
LOCK: Press LOCK to lock all the doors. Press LOCK
again within three seconds and the horn will chirp.
REAR 2X: When you press the REAR button twice
within three seconds to unlock the rear hatch or cargo
doors, the parking lamps will flash and the interior lights
will go on. If the engine is running, the automatic
transmission must be in PARK (P) or NEUTRAL (N)
for the REAR 2X button to operate.
