GMC SAVANA 1997 Owners Manual

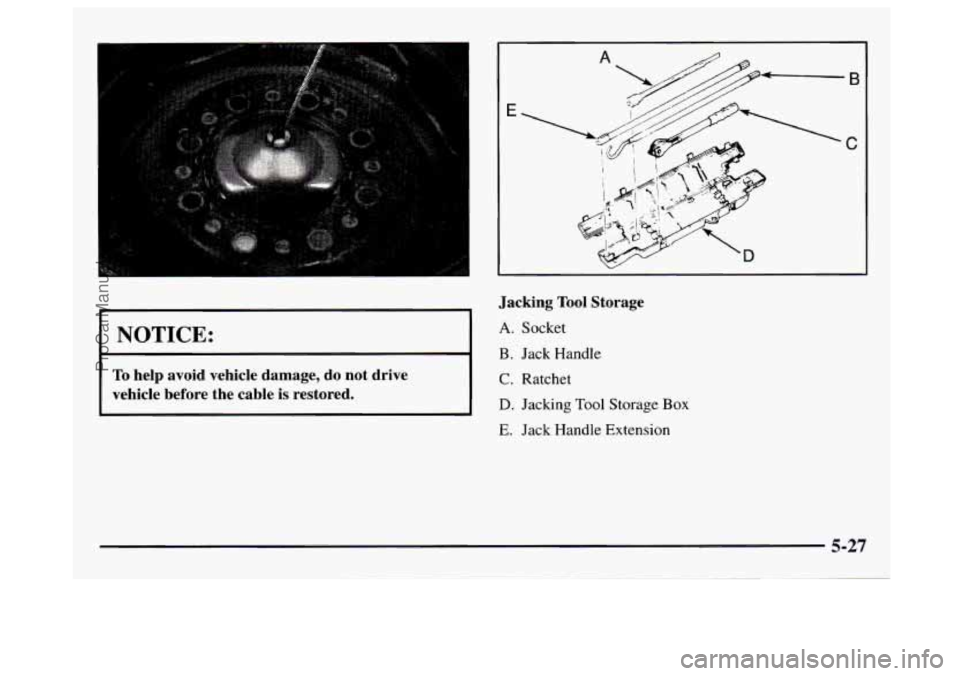

NOTICE:
To help avoid vehicle damage, do not drive
vehicle before the cable is restored.
B
C
Jacking Tool Storage
A. Socket
B. Jack Handle
C. Ratchet
D. Jacking Tool Storage Box
E. Jack Handle Extension
5-27
ProCarManuals.com

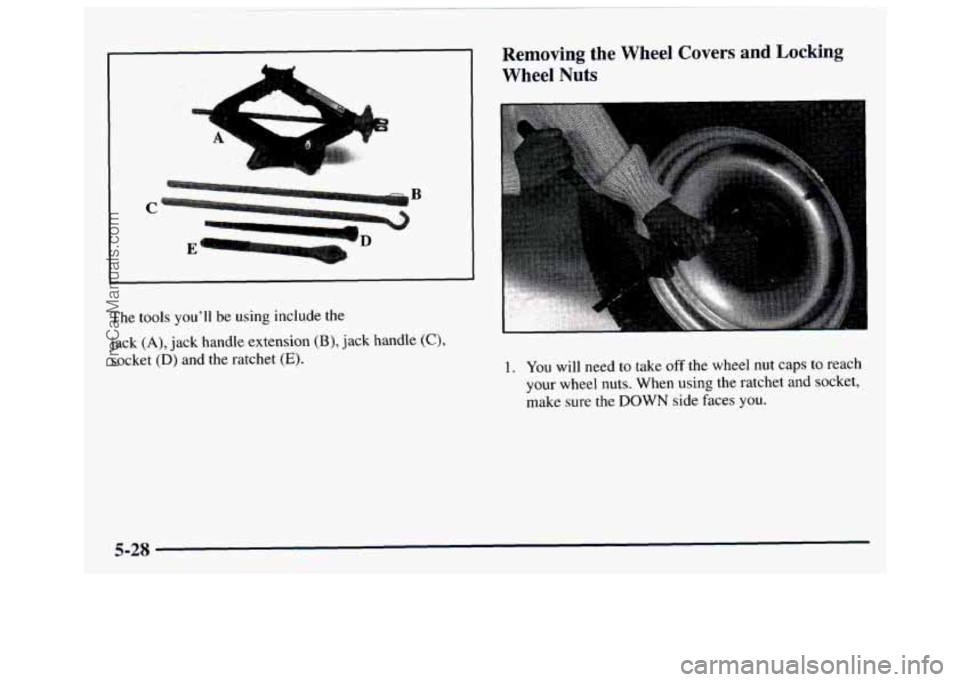

The tools you’ll be using include the
jack
(A), jack handle extension (B), jack handle (C),
socket (D) and the ratchet (E).
Removing the Wheel Covers and Locking
Wheel Nuts
1. You will need to take off the wheel nut caps to reach
your wheel nuts. When using the ratchet and socket,
make sure the
DOWN side faces you.
5-28
ProCarManuals.com

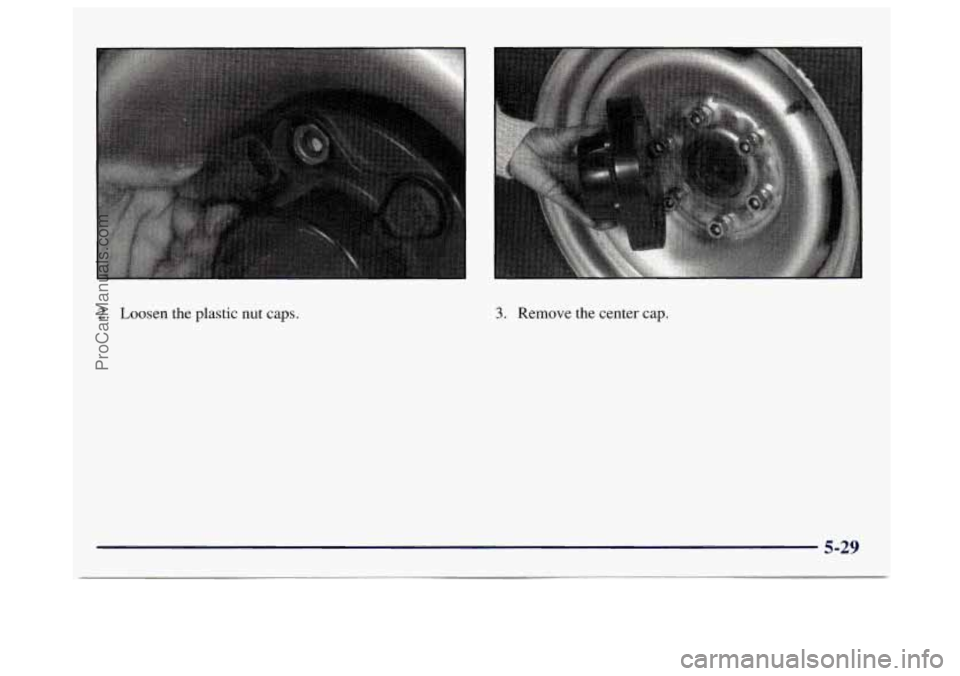

2. Loosen the plastic nut caps. 3. Remove the center cap.
5-29
ProCarManuals.com

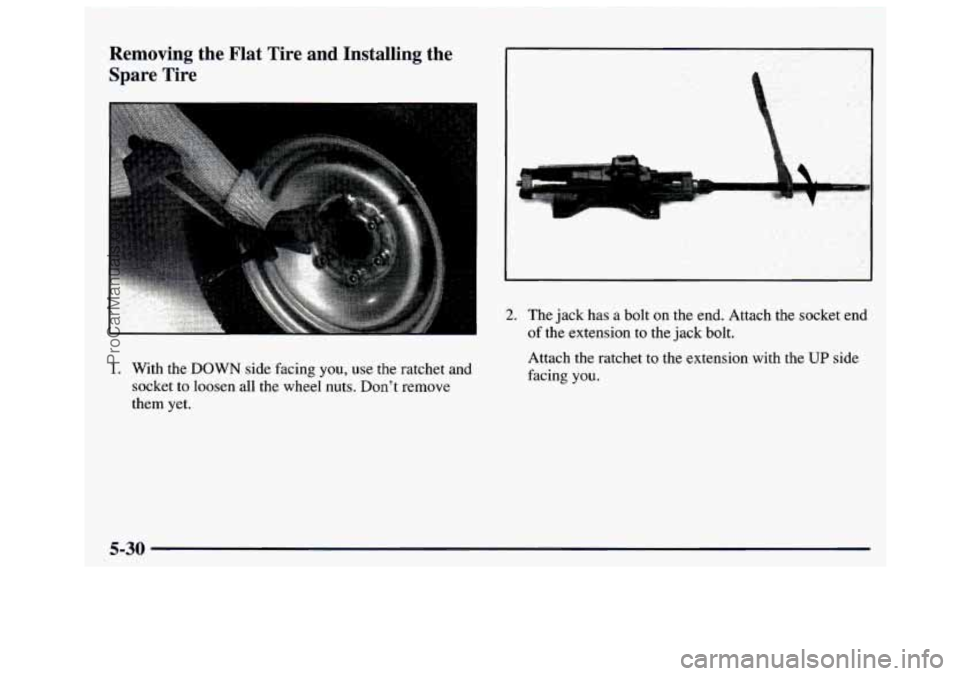

Removing the Flat Tire and Installing the Spare Tire
1. With the DOWN side facing you, use the ratchet and
socket to loosen all the wheel nuts. Don't remove
them yet.
2. The jack has a bolt on the end. Attach the socket end
of the extension to the jack bolt.
Attach the ratchet
to the extension with the UP side
facing
you.
5-30
ProCarManuals.com

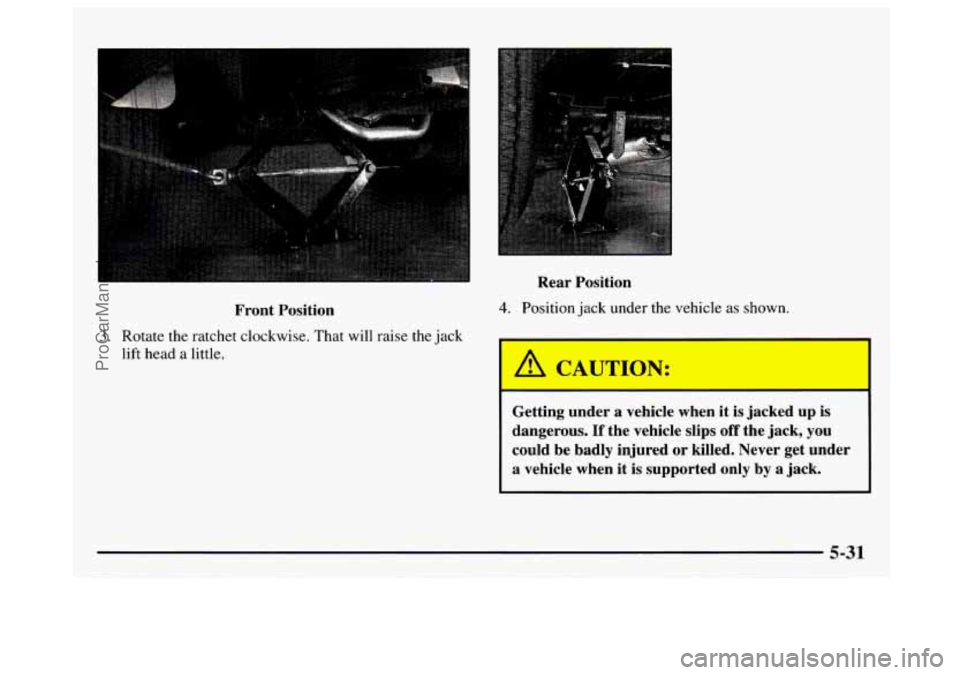

Front Position
3. Rotate the ratchet clockwise. That will raise the jack
lift head a little.
Rear Position
4. Position jack under the vehicle as shown.
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only
by a jack.
5-31
ProCarManuals.com

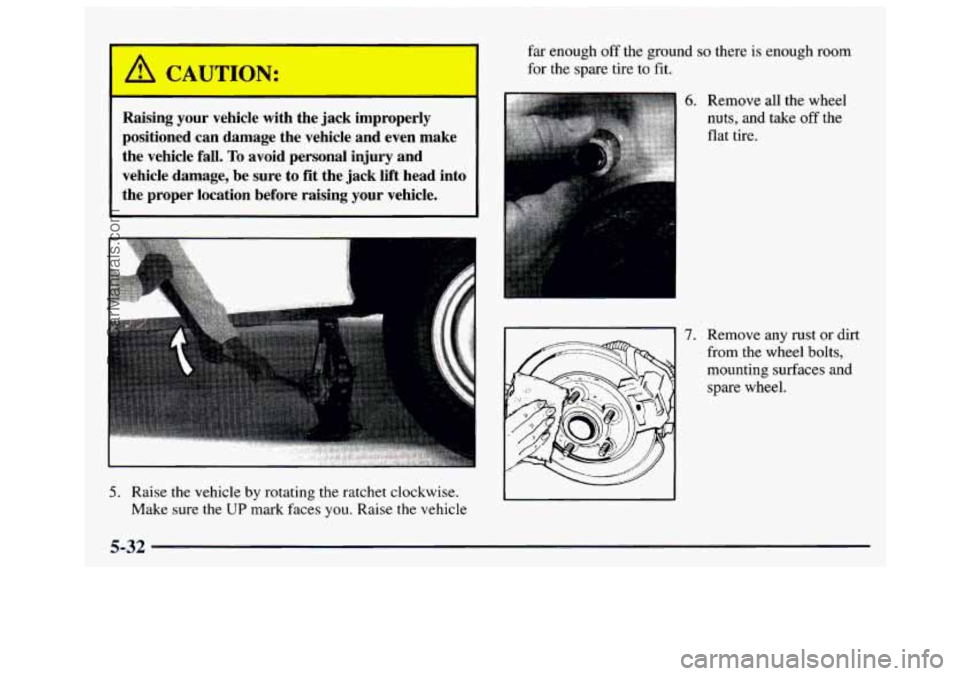

A CAUTION: I
far enough off the ground so there is enough room
for the spare tire
to fit.
r
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall.
To avoid personal injury and
vehicle damage, be sure to fit the jack lift head into
5. Raise the vehicle by rotating the ratchet clockwise.
Make sure the
UP mark faces you. Raise the vehicle
6. Remove all the wheel
nuts, and
take off the
flat tire.
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
ProCarManuals.com

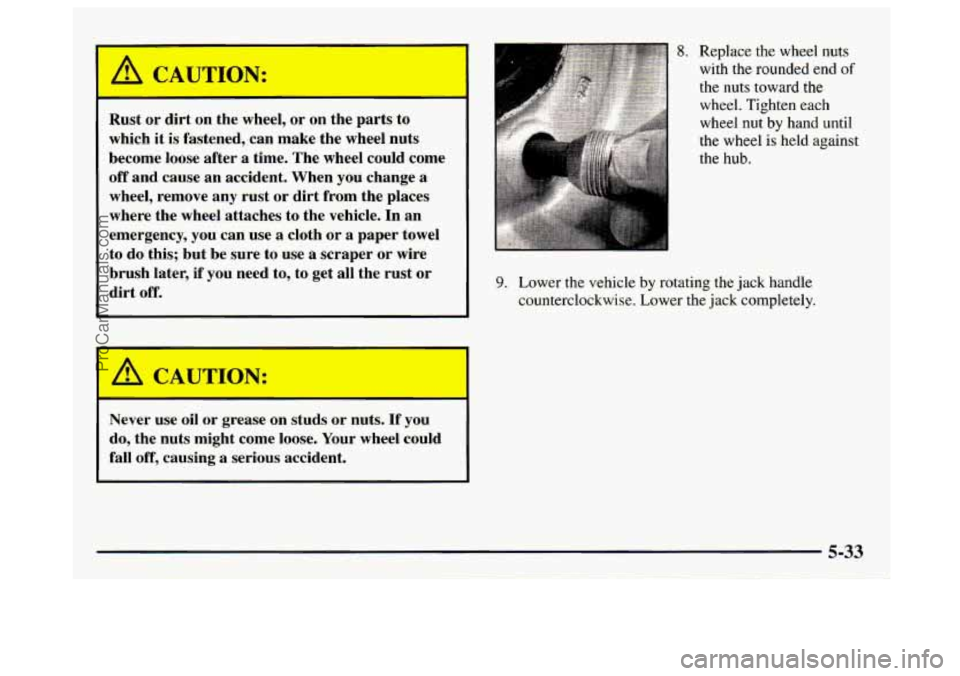

k, CAUTION:
---
Rust or dirt on the wheel, or on the parts to
which it
is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use
a cloth or a paper towel
to do this; but be sure to use
a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
C WTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
i. , Replace the wheel nuts
with the rounded end of
the nuts toward the
wheel. Tighten each
wheel nut
by hand until
the wheel
is held against
the hub.
9. Lower the vehicle by rotating the jack handle
counterclockwise. Lower the jack completely.
5-33
ProCarManuals.com

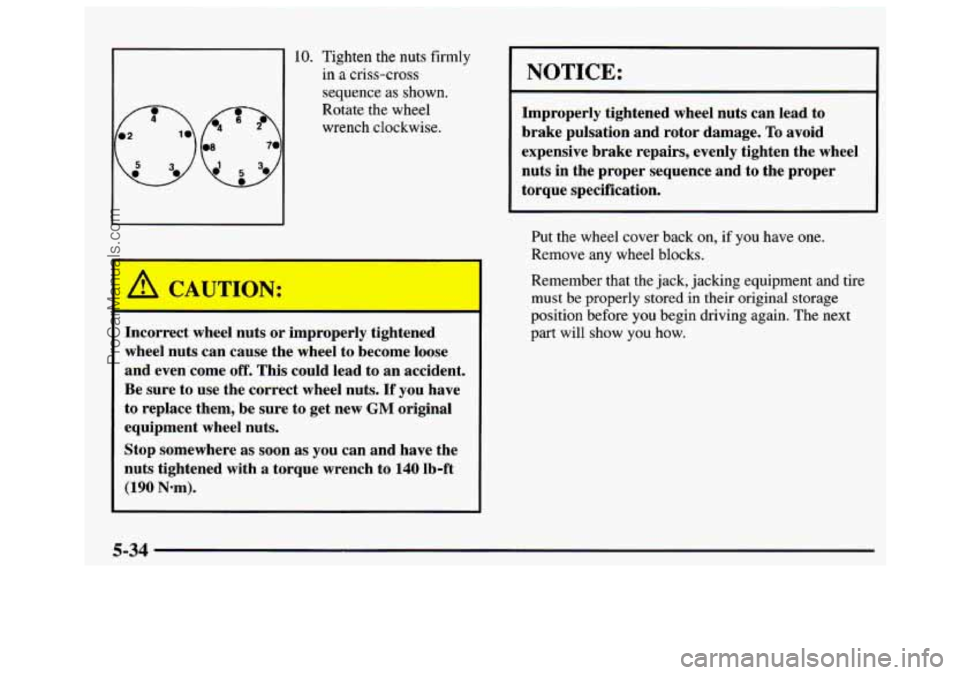

10. Tighten the nuts firmly
in a criss-cross
sequence as shown.
p
Rotate the wheel
wrench clockwise.
A CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere as soon as
you can and have the
nuts tightened with a torque wrench to
140 lb-ft
(190 Nm).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Put the wheel cover back on, if you have one.
Remove any wheel blocks.
Remember that the jack, jacking equipment and tire
must be properly stored
in their original storage
position before
you begin driving again. The next
part will
show you how.
5-34
ProCarManuals.com

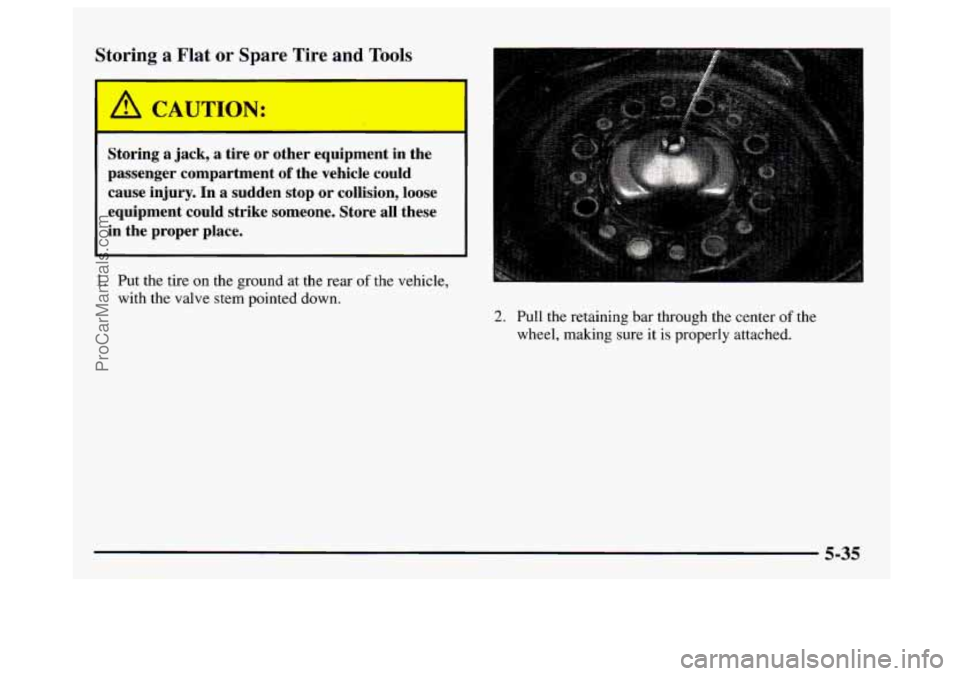

Storing a Flat or Spare Tire and Tools
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In
a sudden stop or collision, loose
equipment could strike someone. Store all these in the proper place.
1. Put the tire on the ground at the rear of the vehicle,
with the valve stem pointed down.
2. Pull the retaining bar through the center of the
wheel, making sure it is properly attached.
5-35
ProCarManuals.com

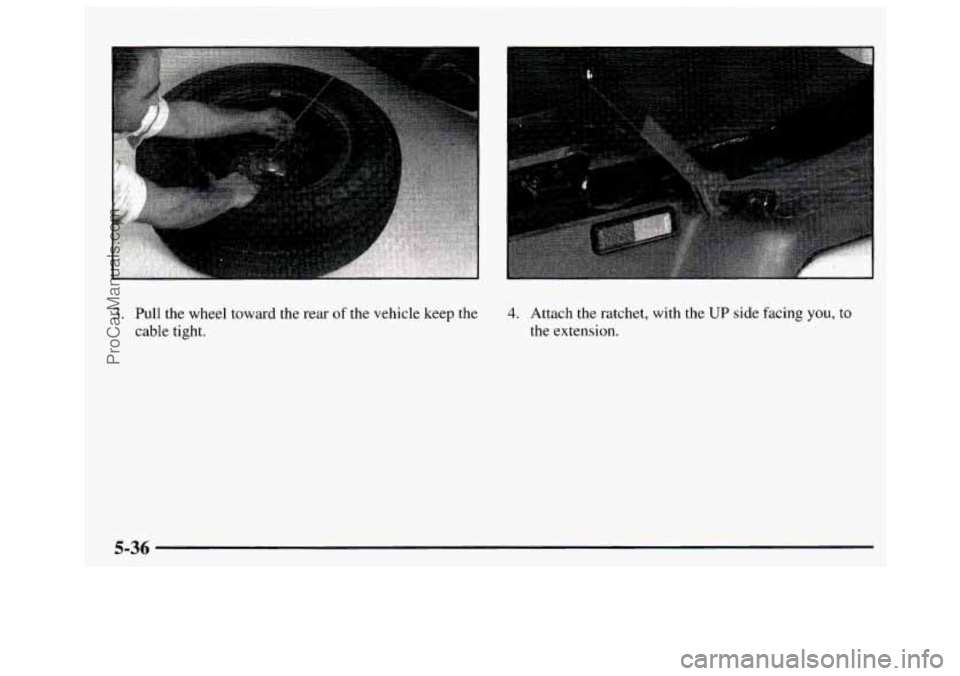

3. Pull the wheel toward the rear of the vehicle keep the 4. Attach the ratchet, with the UP side facing you, to
cable tight. the extension.
