Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.
Page 12 of 412
x
Model Reference
This manual covers these models:
Passenger Van
Cargo Van
Cab and Chassis
Page 13 of 412

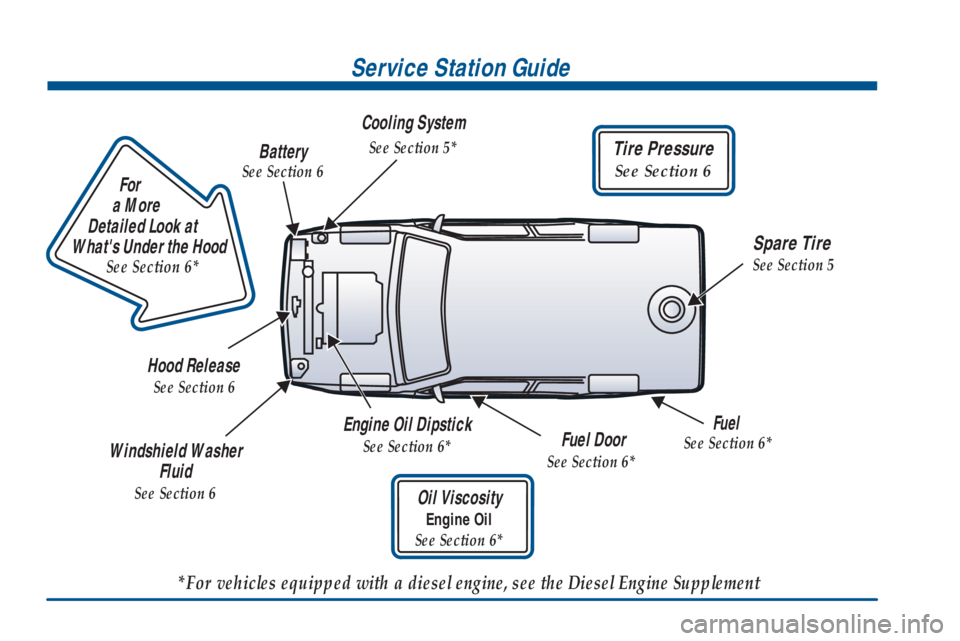

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6*
Engine Oil Dipstick
See Section 6*
Fuel
See Section 6*
Cooling System
See Section 5*
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire
See Section 5
Battery
See Section 6
Fuel Door
See Section 6*
Tire Pressure
See Section 6
For
a More
Detailed Look at
What's Under the Hood
See Section 6*
*For vehicles equipped with a diesel engine, see the Diesel Engine Supplement
Page 14 of 412
1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-10 Safety Belts: They're for Everyone
1
-15 Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
1
-16 How to Wear Safety Belts Properly
1
-16 Driver Position
1
-24 Safety Belt Use During Pregnancy
1
-25 Right Front Passenger Position
1
-25 Air Bag System
1
-34 Rear Seat Passengers1
-38 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
-40 Center Passenger Position
1
-42 Children
1
-48 Restraint Systems for Children
1
-61 Older Children
1
-64 Safety Belt Extender
1
-64 Checking Your Restraint Systems
1
-64 Replacing Restraint System Parts
After a Crash
Page 15 of 412
1-2
Seats and Seat Controls
This part tells you about the seats -- how to adjust them,
take them out and put them back in. It also tells you
about reclining front seatbacks.

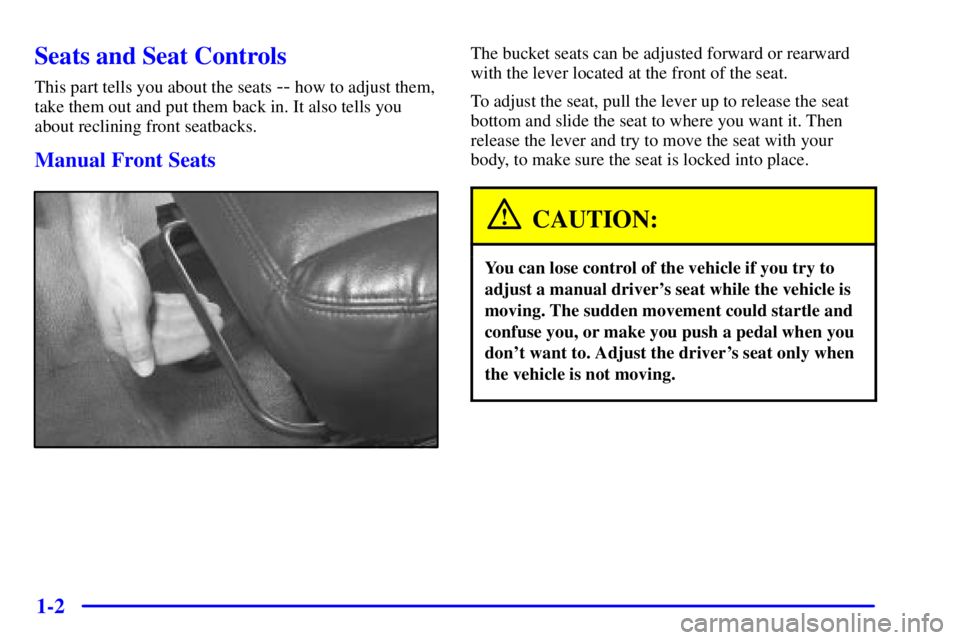

Manual Front Seats
The bucket seats can be adjusted forward or rearward
with the lever located at the front of the seat.
To adjust the seat, pull the lever up to release the seat
bottom and slide the seat to where you want it. Then
release the lever and try to move the seat with your
body, to make sure the seat is locked into place.
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Page 16 of 412

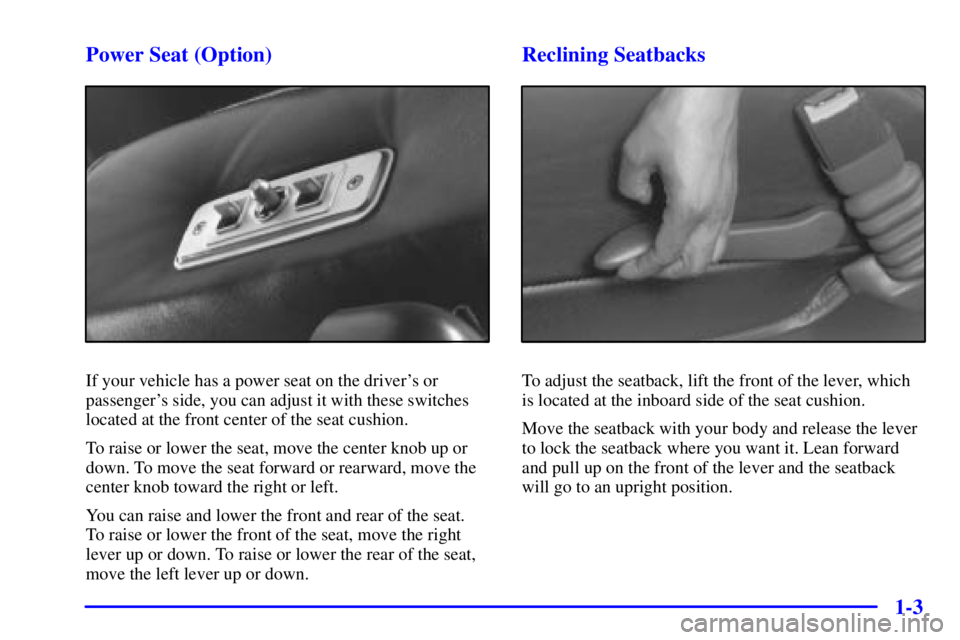

1-3 Power Seat (Option)
If your vehicle has a power seat on the driver's or
passenger's side, you can adjust it with these switches
located at the front center of the seat cushion.
To raise or lower the seat, move the center knob up or
down. To move the seat forward or rearward, move the
center knob toward the right or left.
You can raise and lower the front and rear of the seat.
To raise or lower the front of the seat, move the right
lever up or down. To raise or lower the rear of the seat,
move the left lever up or down.
Reclining Seatbacks
To adjust the seatback, lift the front of the lever, which
is located at the inboard side of the seat cushion.
Move the seatback with your body and release the lever
to lock the seatback where you want it. Lean forward
and pull up on the front of the lever and the seatback
will go to an upright position.
Page 17 of 412

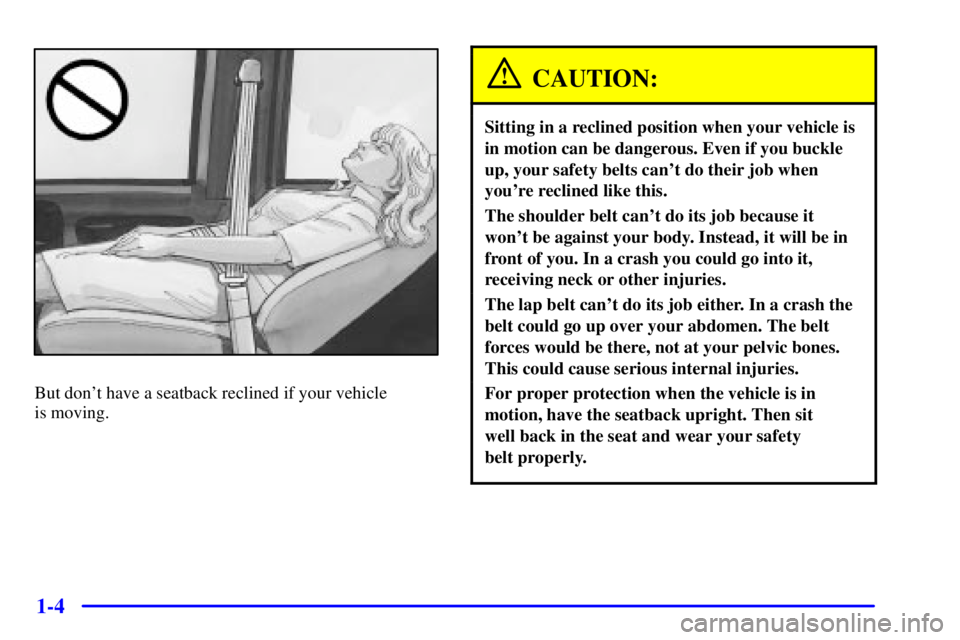

1-4
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Page 18 of 412
1-5 Rear Seats
Getting Into the Rear Seats
To make it easier for passengers to get into the rear
seats, use the fastener spot on the headliner and safety
belt sleeve. These will keep the safety belts out of the
way while people get into the rear seats.

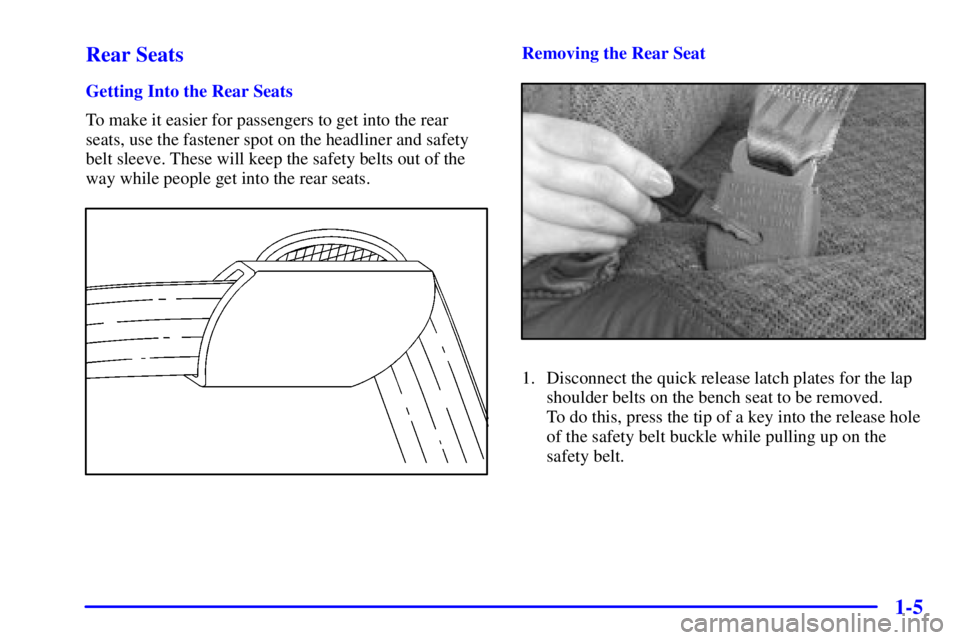

Removing the Rear Seat
1. Disconnect the quick release latch plates for the lap
shoulder belts on the bench seat to be removed.
To do this, press the tip of a key into the release hole
of the safety belt buckle while pulling up on the
safety belt.
Page 19 of 412
1-6
2. Lift the carpet/mat flap at the inboard side of the seat
base in the rear.3. Locate the blue or yellow handle on the inboard side
of the seat base and turn it up.
4. Once the blue or yellow handle is turned up, pull the
handle to remove the locking pin.
Page 20 of 412
1-7

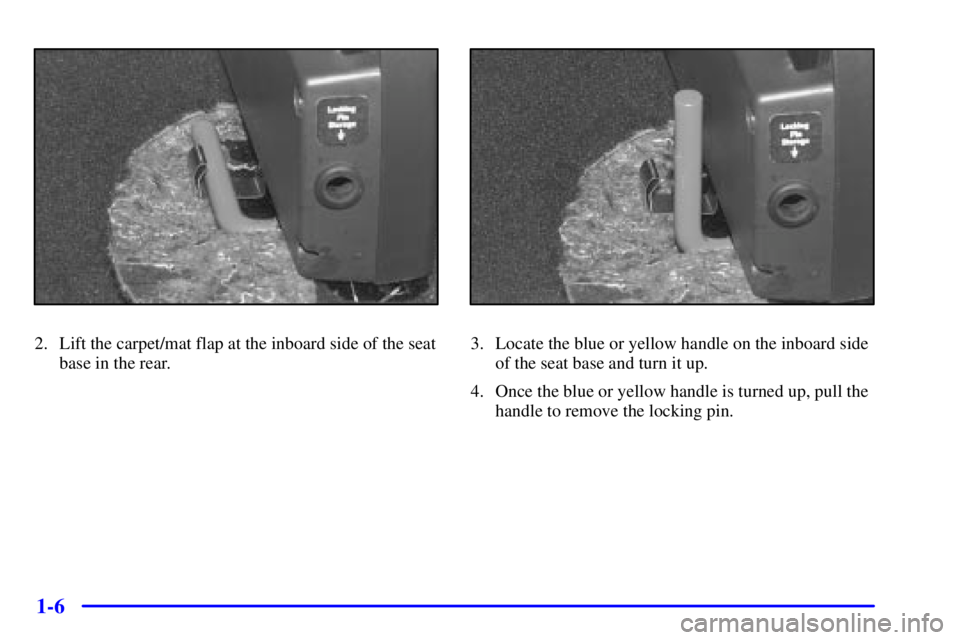

5. Stow the locking pin on the rear of the seat base in
the hole that is provided.
6. Repeat this procedure for the pin on the other
seat base.
7. Pull the seat rearward about two inches (5 cm) and
then lift the seat from the floor rails.
8. Remove the seat from the vehicle.

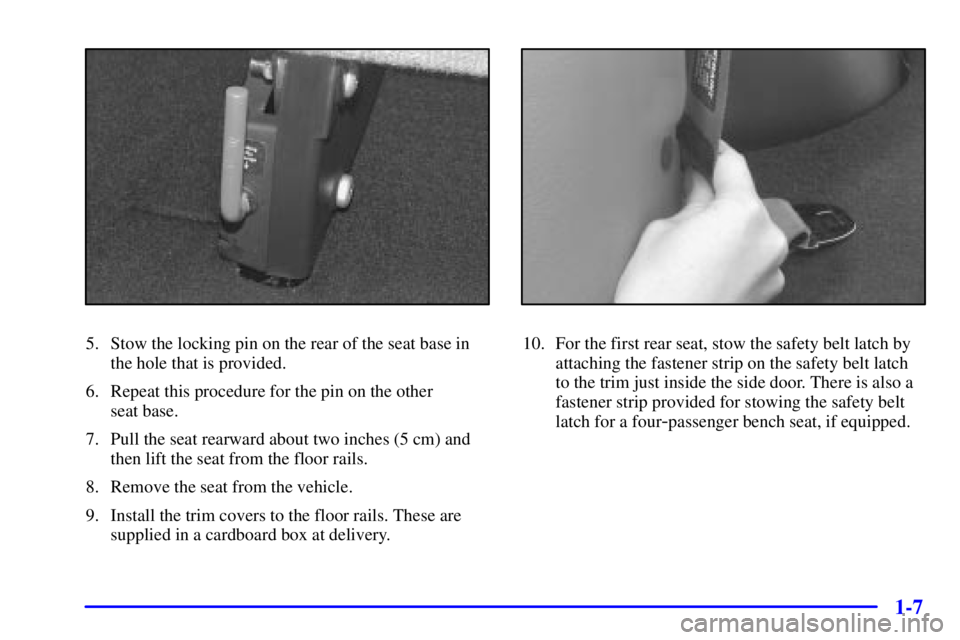

9. Install the trim covers to the floor rails. These are
supplied in a cardboard box at delivery.10. For the first rear seat, stow the safety belt latch by
attaching the fastener strip on the safety belt latch
to the trim just inside the side door. There is also a
fastener strip provided for stowing the safety belt
latch for a four
-passenger bench seat, if equipped.
