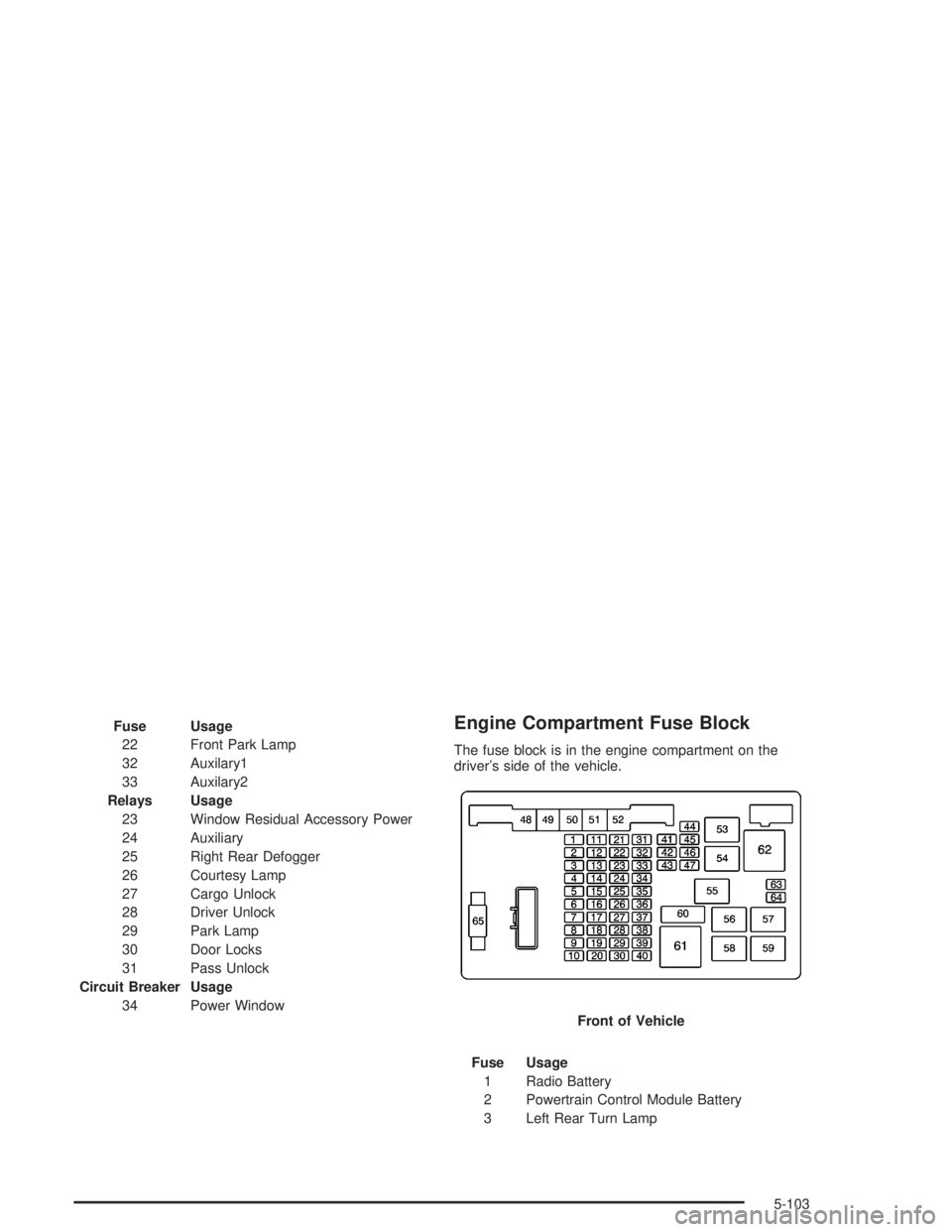

Fuse Usage
22 Front Park Lamp
32 Auxilary1
33 Auxilary2
Relays Usage
23 Window Residual Accessory Power
24 Auxiliary
25 Right Rear Defogger
26 Courtesy Lamp
27 Cargo Unlock
28 Driver Unlock
29 Park Lamp
30 Door Locks
31 Pass Unlock
Circuit Breaker Usage
34 Power WindowEngine Compartment Fuse Block
The fuse block is in the engine compartment on the
driver’s side of the vehicle.
Fuse Usage
1 Radio Battery
2 Powertrain Control Module Battery
3 Left Rear Turn LampFront of Vehicle
5-103

Fuse Usage
40 Oxygen Sensor A
41 Windshield Wipers
42 Right Headlamp — Low Beam
43 Left Headlamp — Low Beam
44 Left Headlamp — High Beam
45 Right Headlamp — High Beam
46 Truck Body Control Module-Accessory
47 Front Windshield Wiper
48 Anti-Lock Brakes
49 Ignition A
50 Trailer
51 Climate Control Blower
52 Ignition BFuse Usage
63 Spare
64 Spare
Relay Usage
53 Windshield Wiper
54 Air Conditioning
55 Spare
56 Headlamp —High Beam
57 Fuel Pump
58 Headlamp — Low Beam
59 Horn
61 Starter
62 Spare
Circuit
BreakerUsage
60 Power Seat
