power steering fluid GMC SAVANA 2018 Owner's Manual

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
162 Driving and Operating
.Focus on the task of driving.
Drunk Driving
Death and injury associated with
drinking and driving is a global
tragedy.
{Warning
Drinking and then driving is very
dangerous. Your reflexes,
perceptions, attentiveness, and
judgment can be affected by even
a small amount of alcohol. You
can have a serious —or even
fatal —collision if you drive after
drinking.
Do not drink and drive or ride with
a driver who has been drinking.
Ride home in a cab; or if you are
with a group, designate a driver
who will not drink.
Control of a Vehicle
Braking, steering, and accelerating
are important factors in helping to
control a vehicle while driving.
Braking
Braking action involves perception
time and reaction time. Deciding to
push the brake pedal is perception
time. Actually doing it is
reaction time.
Average driver reaction time is
about three-quarters of a second. In
that time, a vehicle moving at
100 km/h (60 mph) travels 20 m
(66 ft), which could be a lot of
distance in an emergency.
Helpful braking tips to keep in mind
include:
. Keep enough distance between
you and the vehicle in front
of you.
. Avoid needless heavy braking.
. Keep pace with traffic.
If the engine ever stops while the
vehicle is being driven, brake
normally but do not pump the
brakes. Doing so could make the
pedal harder to push down. If the
engine stops, there will be some
power brake assist but it will be
used when the brake is applied. Once the power assist is used up, it
can take longer to stop and the
brake pedal will be harder to push.
Steering
Hydraulic Power Steering
Your vehicle has hydraulic power
steering. It may require
maintenance. See
Power Steering
Fluid 0233.
If power steering assist is lost
because the engine stops or
because of a system malfunction,
the vehicle can be steered but may
require increased effort. See your
dealer if there is a problem.
Caution
If the steering wheel is turned
until it reaches the end of its
travel, and is held in that position
for more than 15 seconds,
damage may occur to the power
steering system and there may be
loss of power steering assist.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
Vehicle Care 211
Vehicle Care
General Information
General Information . . . . . . . . . . 212
California Proposition65 Warning . . . . . . . . . . . . . . . . . 212
California Perchlorate Materials Requirements . . . . . 213
Accessories and Modifications . . . . . . . . . . . . . . . . 213
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 213
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 214
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 215
Engine Oil . . . . . . . . . . . . . . . . . . . . 218
Engine Oil Life System . . . . . . . 220
Automatic Transmission Fluid (6-Speed Transmission) . . . . . 221
Automatic Transmission Fluid (8-Speed Transmission) . . . . . 224
Engine Air Cleaner/Filter . . . . . . 225
Cooling System . . . . . . . . . . . . . . 226
Engine Overheating . . . . . . . . . . 231
Engine Fan . . . . . . . . . . . . . . . . . . . 232
Power Steering Fluid . . . . . . . . . 233
Washer Fluid . . . . . . . . . . . . . . . . . 233 Brakes . . . . . . . . . . . . . . . . . . . . . . . 234
Brake Fluid . . . . . . . . . . . . . . . . . . . 235
Battery - North America . . . . . . 236
Rear Axle . . . . . . . . . . . . . . . . . . . . 237
Noise Control System . . . . . . . . 238
Starter Switch Check . . . . . . . . . 239
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 239
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 240
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 240
Wiper Blade Replacement . . . . 240
Windshield Replacement . . . . . 241
Gas Strut(s) . . . . . . . . . . . . . . . . . . 241
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 242
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 243
Halogen Bulbs . . . . . . . . . . . . . . . . 243
Front Turn Signal, Sidemarker, and Parking Lamps . . . . . . . . . 243
Taillamps . . . . . . . . . . . . . . . . . . . . . 243
Center High-Mounted Stoplamp (CHMSL) . . . . . . . . . 245
License Plate Lamp . . . . . . . . . . 245
Electrical System
Electrical System Overload . . . 246
Fuses and Circuit Breakers . . . 246
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 247
Floor Console Fuse Block . . . . 251
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 253
All-Season Tires . . . . . . . . . . . . . . 253
Winter Tires . . . . . . . . . . . . . . . . . . 254
All-Terrain Tires . . . . . . . . . . . . . . . 254
Tire Sidewall Labeling . . . . . . . . 254
Tire Designations . . . . . . . . . . . . . 257
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 258
Tire Pressure . . . . . . . . . . . . . . . . . 261
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 262
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 263
Tire Inspection . . . . . . . . . . . . . . . . 266
Tire Rotation . . . . . . . . . . . . . . . . . 266
Dual Tire Rotation . . . . . . . . . . . . 268
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 268
Buying New Tires . . . . . . . . . . . . . 269
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 271

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
216 Vehicle Care
1.Battery - North America 0236.
2. Radiator Pressure Cap. See Cooling System 0226.
3. Coolant Recovery Tank. See Cooling System 0226.
4. Engine Cooling Fan (Out of View). See Cooling System
0 226.
5. Engine Air Cleaner/Filter 0225. 6. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil 0218.
7. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0218.
8. Power Steering Fluid Reservoir. See Power Steering
Fluid 0233. 9.
Engine Compartment Fuse
Block 0247.
10. Brake Master Cylinder Reservoir. See Brake Fluid
0 235.
11. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 233.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
218 Vehicle Care
1.Battery - North America 0236.
2. Radiator Pressure Cap. See Cooling System 0226.
3. Coolant Recovery Tank. See Cooling System 0226.
4. Automatic Transmission Fluid Dipstick. See “Checking the
Fluid Level” underAutomatic
Transmission Fluid (6-Speed
Transmission) 0221 or
Automatic Transmission Fluid
(8-Speed Transmission) 0224.
5. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0218.
6. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil 0218.
7. Engine Cooling Fan (Out of View). See Cooling System
0 226.
8. Engine Air Cleaner/Filter 0225.
9. Power Steering Fluid Reservoir. See Power Steering
Fluid 0233. 10.
Engine Compartment Fuse
Block 0247.
11. Brake Master Cylinder Reservoir. See Brake Fluid
0 235.
12. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 233.
Engine Oil
For diesel engine vehicles, see
“Engine Oil” in the Duramax diesel
supplement.
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
. Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section. .
Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
. Change the engine oil at the
appropriate time. See Engine Oil
Life System 0220.
. Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially
prior to a long trip. The engine oil
dipstick handle is a loop. See
Engine Compartment Overview
0215 for the location.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
Vehicle Care 233
Power Steering Fluid
The power steering fluid reservoir is
in the engine compartment on the
driver side of the vehicle. See
Engine Compartment Overview
0215 for reservoir location.
When to Check Power Steering
Fluid
It is not necessary to regularly
check power steering fluid unless
there is a leak suspected in the
system or an unusual noise is
heard. A fluid loss in this system
could indicate a problem. Have the
system inspected and repaired.
How to Check Power Steering
Fluid
To check the power steering fluid:
1. Turn the key off and let the engine compartment
cool down.
2. Wipe the cap and the top of the reservoir clean.
3. Unscrew the cap and wipe the dipstick with a clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the fluid level on the
dipstick.
The level should be at the COLD
FILL mark. If necessary, add only
enough fluid to bring the level up to
the mark.
To prevent contamination of brake
fluid, never check or fill the power
steering reservoir with the brake
master cylinder cover off.
What to Use
Caution
Use of the incorrect fluid may
damage the vehicle and the
damages may not be covered by
the vehicle warranty. Always use
the correct fluid listed in
Recommended Fluids and
Lubricants0308.
To determine what kind of fluid to
use, see Recommended Fluids and
Lubricants 0308. Always use the
proper fluid. Failure to use the
proper fluid can cause leaks and
damage hoses and seals.
Washer Fluid
What to Use
When the vehicle needs windshield
washer fluid, be sure to read the
manufacturer's instructions before
use. If operating the vehicle in an
area where the temperature may fall

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
Vehicle Care 293
can be removed by rubbing with a
clean cloth. SeeRecommended
Fluids and Lubricants 0308.
Tires
Use a stiff brush with tire cleaner to
clean the tires.
Caution
Using petroleum-based tire
dressing products on the vehicle
may damage the paint finish and/
or tires. When applying a tire
dressing, always wipe off any
overspray from all painted
surfaces on the vehicle.
Wheels and Trim —Aluminum
or Chrome
Use a soft, clean cloth with mild
soap and water to clean the wheels.
After rinsing thoroughly with clean
water, dry with a soft, clean towel.
A wax may then be applied.
Caution
Chrome wheels and other chrome
trim may be damaged if the
vehicle is not washed after driving
on roads that have been sprayed
with magnesium, calcium,
or sodium chloride. These
chlorides are used on roads for
conditions such as ice and dust.
Always wash the chrome with
soap and water after exposure.
Caution
To avoid surface damage, do not
use strong soaps, chemicals,
abrasive polishes, cleaners,
brushes, or cleaners that contain
acid on aluminum or
chrome-plated wheels. Use only
approved cleaners. Also, never
drive a vehicle with aluminum or
chrome-plated wheels through an
automatic car wash that uses
(Continued)
Caution (Continued)
silicone carbide tire cleaning
brushes. Damage could occur
and the repairs would not be
covered by the vehicle warranty.
Brake System
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect drum
brake linings/shoes for wear or
cracks. Inspect all other brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear at
least once a year.
Inspect power steering for proper
attachment, connections, binding,
leaks, cracks, chafing, etc.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18

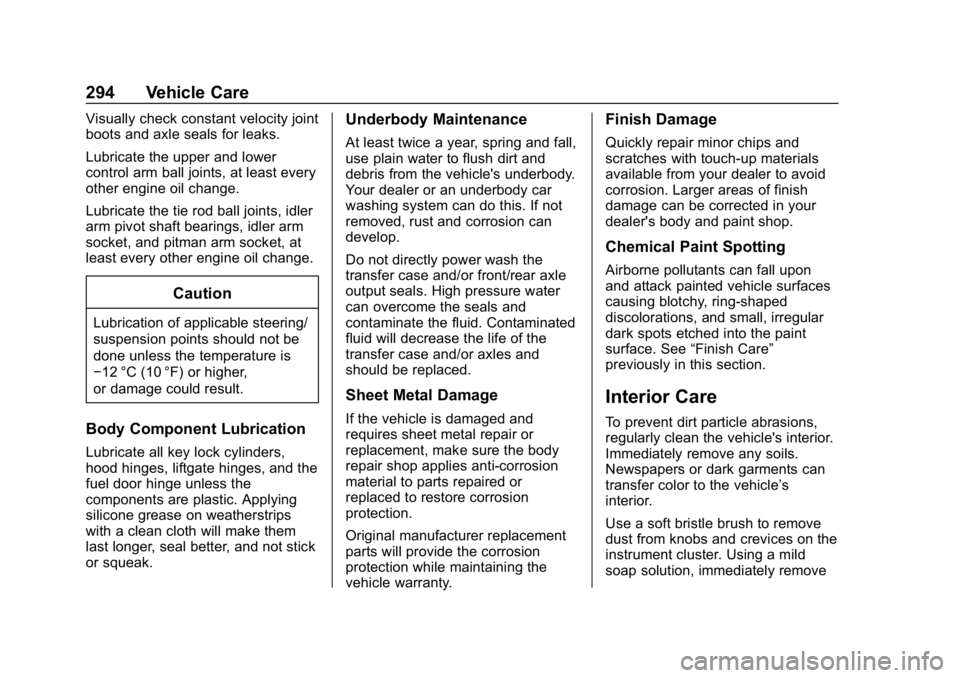

294 Vehicle Care
Visually check constant velocity joint
boots and axle seals for leaks.
Lubricate the upper and lower
control arm ball joints, at least every
other engine oil change.
Lubricate the tie rod ball joints, idler
arm pivot shaft bearings, idler arm
socket, and pitman arm socket, at
least every other engine oil change.
Caution
Lubrication of applicable steering/
suspension points should not be
done unless the temperature is
−12 °C (10 °F) or higher,
or damage could result.
Body Component Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges, and the
fuel door hinge unless the
components are plastic. Applying
silicone grease on weatherstrips
with a clean cloth will make them
last longer, seal better, and not stick
or squeak.
Underbody Maintenance
At least twice a year, spring and fall,
use plain water to flush dirt and
debris from the vehicle's underbody.
Your dealer or an underbody car
washing system can do this. If not
removed, rust and corrosion can
develop.
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion
material to parts repaired or
replaced to restore corrosion
protection.
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining the
vehicle warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up materials
available from your dealer to avoid
corrosion. Larger areas of finish
damage can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall upon
and attack painted vehicle surfaces
causing blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface. See“Finish Care”
previously in this section.
Interior Care
To prevent dirt particle abrasions,
regularly clean the vehicle's interior.
Immediately remove any soils.
Newspapers or dark garments can
transfer color to the vehicle’s
interior.
Use a soft bristle brush to remove
dust from knobs and crevices on the
instrument cluster. Using a mild
soap solution, immediately remove

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
Service and Maintenance 309
UsageFluid/Lubricant
Key Lock Cylinders, Hood Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474).
Power Steering System GM Power Steering Fluid (GM Part No. 19329450, in Canada 89021186).
Rear Axle (Dual Rear Wheels) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88900401, in Canada 89021678).
Rear Axle (Single Rear Wheels) SAE 75W-85 Synthetic Axle Lubricant (GM Part No. 19300457, in Canada 19300458).
Weatherstrip Conditioning Weatherstrip lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, in Canada 10953437).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
Index 345
Driving (cont'd)Off-Road Recovery . . . . . . . . . . . 163
Vehicle Load Limits . . . . . . . . . . . 167
Wet Roads . . . . . . . . . . . . . . . . . . . 164
Winter . . . . . . . . . . . . . . . . . . . . . . . . 165
Dual Tire Rotation . . . . . . . . . . . . . . . . . . . . . . 268
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 197
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 210
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 247
Floor Console Fuse Block . . . . 251
Fuses and Circuit Breakers . . . 246
Overload . . . . . . . . . . . . . . . . . . . . . 246
Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . 331
Engine Air Cleaner/Filter . . . . . . . . . . . . . 225
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 103
Compartment Overview . . . . . . . 215
Coolant Heater . . . . . . . . . . . . . . . 175
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 100 Engine (cont'd)
Cooling System . . . . . . . . . . . . . . . 226
Drive Belt Routing . . . . . . . . . . . . 315
Exhaust . . . . . . . . . . . . . . . . . . . . . . 179
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Oil Life System . . . . . . . . . . . . . . . 220
Oil Pressure Gauge . . . . . . . . . . . . 99
Oil Pressure Light . . . . . . . . . . . . 108
Overheating . . . . . . . . . . . . . . . . . . 231
Power Messages . . . . . . . . . . . . . .114
Running While Parked . . . . . . . . 179
Starting . . . . . . . . . . . . . . . . . . . . . . . 173
Enhanced Technology Glass . . . . 39
Entry/Exit Lighting . . . . . . . . . . . . . . 125
Equipment, Towing . . . . . . . . . . . . . 207
Event Data Recorders . . . . . . . . . . 328
Extender, Seat Belt . . . . . . . . . . . . . . 55
Exterior Lamp Controls . . . . . . . . . 120
Exterior Lamps Off Reminder . . . 121
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 125
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . 232
Fast Idle System . . . . . . . . . . . . . . . . 174 Filter,
Engine Air Cleaner . . . . . . . . . . . 225
Fixed Mast Antenna . . . . . . . . . . . . 136
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 121
Flashers, Hazard Warning . . . . . . 123
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 274 Changing . . . . . . . . . . . . . . . . . . . . . 276
FlexFuel E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 298
Fluid AutomaticTransmission . . . . . . . . . . . 221, 224
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 235
Power Steering . . . . . . . . . . . . . . . 233
Washer . . . . . . . . . . . . . . . . . . . . . . . 233
Folding Mirrors . . . . . . . . . . . . . . . . . . 37
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 326
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 42
Front Storage . . . . . . . . . . . . . . . . . . . . 87
Front Turn Signal Bulb Replacement . . . . . . . . . . . . 243
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Additives . . . . . . . . . . . . . . . . . . . . . 196
Economy Driving . . . . . . . . . . . . . . . 23

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-11374214) -
2018 - CRC - 2/2/18
348 Index
MirrorsConvex . . . . . . . . . . . . . . . . . . . . . . . . . 36
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 37
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 37
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 36
Manual Rearview . . . . . . . . . . . . . . . 37
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . 36
Mirrors, Interior Rearview . . . . . . . . 37
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 262
Multi-band Antenna . . . . . . . . . . . . . 136
N
Navigation OnStar . . . . . . . . . . . . . . . . . . . . . . . 332
New Vehicle Break-In . . . . . . . . . . . 171
Noise Control System . . . . . . . . . . 238
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . 98 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 163
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 218
Engine Oil Life System . . . . . . . 220
Engine Oil Pressure Gauge . . . . . 99 Oil (cont'd)
Pressure Light . . . . . . . . . . . . . . . . 108
Older Children, Restraints . . . . . . . 68
Online Owner Center . . . . . . . . . . . 319
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 329
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 336
OnStar Connections . . . . . . . . . . . . 333
OnStar Diagnostics . . . . . . . . . . . . . 335
OnStar Emergency . . . . . . . . . . . . . 331
OnStar Navigation . . . . . . . . . . . . . . 332
OnStar Overview . . . . . . . . . . . . . . . 330
OnStar Security . . . . . . . . . . . . . . . . 332
OnStar System . . . . . . . . . . . . . . . . . 146
Operation Infotainment System . . . . . . . . . . 131
Ordering Service Publications . . . . . . . . . . 325
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Overheating, Engine . . . . . . . . . . . . 231
Overview . . . . . . . . . . . . . . . . . . 128, 130
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . 177
Shifting Out of . . . . . . . . . . . . . . . . 178 Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . . . 185
Brake and P (Park)
Mechanism Check . . . . . . . . . . 240
Over Things That Burn . . . . . . . 178
Parking Assist . . . . . . . . . . . . . . . . . . 192
Perchlorate Materials Requirements, California . . . . . . 213
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . .115
Phone
Bluetooth . . . . . . . . . . . . . . . . . . . . . 146
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 30
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 94
Protection, Battery . . . . . . . . . . . . 125
Retained Accessory (RAP) . . . 175
Seat Adjustment . . . . . . . . . . . . . . . . 42
Steering Fluid . . . . . . . . . . . . . . . . . 233
Windows . . . . . . . . . . . . . . . . . . . . . . . 38
Pregnancy, Using Seat Belts . . . . 54
Privacy Vehicle Data Recording . . . . . . . 328
Program
Courtesy Transportation . . . . . . 322
