GMC SIERRA 1996 Workshop Manual

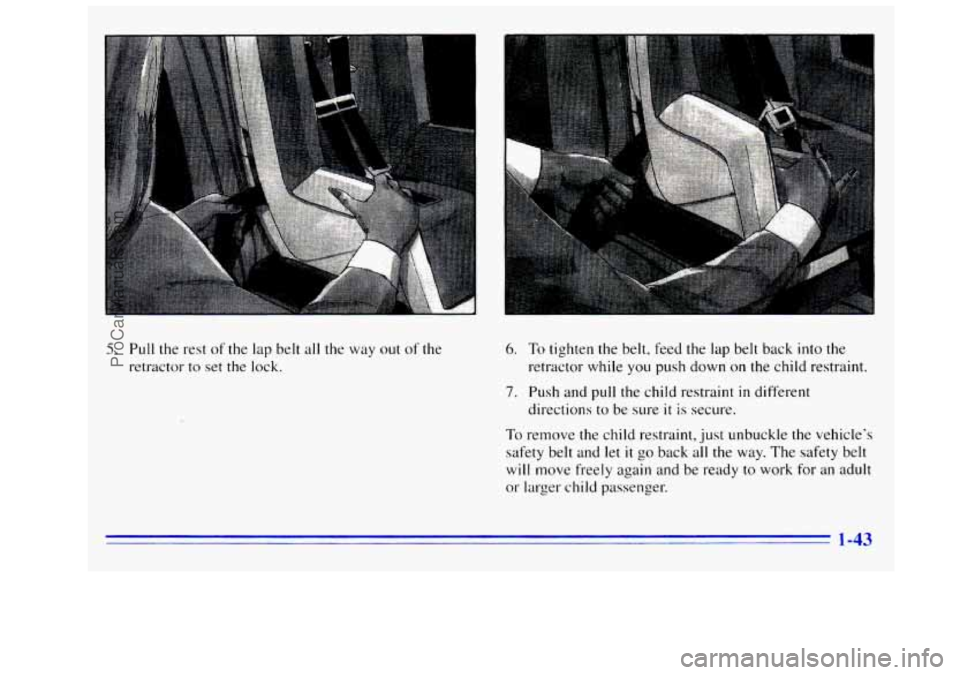

5. Pull the rest of the lap belt all the way out of the
retractor
to set the lock.
6. To tighten the belt, feed the lap belt back into the
retractor while you push down on the child restraint.
7. Push and pull the child restraint in different
directions to be sure it
is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and
let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
ProCarManuals.com

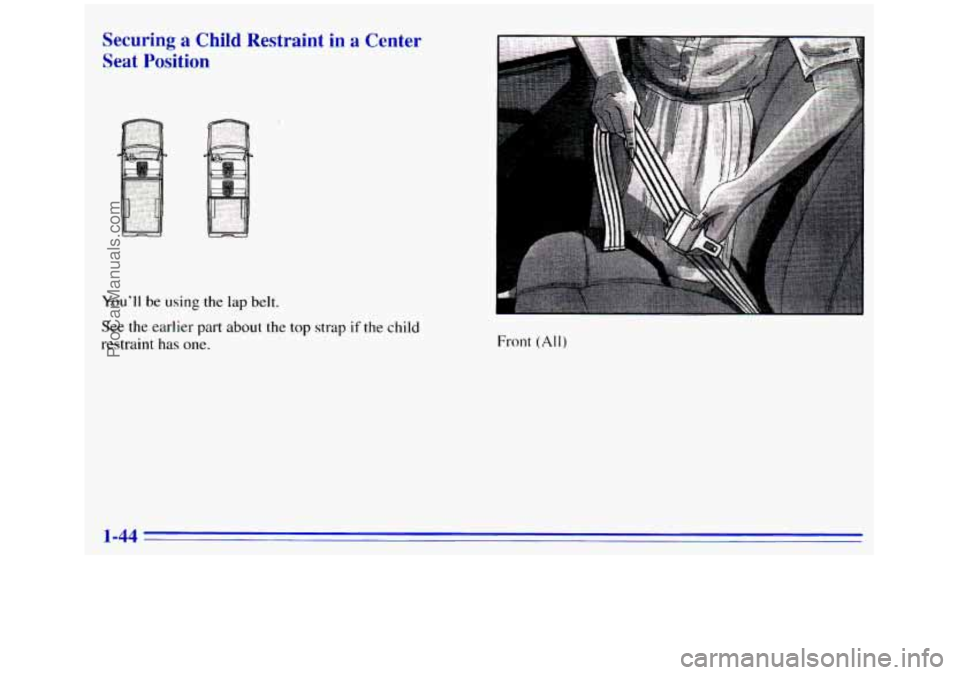

Securing a Child Restraint in a Center
Seat
Position
You’ll be using the lap belt.
See the earlier part about the top strap if the child
restraint
has one. Front (All)
1-44
ProCarManuals.com

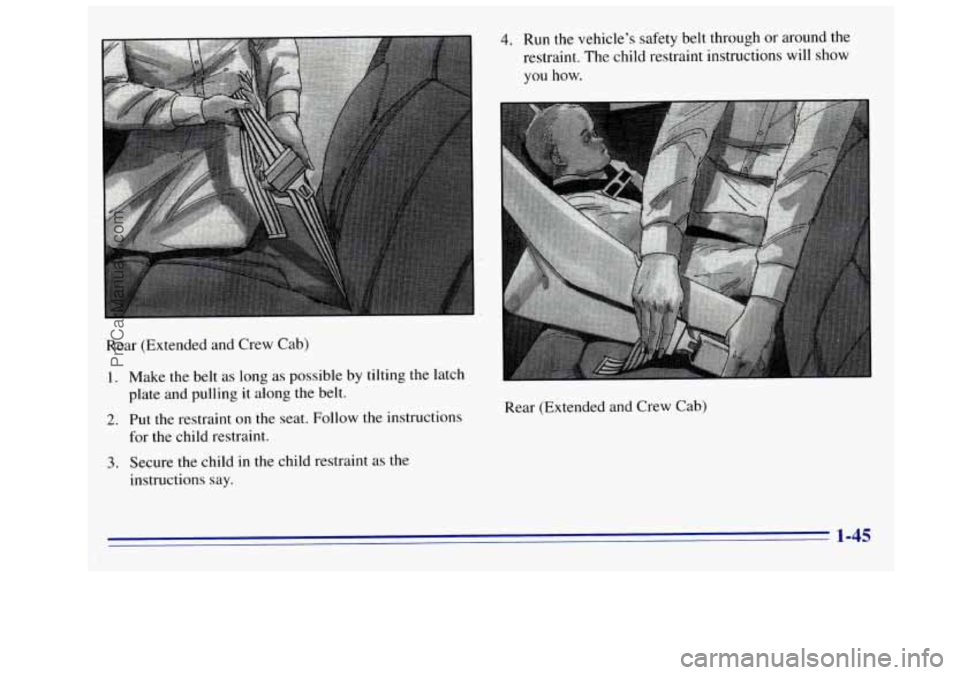

Rear (Extended and Crew Cab) 1. Make the belt as long as possible by tilting the latch
plate and pulling
it along the belt.
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
~
Rear (Extended and Crew Cab)
1-45
ProCarManuals.com

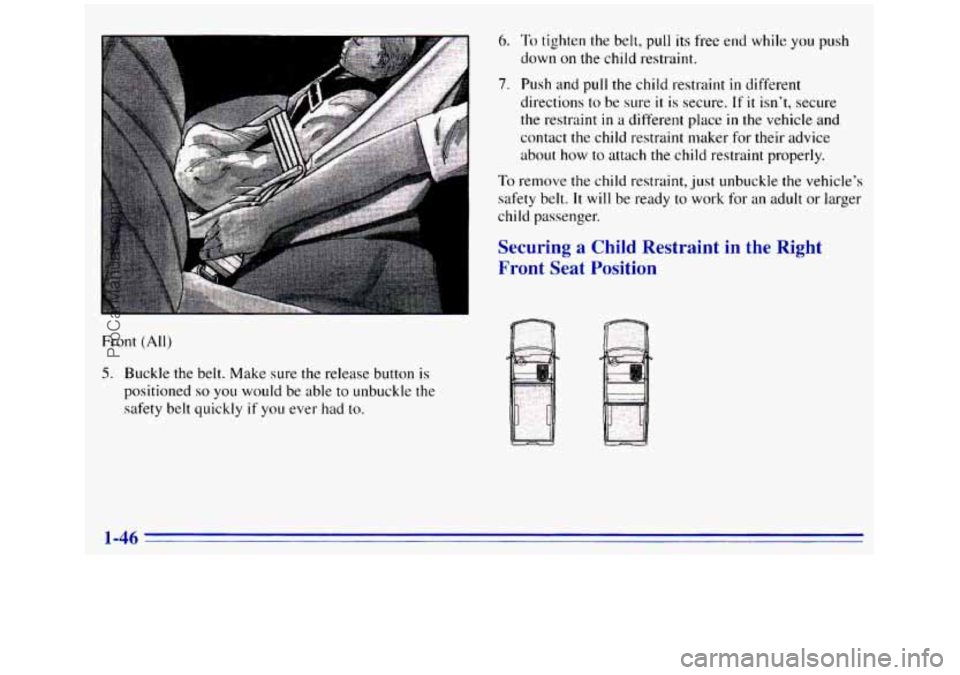

Front (All)
5. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
6. To tighten the belt, pull its free end while you push
down on the child restraint.
7. Push and pull the child restraint in different
directions to be sure
it is secure. If it isn’t, secure
the restraint
in a different place in the vehicle and
contact the child restraint maker for their advice
about how to attach the child restraint properly.
To remove the child restraint, just unbuckle the vehicle’s
safety belt.
It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front Seat Position
1-46
ProCarManuals.com

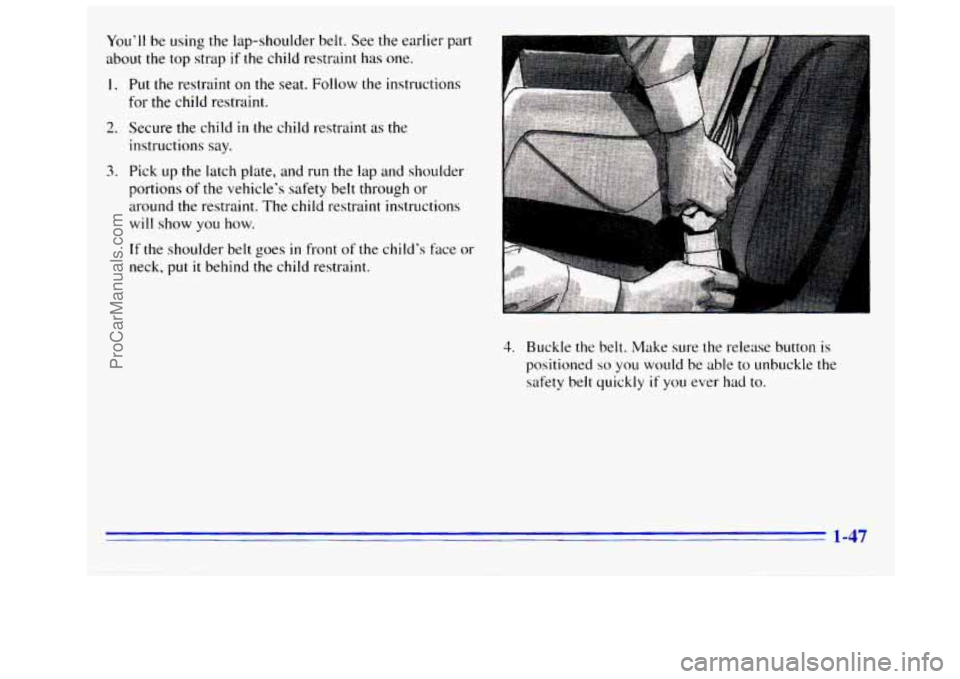

You’ll be using the lap-shoulder belt. See the earlier part
about the top strap
if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1-47
ProCarManuals.com

c

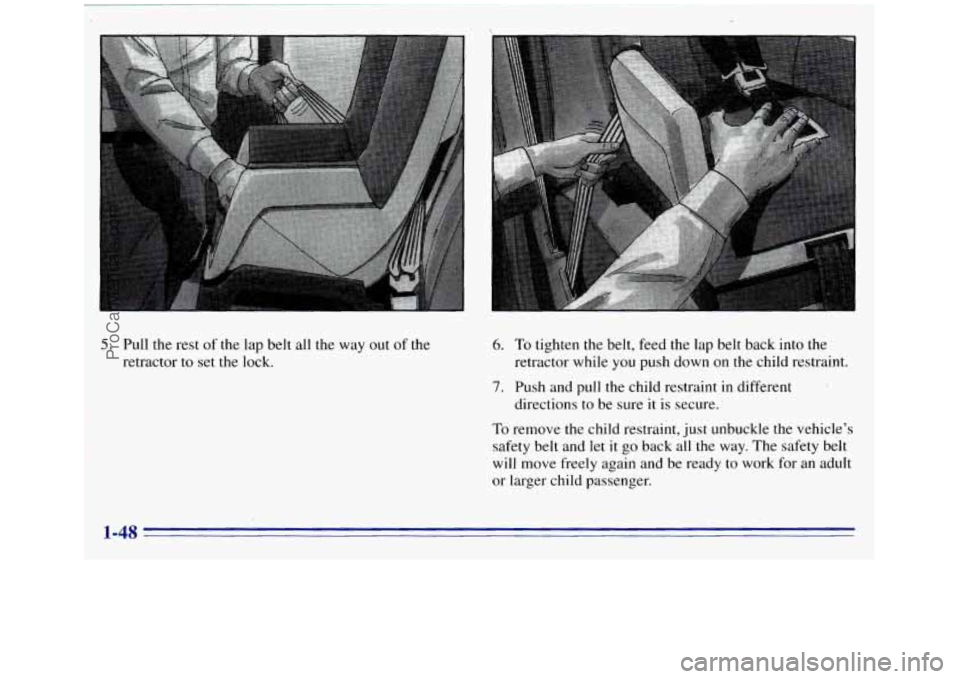

5. Pull the rest of the lap belt all the way out of the
retractor to set the lock. 6. To tighten the belt, feed the lap belt back into the
7. Push and pull the child restraint in different
retractor while
you push down on the child restraint.
directions to be sure
it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
1-48
ProCarManuals.com

en

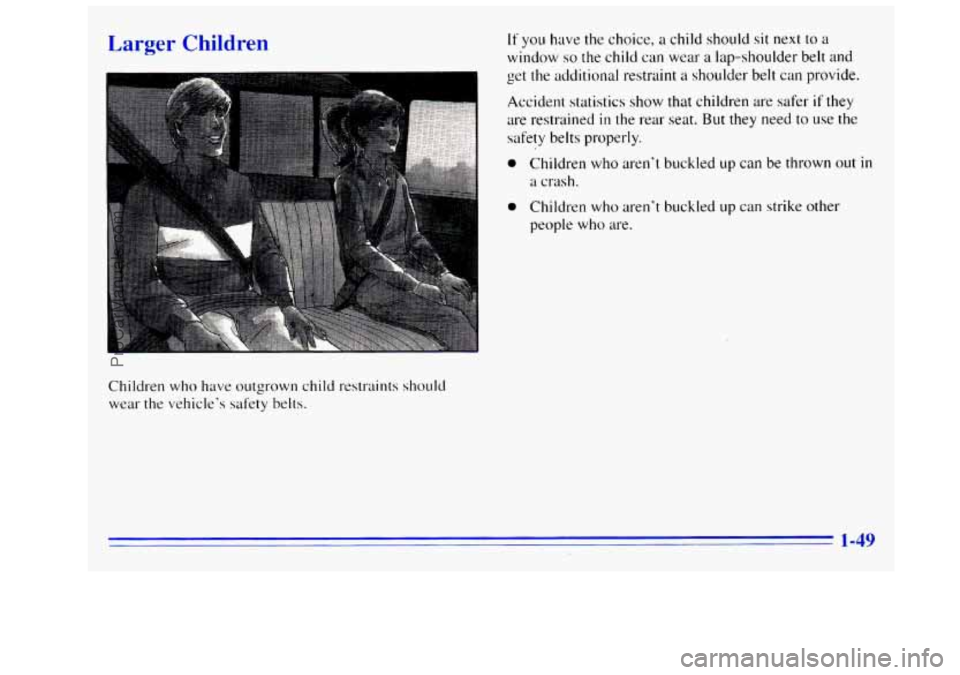

Children who have outgrown child restraints should
wear the vehicle’s safety belts.
If you have the choice, a child should sit next to a
window so the child can wear a lap-shoulder belt and
get the additional restraint
a shoulder belt can provide.
Accident statistics show that children are safer
if they
are restrained in the rear seat. But they need to use the
safety belts properly.
0 Children who aren’t buckled up can be thrown out in
a crash.
0 Children who aren’t buckled up can strike other
people
who are.
1-49
ProCarManuals.com

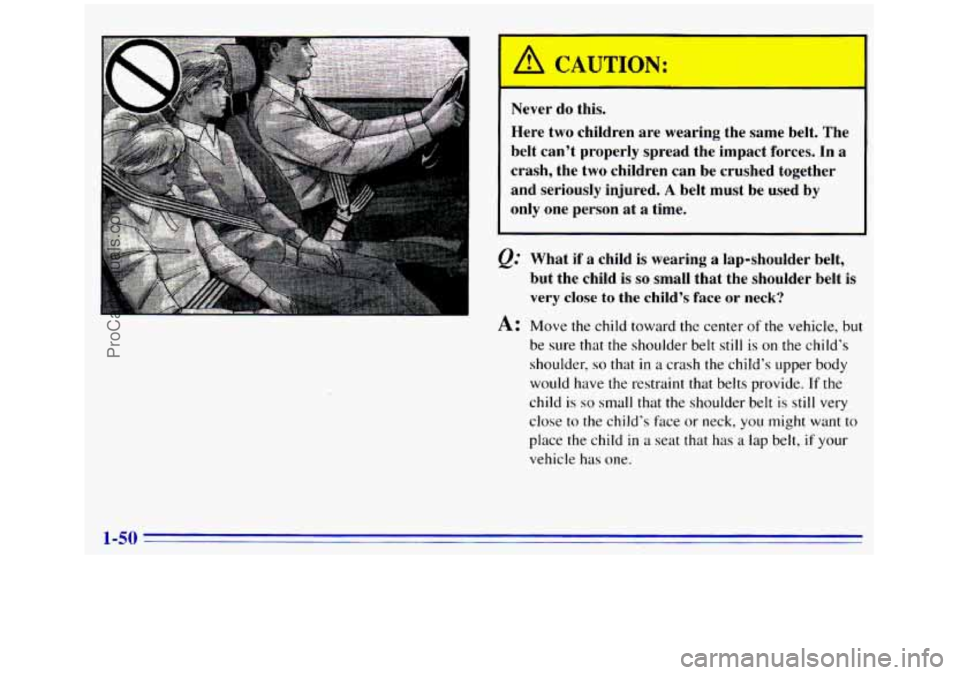

I A CAUTION:
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces. In a
crash, the two children can
be crushed together
and seriously injured.
A belt must be used by
only one person at
a time.
Q=
A:
What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child’s face or neck?
Move the child toward the center
of the vehicle, but
be sure that the shoulder belt still
is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
If the
child is so small that the shoulder belt is still very
close to the child’s
face or neck, you might want to
place the child
in a seat that has a lap belt, if your
vehicle has one.
1-50
ProCarManuals.com

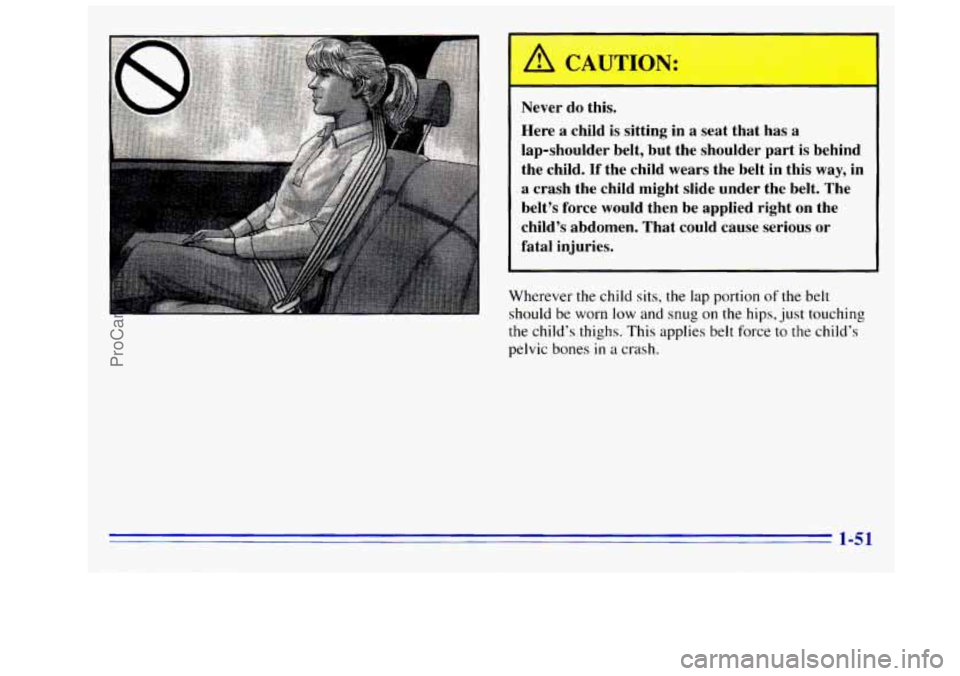

Never do this.
Here a child is sitting in
a seat that has a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
I a crash the child might slide under the belt. The
belt’s force would then be applied right
on the
child’s abdomen. That could cause serious
or
fatal injuries.
Wherever
the child sits, the lap portion of the belt
should be worn low and
snug on the hips, just touching
the child’s thighs. This applies belt force to
the child‘s
pelvic bones
in a crash.
1-51
ProCarManuals.com

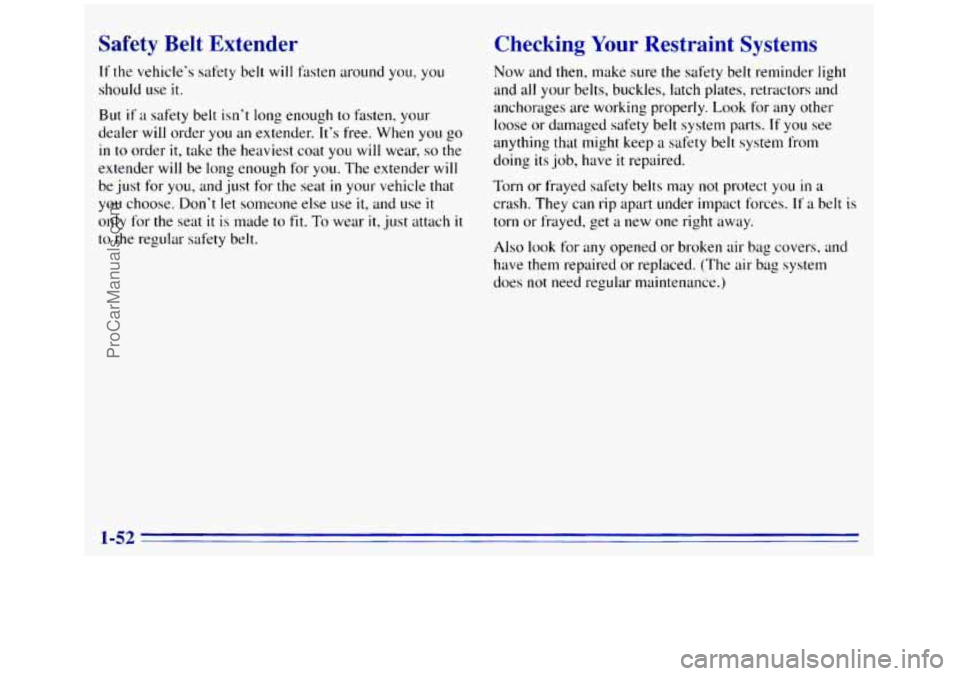

Safety Belt Extender Checking Your Restraint SI ~tems
If the vehicle‘s safety belt will hsten around you, you
should use
it.
But ifa safety belt isn’t long enough to Faten, your
dealer will order
you an extender. It’s free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender
will
be just for you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt. Now
and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly.
Look ,for any other
loose or damaged safety belt system parts.
If you see
anything that might keep a safety belt system from
doing its job, have
it repaired.
Torn or frayed safety belts may
not protect you in a
crash. They can rip apart under impact forces.
If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
1-52
