GMC SIERRA 1997 Owners Manual

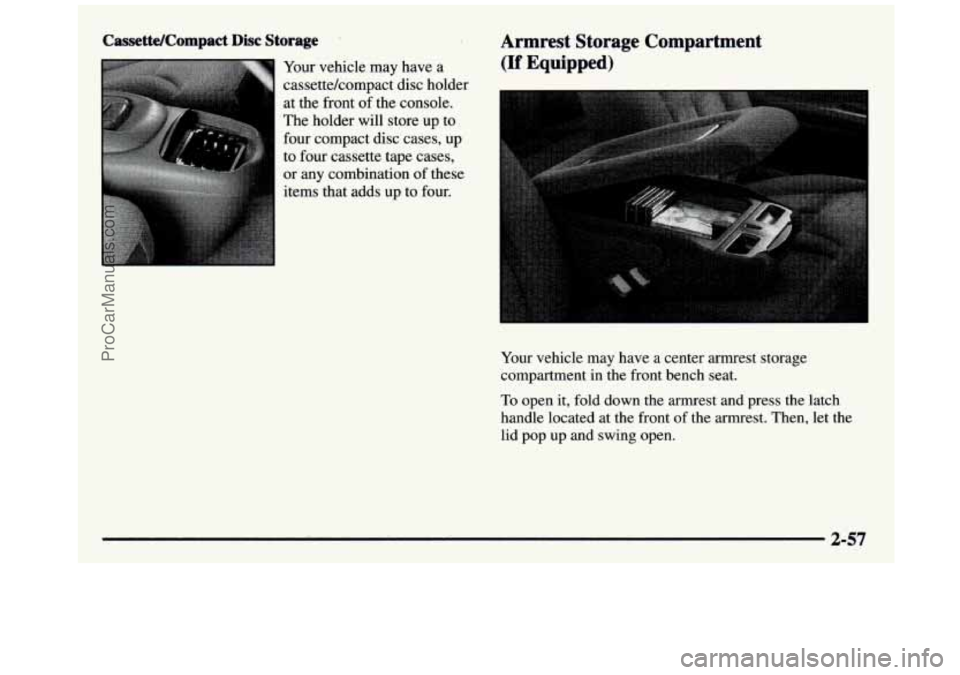

Cassette/Compact Disc Storage
Your vehicle may have a
cassettekompact disc holder
at the front
of the console.
The holder will store up to
four compact
disc cases, up
to four cassette tape cases,
or
any combination of these
items- that adds up to four.
Armrest Storage Compartment
(If Equipped)
Your vehicle may have a center armrest storage
compartment in the front bench seat.
To open it, fold down the armrest and press the latch
handle located at the front
of the armrest. Then, let the
lid pop up and swing open.
2-57
ProCarManuals.com

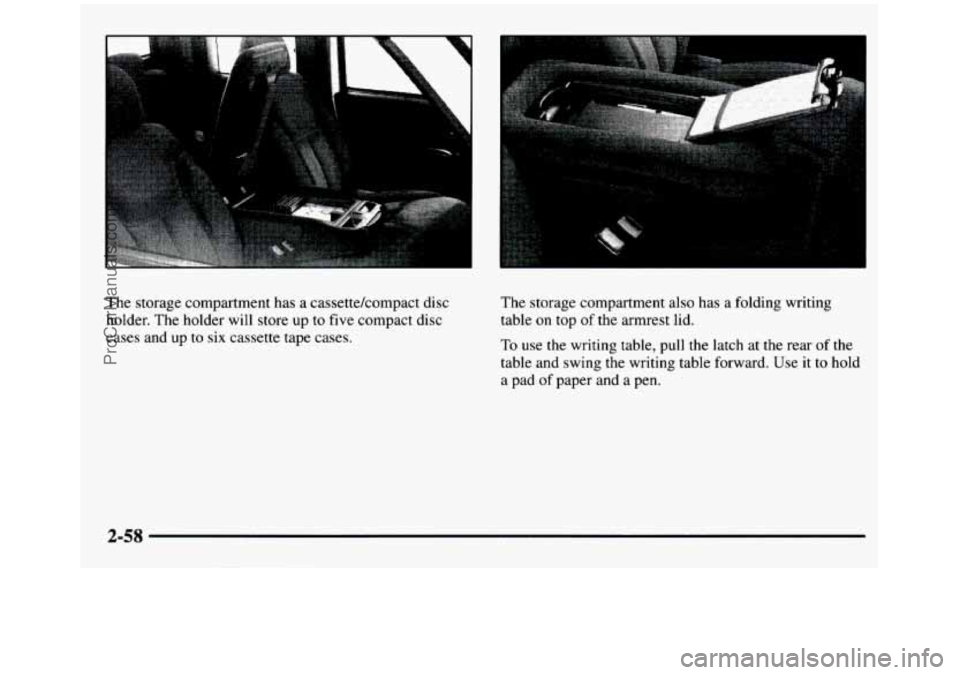

The storage compartment has a cassettekompact disc
holder. The holder will store up to five compact disc
cases and up to six cassette tape cases. The
storage compartment also has a folding writing
table on top
of the armrest lid.
To use the writing table, pull the latch at the rear of the \
table and swing the writing table forward. Use it to hold
a pad
of paper and a pen.
2-58
ProCarManuals.com

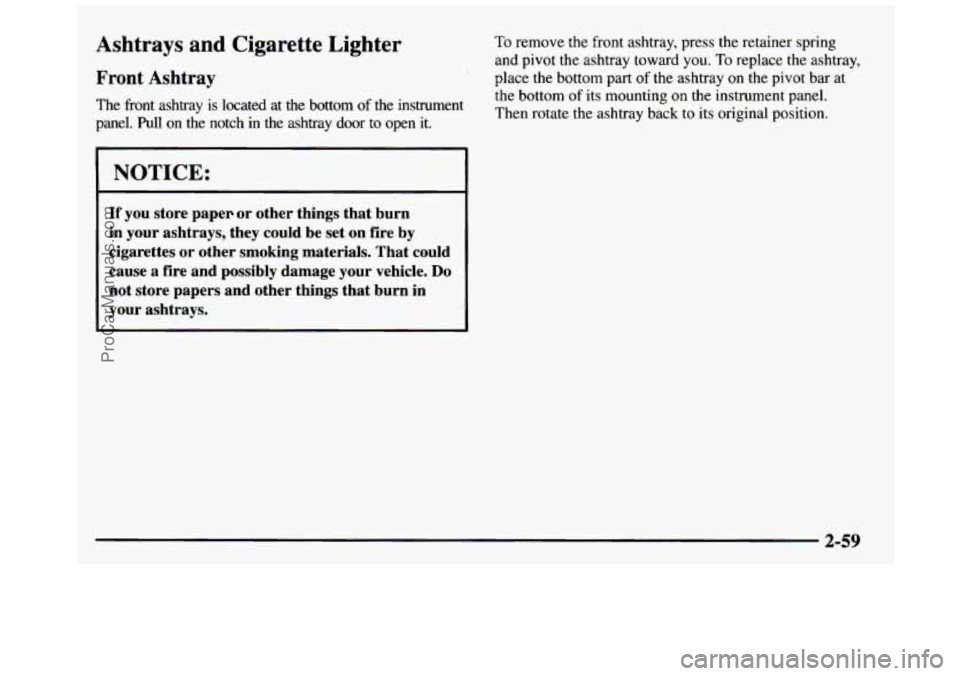

Ashtrays and Cigarette Lighter To remove the front ashtray, press the retainer spring
and pivot the ashtray toward
you. To replace the ashtray,
Front Ashtray place the bottom part of the ashtray on the pivot bar at
the bottom
of its mounting on the instrument panel.
The front ashtray is located at the bottom of the instrument Then rotate the ashtray back to its original position.
panel. Pull on the notch
in the ashtray door to open it.
NOTICE:
If you store pa] or other things that burn
in your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do
not store papers and other things that burn in
your ashtrays.
2-59
ProCarManuals.com

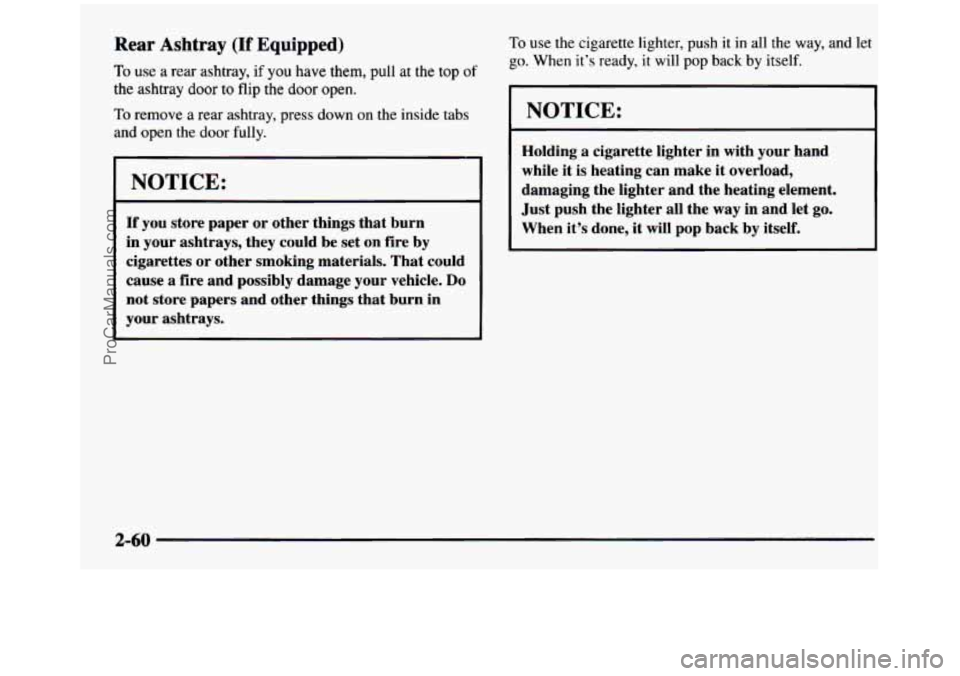

Rear Ashtray (If Equipped)
To use a rear ashtray, if you have them, pull at the top of
the ashtray door to flip the door open.
To remove a rear ashtray, press down on the inside tabs
and open the door fully.
NOTICE:
If you store paper or other things that burn
in your ashtrays, they could be set on fire by
cigarettes
or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do
not store papers and other things that burn in
your ashtrays.
To use the cigarette lighter, push it in all the way, and let
go. When it’s ready, it will pop back by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it is heating can make it overload,
damaging the lighter and the heating element.
Just push the lighter all the way
in and let go.
When it’s done, it will
pop back by itself.
2-60
ProCarManuals.com

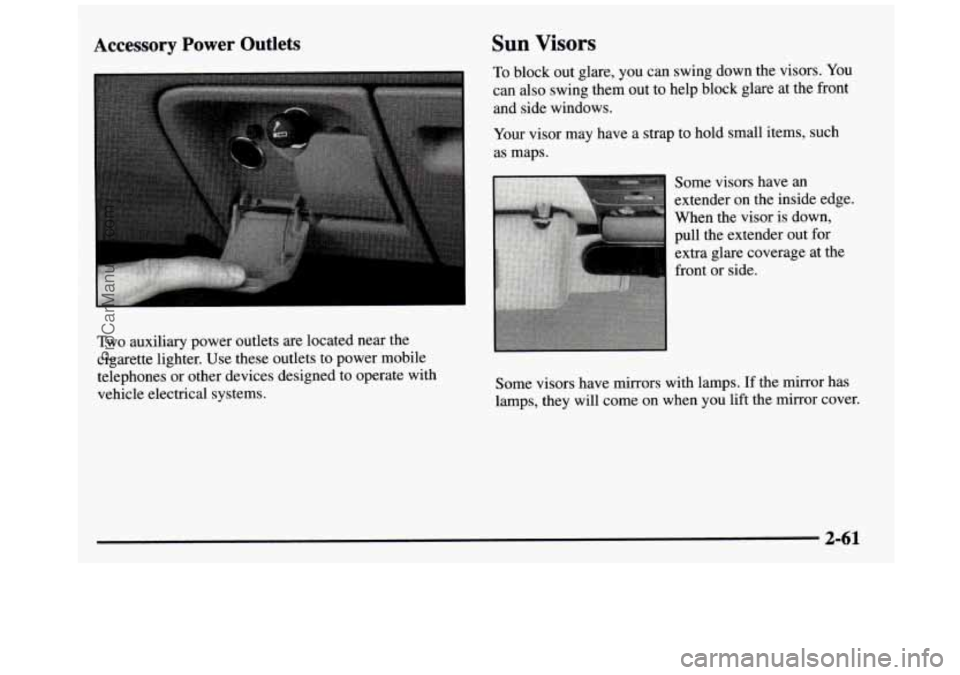

Sun Visors Accessory Power Outlets
To block out glare, you can swing down the visors. You
can also swing them out to help block glare at the front
~
and side windows.
Your visor may have a strap to hold small items, such
as maps.
Some visors have
an
extender on the inside edge.
When the visor is down,
pull the extender out for
extra glare coverage at the
front or side.
Two auxiliary power outlets are located near the
cigarette lighter. Use these outlets to power mobile
telephones or other devices designed
to operate with
vehicle electrical systems. Some
visors have mirrors with lamps. If the mirror has
lamps, they will come on when you lift the mirror cover.
2-61
ProCarManuals.com

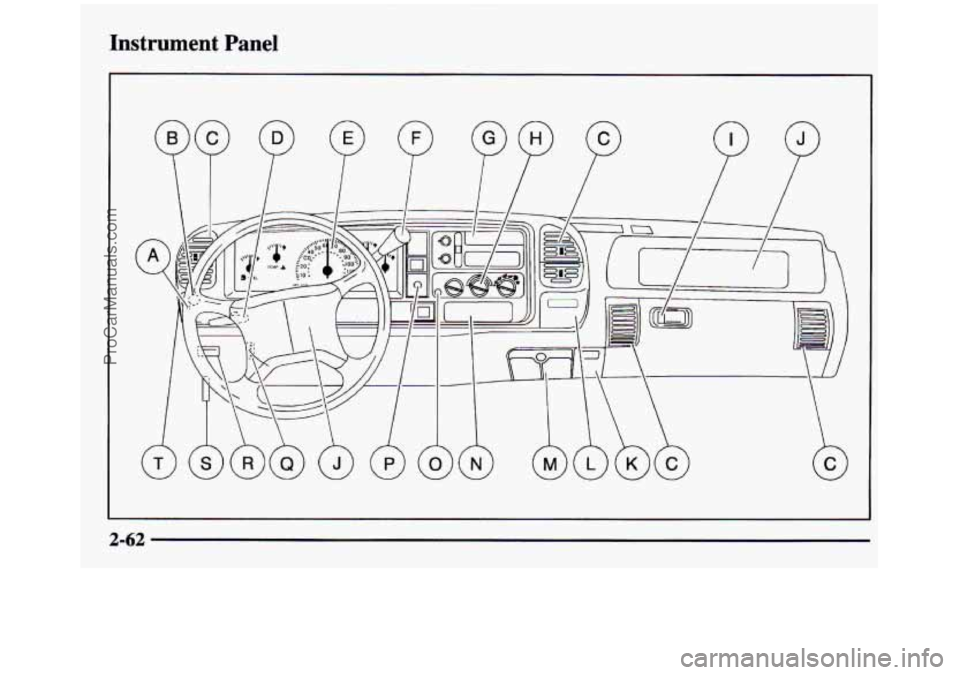

Instrument Panel
2-62
ProCarManuals.com

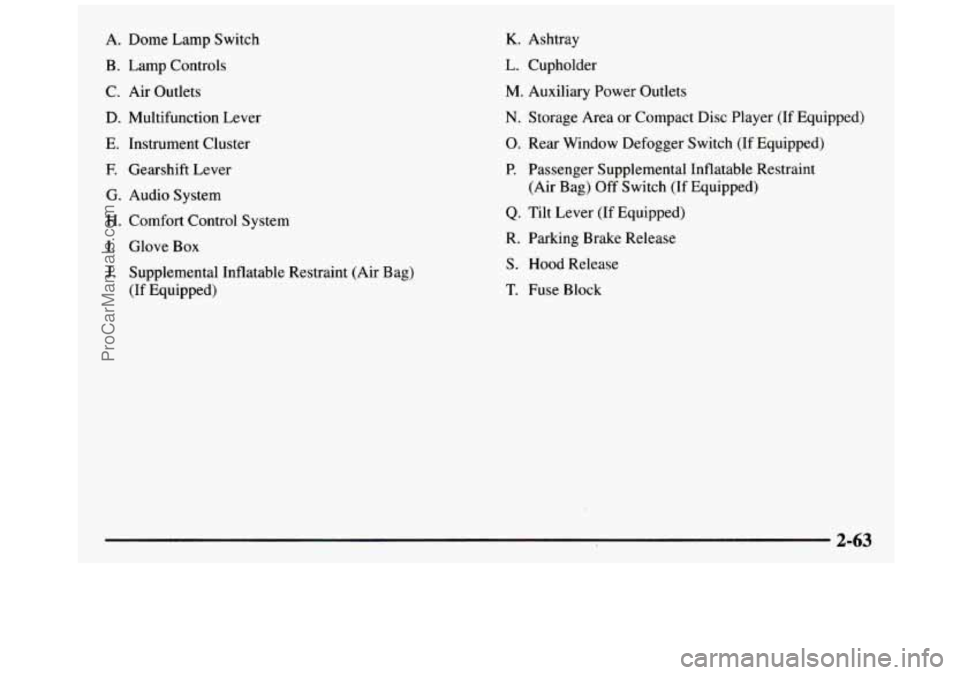

A. Dome Lamp Switch
B. Lamp Controls
C. Air Outlets
D. Multifunction Lever
E. Instrument Cluster
E Gearshift Lever
G. Audio System
H. Comfort Control System
I. Glove Box
J. Supplemental Inflatable Restraint (Air Bag)
(If Equipped)
K. Ashtray
L. Cupholder
M. Auxiliary Power Outlets
N. Storage Area or Compact Disc Player (If Equipped)
0. Rear Window Defogger Switch (If Equipped)
P. Passenger Supplemental Inflatable Restraint
Q. Tilt Lever (If Equipped)
R. Parking Brake Release
S. Hood Release
T. Fuse Block (Air Bag)
Off Switch (If Equipped)
2-63
--
ProCarManuals.com

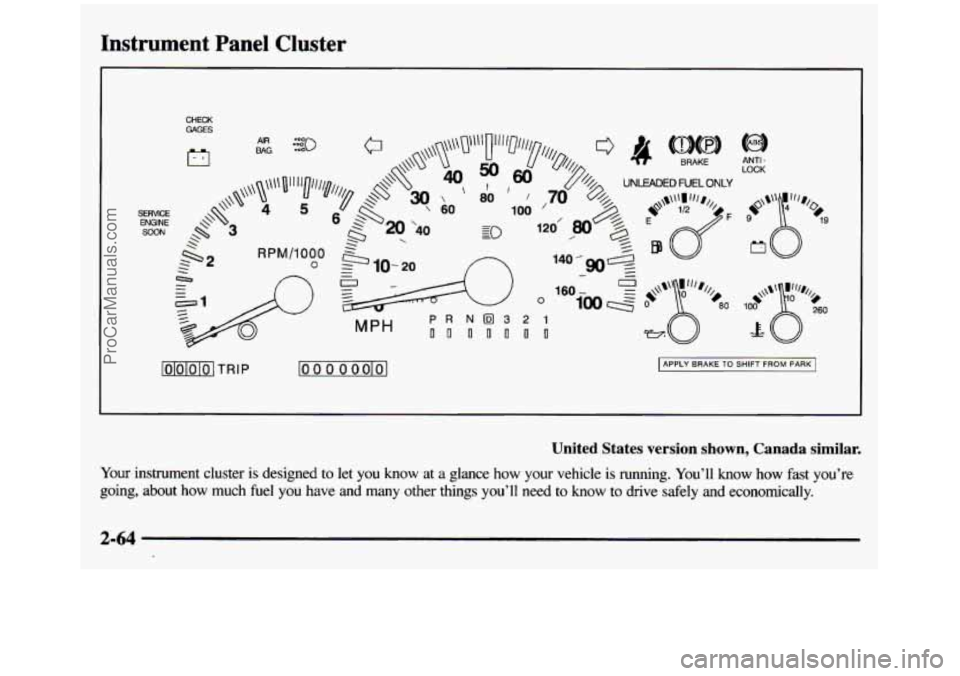

Instrument Panel Cluster
SERVlCE ENGINE SOON
CHECK GAGES
c
lolololo] TRIP loo 0 0 oolol APPLY BRAKE TO SHIFT FROM PARK
United States version shown, Canada similar.
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast you're
going, about how much fuel
you have and many other things you'll need to know to drive safely and economically.
2-64
ProCarManuals.com

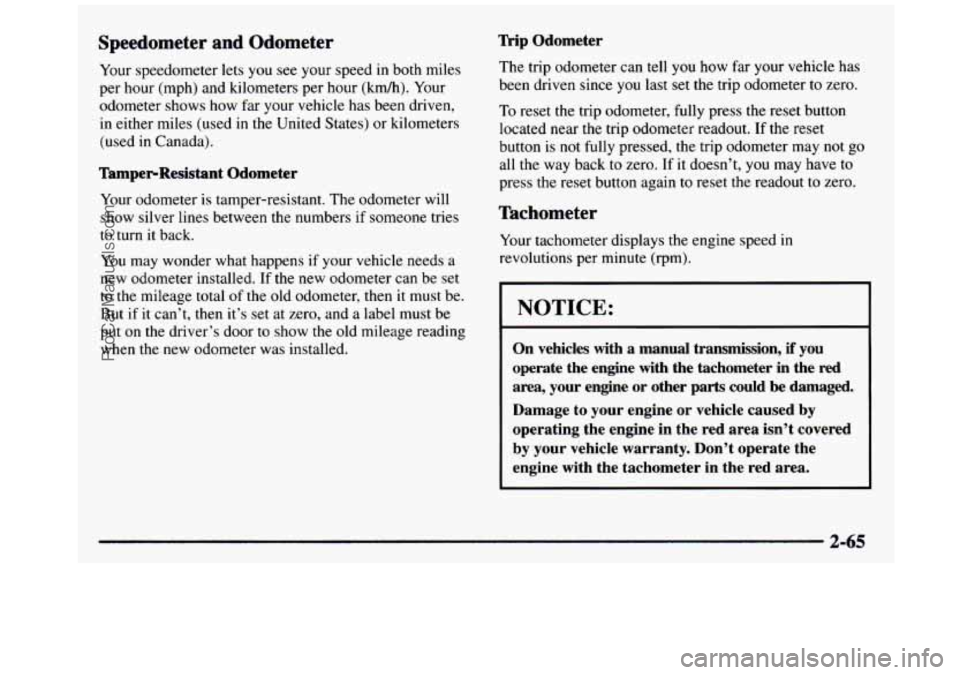

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used
in Canada).
TamperResistant Odometer
Your odometer is tamper-resistant. The odometer will
show silver lines between the numbers
if someone tries
to turn
it back.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new odometer can be set
to the mileage total of the old odometer, then
it must be.
But
if it can’t, then it’s set at zero, and a label must be
put
on the driver’s door to show the old mileage reading
when the new odometer was installed.
Wip Odometer
The trip odometer can tell you how far your vehicle has
been driven since
you last set the trip odometer to zero.
To reset the trip odometer, fully press the reset button
located near the trip odometer readout. If the reset
button is not fully pressed, the trip odometer may not go
all the way back to zero. If it doesn’t, you may have to
press the reset button again to reset the readout to zero.
Tachometer
Your tachometer displays the engine speed in
revolutions per minute
(rpm).
I NOTICE:
On vehicles with a manual transmission, if you
operate the engine with the tachometer in the
red
area, your engine or other parts could be damaged.
Damage
to your engine or vehicle caused by
operating the engine in the red area isn’t covered
by your vehicle warranty. Don’t operate the
engine with the tachometer in the red area.
2-65
ProCarManuals.com

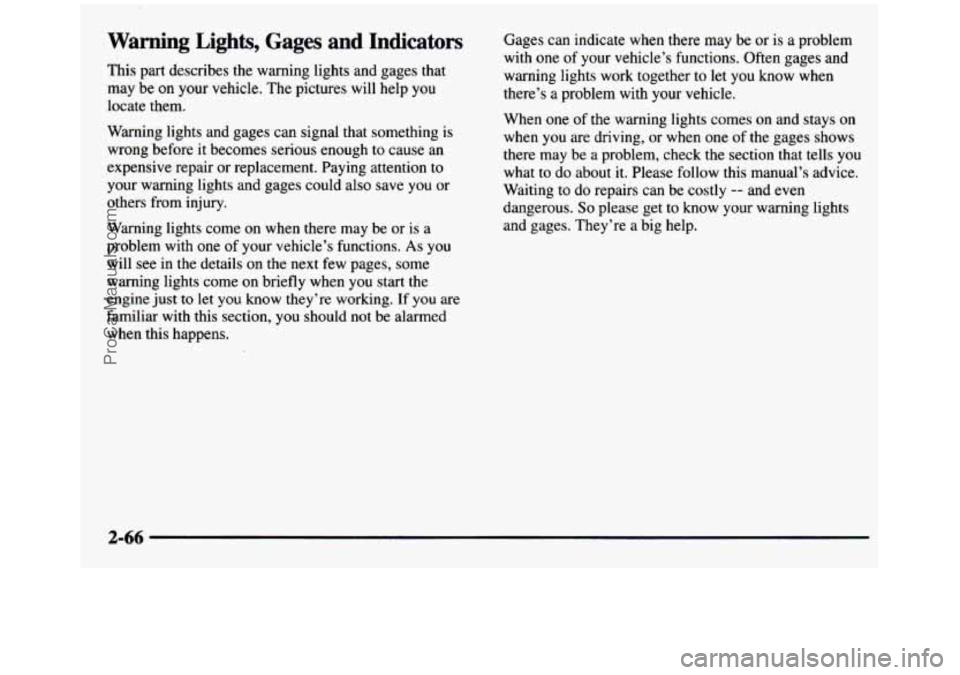

Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let
you know they’re working. If you are
familiar with this section, you should not be alarmed
when this happens. Gages can
indicate when there may
be or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may
be a problem, check the section that tells you
what to
do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
2-66
