GMC SIERRA 1997 Service Manual

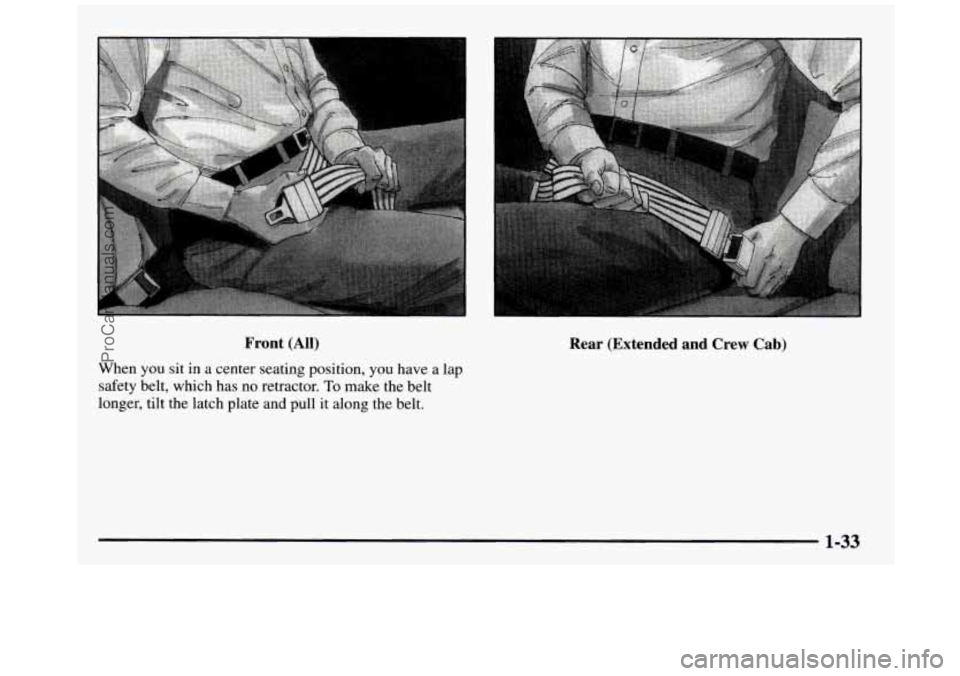

Front (All) Rear (Extended and Crew Cab)
When you sit in a center seating position, you have a lap
safety belt, which has
no retractor. To make the belt
longer, tilt the latch plate and pull it along the belt.
1-33
ProCarManuals.com

1

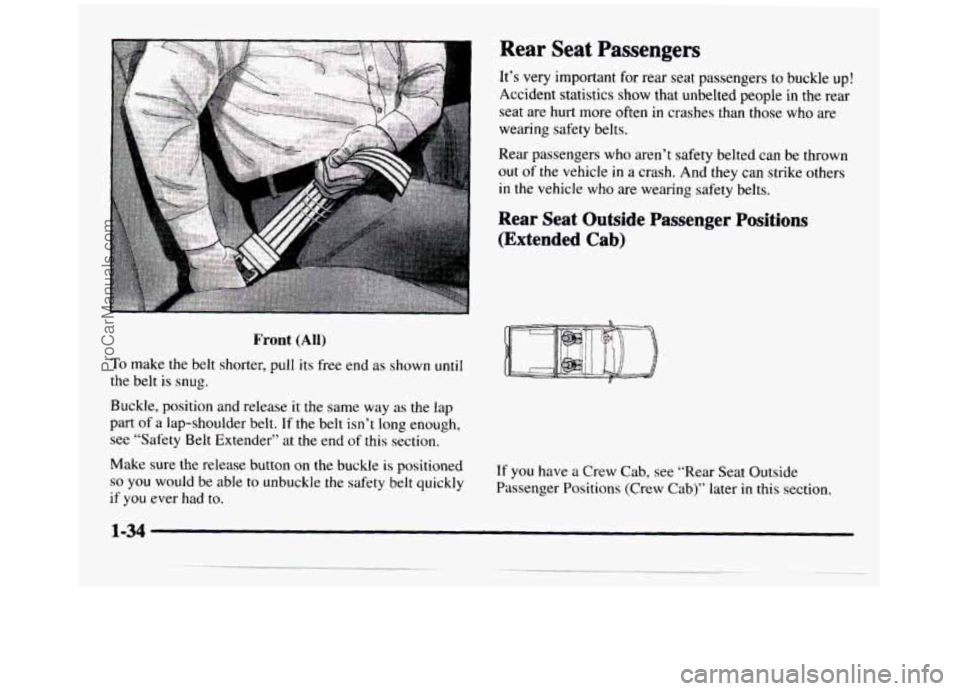

Front (All)
To make the belt shorter, pull its free end as shown until
the belt
is snug.
Buckle, position
and release it the same way as the lap
part of a lap-shoulder belt. If the belt isn’t long enough,
see “Safety Belt Extender” at the end of this section.
Make sure the release button on the buckle is positioned
so you would be able to unbuckle the safety belt quickly
if
you ever had to.
Rear Seat Passengers
It’s very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people in the rear
seat are hurt more often in crashes than those who are
wearing safety belts.
Rear passengers who aren’t safety belted can be thrown
out of the vehicle in a crash, And they can strike others
in the vehicle who are wearing safety belts.
Rear Seat Outside Passenger Positions
(Extended
Cab)
If you have a Crew Cab, see “Rear Seat Outside
Passenger Positions (Crew Cab)” later
in this section.
ProCarManuals.com

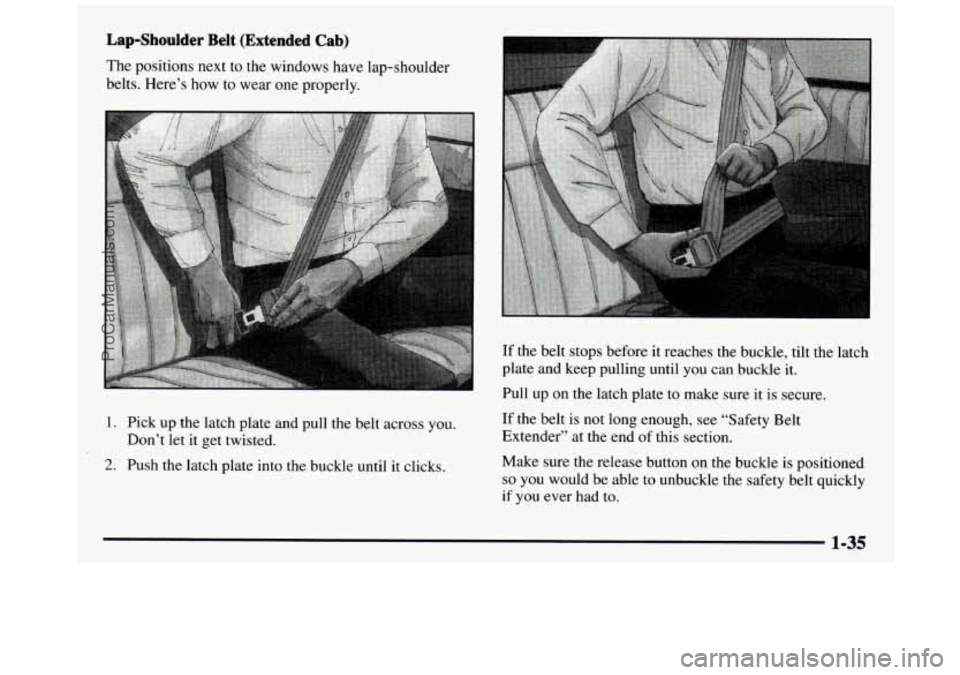

Lap-Shoulder Belt (Extended Cab)
The positions next to the windows have lap-shoulder
belts. Here’s how to wear one properly.
.. I
1. Pick up the latch plate and pull the belt across you.
2. Push the latch plate into the buckle until it clicks.
Don’t let
it get twisted. If
the belt stops before it reaches the buckle, tilt the latch
plate and keep pulling until you can buckle it.
Pull up on the latch plate to make sure it
is secure.
If the belt is not long enough, see “Safety Belt
Extender’’ at the end
of this section.
Make sure the release button on the buckle is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had to.
1-35
ProCarManuals.com

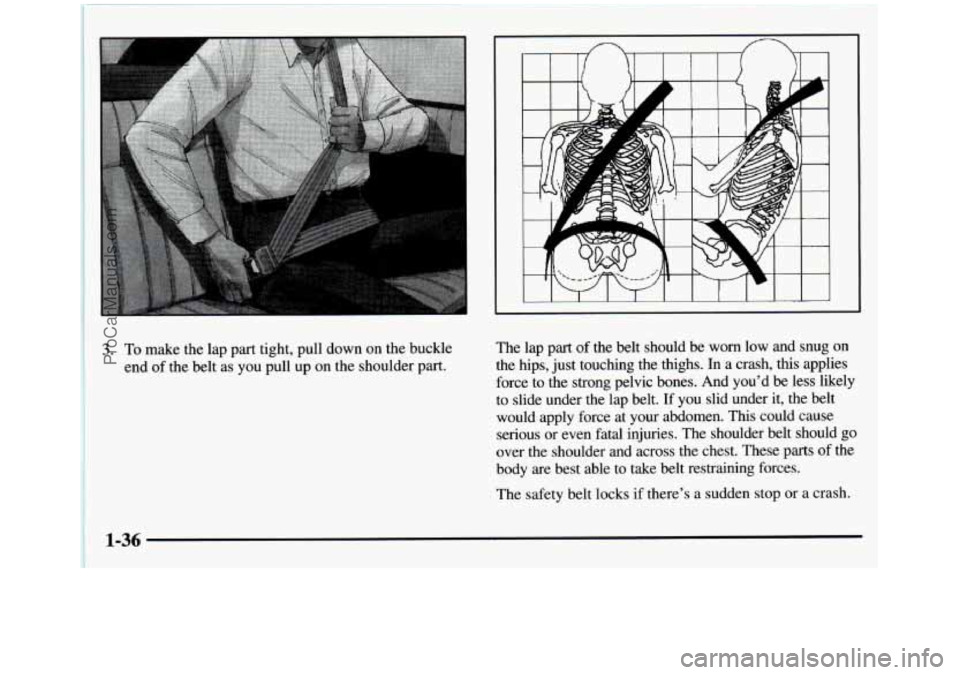

3. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder
part.
The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you'd be less likely
to slide under the lap belt. If you slid under it, the belt
would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go
over the shoulder and across the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks
if there's a sudden stop or a crash.
1-36
ProCarManuals.com

-

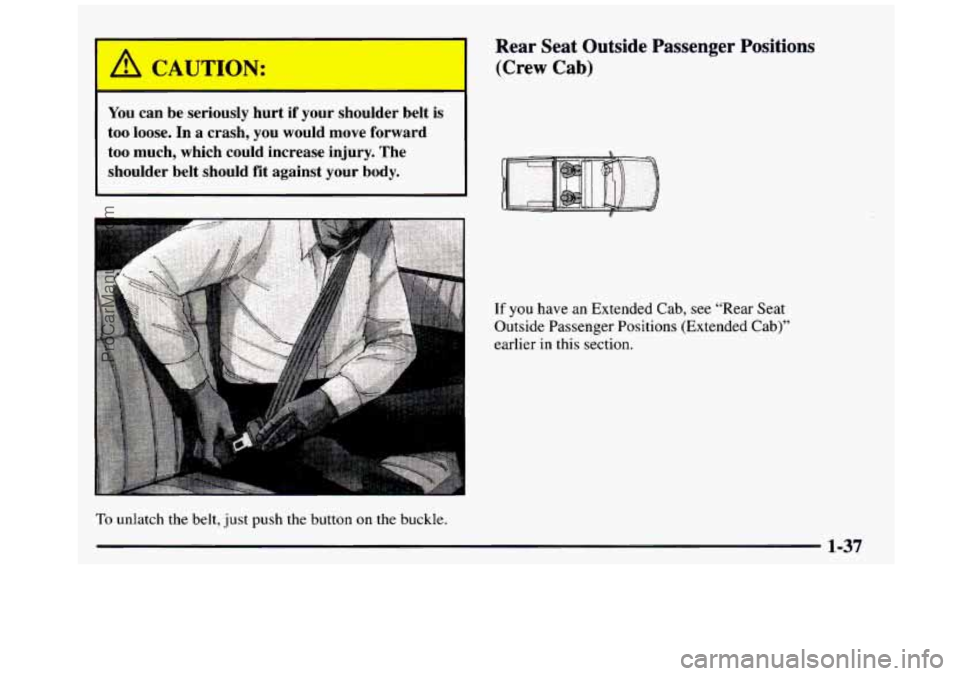

A CAUTION:
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
Rear Seat Outside Passenger Positions (Crew Cab)
If you have an Extended Cab, see “Rear Seat
Outside Passenger Positions (Extended Cab)”
earlier
in this section.
To unlatch the belt, just push the button on the buckle.
ProCarManuals.com

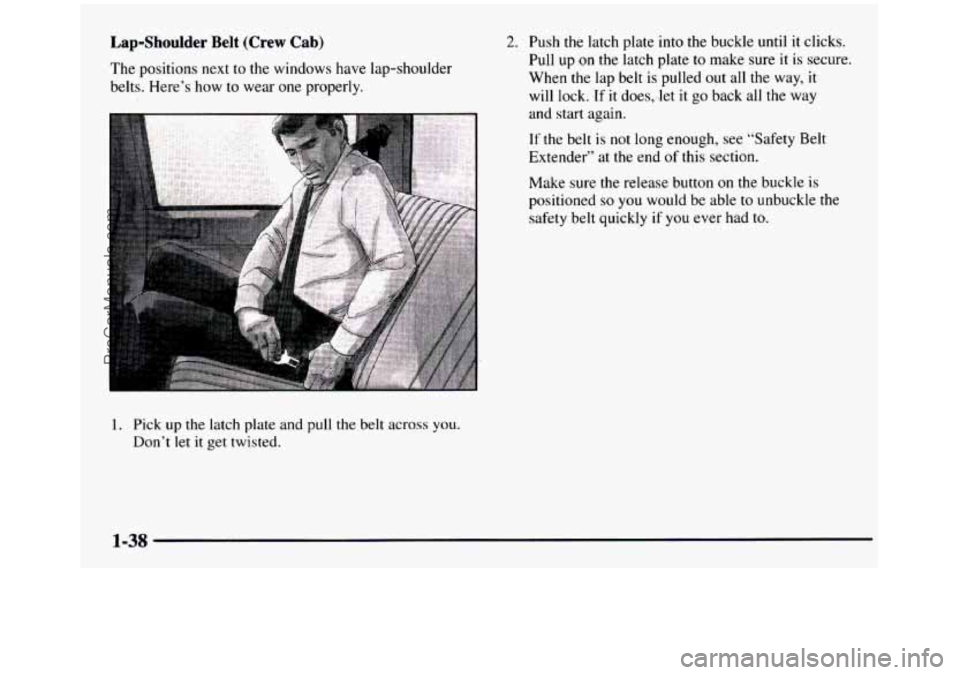

Lap-Shoulder Belt (Crew Cab)
The positions next to the windows have lap-shoulder
belts. Here’s how to wear one properly.
2. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
When
the lap belt is pulled out all the way, it
will lock. If it does,,.let it go back all the way
and start again.
If the belt
is not long enough, see “Safety Belt
Extender” at
the end of this section.
Make sure the release button
on the buckle is
positioned
so you would be able to unbuckle the
safety belt quickly if
you ever had to.
1, Pick up the latch plate and pull the belt across you.
Don’t let it get twisted.
1-38
ProCarManuals.com

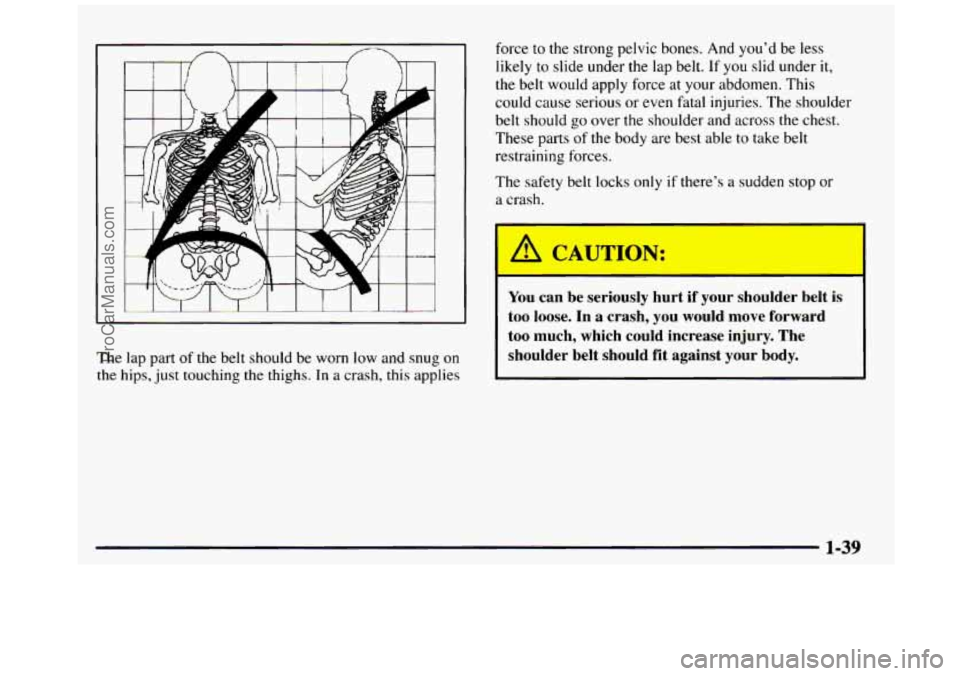

The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies force
to the strong pelvic bones. And you’d be less
likely
to slide under the lap belt. If you slid under it,
the belt would apply force at your abdomen. This
could cause serious or even fatal injuries. The shoulder
belt should
go over the shoulder and across the chest.
These parts of the body are best able
to take belt
restraining forces.
The safety belt locks
only if there’s a sudden stop or
a crash.
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The shoulder belt should fit against your body.
=1
ProCarManuals.com

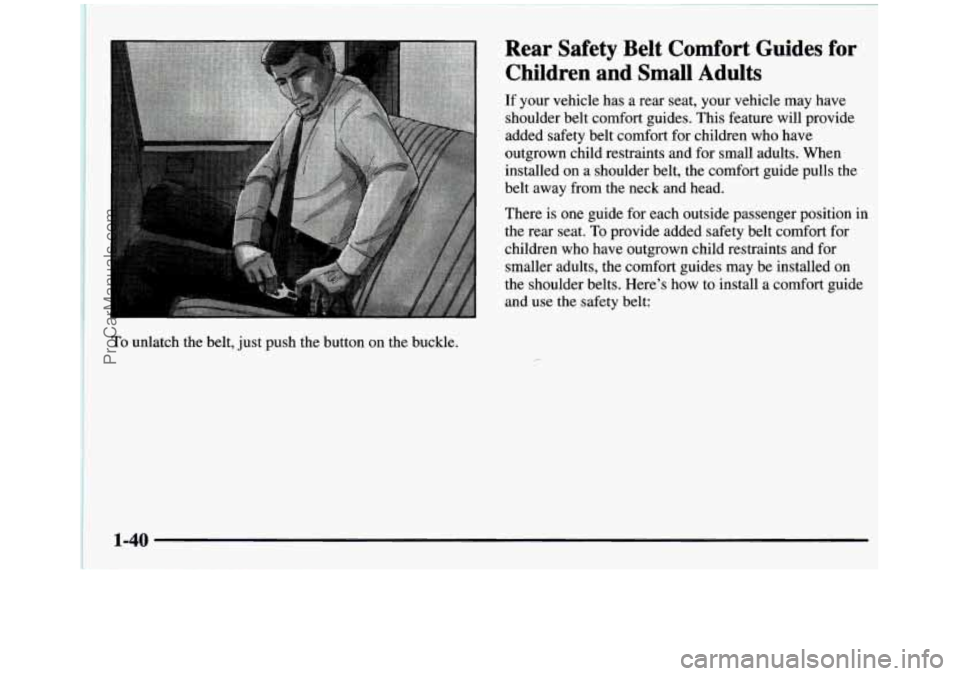

To unlatch the belt, just push the button on the buckle.
Rear Safety Belt Comfort Guides for
Children and Small Adults
If your vehicle has a rear seat, your vehicle may have
shoulder belt comfort guides. This feature will provide
added safety belt comfort for children who have
outgrown child restraints and for small adults. When
installed
on a shoulder belt, the comfort guide pulls the
belt away from the neck
and head.
There is one guide for each outside passenger position in
the rear seat.
To provide added safety belt comfort for
children who have outgrown child restraints and for
smaller adults, the comfort guides may be installed on
the shoulder belts. Here’s how to install a comfort guide
and use the safety belt:
1-40 I
I
I
ProCarManuals.com

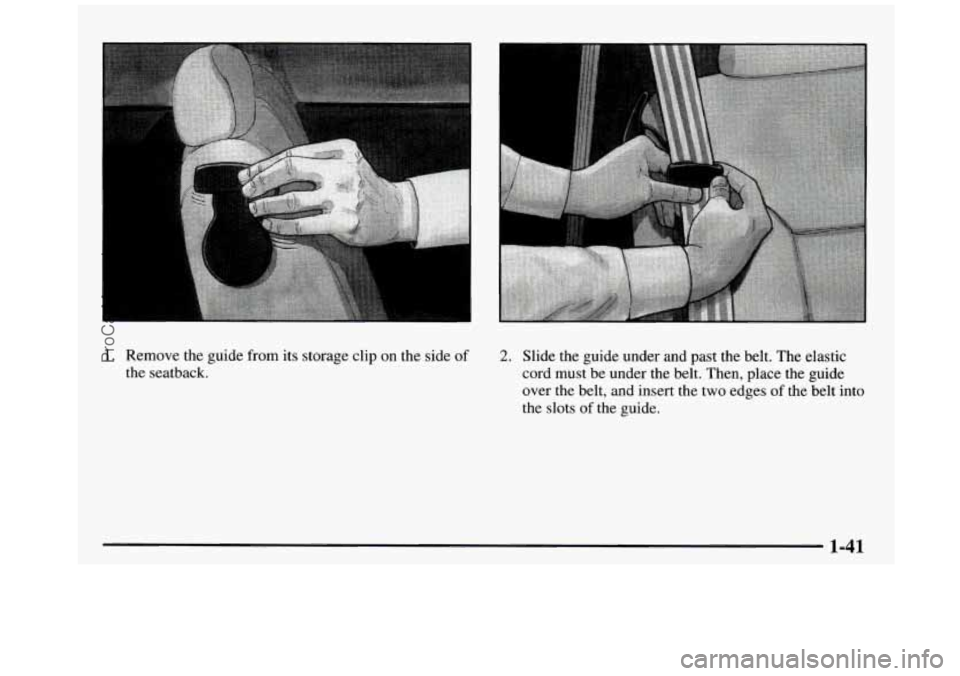

1. Remove the guide from its storage clip on the side of
the seatback. 2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt, and insert the two edges of the belt into
the slots
of the guide.
1-41
ProCarManuals.com

I
i

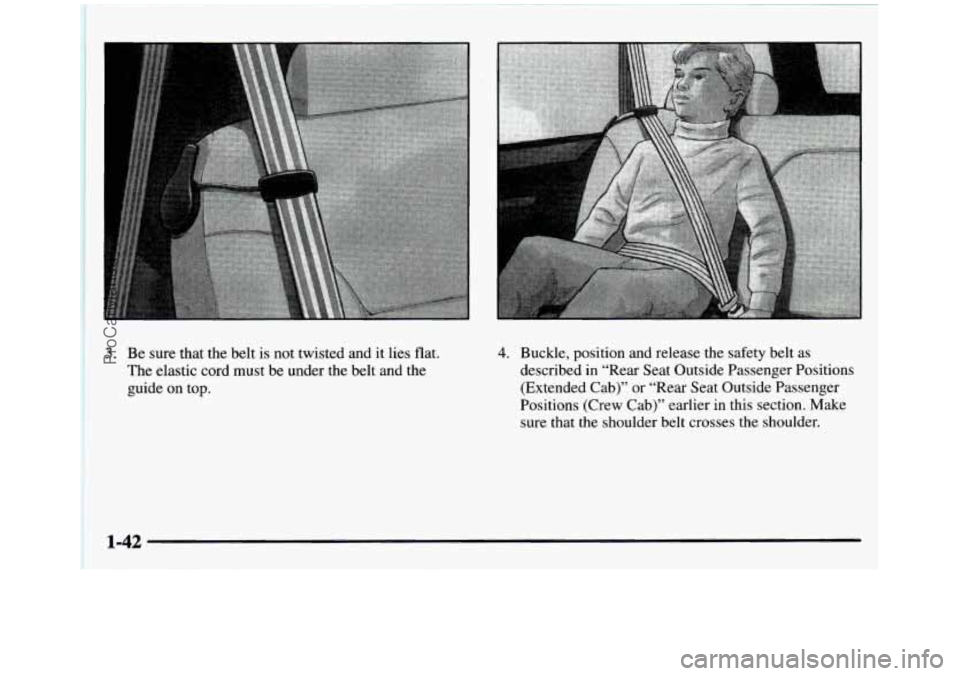

1 3. Be sure that the belt is not twisted and it lies flat.
I The elastic cord must be under the belt and the 1
1 guide on top.
-
4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions
(Extended Cab)” or “Rear Seat Outside Passenger
Positions (Crew Cab)” earlier in this section. Make sure that the shoulder belt crosses the shoulder.
1-42
