Page 317 of 394

6-40
5. Remove the old bulb from the bulb socket.
6. Put a new bulb into the bulb socket. Use care not to
touch the bulb with your fingers or hands.
7. Put the bulb socket back into the turn signal housing
and turn it clockwise until it locks.
8. Put the turn signal housing back into the vehicle
placing the hook and posts on the inner side into the
alignment holes first, then the outer side into the
retainer bracket until you hear a click.
9. Put the headlamp assembly back into the vehicle.Center High-Mounted Stoplamp (CHMSL)
and Cargo Lamp
1. Remove the screws and lift off the lamp assembly.
Page 331 of 394

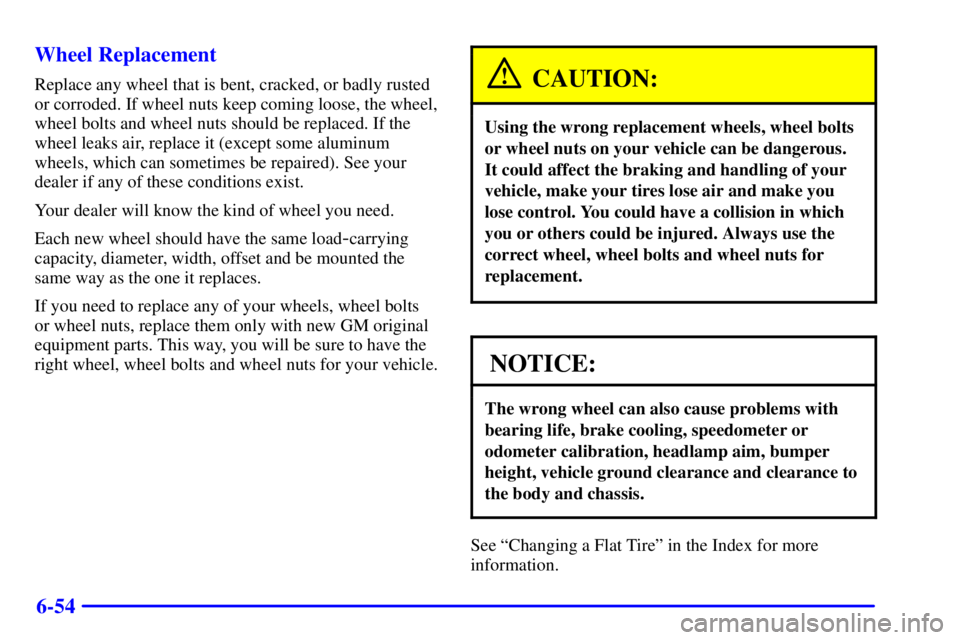

6-54 Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load
-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts for
replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and clearance to
the body and chassis.
See ªChanging a Flat Tireº in the Index for more
information.
Page 351 of 394

6-74
Fuse Usage
B/U LP Backup Lamps, Automatic
Transmission Shift Lock
Control System
ATC Automatic Transfer Case
RR DEFOG Rear Window Defogger, Heated
Mirrors (Relay)
RTD Not Used
RR PRK Passenger's Side Parking Lamps
ECM B VCM/PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Driver's Side Parking Lamps
RR DEFOG Rear Window Defogger,
Heated Mirrors
HDLP Headlamps (Relay)
TRL PRK Parking Lamps Trailer WiringFuse Usage
PRIME Not Used
RT HDLP Passenger's Side Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated Mirrors
LT HDLP Driver's Side Headlamps
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary
Power Outlets
SEO 2 Special Equipment Option Power,
Power Seats, Aux Roof Mnt Lamp
SEO 1 Special Equipment Option Power,
Aux Roof Mnt Lamp
DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Panel
Cluster, Climate Control System
Page 352 of 394

6-75
Fuse Usage
CIGAR Cigarette Lighter, Auxiliary
Power Outlets
RT TURN Right Turn Signals
BTSI Automatic Transmission Shift
Lock Control System
LT TURN Left Turn Signals
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)Fuse Usage
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Not Used
TBC Body Control Module (BCM),
Remote Keyless Entry, Headlamps
Page 353 of 394

6-76
Replacement Bulbs
Lamp Bulb Number
Low
-Beam Headlamps 9005 or. . . . . . . . . . . . . . . . .
9005 LL (long life)
High
-Beam Headlamps 9005. . . . . . . . . . . . . . . . . . .
Daytime Running Lamps (DRL) 4157K or. . . . . . . . .
3157KX
Front Roof Marker Lamps 194. . . . . . . . . . . . . . . . . .
Front Parking and Turn Lamps 3157 or. . . . . . . . . . .
3157K (long life)
Rear Marker Lamp, Taillamp
and Stoplamps 3157. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Lamps 3157. . . . . . . . . . . . . . . . . . . . . . . .
Back
-up Lamps 3157. . . . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp 912. . . . . . . . . . . . .
Cargo Lamp 912. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fender Marker Lamps 194. . . . . . . . . . . . . . . . . . . . .
For any bulb not listed here contact your dealer.
Capacities and Specifications
Capacities
Cooling System 14.8 quarts (14.0 L). . . . . . . . . . . . .
Engine Oil with Filter 6.0 quarts (5.7 L). . . . . . . . . .
Fuel Tank 26.0 U.S. gallons (98.4 L). . . . . . . . . . . . .
All capacities are approximate. When adding, be sure to
fill to the approximate level, as recommended in this
manual. See ªRecommended Fluids and Lubricantsº in
the Index.
Air Conditioning Refrigerant
Capacity
If you do your own service work, you'll need the proper
service manual. See ªDoing Your Own Service Workº in
the Index for additional information. It is recommended
that service work on your air conditioning system be
performed by a qualified technician.
Air Conditioning
Refrigerant R134a 1.76 lbs. (0.8 kg). . . . . . . . . . . . .
Use Refrigerant Oil, R134a Systems
