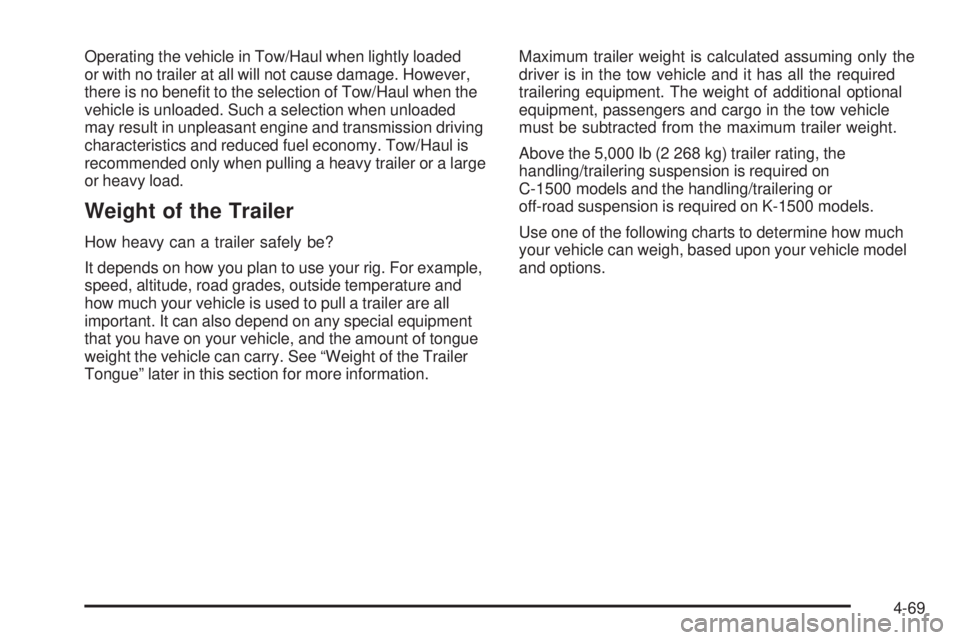

Page 381 of 600

GMC SIERRA 2006  Owners Manual Operating the vehicle in Tow/Haul when lightly loaded
or with no trailer at all will not cause damage. However,
there is no bene�t to the selection of Tow/Haul when the
vehicle is unloaded. Such a sel

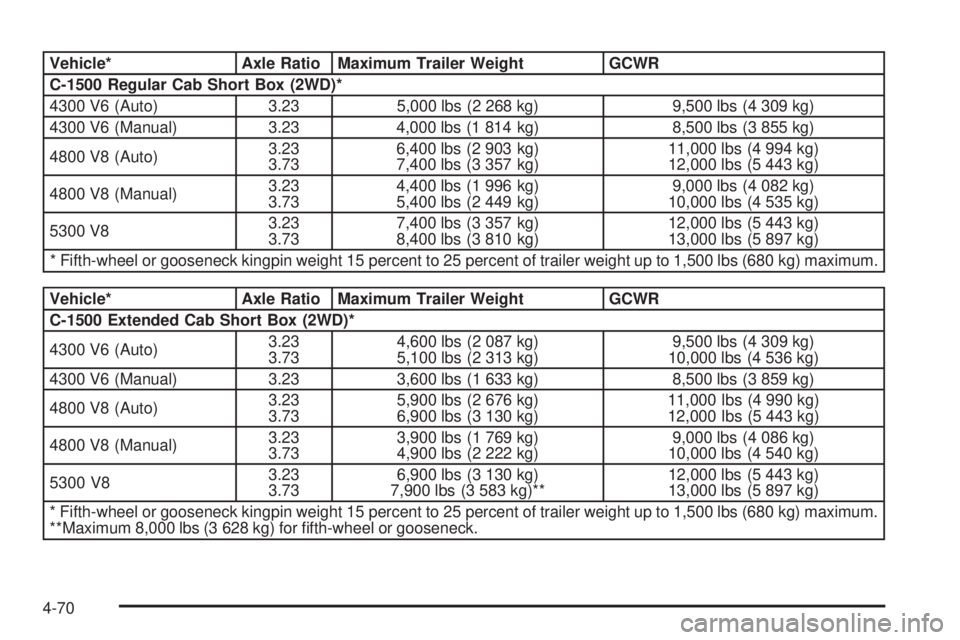

Page 382 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 Regular Cab Short Box (2WD)*
4300 V6 (Auto) 3.23 5,000 lbs (2 268 kg) 9,500 lbs (4 309 kg)
4300 V6 (Manual) 3.23 4,000 lbs (1 814 kg) 8,500 lbs (

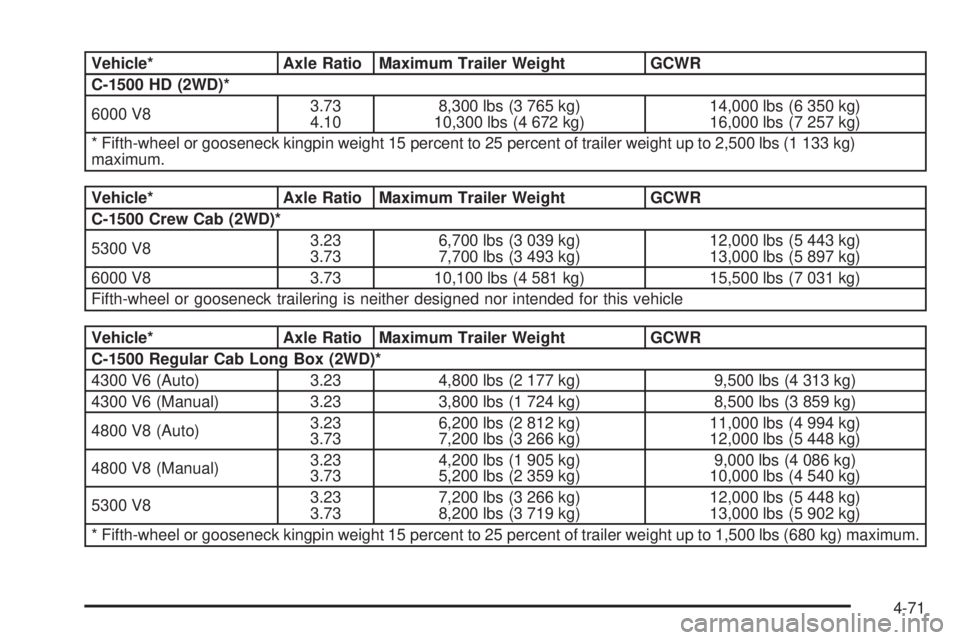

Page 383 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 HD (2WD)*
6000 V83.73
4.108,300 lbs (3 765 kg)
10,300 lbs (4 672 kg)14,000 lbs (6 350 kg)
16,000 lbs (7 257 kg)
* Fifth-wheel or gooseneck kingpi

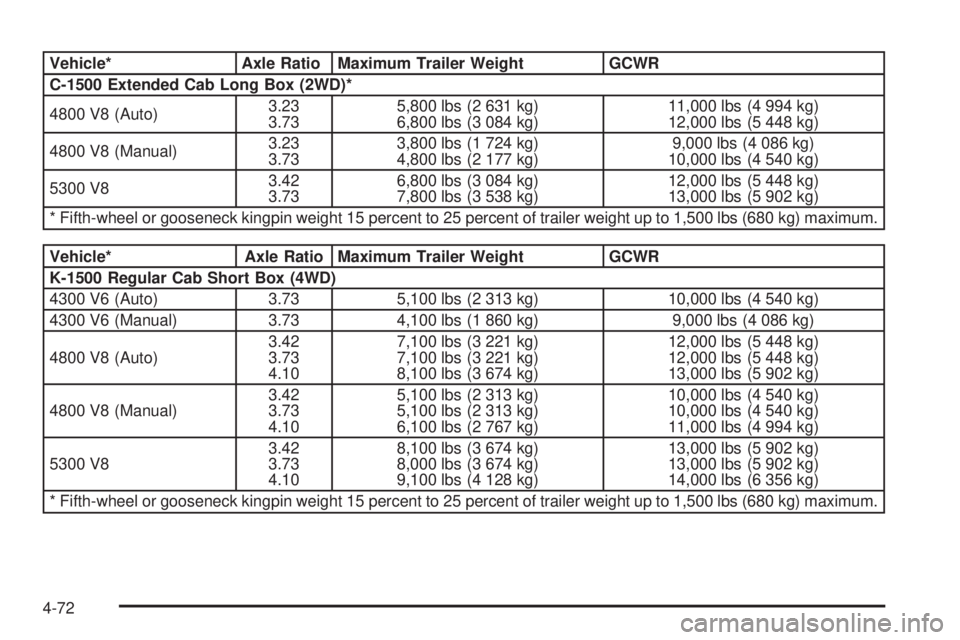

Page 384 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-1500 Extended Cab Long Box (2WD)*
4800 V8 (Auto)3.23
3.735,800 lbs (2 631 kg)
6,800 lbs (3 084 kg)11,000 lbs (4 994 kg)
12,000 lbs (5 448 kg)
4800 V8

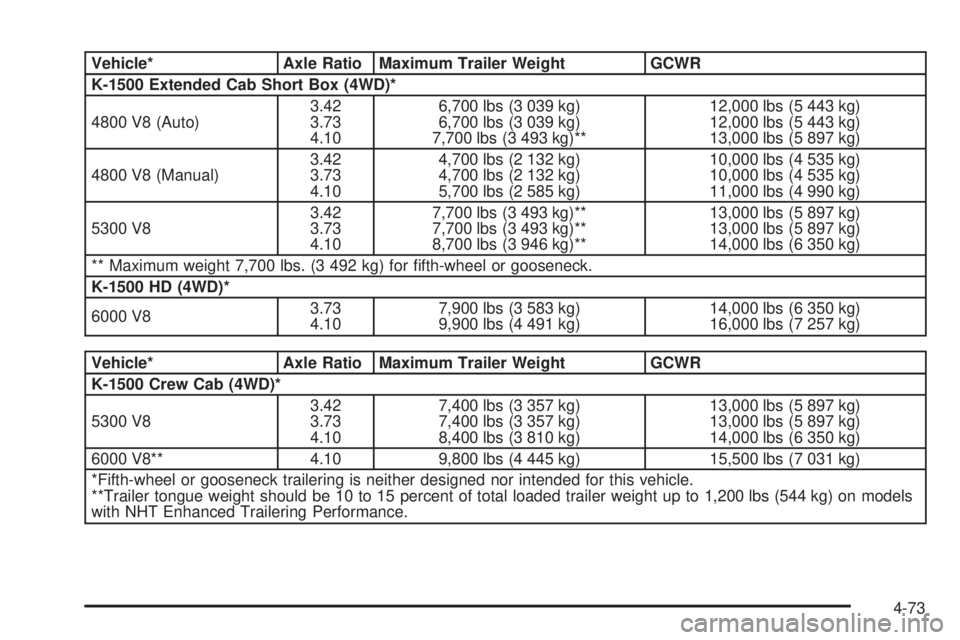

Page 385 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-1500 Extended Cab Short Box (4WD)*
4800 V8 (Auto)3.42
3.73
4.106,700 lbs (3 039 kg)
6,700 lbs (3 039 kg)
7,700 lbs (3 493 kg)**12,000 lbs (5 443 kg)
1

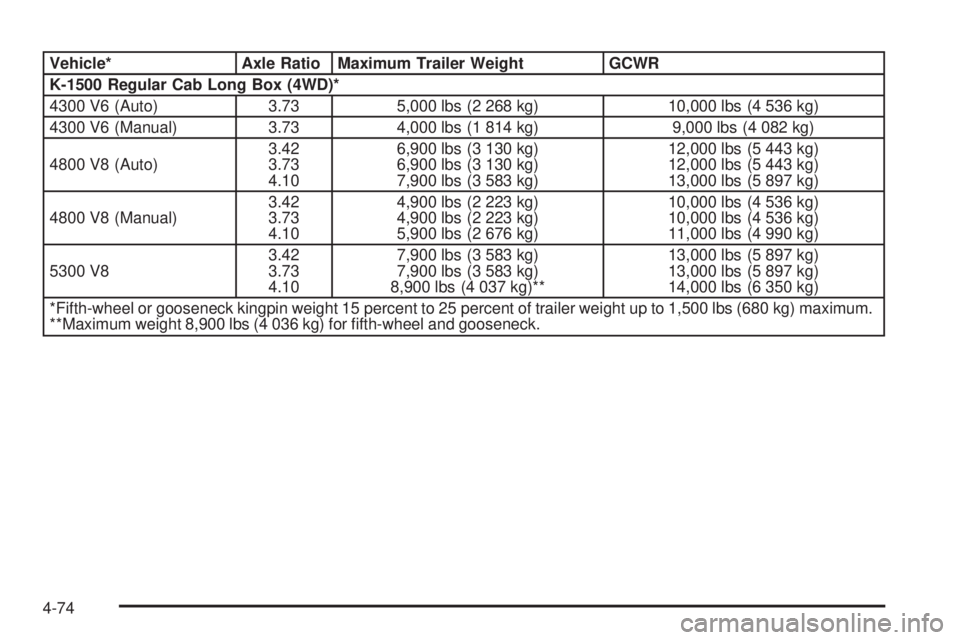

Page 386 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-1500 Regular Cab Long Box (4WD)*
4300 V6 (Auto) 3.73 5,000 lbs (2 268 kg) 10,000 lbs (4 536 kg)
4300 V6 (Manual) 3.73 4,000 lbs (1 814 kg) 9,000 lbs (

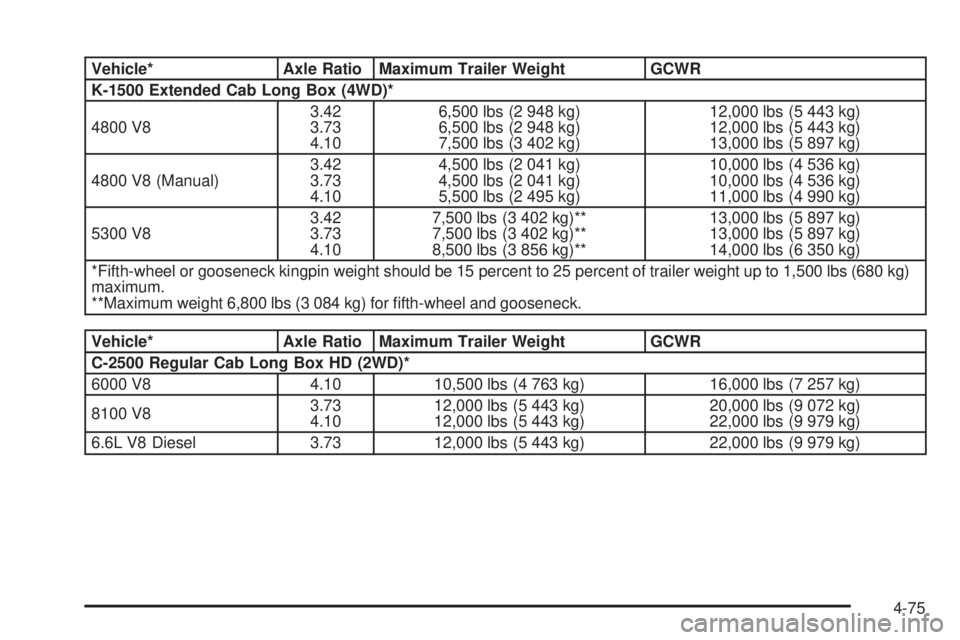

Page 387 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-1500 Extended Cab Long Box (4WD)*
4800 V83.42
3.73
4.106,500 lbs (2 948 kg)
6,500 lbs (2 948 kg)
7,500 lbs (3 402 kg)12,000 lbs (5 443 kg)
12,000 lbs

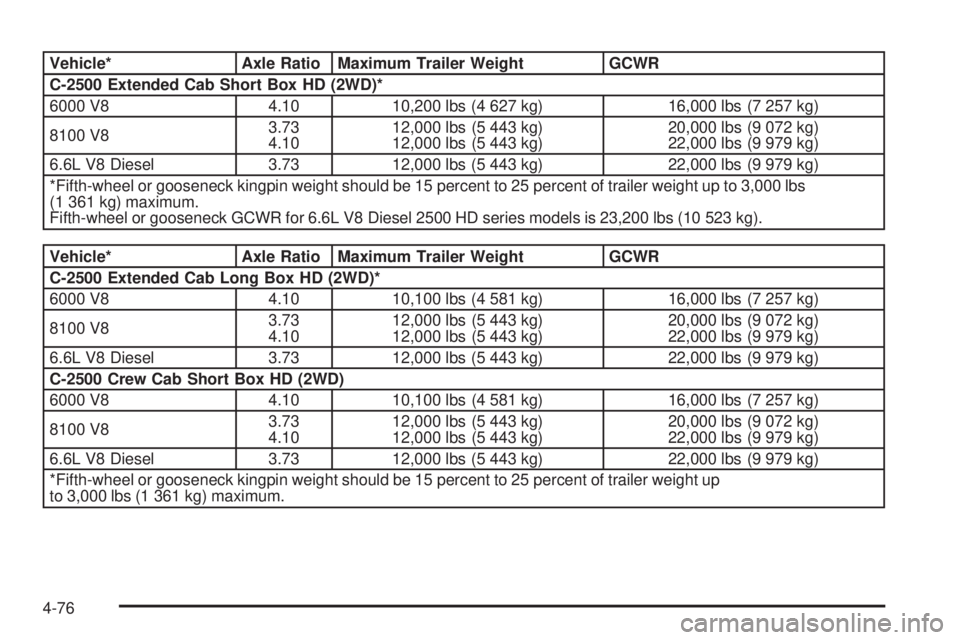

Page 388 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Extended Cab Short Box HD (2WD)*
6000 V8 4.10 10,200 lbs (4 627 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443

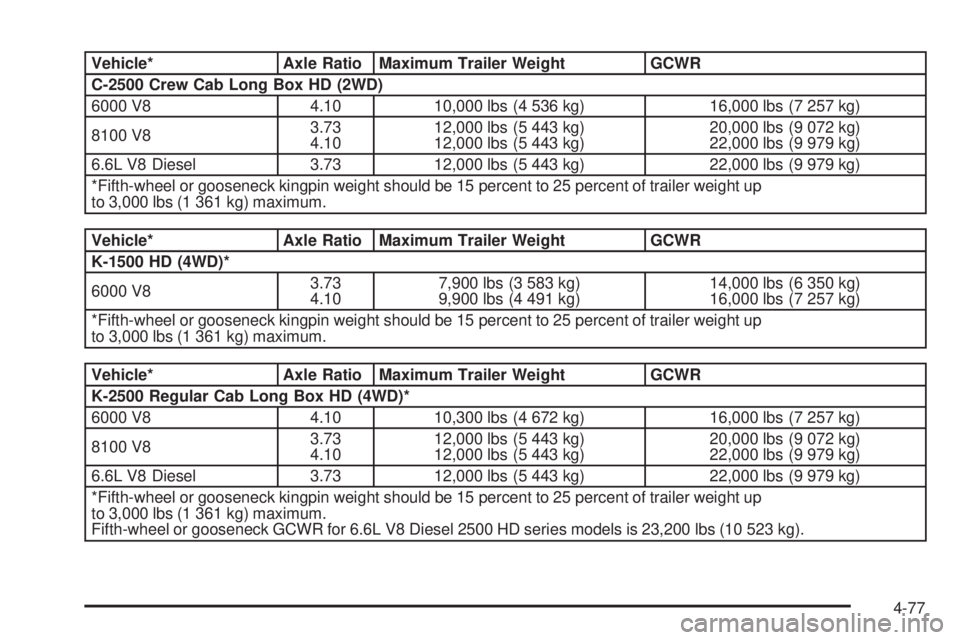

Page 389 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Crew Cab Long Box HD (2WD)
6000 V8 4.10 10,000 lbs (4 536 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20

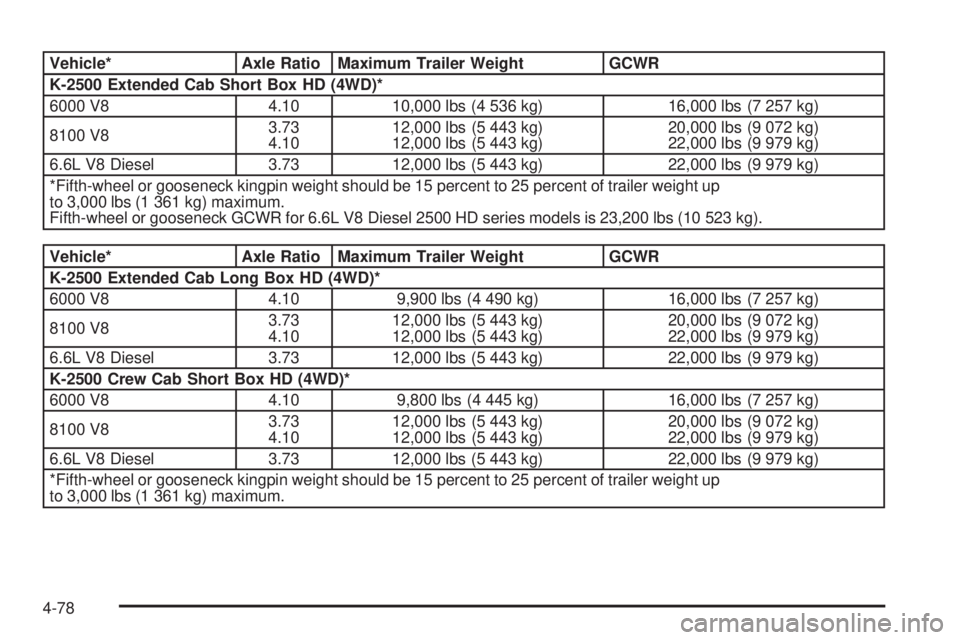

Page 390 of 600

GMC SIERRA 2006  Owners Manual Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-2500 Extended Cab Short Box HD (4WD)*
6000 V8 4.10 10,000 lbs (4 536 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443
