child seat GMC SIERRA 2007 Owner's Manual

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 20
Safety Belts
............................................ 22
Child Restraints
...................................... 45
Airbag System
........................................ 83
Restraint System Check
....................... 104
Features and Controls
.............................. 107
Keys
..................................................... 109
Doors and Locks
.................................. 118
Windows
............................................... 124
Theft-Deterrent Systems
....................... 127
Starting and Operating Your Vehicle
..... 132
Mirrors
.................................................. 169
OnStar
®System
................................... 180
Universal Home Remote System
.......... 184
Storage Areas
...................................... 196
Sunroof
................................................ 200Instrument Panel
....................................... 203
Instrument Panel Overview
................... 206
Climate Controls
................................... 234
Warning Lights, Gages, and
Indicators
.......................................... 246
Driver Information Center (DIC)
............ 267
Audio System(s)
................................... 300
Driving Your Vehicle
................................. 373
Your Driving, the Road, and
Your Vehicle
..................................... 374
Towing
................................................. 439
Service and Appearance Care
.................. 483
Service
................................................. 486
Fuel
...................................................... 488
Checking Things Under the Hood
......... 496
Rear Axle
............................................. 538
Four-Wheel Drive
.................................. 539
Front Axle
............................................ 541
2007 GMC Sierra Owner ManualM
1

Front Seats..................................................... 9
Manual Seats................................................ 9
Power Seats............................................... 10
Manual Lumbar........................................... 11
Power Lumbar............................................. 11
Heated Seats.............................................. 12
Memory Seat, Mirrors, and Pedals.............. 13
Reclining Seatbacks.................................... 15
Head Restraints.......................................... 18
Seatback Latches........................................ 19
Center Seat................................................ 19
Rear Seats.................................................... 20
Rear Seat Operation (Full Bench)............... 20
Rear Seat Operation (Split Bench).............. 21
Safety Belts.................................................. 22
Safety Belts: They Are for Everyone........... 22
Questions and Answers About
Safety Belts............................................. 26
How to Wear Safety Belts Properly............. 27
Driver Position............................................. 28
Shoulder Belt Height Adjustment................. 35
Safety Belt Use During Pregnancy.............. 36Right Front Passenger Position................... 37
Center Front Passenger Position
(Regular Cab).......................................... 37
Center Front Passenger Position
(Crew and Extended Cab)....................... 38
Rear Seat Passengers................................ 39
Rear Safety Belt Comfort Guides................ 41
Safety Belt Pretensioners............................ 44
Safety Belt Extender................................... 44
Child Restraints............................................ 45
Older Children............................................. 45
Infants and Young Children......................... 48
Child Restraint Systems.............................. 51
Where to Put the Restraint.......................... 56
Lower Anchors and Tethers for
Children (LATCH).................................... 58
Securing a Child Restraint in a Rear
Seat Position........................................... 67
Securing a Child Restraint in the Center
Front Seat Position.................................. 69
Securing a Child Restraint in the Right
Front Seat Position (With Airbag
Off Switch)............................................... 70
Section 1 Seats and Restraint Systems
7

Securing a Child Restraint in the Right
Front Seat Position (With Passenger
Sensing System)...................................... 76
Securing a Child Restraint in the Right
Front Seat Position (Crew Cab)
(Heavy Duty Crew Cab Only)................... 80
Airbag System.............................................. 83
Where Are the Airbags?.............................. 86
When Should an Airbag Inate?.................. 89
What Makes an Airbag Inate?................... 91
How Does an Airbag Restrain?................... 91What Will You See After an
Airbag Inates?........................................ 92
Airbag Off Switch........................................ 93
Passenger Sensing System ......................... 97
Servicing Your Airbag-Equipped Vehicle.... 102
Adding Equipment to Your
Airbag-Equipped Vehicle........................ 102
Restraint System Check............................. 104
Checking the Restraint Systems................ 104
Replacing Restraint System Parts After
a Crash................................................. 105
Section 1 Seats and Restraint Systems
8

{CAUTION:
You can be seriously hurt if your shoulder
belt is too loose. In a crash, you would
move forward too much, which could
increase injury. The shoulder belt should
t against your body.
To unlatch the belt, push the button on the buckle.
Rear Safety Belt Comfort Guides
Rear shoulder belt comfort guides may provide
added safety belt comfort for older children
who have outgrown booster seats and for some
adults. When installed on a shoulder belt, the
comfort guide positions the belt away from
the neck and head.
There is one guide for each outboard passenger
position in the rear seat. Here is how to install
a comfort guide to the shoulder belt:
1. Remove the guide from its storage clip on the
interior body.
41

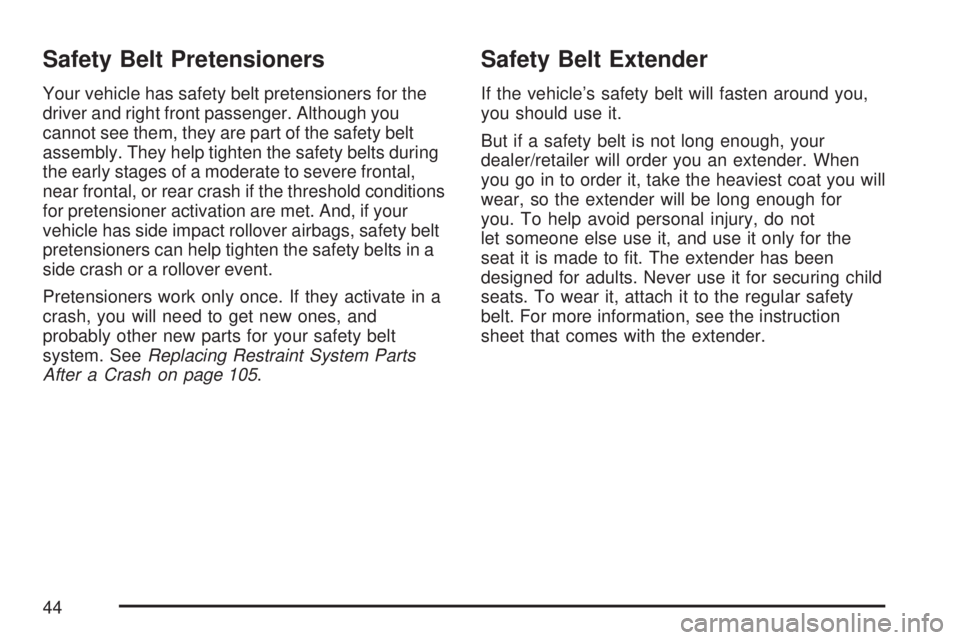

Safety Belt Pretensioners
Your vehicle has safety belt pretensioners for the
driver and right front passenger. Although you
cannot see them, they are part of the safety belt
assembly. They help tighten the safety belts during
the early stages of a moderate to severe frontal,
near frontal, or rear crash if the threshold conditions
for pretensioner activation are met. And, if your
vehicle has side impact rollover airbags, safety belt
pretensioners can help tighten the safety belts in a
side crash or a rollover event.
Pretensioners work only once. If they activate in a
crash, you will need to get new ones, and
probably other new parts for your safety belt
system. SeeReplacing Restraint System Parts
After a Crash on page 105.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you,
you should use it.
But if a safety belt is not long enough, your
dealer/retailer will order you an extender. When
you go in to order it, take the heaviest coat you will
wear, so the extender will be long enough for
you. To help avoid personal injury, do not
let someone else use it, and use it only for the
seat it is made to t. The extender has been
designed for adults. Never use it for securing child
seats. To wear it, attach it to the regular safety
belt. For more information, see the instruction
sheet that comes with the extender.
44

Child Restraints
Older Children
Older children who have outgrown booster seats
should wear the vehicle’s safety belts.
Q:What is the proper way to wear safety
belts?
A:An older child should wear a lap-shoulder belt
and get the additional restraint a shoulder belt
can provide. The shoulder belt should not
cross the face or neck. The lap belt should t
snugly below the hips, just touching the
top of the thighs. It should never be worn over
the abdomen, which could cause severe or
even fatal internal injuries in a crash.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
In a crash, children who are not buckled up can
strike other people who are buckled up, or can be
thrown out of the vehicle. Older children need
to use safety belts properly.
45

{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt cannot properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only one
person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:If the child is sitting in a seat next to a
window, move the child toward the center of
the vehicle. Also seeRear Safety Belt
Comfort Guides on page 41. If the child is
sitting in the center rear seat passenger
position, move the child toward the safety belt
buckle. In either case, be sure that the
shoulder belt still is on the child’s shoulder, so
that in a crash the child’s upper body would
have the restraint that belts provide.
46

{CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is
behind the child. If the child wears the
belt in this way, in a crash the child might
slide under the belt. The belt’s force
would then be applied right on the child’s
abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just
touching the child’s thighs. This applies belt force
to the child’s pelvic bones in a crash.
47

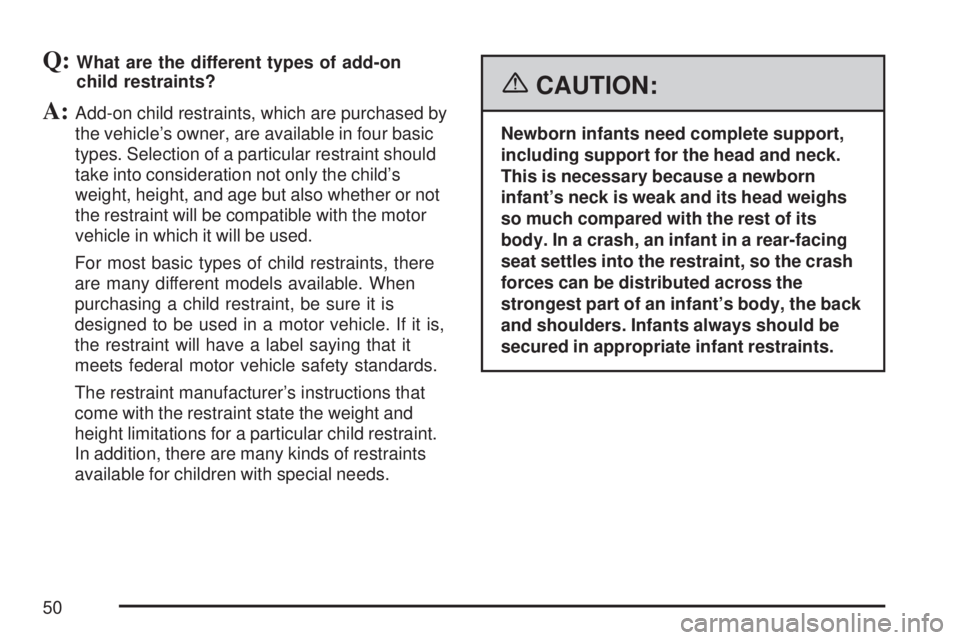

Q:What are the different types of add-on
child restraints?
A:Add-on child restraints, which are purchased by
the vehicle’s owner, are available in four basic
types. Selection of a particular restraint should
take into consideration not only the child’s
weight, height, and age but also whether or not
the restraint will be compatible with the motor
vehicle in which it will be used.
For most basic types of child restraints, there
are many different models available. When
purchasing a child restraint, be sure it is
designed to be used in a motor vehicle. If it is,
the restraint will have a label saying that it
meets federal motor vehicle safety standards.
The restraint manufacturer’s instructions that
come with the restraint state the weight and
height limitations for a particular child restraint.
In addition, there are many kinds of restraints
available for children with special needs.
{CAUTION:
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn
infant’s neck is weak and its head weighs
so much compared with the rest of its
body. In a crash, an infant in a rear-facing
seat settles into the restraint, so the crash
forces can be distributed across the
strongest part of an infant’s body, the back
and shoulders. Infants always should be
secured in appropriate infant restraints.
50

A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the
infant. The harness system holds the infant in
place and, in a crash, acts to keep the infant
positioned in the restraint.A forward-facing child seat (C-E) provides restraint
for the child’s body with the harness and also
sometimes with surfaces such as T-shaped
or shelf-like shields.
52
