GMC SONOMA 2001 Owner's Manual

2-50
Mirrors

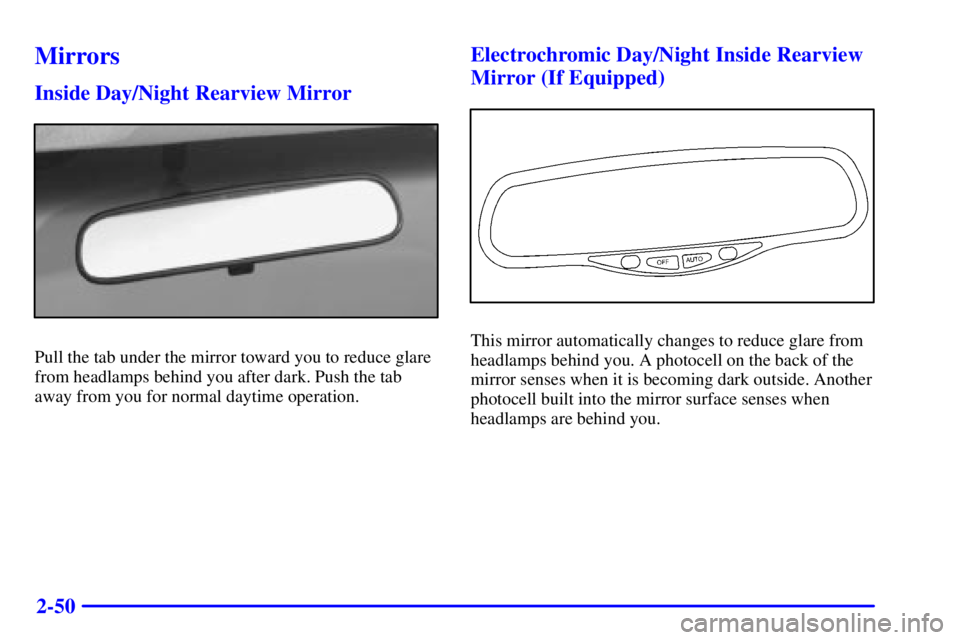

Inside Day/Night Rearview Mirror
Pull the tab under the mirror toward you to reduce glare
from headlamps behind you after dark. Push the tab
away from you for normal daytime operation.
Electrochromic Day/Night Inside Rearview
Mirror (If Equipped)
This mirror automatically changes to reduce glare from
headlamps behind you. A photocell on the back of the
mirror senses when it is becoming dark outside. Another
photocell built into the mirror surface senses when
headlamps are behind you.

2-51
At night, when the glare is too high, the mirror will
gradually darken to reduce glare (this change may take a
few seconds). The mirror will return to its clear daytime
state when the glare is reduced. The mirror will also
return to its clear daytime state when the vehicle is put
into REVERSE (R).
Press the AUTO button at the base of the mirror to turn
on the automatic feature. The button has an indicator
light to show it is on. Press the OFF button to turn the
automatic feature off.
Time Delay
The automatic mirror has a time delay feature which
prevents unnecessary switching from the night back to
the day position. This delay prevents rapid changing of
the mirror as you drive under lights and through traffic.
Cleaning the Photocells
Use a cotton swab and glass cleaner to clean the

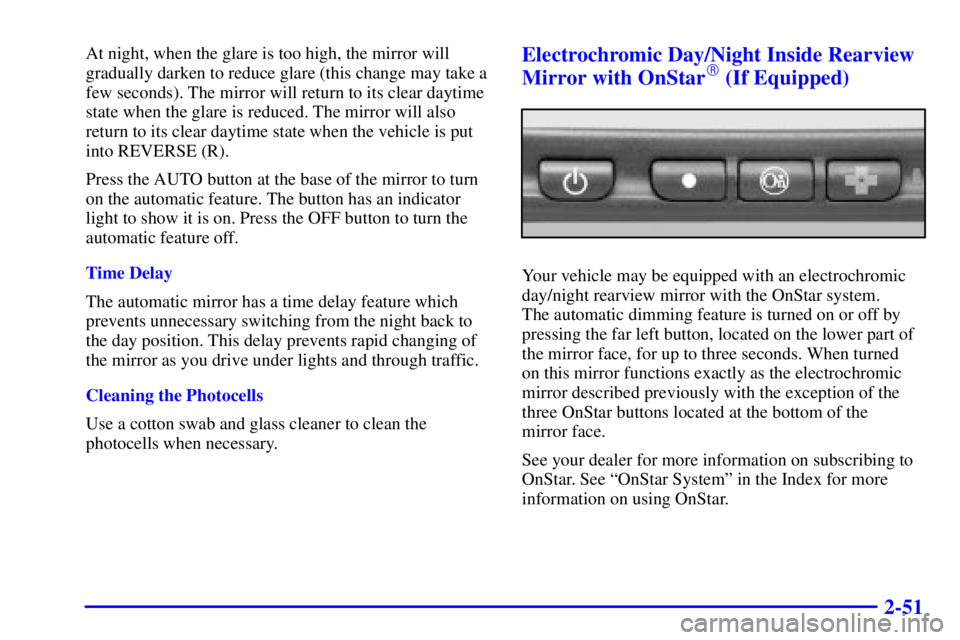

photocells when necessary.Electrochromic Day/Night Inside Rearview
Mirror with OnStar
(If Equipped)
Your vehicle may be equipped with an electrochromic
day/night rearview mirror with the OnStar system.
The automatic dimming feature is turned on or off by
pressing the far left button, located on the lower part of
the mirror face, for up to three seconds. When turned
on this mirror functions exactly as the electrochromic
mirror described previously with the exception of the
three OnStar buttons located at the bottom of the
mirror face.
See your dealer for more information on subscribing to
OnStar. See ªOnStar Systemº in the Index for more
information on using OnStar.

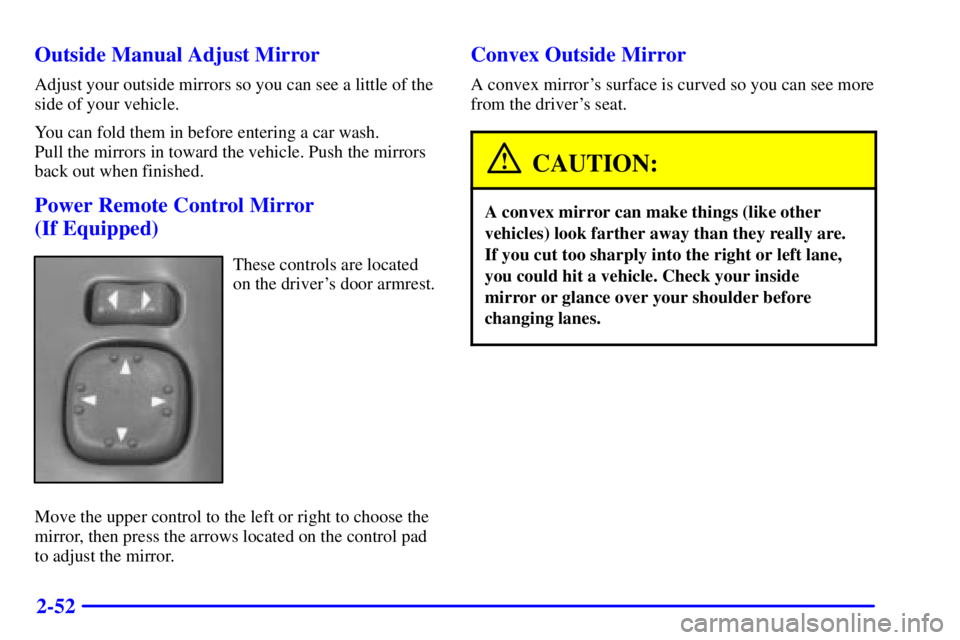

2-52 Outside Manual Adjust Mirror
Adjust your outside mirrors so you can see a little of the
side of your vehicle.
You can fold them in before entering a car wash.
Pull the mirrors in toward the vehicle. Push the mirrors
back out when finished.
Power Remote Control Mirror
(If Equipped)
These controls are located
on the driver's door armrest.
Move the upper control to the left or right to choose the
mirror, then press the arrows located on the control pad
to adjust the mirror.
Convex Outside Mirror
A convex mirror's surface is curved so you can see more
from the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right or left lane,
you could hit a vehicle. Check your inside
mirror or glance over your shoulder before
changing lanes.

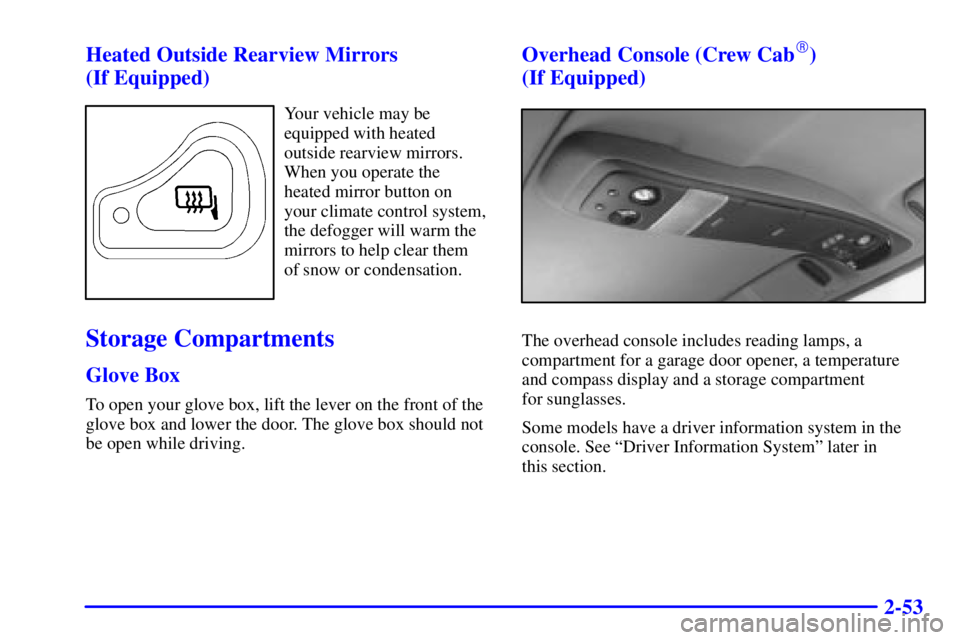

2-53 Heated Outside Rearview Mirrors
(If Equipped)
Your vehicle may be
equipped with heated
outside rearview mirrors.
When you operate the
heated mirror button on
your climate control system,
the defogger will warm the
mirrors to help clear them
of snow or condensation.
Storage Compartments
Glove Box
To open your glove box, lift the lever on the front of the
glove box and lower the door. The glove box should not
be open while driving.
Overhead Console (Crew Cab
)
(If Equipped)
The overhead console includes reading lamps, a
compartment for a garage door opener, a temperature
and compass display and a storage compartment
for sunglasses.
Some models have a driver information system in the
console. See ªDriver Information Systemº later in
this section.

2-54

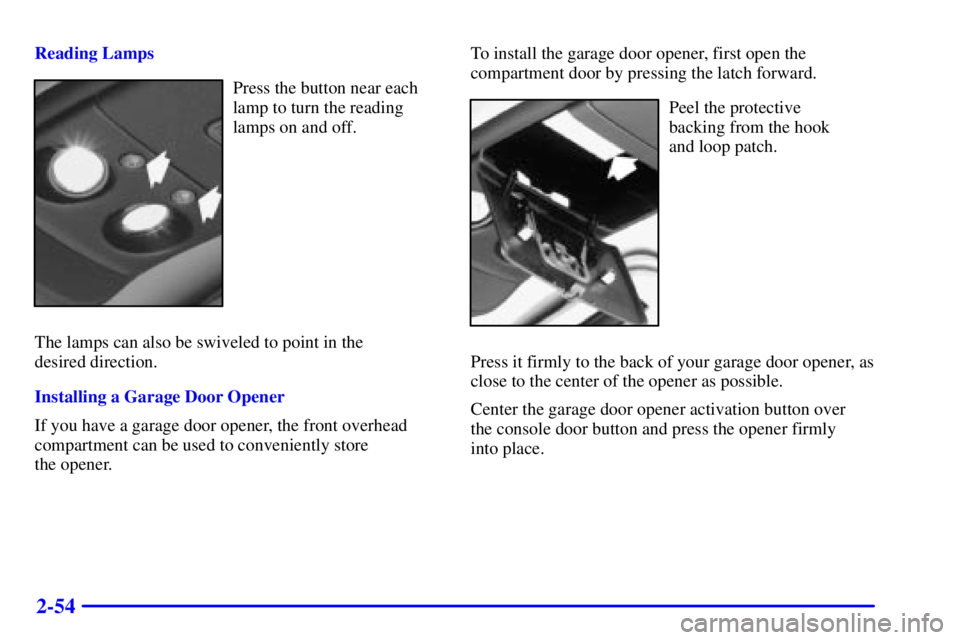

Reading Lamps
Press the button near each
lamp to turn the reading
lamps on and off.
The lamps can also be swiveled to point in the
desired direction.
Installing a Garage Door Opener
If you have a garage door opener, the front overhead
compartment can be used to conveniently store
the opener.To install the garage door opener, first open the
compartment door by pressing the latch forward.
Peel the protective
backing from the hook
and loop patch.
Press it firmly to the back of your garage door opener, as
close to the center of the opener as possible.
Center the garage door opener activation button over
the console door button and press the opener firmly
into place.

2-55
The pegs inside the
compartment door are used
to make sure the button on
the compartment door will
contact the control button
on the garage door opener.
Add one peg at a time until the garage door opener
operates with the compartment door closed when you
press the button.Now, with the compartment
door closed, press the
button again to make sure
the garage door opener
operates properly.
With the garage door opener positioned properly and
the right number of pegs in place, you should only
have to press the button slightly to operate the opener.
Adjust the position of the garage door opener and
add or remove pegs, as needed, until the opener
operates properly.

2-56

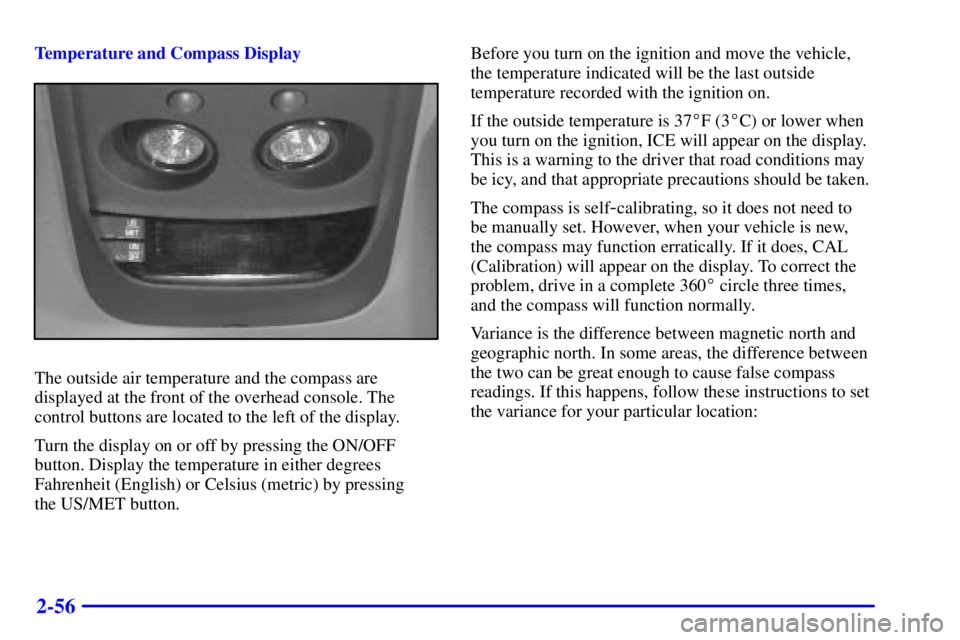

Temperature and Compass Display
The outside air temperature and the compass are
displayed at the front of the overhead console. The
control buttons are located to the left of the display.
Turn the display on or off by pressing the ON/OFF
button. Display the temperature in either degrees
Fahrenheit (English) or Celsius (metric) by pressing
the US/MET button.Before you turn on the ignition and move the vehicle,
the temperature indicated will be the last outside
temperature recorded with the ignition on.
If the outside temperature is 37
F (3
C) or lower when
you turn on the ignition, ICE will appear on the display.
This is a warning to the driver that road conditions may
be icy, and that appropriate precautions should be taken.
The compass is self
-calibrating, so it does not need to
be manually set. However, when your vehicle is new,
the compass may function erratically. If it does, CAL
(Calibration) will appear on the display. To correct the
problem, drive in a complete 360
circle three times,
and the compass will function normally.
Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:

2-57
1. Find your location on the zone map. Record your
zone number.
2. Press and hold both the ON/OFF and the US/MET
buttons. The display will go off.
3. After five seconds, VAR CAL will appear on the
display. When it does, release both buttons.
4. Press US/MET until your zone number appears on
the display.
5. Press ON/OFF to enter your zone number. Your
variance is now set.Driver Information System (If Equipped)
This system displays the outside air temperature,
compass direction and trip information in the
overhead console.
US/MET: The US/MET (United States/metric) button
allows you to switch the display between the English
and metric system.
MODE: The MODE button can be used to toggle
between three modes of operation: OFF, COMP/TEMP
and TRIP.
COMP/TEMP: The display provides the outside
temperature and one of eight compass readings to
indicate the direction the vehicle is facing.
Before you turn on the ignition and move the vehicle,
the temperature indicated will be the last outside
temperature recorded with the ignition on. If the outside
temperature is 37
F (3
C) or lower, the display will
toggle between the word ICE and the current
temperature every eight seconds. This is a warning to
the driver that road conditions may be icy, and that
appropriate precautions should be taken.

2-58
The compass is self-calibrating, so it does not need
to be manually set. However, if ªCº (Calibration) is
displayed, the compass will need to be calibrated. You
may also place the compass in a noncalibrated mode by
pressing and holding the MODE and US/MET buttons
simultaneously while in the COMP/TEMP mode. After
about 10 seconds, the compass will display C and you
can release the buttons. Drive the vehicle in a complete
360
circle three times at a speed of less than 5 mph
(8 km/h), and the compass will function normally.
Once the calibration is complete, the display will return
to a compass reading.
Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:
1. Find your location on the zone map earlier in this
section. Record your zone number.
2. Press and hold both the MODE and the US/MET
buttons in the COMP/TEMP mode.
3. After five seconds, the compass will acknowledge
the variation mode by displaying the current zone
number. When it does, release both buttons.
4. Press US/MET until your zone number appears on
the display.5. Press MODE to enter your zone number.
Your variance is now set and the display will
return to the COMP/TEMP mode.
TRIP: Once in the TRIP mode, pressing the
MODE button will step you through the following
TRIP functions:

AVG ECON: The average fuel economy since the
last reset is displayed.

INST ECON: Instantaneous fuel economy for the
last second of driving is displayed.

RANGE: The display indicates the estimated
distance that can be travelled with the remaining fuel
in the tank, based on the fuel economy for the last
few hours of driving.

FUEL USED: The fuel used since the last reset
is displayed.

AVG SPEED: The average speed since the last reset
is displayed.
To reset the trip computer, press the MODE and
US/MET buttons simultaneously for at least two
seconds. All functions will be displayed briefly once
the system is reset. Reset can only be performed in the
AVG ECON, FUEL USED and AVG SPEED modes.
All three modes are reset simultaneously.

2-59

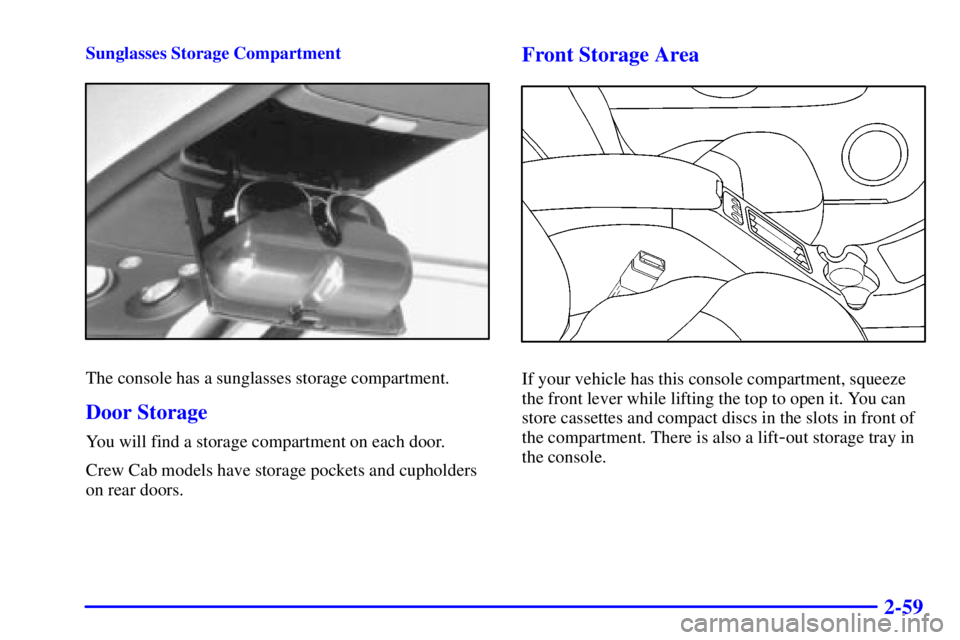

Sunglasses Storage Compartment
The console has a sunglasses storage compartment.
Door Storage
You will find a storage compartment on each door.
Crew Cab models have storage pockets and cupholders
on rear doors.
Front Storage Area
If your vehicle has this console compartment, squeeze
the front lever while lifting the top to open it. You can
store cassettes and compact discs in the slots in front of
the compartment. There is also a lift
-out storage tray in
the console.
