tow GMC TERRAIN 2016 Get To Know Guide

7
Wipers and Washers
Windshield Wipers and Washer
Move the lever up or down to operate the windshield wipers .
HI Continuous High Speed
LO Continuous Low Speed
INT Intermittent
Rotate the band to adjust the delay between wipes .
OFF
1x Mist
Washer Fluid
Pull the lever toward you to spray washer fluid on the windshield.
Rear Wiper and Washer
The rear wiper switch is located on the end of the wiper lever .
A. ON Continuous Low Speed
B. OFF
C. INT Intermittent
Washer Fluid
Push the lever away from you to spray washer fluid on the rear window.
See Instruments and Controls in your Owner Manual.
Power Programmable LiftgateF
Programming the Liftgate Height
1 . Turn the power liftgate switch to the 3/4 mode position .
2 . Open the liftgate by pressing the RKE transmitter liftgate button or the touchpad on the center of the liftgate .
3 . Stop the liftgate at the desired height by pressing any liftgate button . Adjust manually to the desired height if necessary .
4 . To save the setting, press and hold the button next to the liftgate latch for three seconds. The taillamps will flash when the setting is saved .
See Keys, Doors and Windows in your Owner Manual.
MAX
Fully open the liftgate .
3/4
Open the liftgate to the programmed height .
OFF
Operate the liftgate manually .
F Optional equipment
A
B
C

17

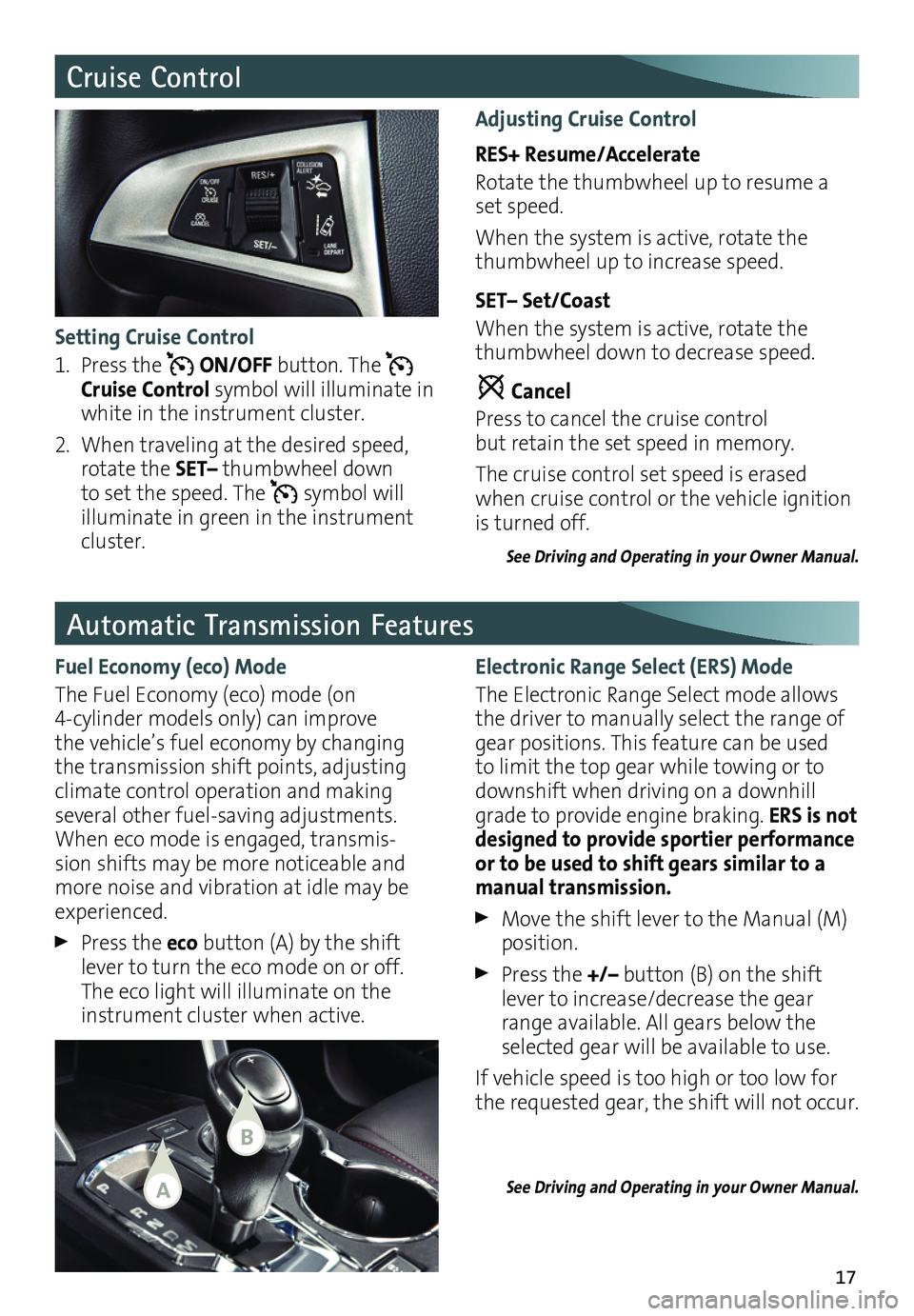

Automatic Transmission Features
Electronic Range Select (ERS) Mode
The Electronic Range Select mode allows the driver to manually select the range of gear positions . This feature can be used to limit the top gear while towing or to downshift when driving on a downhill grade to provide engine braking . ERS is not designed to provide sportier
performance or to be used to shift gears similar to a manual transmission.
Move the shift lever to the Manual (M) position .
Press the +/– button (B) on the shift lever to increase/decrease the gear range available . All gears below the selected gear will be available to use .
If vehicle speed is too high or too low for the requested gear, the shift will not occur .
See Driving and Operating in your Owner Manual.
Fuel Economy (eco) Mode
The Fuel Economy (eco) mode (on 4-cylinder models only) can improve the vehicle’s fuel economy by changing the transmission shift points, adjusting climate control operation and making
sev eral other fuel-saving adjustments . When eco mode is engaged, transmis-sion shifts may be more noticeable and more noise and vibration at idle may be experienced .
Press the eco button (A) by the shift lever to turn the eco mode on or off . The eco light will illuminate on the instrument cluster when active .
Cruise Control
Adjusting Cruise Control
RES+ Resume/Accelerate
Rotate the thumbwheel up to resume a set speed .
When the system is active, rotate the thumbwheel up to increase speed .
SET– Set/Coast
When the system is active, rotate the thumbwheel down to decrease speed .
Cancel
Press to cancel the cruise control but retain the set speed in memory .
The cruise control set speed is erased when cruise control or the vehicle ignition is turned off .
See Driving and Operating in your Owner Manual.
Setting Cruise Control
1 . Press the ON/OFF button . The Cruise Control symbol will illuminate in white in the instrument cluster .
2 . When traveling at the desired speed, rotate the SET– thumbwheel down to set the speed . The symbol will illuminate in green in the instrument cluster .
A
B

20
23462386 B
!23462386!
Roadside Assistance
1-888-881-3302 TTY Users: 1-888-889-2438
As the owner of a new GMC, your vehicle is automatically enrolled in the GMC Roadside Assistance program for 5 years/60,000 miles, whichever occurs first, at no expense to you. GMC’s Roadside Assistance toll-free number is staffed by a team of trained advisors who are available 24 hours a day, 365 days a year, to provide minor repair
information or make arrangements to tow your vehicle to the nearest GMC dealer .
Roadside Assistance and OnStar
If you have a current OnStar subscription, press the OnStar button and the vehicle will send your current GPS location to an OnStar Advisor who will speak to you, assess your problem, contact Roadside Assistance and relay your exact location so you will get the help you need .
GMC Owner Center
The GMC Owner Center, a complimentary service for GMC owners, is a one-stop resource designed to enhance your GMC ownership experience. Exclusive member
benefits include online service reminders, vehicle maintenance tips, online owner manual and special privileges . Sign up today at my.gmc.com .
Certain restrictions, precautions and safety procedures apply to your ve\
hicle . Please read your Owner Manual for complete instructions . All information contained herein is based on the latest information ava\
ilable at the time of printing and is subject to change without notice . Copyright 2015 General Motors . All rights reserved .
We recommend always using ACDelco or genuine GM service parts.
myGMC and OnStar® Mobile Apps
The myGMC and OnStar RemoteLink mobile apps connect owners to a
variety of vehicle information and services, such as a searchable Owner Manual, real-time fuel information and Roadside Assistance, as well as enabling users to perform Remote Keyless Entry transmitter commands, including locking and unlocking the doors and starting the vehicle .
An active OnStar account is required to use the OnStar mobile app . Visit onstar.com for more information . Download the mobile apps from your compatible device’s app store .
