GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16

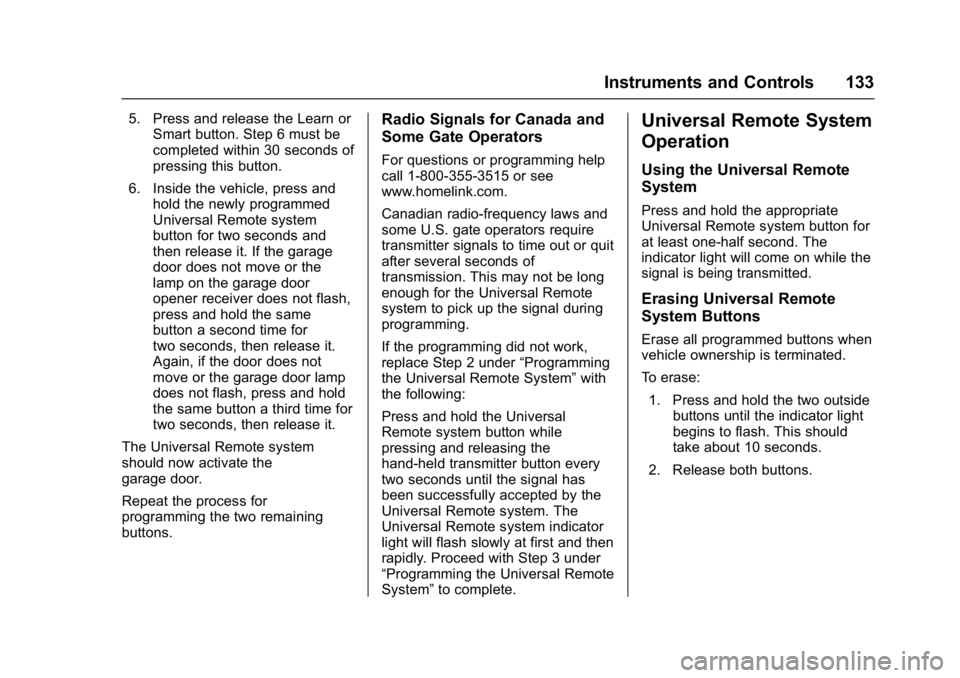

Instruments and Controls 133
5. Press and release the Learn orSmart button. Step 6 must be
completed within 30 seconds of
pressing this button.
6. Inside the vehicle, press and hold the newly programmed
Universal Remote system
button for two seconds and
then release it. If the garage
door does not move or the
lamp on the garage door
opener receiver does not flash,
press and hold the same
button a second time for
two seconds, then release it.
Again, if the door does not
move or the garage door lamp
does not flash, press and hold
the same button a third time for
two seconds, then release it.
The Universal Remote system
should now activate the
garage door.
Repeat the process for
programming the two remaining
buttons.Radio Signals for Canada and
Some Gate Operators
For questions or programming help
call 1-800-355-3515 or see
www.homelink.com.
Canadian radio-frequency laws and
some U.S. gate operators require
transmitter signals to time out or quit
after several seconds of
transmission. This may not be long
enough for the Universal Remote
system to pick up the signal during
programming.
If the programming did not work,
replace Step 2 under “Programming
the Universal Remote System” with
the following:
Press and hold the Universal
Remote system button while
pressing and releasing the
hand-held transmitter button every
two seconds until the signal has
been successfully accepted by the
Universal Remote system. The
Universal Remote system indicator
light will flash slowly at first and then
rapidly. Proceed with Step 3 under
“Programming the Universal Remote
System” to complete.
Universal Remote System
Operation
Using the Universal Remote
System
Press and hold the appropriate
Universal Remote system button for
at least one-half second. The
indicator light will come on while the
signal is being transmitted.
Erasing Universal Remote
System Buttons
Erase all programmed buttons when
vehicle ownership is terminated.
To erase:
1. Press and hold the two outside buttons until the indicator light
begins to flash. This should
take about 10 seconds.
2. Release both buttons.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
134 Instruments and Controls
Reprogramming a Single
Universal Remote System
Button
To reprogram any of the system
buttons:1. Press and hold any one of the buttons. Do not release the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, proceed
with Step 1 under
“Programming the Universal
Remote System.”

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
Lighting 139
Lighting Features
Entry Lighting
Some exterior lamps and interior
lamps turn on briefly at night, or in
areas with limited lighting, when
K
is pressed on the Remote Keyless
Entry (RKE) transmitter. When a
door is opened, the interior lamps
come on. They stay on for about
20 seconds. When all of the doors
have been closed or the ignition is
turned to ON/RUN, they gradually
fade out.
This feature can be changed. See
“Vehicle Locator Lights”under
Vehicle Personalization 0125.
Exit Lighting
Some exterior lamps and interior
lamps come on at night, or in areas
with limited lighting, when the key is
removed from the ignition. The
dome lamp comes on after the
ignition is changed to the OFF
position. The exterior lamps and dome lamp remain on for a set
amount of time, then automatically
turn off.
The exterior lamps turn off
immediately by turning the exterior
lamp control off.
This feature can be changed. See
Vehicle Personalization
0125.
Battery Load
Management
The vehicle has Electric Power
Management (EPM) that estimates
the battery's temperature and state
of charge. It then adjusts the voltage
for best performance and extended
life of the battery.
When the battery's state of charge
is low, the voltage is raised slightly
to quickly bring the charge back up.
When the state of charge is high,
the voltage is lowered slightly to
prevent overcharging. If the vehicle
has a voltmeter gauge or a voltage
display on the Driver Information
Center (DIC), you may see the voltage move up or down. This is
normal. If there is a problem, an
alert will be displayed.
The battery can be discharged at
idle if the electrical loads are very
high. This is true for all vehicles.
This is because the generator
(alternator) may not be spinning fast
enough at idle to produce all of the
power needed for very high
electrical loads.
A high electrical load occurs when
several of the following are on, such
as: headlamps, high beams, rear
window defogger, climate control fan
at high speed, heated seats, engine
cooling fans, trailer loads, and loads
plugged into accessory power
outlets.
EPM works to prevent excessive
discharge of the battery. It does this
by balancing the generator's output
and the vehicle's electrical needs.
It can increase engine idle speed to
generate more power whenever
needed. It can temporarily reduce
the power demands of some
accessories.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16

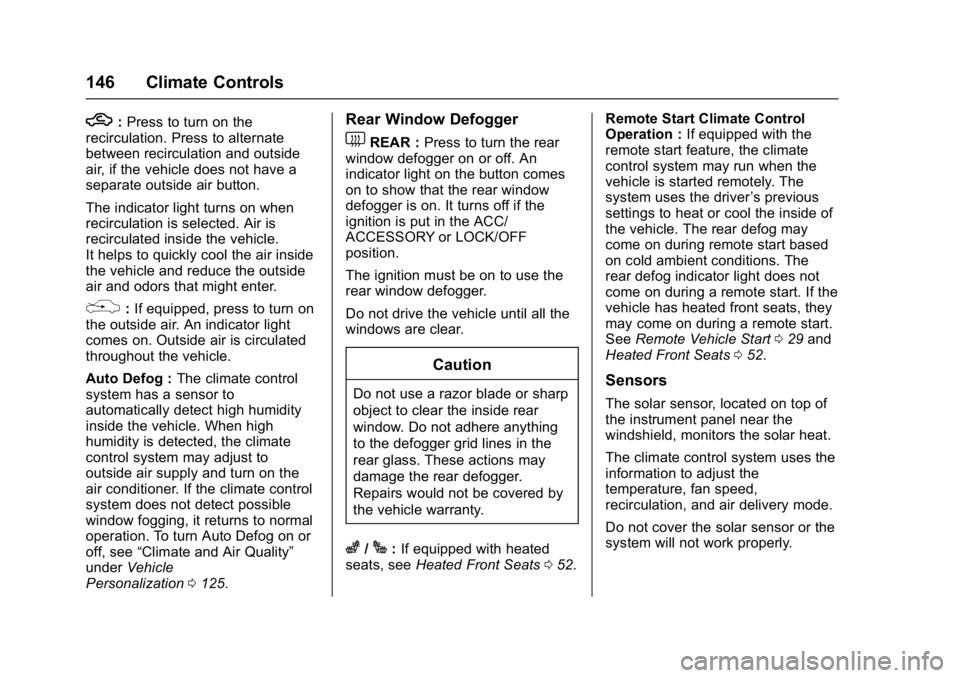

146 Climate Controls
h:Press to turn on the
recirculation. Press to alternate
between recirculation and outside
air, if the vehicle does not have a
separate outside air button.
The indicator light turns on when
recirculation is selected. Air is
recirculated inside the vehicle.
It helps to quickly cool the air inside
the vehicle and reduce the outside
air and odors that might enter.
%: If equipped, press to turn on
the outside air. An indicator light
comes on. Outside air is circulated
throughout the vehicle.
Auto Defog : The climate control
system has a sensor to
automatically detect high humidity
inside the vehicle. When high
humidity is detected, the climate
control system may adjust to
outside air supply and turn on the
air conditioner. If the climate control
system does not detect possible
window fogging, it returns to normal
operation. To turn Auto Defog on or
off, see “Climate and Air Quality”
under Vehicle
Personalization 0125.
Rear Window Defogger
1REAR : Press to turn the rear
window defogger on or off. An
indicator light on the button comes
on to show that the rear window
defogger is on. It turns off if the
ignition is put in the ACC/
ACCESSORY or LOCK/OFF
position.
The ignition must be on to use the
rear window defogger.
Do not drive the vehicle until all the
windows are clear.
Caution
Do not use a razor blade or sharp
object to clear the inside rear
window. Do not adhere anything
to the defogger grid lines in the
rear glass. These actions may
damage the rear defogger.
Repairs would not be covered by
the vehicle warranty.
z/J: If equipped with heated
seats, see Heated Front Seats 052. Remote Start Climate Control
Operation :
If equipped with the
remote start feature, the climate
control system may run when the
vehicle is started remotely. The
system uses the driver ’s previous
settings to heat or cool the inside of
the vehicle. The rear defog may
come on during remote start based
on cold ambient conditions. The
rear defog indicator light does not
come on during a remote start. If the
vehicle has heated front seats, they
may come on during a remote start.
See Remote Vehicle Start 029 and
Heated Front Seats 052.
Sensors
The solar sensor, located on top of
the instrument panel near the
windshield, monitors the solar heat.
The climate control system uses the
information to adjust the
temperature, fan speed,
recirculation, and air delivery mode.
Do not cover the solar sensor or the
system will not work properly.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
312 OnStar
from each other and use a
combination of letters, numbers,
and symbols to increase the
security.
. Change the default name of the
SSID (Service Set Identifier).
This is your network’s name that
is visible to other wireless
devices. Choose a unique name
and avoid family names or
vehicle descriptions.
OnStar Wi-Fi
®Hotspot (If
Equipped)
The vehicle may have a built-in
Wi-Fi hotspot that provides access
to the Internet and web content at
4G LTE speed. Up to seven mobile
devices can be connected. A data
plan is required. Use the in-vehicle
controls only when it is safe to
do so.
1. To retrieve Wi-Fi hotspot information, press
=, wait for
the prompt, then say “Wi-Fi
settings.” On some vehicles,
touch Wi-Fi Settings on the
screen. 2. The Wi-Fi settings will display
the Wi-Fi hotspot name (SSID),
password, and on some
vehicles, the connection type
(no Internet connection, 3G,
4G, 4G LTE), and signal quality
(poor, good, excellent).
3. To change the SSID or password, press
Qor call
1-888-4ONSTAR to connect
with an Advisor.
After initial set-up, your vehicle’s
Wi-Fi hotspot will connect
automatically to your mobile
devices. Manage data usage by
turning Wi-Fi on or off on your
mobile device, using the
RemoteLink mobile app, or by
contacting an OnStar Advisor. OnStar RemoteLink
®Mobile App
(If Equipped)
Download the OnStar RemoteLink
mobile app to select Apple
®iOS,
Android™, BlackBerry®,
or Windows®mobile devices.
OnStar Subscribers can access the
following services from a mobile
device:
. Remotely start/stop the vehicle,
if factory-equipped.
. Lock/unlock doors, if equipped
with automatic locks.
. Activate the horn and lamps.
. Check the vehicle’s fuel level, oil
life, or tire pressure,
if factory-equipped with the Tire
Pressure Monitor System.
. Send directions to the vehicle.
. Locate the vehicle on a map
(U.S. market only).
. Turn the vehicle's Wi-Fi hotspot
on/off, manage settings, and
monitor data consumption,
if equipped.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
314 OnStar
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.Prior to vehicle purchase.
Press
Qto set up an account.
. With the OnStar Basic Plan,
every 60 days.
. After change in ownership and
at 90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor
can cancel or change account
information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately to
terminate your OnStar services if
the vehicle is disposed of, sold,
transferred, or if the lease ends.
Reactivation for Subsequent
Owners
PressQand follow the prompts to
speak to an Advisor as soon as
possible. The Advisor will update
vehicle records and explain OnStar
service options.
How OnStar Service Works
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance,
Advanced Vehicle Diagnostics,
Remote Services, Roadside
Assistance, Turn-by-Turn
Navigation, and Hands-Free Calling
are available on most vehicles. Not
all OnStar services are available
everywhere or on all vehicles. For
more information, a full description
of OnStar services, system
limitations, and OnStar User Terms,
Privacy Statement, and Software
Terms:
. Call 1-888-4ONSTAR
(1-888-466-7827).
. See www.onstar.com (U.S.).
. See www.onstar.ca (Canada). .
Call TTY 1-877-248-2080.
. Press
Qto speak with an
Advisor.
OnStar services cannot work unless
the vehicle is in a place where
OnStar has an agreement with a
wireless service provider for service
in that area. The wireless service
provider must also have coverage,
network capacity, reception, and
technology compatible with OnStar
services. Service involving location
information about the vehicle cannot
work unless GPS signals are
available, unobstructed, and
compatible with the OnStar
hardware. OnStar services may not
work if the OnStar equipment is not
properly installed or it has not been
properly maintained. If equipment or
software is added, connected,
or modified, OnStar services may
not work. Other problems beyond
the control of OnStar —such as
hills, tall buildings, tunnels, weather,
electrical system design and
architecture of the vehicle, damage

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
Index 323
G
Garage Door Opener . . . . . . . . . . . 131Programming . . . . . . . . . . . . . . . . . 131
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 104
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Odometer . . . . . . . . . . . . . . . . . . . . . 103
Speedometer . . . . . . . . . . . . . . . . . 103
Tachometer . . . . . . . . . . . . . . . . . . . 103
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 101
General Information Service and Maintenance . . . . . 279
Towing . . . . . . . . . . . . . . . . . . . . . . . . 195
Vehicle Care . . . . . . . . . . . . . . . . . . 203
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 92
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 299
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 227
Hazard Warning Flashers . . . . . . . 137
Head Restraints . . . . . . . . . . . . . . . . . 46
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 227
Automatic . . . . . . . . . . . . . . . . . . . . . 136
Bulb Replacement . . . . . . . . . . . . 227 Headlamps (cont'd)
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 136
Flash-to-Pass . . . . . . . . . . . . . . . . . 135
High-Beam On Light . . . . . . . . . . .114
High/Low Beam Changer . . . . . 135
Lamps On Reminder . . . . . . . . . .114
Heated Front Seats . . . . . . . . . . . . . . 52
Heated Mirrors . . . . . . . . . . . . . . . . . . . 40
Heater Engine Coolant . . . . . . . . . . . . . . . 168
Heating . . . . . . . . . . . . . . . . . . . . 142, 144
High-Beam On Light . . . . . . . . . . . . 114
Hill and Mountain Roads . . . . . . . . 158
Hill Start Assist (HSA) . . . . . . . . . . 177
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 55
HVAC . . . . . . . . . . . . . . . . . . . . . . 142, 144I
Ignition Positions . . . . . . . . . . . . . . . 165
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 225
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 38
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . . 111 Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 75
Infotainment . . . . . . . . . . . . . . . . . . . . 141
Infotainment System . . . . . . . . . . . . 308
Instrument Cluster . . . . . . . . . . . . . . 102
Interior Rearview Mirrors . . . . . . . . . 41
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 263
K
Key and Lock Messages . . . . . . . . 121
Keyless EntryRemote (RKE) System . . . . . . . . . 27
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
L
Labeling, Tire Sidewall . . . . . . . . . . 238
Lamps
Daytime Running (DRL) . . . . . . 136
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 138
Exterior Controls . . . . . . . . . . . . . . 135
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 140
License Plate . . . . . . . . . . . . . . . . . 230
Malfunction Indicator . . . . . . . . . 107
On Reminder . . . . . . . . . . . . . . . . . .114

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
326 Index
Power (cont'd)Windows . . . . . . . . . . . . . . . . . . . . . . . 42
Pregnancy, Using Safety Belts . . . 60
Privacy Vehicle Data Recording . . . . . . . 306
Program Courtesy Transportation . . . . . . 301
Proposition 65 Warning,
California . . . . . . . . . . . .203, 223, 263
R
Radio Frequency Statement . . . . 305
Reading Lamps . . . . . . . . . . . . . . . . . 138
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 53
Rear Vision Camera (RVC) . . . . . 182
Rear Window Washer/Wiper . . . . . 98
Rearview Mirrors . . . . . . . . . . . . . . . . 41Automatic Dimming . . . . . . . . . . . . . 41
Reclining Seatbacks . . . . . . . . . . . . . 49
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 289
Records Maintenance . . . . . . . . . . . . . . . . . . 291
Recreational Vehicle Towing . . . . 266
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 299
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . . 27 Remote Vehicle Start . . . . . . . . . . . . 29
Replacement Bulbs . . . . . . . . . . . . . 230
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 73
Maintenance . . . . . . . . . . . . . . . . . . 290
Replacing Airbag System . . . . . . . . 73
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . 85
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . 61
Reporting Safety Defects
Canadian Government . . . . . . . . 306
General Motors . . . . . . . . . . . . . . . 306
U.S. Government . . . . . . . . . . . . . 305
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 79
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 168
Reverse Tilt Mirrors . . . . . . . . . . . . . . 40
Ride Control Systems Messages . . . . . . . . . . . . . . . . . . . . 122
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 158
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 299
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 43
Roof Rack System . . . . . . . . . . . . . . . 94 Rotation, Tires . . . . . . . . . . . . . . . . . . 248
Routing, Engine Drive Belt . . . . . . 294
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 172
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 54Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Extender . . . . . . . . . . . . . . . . . . . . . . . . 60
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 55
Lap-Shoulder Belt . . . . . . . . . . . . . . 56
Reminders . . . . . . . . . . . . . . . . . . . . 105
Replacing after a Crash . . . . . . . . 61
Use During Pregnancy . . . . . . . . . . 60
Safety Defects Reporting Canadian Government . . . . . . . . 306
General Motors . . . . . . . . . . . . . . . 306
U.S. Government . . . . . . . . . . . . . 305
Safety Locks . . . . . . . . . . . . . . . . . . . . . 33
Safety System Check . . . . . . . . . . . . 60
Scheduling Appointments . . . . . . . 301
Seats Adjustment, Front . . . . . . . . . . . . . . . 47
Head Restraints . . . . . . . . . . . . . . . . 46
Heated Front . . . . . . . . . . . . . . . . . . . 52
Lumbar Adjustment, Front . . . . . . 48
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 50
Power Adjustment, Front . . . . . . . 47

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
Index 327
Seats (cont'd)Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Reclining Seatbacks . . . . . . . . . . . . 49
Securing Child Restraints . . . . 86, 88
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Messages . . . . . . . . . . . . . . . . . . . . 123
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 310
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 37
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 37
Service . . . . . . . . . . . . . . . . . . . . . . . . . 148 Accessories andModifications . . . . . . . . . . . . . . . . 204
Climate Control System . . . . . . . 142
Doing Your Own Work . . . . . . . . 204
Engine Soon Light . . . . . . . . . . . . 107
Maintenance Records . . . . . . . . 291
Maintenance, General
Information . . . . . . . . . . . . . . . . . . 279
Parts Identification Label . . . . . 292
Publications Ordering Information . . . . . . . . . . . . . . . . . . 304
Scheduling Appointments . . . . . 301
Vehicle Messages . . . . . . . . . . . . 123
Services Special Application . . . . . . . . . . . 286
Servicing the Airbag . . . . . . . . . . . . . 72 Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 224
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 169
Out of Park . . . . . . . . . . . . . . . . . . . 170
Side Blind Zone Alert (SBZA) . . . 187
Sidemarker
Bulb Replacement . . . . . . . . . . . . 227
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 137
Spare Tire Compact . . . . . . . . . . . . . . . . . . . . . . 262
Special Application Services . . . . 286
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 293
Speedometer . . . . . . . . . . . . . . . . . . . 103
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . 111
Start Assist, Hill . . . . . . . . . . . . . . . . . 177
Start Vehicle, Remote . . . . . . . . . . . 29
Starter Switch Check . . . . . . . . . . . 224
Starting the Engine . . . . . . . . . . . . . 167
Steering . . . . . . . . . . . . . . . . . . . . . . . . 151 Fluid, Power . . . . . . . . . . . . . . . . . . 220
Wheel Adjustment . . . . . . . . . . . . . . 97
Wheel Controls . . . . . . . . . . . . . . . . . 97 Stoplamps and Back-Up Lamps
Bulb Replacement . . . . . . . . . . . . 227
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . . . 93
Center Console . . . . . . . . . . . . . . . . . 92
Convenience Net . . . . . . . . . . . . . . . 94
Glove Box . . . . . . . . . . . . . . . . . . . . . . 92
Roof Rack System . . . . . . . . . . . . . . 94
Storage Compartments . . . . . . . . . . 92
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 160
Summer Tires . . . . . . . . . . . . . . . . . . 237
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 43
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision
Alert (FCA) . . . . . . . . . . . . . . . . . . 185
Infotainment . . . . . . . . . . . . . 141, 308
Roof Rack . . . . . . . . . . . . . . . . . . . . . . 94
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 103
Taillamps Bulb Replacement . . . . . . . . . . . . 227
Text Telephone (TTY) Users . . . . 298
Theft-Deterrent Systems . . . . . . . . . 39 Immobilizer . . . . . . . . . . . . . . . . . . . . . 38
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9919509) - 2017 - crc - 8/16/16
328 Index
Tires (cont'd)All-Season . . . . . . . . . . . . . . . . . . . . 236
Buying New Tires . . . . . . . . . . . . . 250
Chains . . . . . . . . . . . . . . . . . . . . . . . . 254
Changing . . . . . . . . . . . . . . . . . . . . . 256
Compact Spare . . . . . . . . . . . . . . . 262
Designations . . . . . . . . . . . . . . . . . 240
Different Size . . . . . . . . . . . . . . . . . 251
If a Tire Goes Flat . . . . . . . . . . . . 255
Inspection . . . . . . . . . . . . . . . . . . . . 248
Messages . . . . . . . . . . . . . . . . . . . . 124
Pressure . . . . . . . . . . . . . . . . . . . . . . 243
Pressure Light . . . . . . . . . . . . . . . . .112
Pressure Monitor Operation . . 245
Pressure Monitor System . . . . . 244
Rotation . . . . . . . . . . . . . . . . . . . . . . 248
Sidewall Labeling . . . . . . . . . . . . . 238
Terminology and Definitions . . 240
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 252
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 253
Wheel Replacement . . . . . . . . . . 254
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 249
Winter . . . . . . . . . . . . . . . . . . . . . . . . 237
Towing Driving Characteristics . . . . . . . . 195 Towing (cont'd)
Equipment . . . . . . . . . . . . . . . . . . . . 200
General Information . . . . . . . . . . 195
Recreational Vehicle . . . . . . . . . . 266
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 198
Trailer Sway Control (TSC) . . . 200
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 266
Traction Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . . 111
Off Light . . . . . . . . . . . . . . . . . . . . . . . 111
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 177
Trailer
Sway Control (TSC) . . . . . . . . . . 200
Towing . . . . . . . . . . . . . . . . . . . . . . . . 198
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 172
Fluid, Automatic . . . . . . . . . . . . . . 213
Messages . . . . . . . . . . . . . . . . . . . . 124
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 301
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 137
Turn Signal Bulb Replacement . . . . . . . . . . . . 227
U
Uniform Tire Quality Grading . . . 252
Universal Remote System . . . . . . 131Operation . . . . . . . . . . . . . . . . . . . . . 133
Programming . . . . . . . . . . . . . . . . . 131
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 37
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 151
Identification Number (VIN) . . . 292
Load Limits . . . . . . . . . . . . . . . . . . . 161
Messages . . . . . . . . . . . . . . . . . . . . .118
Personalization . . . . . . . . . . . . . . . 125
Reminder Messages . . . . . . . . . . 124
Remote Start . . . . . . . . . . . . . . . . . . . 29
Security . . . . . . . . . . . . . . . . . . . . . . . . 37
Towing . . . . . . . . . . . . . . . . . . . . . . . . 266
Vehicle Ahead Indicator . . . . . . . . 111
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 243
Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . . . . . 306
Ventilation, Air . . . . . . . . . . . . . . . . . . 147
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
