navigation GMC YUKON 2007 Get To Know Guide

DRIVER INFORMATION
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Instrument Panel Cluster . . . . . . . . . . . . . . . . . . . . . . .3
Vehicle Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Driver Information Center . . . . . . . . . . . . . . . . . . . . . .4
SAFETY & SECURITY
Remote Keyless Entry . . . . . . . . . . . . . . . . . . . . . . . . . .6
Content TheftDeterrent System . . . . . . . . . . . . . . . . . .7OnStar
® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
COMFORT
Power Seat Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Memory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Adjustable Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Sun Visor Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .9
Manual Climate Controls . . . . . . . . . . . . . . . . . . . . . . . .9Automatic Climate Controls . . . . . . . . . . . . . . . . . . . .10
Rear Seat Climate Controls . . . . . . . . . . . . . . . . . . . . .10
ENTERTAINMENT
Audio System Features . . . . . . . . . . . . . . . . . . . . . . . .11MultipleDisc CD Player . . . . . . . . . . . . . . . . . . . . . . . .14
Touch Screen Navigation Entertainment System . . .14
XM Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Rear Seat Audio and DVD Rear Seat
Entertainment Systems . . . . . . . . . . . . . . . . . . . . . . . .15
Audio Steering Wheel Controls . . . . . . . . . . . . . . . . .16CONVENIENCE
Automatic Dimming Rearview Mirror with
Compass and Temperature Display . . . . . . . . . . . . . .16
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . . . . . .17
Power Running Boards . . . . . . . . . . . . . . . . . . . . . . . .17Auto Turn Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Rainsense™ II Windshield Wipers . . . . . . . . . . . . . . .18
Heated Windshield Washer Fluid . . . . . . . . . . . . . . . .19
Rear Vision Camera . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Automatic Headlamp System . . . . . . . . . . . . . . . . . . .19Folding 2ndRow Seats . . . . . . . . . . . . . . . . . . . . . . . .20
Folding 3rdRow Seats . . . . . . . . . . . . . . . . . . . . . . . .20Liftgate and Liftglass Operation . . . . . . . . . . . . . . . . .21
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Ultrasonic Rear Parking Assist . . . . . . . . . . . . . . . . .22
Universal Home Remote . . . . . . . . . . . . . . . . . . . . . . .22
PERFORMANCE & MAINTENANCE
6Speed Automatic Transmission Controls . . . . . . .22StabiliTrak
®– Stability Control System . . . . . . . . . . .22
Tire Pressure Monitor . . . . . . . . . . . . . . . . . . . . . . . . .23
Resetting the Engine Oil Life System . . . . . . . . . . . .23
OWNER INFORMATION
Roadside Assistance . . . . . . . . . . . . . . . . . . . . . . . . . .24My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Congratulations on your purchase of a GMC Yukon or Yukon Denali. Please read this information about your vehicle’s
features and your Owner Manual to ensure an outstanding ownership experience. Note that your vehicle may not includeall the features described in this booklet. Keep this booklet with your Owner Manual for easy reference.

11

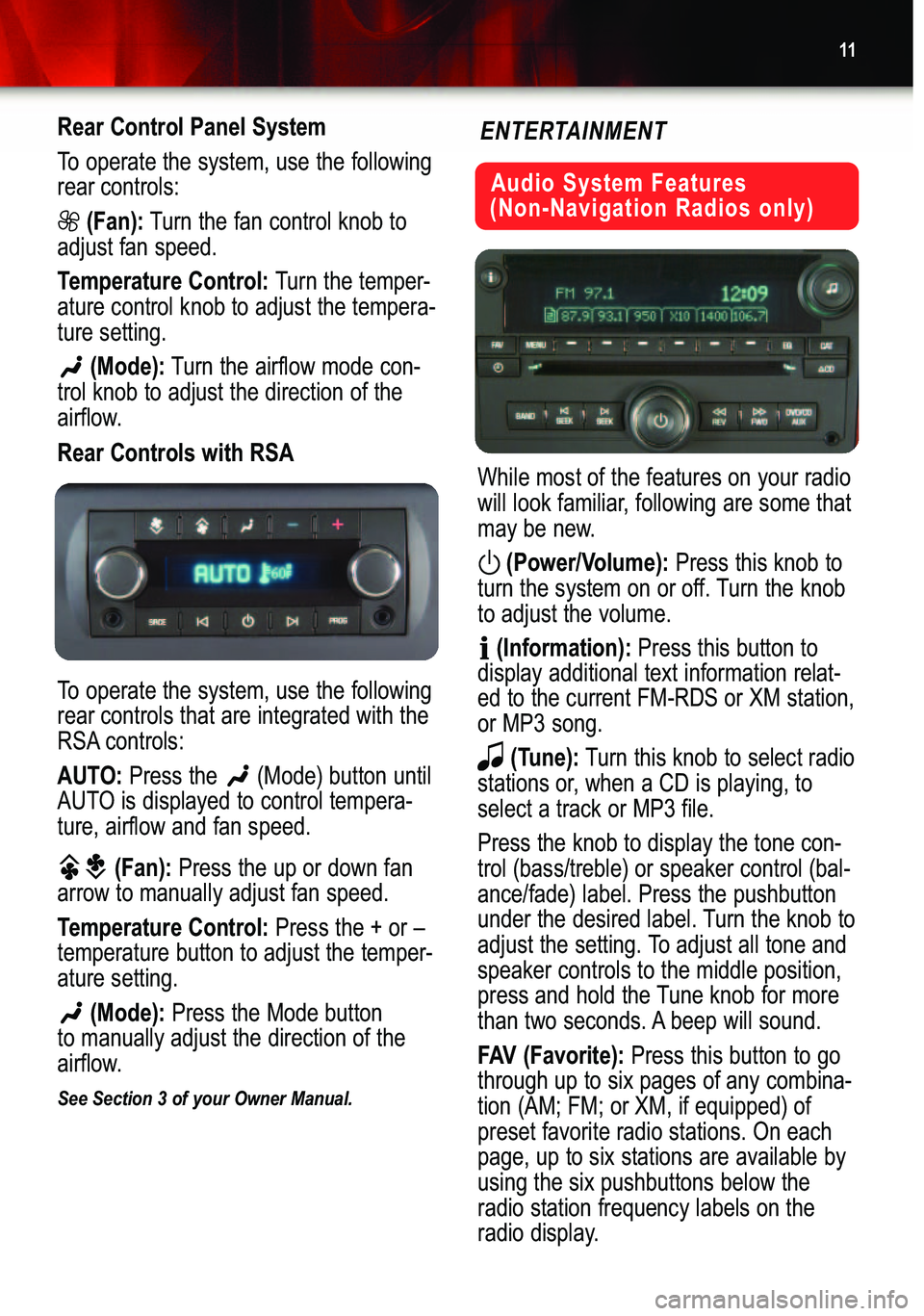

Rear Control Panel System
To operate the system, use the following
rear controls:
(Fan):Turn the fan control knob to
adjust fan speed.
Temperature Control:Turn the temper
ature control knob to adjust the temperature setting.
(Mode):Turn the airflow mode con
trol knob to adjust the direction of the
airflow.
Rear Controls with RSA
To operate the system, use the following
rear controls that are integrated with the
RSA controls:
AUTO:Press the (Mode) button until
AUTO is displayed to control temperature, airflow and fan speed.
(Fan):Press the up or down fan
arrow to manually adjust fan speed.
Temperature Control:Press the + or –
temperature button to adjust the temper
ature setting.
(Mode):Press the Mode button
tomanually adjust the direction of the
airflow.
See Section 3 of your Owner Manual.
While most of the features on your radio
will look familiar, following are some that
may be new.
(Power/Volume):Press this knob to
turn the system on or off. Turn the knobto adjust the volume.
(Information):Press this button to
display additional text information relat
ed to the current FMRDS or XM station,
or MP3 song.
(Tune):Turn this knob to select radio
stations or, when a CD is playing, toselect a track or MP3 file.
Press the knob to display the tone con
trol (bass/treble) or speaker control (balance/fade) label. Press the pushbutton
under the desired label. Turn the knob toadjust the setting. To adjust all tone and
speaker controls to the middle position,
press and hold the Tune knob for more
than two seconds. A beep will sound.
FAV (Favorite):Press this button to go
through up to six pages of any combina
tion (AM; FM; or XM, if equipped) ofpreset favorite radio stations. On eachpage, up to six stations are available byusing the six pushbuttons below theradio station frequency labels on the
radio display.
Audio System Features
(NonNavigation Radios only)
ENTERTAINMENT

Getting to Know YourYukon/Yukon Denali14
With the indash 6Disc CD Player, note
that you cannot directly load a CD as insingleplay systems.
To load a single CD:
• Press and release the LOAD
button. Wait for the display promptbefore loading the CD.
To load multiple CDs:
• Press and hold the LOAD button
for two seconds. Follow the displayprompts to load each CD. Press theLOADbutton again to cancel
loading more CDs.
To play a specific CD:
• Press the pushbutton below the arrow
label on the display to select thedesired CD number.
To eject a CD:
• To eject the CD that is currently
playing, press the EJECT buttononce.
•To eject all CDs, press and hold the
EJECTbutton for two seconds.
If a CD is not removed after several sec
onds, it will automatically be pulled back
into the player.
See Section 3 of your Owner Manual.
Your vehicle’s Navigation Entertainment
System provides you with detailed mapsof all major highways and roadsthroughout the United States. After you
enter a destination, the system providesturnbyturn instructions for reachingyour destination. In addition, the systemcan help you locate a variety of points of
interest, such as banks, airports, restaurants and more.
See your Navigation Entertainment
System Owner Manual for operatinginstructions.
See Section 3 of your Owner Manual.
MultipleDisc CD Player
(if equipped)Note:CDs with any affixed labels may
jam in the CD player. Label a CD using
a permanent marker. If more than oneCD is inserted into the slot at one time,or if scratched or damaged CDs are
played, the CD player could be dam
aged. When using the CD player, useonly CDs in good condition withoutlabels; load one CD at a time; and keepthe CD player and the loading slot freeof foreign materials, liquids or debris.
Touch Screen Navigation
Entertainment System (if equipped)
XM Satellite Radio (if equipped)
XM Satellite Radio offers more than 170
channels of digitalquality sound thatgoes wherever you go — coast to coast.
XM displays song title, artist and entertainment genre.

19
Press the (Heated Washer Fluid)
button, located below the climate controls on the instrument panel, to sprayheated washer fluid on the windshield.This will help to clear ice, tree sap orbugs from the windshield. A light on the
switch will flash while the washer fluid is
heating, which may take up to 40 seconds. The wipers will automatically turn
on for four cycles or until the button ispressed again.
See Section 3 of your Owner Manual.
The rear vision camera displays a view
of the area behind the vehicle on thenavigation screen when the vehicle isshifted into Reverse. Once shifted out ofReverse, the navigation screen willreturn to the last screen displayed afterapproximately 10 seconds.
To turn the camera on or off:
1.Shift into Park.
2. Press the Menu hard key to enter the
Menu options.
3.Press the Menu hard key to select
Display, or touch the Display screenbutton.
4. Touch the Rear Camera Options
screen button.
5.Touch the Rear Camera Image in
Reverse screen button.
To clean the camera lens, located above
the license plate, rinse it with water andwipe it with a soft cloth.
See Section 2 of your Owner Manual.
Your vehicle is equipped with an
Automatic Headlamp System, which
turns on the Daytime Running Lamps
(DRL) during the day and the head
lamps and other exterior lamps at night
or when necessary.
The system uses a light sensor, located
on top of the instrument panel, to determine light conditions. For proper systemoperation, avoid placing any objects on
or near the sensor.
Exterior Lamp Controls
The exterior lamps control knob is locat
ed on the instrument panel to the left ofthe steering wheel.
(Off):When operating in the AUTO
position, a momentary turn of the knob
to the Off position will turn off theAutomatic Headlamp System and allexterior lights, excluding the DRLs.
AUTO (Automatic):Automatically turns
on the DRLs in the daytime and theAutomatic Headlamp System at night or
when necessary.
(Parking Lamps):Manually turns
on parking lamps and taillamps.
(Headlamps):Manually turns on
the headlamps and other exterior lamps.
(Fog Lamps)(if equipped): Press
this button to turn the fog lamps on or
off.
Heated Windshield Washer Fluid
(if equipped)
Rear Vision Camera
(if equipped)
Automatic Headlamp System
