Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the
upper limit for cold tires. You’ll nd these numbers
on the Certication label at the rear edge of the
driver’s door or see Loading Your Vehicle for more
information. Then be sure you don’t go over the
GVW limit for your vehicle, or the GAWR, including
the weight of the trailer tongue. If you use a
weight distributing hitch, make sure you don’t go
over the rear axle limit before you apply the weight
distribution spring bars.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough
roads are a few reasons why you will need the
right hitch.
Weight Distributing Hitches and Weight
Carrying Hitches
A. Body to Ground Distance
B. Front of Vehicle
When using a weight-distributing hitch, the hitch
must be adjusted so the distance (A) remains
the same both before and after coupling the trailer
to the tow vehicle.
407

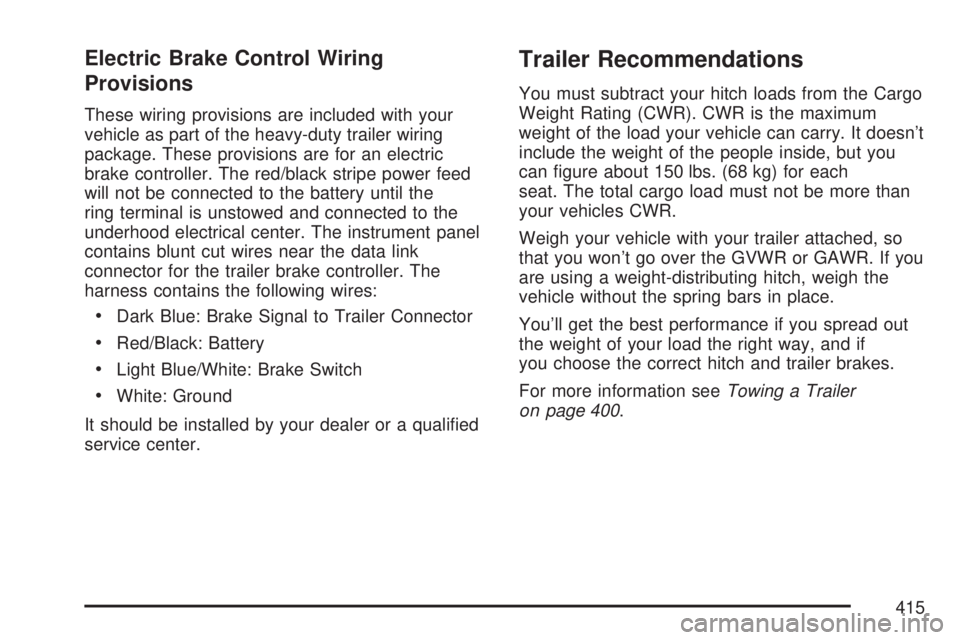

Electric Brake Control Wiring
Provisions
These wiring provisions are included with your
vehicle as part of the heavy-duty trailer wiring
package. These provisions are for an electric
brake controller. The red/black stripe power feed
will not be connected to the battery until the
ring terminal is unstowed and connected to the
underhood electrical center. The instrument panel
contains blunt cut wires near the data link
connector for the trailer brake controller. The
harness contains the following wires:
Dark Blue: Brake Signal to Trailer Connector
Red/Black: Battery
Light Blue/White: Brake Switch
White: Ground
It should be installed by your dealer or a qualied
service center.
Trailer Recommendations
You must subtract your hitch loads from the Cargo
Weight Rating (CWR). CWR is the maximum
weight of the load your vehicle can carry. It doesn’t
include the weight of the people inside, but you
can gure about 150 lbs. (68 kg) for each
seat. The total cargo load must not be more than
your vehicles CWR.
Weigh your vehicle with your trailer attached, so
that you won’t go over the GVWR or GAWR. If you
are using a weight-distributing hitch, weigh the
vehicle without the spring bars in place.
You’ll get the best performance if you spread out
the weight of your load the right way, and if
you choose the correct hitch and trailer brakes.
For more information seeTowing a Trailer
on page 400.
415

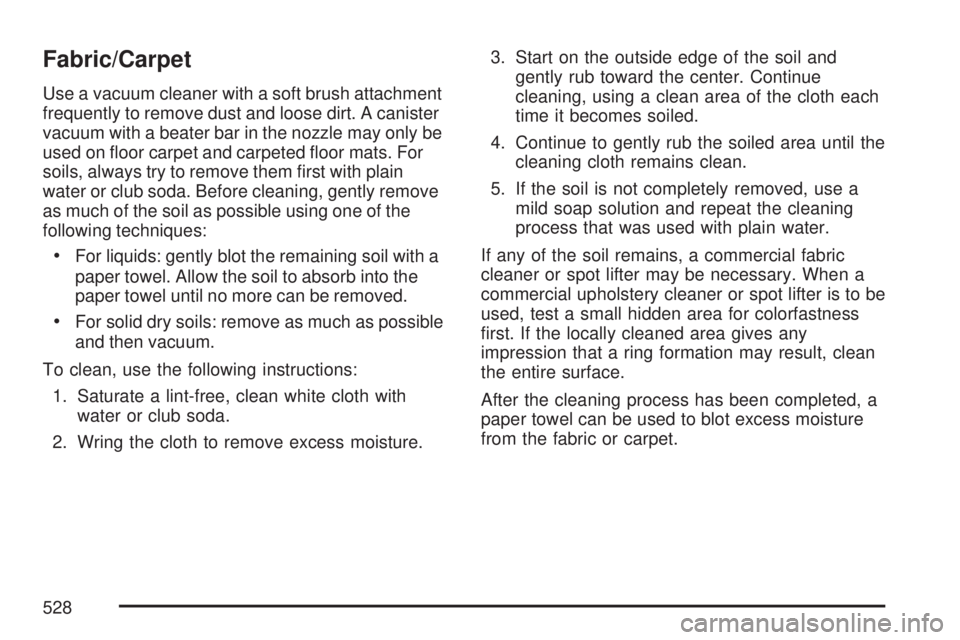

Fabric/Carpet
Use a vacuum cleaner with a soft brush attachment
frequently to remove dust and loose dirt. A canister
vacuum with a beater bar in the nozzle may only be
used on oor carpet and carpeted oor mats. For
soils, always try to remove them rst with plain
water or club soda. Before cleaning, gently remove
as much of the soil as possible using one of the
following techniques:
For liquids: gently blot the remaining soil with a
paper towel. Allow the soil to absorb into the
paper towel until no more can be removed.
For solid dry soils: remove as much as possible
and then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.3. Start on the outside edge of the soil and
gently rub toward the center. Continue
cleaning, using a clean area of the cloth each
time it becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed, a
paper towel can be used to blot excess moisture
from the fabric or carpet.
528

Light (cont.)
StabiliTrak®Indicator................................ 235
Tire Pressure........................................... 236
Tow/Haul Mode........................................ 242
Lighting
Entry........................................................ 207
Exit.......................................................... 207
Loading Your Vehicle................................... 392
Locking Differential...................................... 349
Lockout Protection....................................... 125
Locks
Delayed Locking...................................... 123
Door........................................................ 122
Lockout Protection................................... 125
Power Door............................................. 123
Programmable Automatic Door Locks....... 124
Rear Door Security Locks........................ 124
Loss of Control........................................... 357
Low Fuel Warning Light............................... 244
Luggage Carrier.......................................... 179
Lumbar
Power Controls.......................................... 10M
Maintenance Schedule
Additional Required Services.................... 554
At Each Fuel Fill...................................... 558
At Least Once a Month............................ 558
At Least Once a Year.............................. 559
Introduction.............................................. 548
Maintenance Footnotes............................ 555
Maintenance Record................................ 565
Maintenance Requirements...................... 548
Normal Maintenance Replacement Parts ... 563
Owner Checks and Services.................... 557
Recommended Fluids and Lubricants....... 561
Scheduled Maintenance........................... 551
Using....................................................... 549
Your Vehicle and the Environment............ 549
Malfunction Indicator Light........................... 237
Memory Seat, Mirrors, and Pedals................ 12
Message
DIC Warnings and Messages................... 252
Mirrors
Automatic Dimming Rearview with
OnStar
®, Compass and Temperature
Display................................................. 158
Outside Power Foldaway Mirrors.............. 161
MyGMLink.com............................................ 573
