headlamp GMC YUKON 2016 Owner's Guide

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
300 Vehicle Care
2. Push the release lever (2) todisengage the hook and push
the wiper arm (1) out of the
blade assembly (3).
3. Push the new blade assembly securely in the wiper arm hook
until the release lever clicks
into place.
4. Return the wiper arm and blade assembly to the rest
position on the glass.
Glass Replacement
If the windshield or front side glass
must be replaced, see your dealer
to determine the correct
replacement glass.
Windshield Replacement
HUD System
The windshield is part of the HUD
system. If the windshield must be
replaced, get one that is designed
for HUD or the HUD image may
look out of focus.
Driver Assistance Systems
When a windshield replacement is
needed and the vehicle is equipped
with a front-looking camera sensor
for the Driver Assistance Systems,
the windshield must be installed
according to GM specifications for
these systems to work properly. If it
is not, there may be unexpected
behavior and/or messages from
these systems. See Object
Detection System Messages 0157.
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
Vehicle Care 301

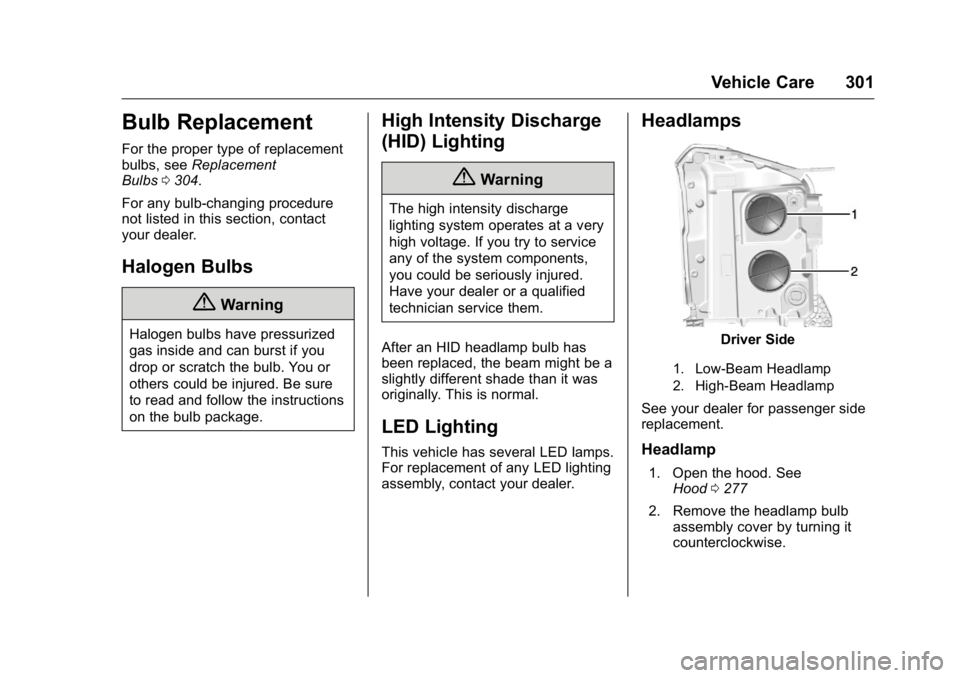

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement
Bulbs 0304.
For any bulb-changing procedure
not listed in this section, contact
your dealer.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
High Intensity Discharge
(HID) Lighting
{Warning
The high intensity discharge
lighting system operates at a very
high voltage. If you try to service
any of the system components,
you could be seriously injured.
Have your dealer or a qualified
technician service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Headlamps
Driver Side
1. Low-Beam Headlamp
2. High-Beam Headlamp
See your dealer for passenger side
replacement.
Headlamp
1. Open the hood. See Hood 0277
2. Remove the headlamp bulb assembly cover by turning it
counterclockwise.

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
302 Vehicle Care
3. Turn the bulb socketcounterclockwise to remove it
from the headlamp assembly
and pull it straight out.
4. Unplug the electrical connector from the old bulb by releasing
the clip on the bulb socket.
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-up Lamp
2. Stoplamp/Turn Signal Lamp
The taillamp on this vehicle is an
LED. For replacement, contact your
dealer.
To replace one of these bulbs:
1. Open the liftgate. See Liftgate 044.
2. Remove the taillamp closeout
cover from the lamp assembly
by pulling rearward from the
top and bottom at the same
time to unfasten the snap tabs.
3. Remove the two screws from
the taillamp assembly.
4. Pull the taillamp assembly straight back to remove.
5. Turn the bulb socket counterclockwise to remove it
from the taillamp assembly.
6. Pull the bulb straight out from the socket.

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
304 Vehicle Care
Replacement Bulbs
Exterior Lamp BulbNumber
Back-up Lamp 921
High-Beam
Headlamp 9005 LL
Low-Beam
Headlamp H11 LL
License
Plate Lamp W5W
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the Instrument Panel Fuse
Block. The same amperage fuse
can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses
The wiring circuits in the vehicle are
protected from short circuits by
fuses. This greatly reduces the
chance of fires caused by electrical
problems.
Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
308 Vehicle Care
ItemUsage
91 Throttle control
92 Engine control module relay
93 Horn
94 Fog lamps
95 High-beam headlamps
100 O2 sensor A
101 Engine control module
102 Engine control module/
Transmission
control module
103 Auxiliary interior heater
104 Starter
107 Aeroshutter
109 Police upfitter 112 Starter relay
114 Front windshield washer Item
Usage
115 Rear window washer
116 Left cooling fan
121 Right HID headlamp
122 Left HID headlamp
123 Right cooling fan
Instrument Panel Fuse
Block (Left)
The left instrument panel fuse block
access door is on the driver side
edge of the instrument panel.
Pull off the cover to access the fuse
block.

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
Vehicle Care 333
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
If the vehicle has 265/65R18,
P265/65R18, P275/55R20,
or P285/45R22 size tires, do not
use tire chains. There is not
enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle
parts. The area damaged by the
tire chains could cause loss of
control and a crash.
Use another type of traction
device only if its manufacturer
recommends it for the vehicle's
tire size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slow
and readjust or remove the
traction device if it is contacting
the vehicle. Do not spin the
wheels.(Continued)

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
Service and Maintenance 371
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0373 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
Index 405
Assistance Systems forDriving . . . . . . . . . . . . . . . . . . . . . . . . 248
Assistance Systems for Parking and Backing . . . . . . . . . . 245
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 54
Door Locks . . . . . . . . . . . . . . . . . . . . . 43
Headlamp System . . . . . . . . . . . . 177
Level Control . . . . . . . . . . . . . . . . . 235
Transmission . . . . . . . . . . . . . . . . . 220
Transmission Fluid . . . . . . . . . . . 282
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 222
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 298
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 295
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 296
B
Battery Load Management . . . . . . . . . . . . 181
Power Protection . . . . . . . . . . . . . 182
Voltage and Charging
Messages . . . . . . . . . . . . . . . . . . . 152
Battery - North America . . . . 294, 345
Blade Replacement, Wiper . . . . . 299
Blind Spot Mirrors . . . . . . . . . . . . . . . 54 Brake
Pedal and Adjustable
Throttle . . . . . . . . . . . . . . . . . . . . . . 209
System Warning Light . . . . . . . . 144
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 292 Antilock . . . . . . . . . . . . . . . . . . . . . . . 230
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 231
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Parking . . . . . . . . . . . . . . . . . . . . . . . 231
System Messages . . . . . . . . . . . . 153
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 194
Break-In, New Vehicle . . . . . . . . . . 209
Bulb Replacement . . . . . . . . . . . . . . 304
Fog Lamps . . . . . . . . . . . . . . . . . . . 179
Halogen Bulbs . . . . . . . . . . . . . . . . 301
Headlamp Aiming . . . . . . . . . . . . . 300
Headlamps . . . . . . . . . . . . . . . . . . . 301
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 301
License Plate Lamps . . . . . . . . . 303
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 302
Buying New Tires . . . . . . . . . . . . . . . 329
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 128
California Fuel Requirements . . . . . . . . . . . 256
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 275
California Proposition
65 Warning . . . . . . . . . .275, 294, 345
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 378
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 219
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 44
Winter Driving . . . . . . . . . . . . . . . . 202
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 121
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . 120
Center Seat . . . . . . . . . . . . . . . . . . . . . 63
Chains, Tire . . . . . . . . . . . . . . . . . . . . 333
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 131
Charging System Light . . . . . . . . . 142
Check Ignition Transmission Lock . . . 298

GMC Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S/Canada-
9159297) - 2016 - CRC - 10/12/15
408 Index
Front Automatic Braking(FAB) System . . . . . . . . . . . . . . . . . 250
Front Axle . . . . . . . . . . . . . . . . . . . . . . 295
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Front Seats Heated and Cooled . . . . . . . . . . . . . 67
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255 Additives . . . . . . . . . . . . . . . . . . . . . 257
Economy Driving . . . . . . . . . . . . . . . 26
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 259
Filling the Tank . . . . . . . . . . . . . . . 258
Foreign Countries . . . . . . . . . . . . 257
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 136
Low Fuel Warning Light . . . . . . . 147
Management, Active . . . . . . . . . . 219
Requirements, California . . . . . 256
System Messages . . . . . . . . . . . . 156
Full-Size Spare Tire . . . . . . . . . . . . 344
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 304 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 305
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 308, 311
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 313G
Garage Door Opener . . . . . . . . . . . 171Programming . . . . . . . . . . . . . . . . . 171
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 138
Engine Oil Pressure . . . . . . . . . . 137
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Odometer . . . . . . . . . . . . . . . . . . . . . 136
Speedometer . . . . . . . . . . . . . . . . . 136
Tachometer . . . . . . . . . . . . . . . . . . . 136
Trip Odometer . . . . . . . . . . . . . . . . 136
Voltmeter . . . . . . . . . . . . . . . . . . . . . 139
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 133
General Information Service and Maintenance . . . . . 363
Towing . . . . . . . . . . . . . . . . . . . . . . . . 260
Vehicle Care . . . . . . . . . . . . . . . . . . 275
Glass Replacement . . . . . . . . . . . . . 300
Glove Box . . . . . . . . . . . . . . . . . . . . . . 119
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 383
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 301
Hazard Warning Flashers . . . . . . . 178
Head Restraints . . . . . . . . . . . . . . . . . 62
Headlamps . . . . . . . . . . . . . . . . . . . . . 301Aiming . . . . . . . . . . . . . . . . . . . . . . . . 300
Automatic . . . . . . . . . . . . . . . . . . . . . 177
Bulb Replacement . . . . . . . . . . . . 301
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 176
Flash-to-Pass . . . . . . . . . . . . . . . . . 176
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 301
High-Beam On Light . . . . . . . . . . 148
High/Low Beam Changer . . . . . 176
Lamps On Reminder . . . . . . . . . 148
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 68
Steering Wheel . . . . . . . . . . . . . . . 125
Heated and Cooled Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Heated Mirrors . . . . . . . . . . . . . . . . . . . 54
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 215
High-Beam On Light . . . . . . . . . . . . 148
High-Speed Operation . . . . . . . . . . 322
Hill and Mountain Roads . . . . . . . . 202
Hill Start Assist (HSA) . . . . . . . . . . 232
