Page 161 of 429
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 11/9/16

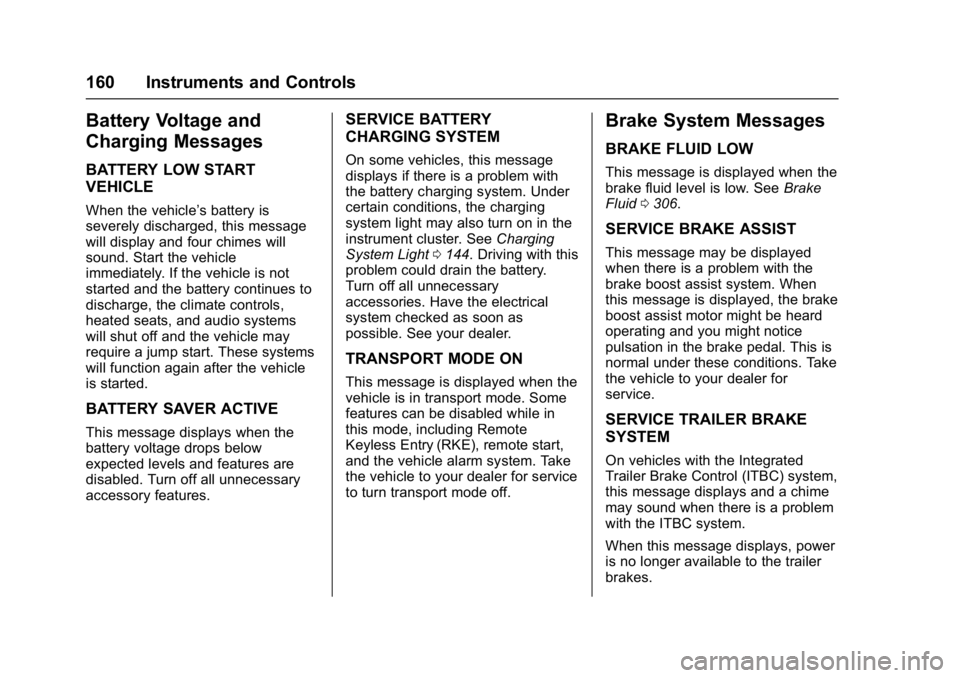

160 Instruments and Controls
Battery Voltage and
Charging Messages
BATTERY LOW START
VEHICLE
When the vehicle’s battery is
severely discharged, this message
will display and four chimes will
sound. Start the vehicle
immediately. If the vehicle is not
started and the battery continues to
discharge, the climate controls,
heated seats, and audio systems
will shut off and the vehicle may
require a jump start. These systems
will function again after the vehicle
is started.
BATTERY SAVER ACTIVE
This message displays when the
battery voltage drops below
expected levels and features are
disabled. Turn off all unnecessary
accessory features.
SERVICE BATTERY
CHARGING SYSTEM
On some vehicles, this message
displays if there is a problem with
the battery charging system. Under
certain conditions, the charging
system light may also turn on in the
instrument cluster. See Charging
System Light 0144. Driving with this
problem could drain the battery.
Turn off all unnecessary
accessories. Have the electrical
system checked as soon as
possible. See your dealer.
TRANSPORT MODE ON
This message is displayed when the
vehicle is in transport mode. Some
features can be disabled while in
this mode, including Remote
Keyless Entry (RKE), remote start,
and the vehicle alarm system. Take
the vehicle to your dealer for service
to turn transport mode off.
Brake System Messages
BRAKE FLUID LOW
This message is displayed when the
brake fluid level is low. See Brake
Fluid 0306.
SERVICE BRAKE ASSIST
This message may be displayed
when there is a problem with the
brake boost assist system. When
this message is displayed, the brake
boost assist motor might be heard
operating and you might notice
pulsation in the brake pedal. This is
normal under these conditions. Take
the vehicle to your dealer for
service.
SERVICE TRAILER BRAKE
SYSTEM
On vehicles with the Integrated
Trailer Brake Control (ITBC) system,
this message displays and a chime
may sound when there is a problem
with the ITBC system.
When this message displays, power
is no longer available to the trailer
brakes.
Page 428 of 429
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 11/9/16
Index 427
System (cont'd)Infotainment . . . . . . . . . . . . . 191, 406
Noise Control . . . . . . . . . . . . . . . . . 309
Roof Rack . . . . . . . . . . . . . . . . . . . . 123
Systems Driver Assistance . . . . . . . . . . . . . 253
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 138
Text Telephone (TTY) Users . . . . 396
Theft-Deterrent Systems . . . . . 52, 53Immobilizer . . . . . . . . . . . . . . . . . . . . . 52
Third-Row Seats . . . . . . . . . . . . . . . . . 76
Throttle, Adjustable . . . . . . . . . . . . . 218
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327 All-Season . . . . . . . . . . . . . . . . . . . . 328
All-Terrain . . . . . . . . . . . . . . . . . . . . 329
Buying New Tires . . . . . . . . . . . . . 342
Chains . . . . . . . . . . . . . . . . . . . . . . . . 346
Changing . . . . . . . . . . . . . . . . . . . . . 348
Designations . . . . . . . . . . . . . . . . . 331
Different Size . . . . . . . . . . . . . . . . . 343
Full-Size Spare . . . . . . . . . . . . . . . 357
If a Tire Goes Flat . . . . . . . . . . . . 347
Inspection . . . . . . . . . . . . . . . . . . . . 340
Low Profile . . . . . . . . . . . . . . . . . . . 329
Messages . . . . . . . . . . . . . . . . . . . . 168 Tires (cont'd)
Pressure . . . . . . . . . . . . . . . . . 334, 335
Pressure Light . . . . . . . . . . . . . . . . 150
Pressure Monitor Operation . . 337
Pressure Monitor System . . . . . 336
Rotation . . . . . . . . . . . . . . . . . . . . . . 340
Sidewall Labeling . . . . . . . . . . . . . 329
Terminology and Definitions . . 331
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 344
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 345
Wheel Replacement . . . . . . . . . . 345
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 341
Winter . . . . . . . . . . . . . . . . . . . . . . . . 328
Tow/Haul Mode . . . . . . . . . . . . . . . . . 234
Tow/Haul Mode Light . . . . . . . . . . . 148
Towing Driving Characteristics . . . . . . . . 269
Equipment . . . . . . . . . . . . . . . . . . . . 275
General Information . . . . . . . . . . 269
Recreational Vehicle . . . . . . . . . . 362
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 272
Trailer Sway Control (TSC) . . . 282
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 361 Traction
Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . 149
Off Light . . . . . . . . . . . . . . . . . . . . . . 149
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 241
Trailer
Sway Control (TSC) . . . . . . . . . . 282
Towing . . . . . . . . . . . . . . . . . . . . . . . . 272
Transfer Case . . . . . . . . . . . . . . . . . . 235
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 229
Fluid, Automatic . . . . . . . . . 294, 297
Messages . . . . . . . . . . . . . . . . . . . . 169
Temperature Gauge . . . . . . . . . . 141
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 399
Trip Odometer . . . . . . . . . . . . . . . . . . 138
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 186
U
Uniform Tire Quality Grading . . . 344
Universal Remote System . . . . . . 179Operation . . . . . . . . . . . . . . . . . . . . . 181
Programming . . . . . . . . . . . . . . . . . 179
Using This Manual . . . . . . . . . . . . . . . . 2
