GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
296 Vehicle Care
What to Use
{Warning
Plain water, or other liquids such
as alcohol, can boil before the
proper coolant mixture will. With
plain water or the wrong mixture,
the engine could get too hot but
there would not be an overheat
warning. The engine could catch
fire and you or others could be
burned.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
coolant. This mixture:
. Gives freezing protection down
to−37 °C (−34 °F), outside
temperature
. Gives boiling protection up to
129 °C (265 °F), engine
temperature
. Protects against rust and
corrosion
. Will not damage aluminum parts .
Helps keep the proper engine
temperatureCaution
Do not use anything other than a
mix of DEX-COOL coolant that
meets GM Standard
GMW3420 and clean, drinkable
water. Anything else can cause
damage to the engine cooling
system and the vehicle, which
would not be covered by the
vehicle warranty.
Never dispose of engine coolant by
putting it in the trash, or by pouring
it on the ground, or into sewers,
streams, or bodies of water. Have
the coolant changed by an
authorized service center, familiar
with legal requirements regarding
used coolant disposal. This will help
protect the environment and your
health.
Checking Coolant
The coolant surge tank is in the
engine compartment on the
passenger side of the vehicle. See
Engine Compartment Overview
0 284.
The vehicle must be on a level
surface when checking the coolant
level.
Check to see if coolant is visible in
the coolant surge tank. If the coolant
inside the coolant surge tank is
boiling, wait until it cools down. The
coolant level should be at or above

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 297
the full cold mark. If it is not, there
may be a leak in the cooling
system.
If coolant is visible but the coolant
level is not at or above the full cold
mark, see“How to Add Coolant to
the Coolant Surge Tank,” following.
How to Add Coolant to the
Coolant Surge Tank
{Warning
Spilling coolant on hot engine
parts can burn you. Coolant
contains ethylene glycol and it will
burn if the engine parts are hot
enough.
{Warning
Plain water, or other liquids such
as alcohol, can boil before the
proper coolant mixture will. With
plain water or the wrong mixture,
the engine could get too hot but
(Continued)
Warning (Continued)
there would not be an overheat
warning. The engine could catch
fire and you or others could be
burned.
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure
cap, even a little, can cause them
to come out at high speed and
you could be burned. Never turn
the cap when the cooling system,
including the pressure cap, is hot.
Wait for the cooling system and
pressure cap to cool.
Caution
Failure to follow the specific
coolant fill procedure could cause
the engine to overheat and could
cause system damage. If coolant
is not visible in the surge tank,
contact your dealer.
If no coolant is visible in the surge
tank, add coolant.
1. Remove the coolant surge tank pressure cap when the cooling
system, including the coolant
surge tank pressure cap and
upper radiator hose, is no
longer hot.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
298 Vehicle Care
Turn the pressure cap slowly
counterclockwise about one full
turn. If a hiss is heard, wait for
that to stop. A hiss means
there is still some pressure left.
2. Keep turning the pressure cap slowly, and remove it.
3. Fill the coolant surge tank with the proper mixture to the full
cold mark.
4. With the coolant surge tank pressure cap off, start the
engine and let it run until the
engine coolant temperature
gauge indicates approximately
90 °C (195 °F).
By this time, the coolant level
inside the coolant surge tank
may be lower. If the level is
lower, add more of the proper
mixture to the coolant surge
tank until the level reaches the
full cold mark.
5. Replace the pressure cap tightly. 6. Verify coolant level after the
engine is shut off and the
coolant is cold. If necessary,
repeat coolant fill procedure
Steps 1–6.
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the
cap is properly and tightly
secured.
Engine Overheating
Caution
Do not run the engine if there is a
leak in the engine cooling system.
This can cause a loss of all
coolant and can damage the
system and vehicle. Have any
leaks fixed right away.
The vehicle has several indicators
to warn of engine overheating. There is a coolant temperature
gauge in the vehicle's instrument
cluster. See
Engine Coolant
Temperature Gauge 0141.
In addition, there are ENGINE
OVERHEATED STOP ENGINE,
ENGINE OVERHEATED IDLE
ENGINE, and ENGINE POWER IS
REDUCED messages in the Driver
Information Center (DIC).
If the decision is made not to lift the
hood when this warning appears,
get service help right away. See
Roadside Assistance Program
0 396.
If the decision is made to lift the
hood, make sure the vehicle is
parked on a level surface.
Check to see if the engine cooling
fan(s) are running. If the engine is
overheating, the fans should be
running. If they are not, do not
continue to run the engine. Have the
vehicle serviced.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 299
If Steam is Coming from the
Engine Compartment
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure
cap, even a little, can cause them
to come out at high speed and
you could be burned. Never turn
the cap when the cooling system,
including the pressure cap, is hot.
Wait for the cooling system and
pressure cap to cool.
If No Steam is Coming from
the Engine Compartment
The ENGINE OVERHEATED STOP
ENGINE or the ENGINE
OVERHEATED IDLE ENGINE
message, along with a low coolant
condition, can indicate a serious
problem.If there is an engine overheat
warning, but no steam is seen or
heard, the problem may not be too
serious. Sometimes the engine can
get a little too hot when the vehicle:
.
Climbs a long hill on a hot day.
. Stops after high-speed driving.
. Idles for long periods in traffic.
. Tows a trailer; see Trailer Towing
0 266.
If the ENGINE OVERHEATED
STOP ENGINE or the ENGINE
OVERHEATED IDLE ENGINE
message appears with no sign of
steam, try this for a minute or so: 1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the
highest fan speed. Open the
windows as necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or
N (Neutral), and let the
engine idle. If the engine coolant temperature
gauge is no longer in the overheat
zone or an overheat warning no
longer displays, the vehicle can be
driven. Continue to drive the vehicle
slowly for about 10 minutes. Keep a
safe vehicle distance from the
vehicle in front. If the warning does
not come back on, continue to drive
normally and have the cooling
system checked for proper fill and
function.
If the warning continues, pull over,
stop, and park the vehicle
right away.
If there is still no sign of steam and
the vehicle is equipped with an
engine driven cooling fan, push
down the accelerator until the
engine speed is about twice as fast
as normal idle speed for at least
five minutes while the vehicle is
parked. If the warning is still there,
turn off the engine and get everyone
out of the vehicle until it cools down.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
300 Vehicle Care
If there is no sign of steam, idle the
engine for five minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down.
Engine Fan
If the vehicle has electric cooling
fans, the fans may be heard
spinning at low speed during most
everyday driving. The fans may turn
off if no cooling is required. Under
heavy vehicle loading, trailer towing,
high outside temperatures,
or operation of the air conditioning
system, the fans may change to
high speed and an increase in fan
noise may be heard. This is normal
and indicates that the cooling
system is functioning properly. The
fans will change to low speed when
additional cooling is no longer
required.
The electric engine cooling fans
may run after the engine has been
turned. off. This is normal and no
service is required.
Washer Fluid
What to Use
When windshield washer fluid needs
to be added, be sure to read the
manufacturer's instructions before
use. Use a fluid that has sufficient
protection against freezing in an
area where the temperature may fall
below freezing.
Adding Washer Fluid
The vehicle has a low washer fluid
message on the DIC that comes on
when the washer fluid is low. The
message is displayed for
15 seconds at the start of each
ignition cycle. When the WASHER
FLUID LOW ADD FLUID message
displays, washer fluid will need to
be added to the windshield washer
fluid reservoir.
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. SeeEngine
Compartment Overview 0284 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
(Continued)

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
376 Service and Maintenance
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0287.
Once a Month
. Check the tire inflation
pressures. See Tire Pressure
0 331.
. Inspect the tires for wear. See
Tire Inspection 0337.
. Check the windshield washer
fluid level. See Washer Fluid
0 300.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
See
Engine Oil Life System 0289.
Power Take Off (PTO) and
Extended Idle Use
When the vehicle is used with the
PTO equipment or used in a way
that requires extended idle time,
one hour of use shall be deemed
the same as 53 km (33 mi). See
Driver Information Center (DIC)
0154 for hourmeter.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0338. .
Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system. See Engine
Oil 0287 andEngine Oil Life
System 0289.
. Check engine coolant level. See
Cooling System 0295.
. Check windshield washer fluid
level. See Washer Fluid 0300.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0365. Replace worn or
damaged wiper blades. See
Wiper Blade Replacement
0 308.
. Check tire inflation pressures.
See Tire Pressure 0331.
. Inspect tire wear. See Tire
Inspection 0337.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 294.
. Inspect brake system. See
Exterior Care 0365.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
384 Service and Maintenance

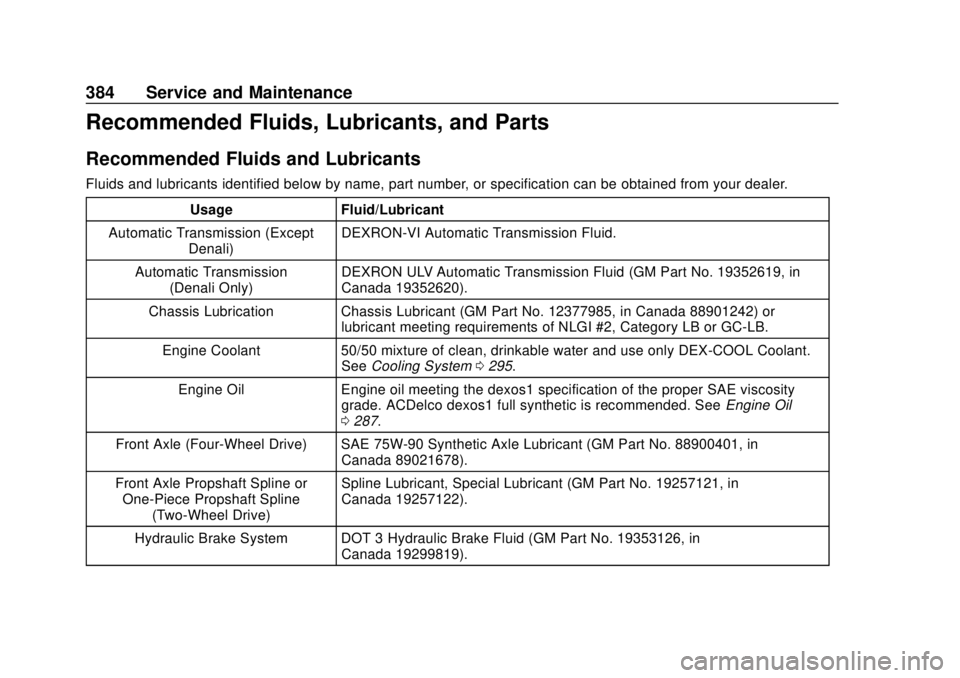

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission (Except Denali) DEXRON-VI Automatic Transmission Fluid.
Automatic Transmission (Denali Only) DEXRON ULV Automatic Transmission Fluid (GM Part No. 19352619, in
Canada 19352620).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. SeeCooling System 0295.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade. ACDelco dexos1 full synthetic is recommended. See Engine Oil
0 287.
Front Axle (Four-Wheel Drive) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88900401, in Canada 89021678).
Front Axle Propshaft Spline or One-Piece Propshaft Spline (Two-Wheel Drive) Spline Lubricant, Special Lubricant (GM Part No. 19257121, in
Canada 19257122).
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19299819).

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
420 Index
Check (cont'd)Ignition Transmission Lock . . . 307
Child Restraints Infants and Young Children . . . 101
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . 107
Older Children . . . . . . . . . . . . . . . . 100
Securing . . . . . . . . . . . . .115, 117, 118
Systems . . . . . . . . . . . . . . . . . . . . . . 104
Child-View Mirror . . . . . . . . . . . . . . . . 57
Circuit Breakers . . . . . . . . . . . . . . . . 313
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 365
Interior Care . . . . . . . . . . . . . . . . . . 369
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . 184
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Cluster, Instrument . . . . . . . . . . . . . 136
Collision Damage Repair . . . . . . . 399
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . 121
Compass . . . . . . . . . . . . . . . . . . . . . . . 129
Connections
OnStar . . . . . . . . . . . . . . . . . . . . . . . 409
Control Hill Descent . . . . . . . . . . . . . . . . . . 236 Control (cont'd)
Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 234
Control of a Vehicle . . . . . . . . . . . . . 194
Convenience Net . . . . . . . . . . . . . . . 123
Convex Mirrors . . . . . . . . . . . . . . . . . . 54
Coolant
Engine Temperature Gauge . . 141
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 151
Cooling . . . . . . . . . . . . . . . . . . . . 184, 188
Cooling System . . . . . . . . . . . . . . . . . 295
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 398
Cruise Control . . . . . . . . . . . . . . . . . . 237 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Cruise Control, Adaptive . . . . . . . . 240
Cupholders . . . . . . . . . . . . . . . . . . . . . 121
Customer Assistance . . . . . . . . . . . 395 Offices . . . . . . . . . . . . . . . . . . . . . . . . 394
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 395
Customer Information
Service PublicationsOrdering Information . . . . . . . . 401
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 392D
Damage Repair, Collision . . . . . . . 399
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 405
OnStar . . . . . . . . . . . . . . . . . . . . . . . 405
Data Recorders, Event . . . . . . . . . 404
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 177
Defensive Driving . . . . . . . . . . . . . . . 194
Delayed Locking . . . . . . . . . . . . . . . . . 43
Diagnostics
OnStar . . . . . . . . . . . . . . . . . . . . . . . .411
Distracted Driving . . . . . . . . . . . . . . . 193
Dome Lamps . . . . . . . . . . . . . . . . . . . 180
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 154
Delayed Locking . . . . . . . . . . . . . . . . 43
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Power Locks . . . . . . . . . . . . . . . . . . . . 43
Drive Belt Routing, Engine . . . . . . 391
Driver Assistance Systems . . . . . 247
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . 154
Driving Assistance Systems . . . . . . . . . . 250
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 263

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Index 421
Driving (cont'd)Defensive . . . . . . . . . . . . . . . . . . . . . 194
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 194
For Better Fuel Economy . . . . . . . 27
Hill and Mountain Roads . . . . . . 202
If the Vehicle is Stuck . . . . . . . . . 203
Loss of Control . . . . . . . . . . . . . . . 196
Off-Road . . . . . . . . . . . . . . . . . . . . . 196
Off-Road Recovery . . . . . . . . . . . 195
Vehicle Load Limits . . . . . . . . . . . 204
Wet Roads . . . . . . . . . . . . . . . . . . . 201
Winter . . . . . . . . . . . . . . . . . . . . . . . . 202
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 184
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 260
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 279
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 314
Fuses and Circuit Breakers . . . 313
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 318, 321
Overload . . . . . . . . . . . . . . . . . . . . . 313
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 323 Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . 407
Engine Air Cleaner/Filter . . . . . . . . . . . . . 294
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 146
Compartment Overview . . . . . . . 284
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 141
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 151
Cooling System . . . . . . . . . . . . . . . 295
Drive Belt Routing . . . . . . . . . . . . 391
Exhaust . . . . . . . . . . . . . . . . . . . . . . 219
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Heater . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil Life System . . . . . . . . . . . . . . . 289
Oil Pressure Gauge . . . . . . . . . . 140
Oil Pressure Light . . . . . . . . . . . . 152
Overheating . . . . . . . . . . . . . . . . . . 298
Power Messages . . . . . . . . . . . . . 161
Running While Parked . . . . . . . . 220
Starting . . . . . . . . . . . . . . . . . . . . . . . 213
Entry Lighting . . . . . . . . . . . . . . . . . . . 181
Equipment, Towing . . . . . . . . . . . . . 271
Event Data Recorders . . . . . . . . . . 404
Exit Lighting . . . . . . . . . . . . . . . . . . . . 181
Extended Parking . . . . . . . . . . . . . . . 219 Extender, Seat Belt . . . . . . . . . . . . . . 85
Exterior Lamp Controls . . . . . . . . . 174
Exterior Lamps Off Reminder . . . 176
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 182
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . 300
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter,
Engine Air Cleaner . . . . . . . . . . . 294
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 176
Flashers, Hazard Warning . . . . . . 178
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 345 Changing . . . . . . . . . . . . . . . . . . . . . 346
FlexFuel E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 373
Fluid AutomaticTransmission . . . . . . . . . . . 290, 293
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 302
Four-Wheel Drive Transfer Case . . . . . . . . . . . . . . . 226
Washer . . . . . . . . . . . . . . . . . . . . . . . 300
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 179

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
422 Index
Fog Lamps (cont'd)Bulb Replacement . . . . . . . . . . . . .311
Folding Mirrors . . . . . . . . . . . . . . . . . . 55
Forward Automatic Braking . . . . . 253
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 250
Four-Wheel Drive . . . . . . . . . . 226, 303
Four-Wheel-Drive Light . . . . . . . . . 149
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 402
Front Axle . . . . . . . . . . . . . . . . . . . . . . 304
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Front Seats
Heated and Ventilated . . . . . . . . . . 69
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259 Additives . . . . . . . . . . . . . . . . . . . . . 260
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 263
Filling the Tank . . . . . . . . . . . . . . . 261
Foreign Countries . . . . . . . . . . . . 260
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 140
Low Fuel Warning Light . . . . . . . 152
Management, Active . . . . . . . . . . 218
Requirements, California . . . . . 260
Full-Size Spare Tire . . . . . . . . . . . . 355 Fuses
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 314
Fuses and Circuit Breakers . . . 313
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 318, 321
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 323
G
Garage Door Opener . . . . . . . . . . . 170Programming . . . . . . . . . . . . . . . . . 170
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 309
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 141
Engine Oil Pressure . . . . . . . . . . 140
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Odometer . . . . . . . . . . . . . . . . . . . . . 139
Speedometer . . . . . . . . . . . . . . . . . 139
Tachometer . . . . . . . . . . . . . . . . . . . 139
Transmission Temperature . . . . 142
Trip Odometer . . . . . . . . . . . . . . . . 139
Voltmeter . . . . . . . . . . . . . . . . . . . . . 143
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 135
General Information Service and Maintenance . . . . . 374 General Information (cont'd)
Towing . . . . . . . . . . . . . . . . . . . . . . . . 263
Vehicle Care . . . . . . . . . . . . . . . . . . 281
Glass Replacement . . . . . . . . . . . . . 309
Glove Box . . . . . . . . . . . . . . . . . . . . . . 121
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 396
H
Hazard Warning Flashers . . . . . . . 178
Head Restraints . . . . . . . . . . . . . . . . . 63
Head-up Display . . . . . . . . . . . . . . . . 157
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 310
Automatic . . . . . . . . . . . . . . . . . . . . . 177
Bulb Replacement . . . . . . . . . . . . .311
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 177
Flash-to-Pass . . . . . . . . . . . . . . . . . 176
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . .311
High-Beam On Light . . . . . . . . . . 153
High/Low Beam Changer . . . . . 176
Lamps On Reminder . . . . . . . . . 153
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 71
Steering Wheel . . . . . . . . . . . . . . . 126
