GMC YUKON 2018 Owner's Manual
Manufacturer: GMC, Model Year: 2018, Model line: YUKON, Model: GMC YUKON 2018Pages: 431, PDF Size: 6.08 MB
Page 281 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
280 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 281
California Proposition65 Warning . . . . . . . . . . . . . . . . . 281
California Perchlorate Materials Requirements . . . . . 282
Accessories and Modifications . . . . . . . . . . . . . . . . 282
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 282
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 283
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 284
Engine Oil . . . . . . . . . . . . . . . . . . . . 287
Engine Oil Life System . . . . . . . 289
Automatic Transmission Fluid (6 Speed Transmission) . . . . . 290
Automatic Transmission Fluid (8 and 10 Speed
Transmission) . . . . . . . . . . . . . . . 293
Engine Air Cleaner/Filter . . . . . . 294
Cooling System . . . . . . . . . . . . . . 295
Engine Overheating . . . . . . . . . . 298
Engine Fan . . . . . . . . . . . . . . . . . . . 300
Washer Fluid . . . . . . . . . . . . . . . . . 300 Brakes . . . . . . . . . . . . . . . . . . . . . . . 301
Brake Fluid . . . . . . . . . . . . . . . . . . . 302
Battery - North America . . . . . . 303
Four-Wheel Drive . . . . . . . . . . . . . 303
Front Axle . . . . . . . . . . . . . . . . . . . . 304
Rear Axle . . . . . . . . . . . . . . . . . . . . 305
Noise Control System . . . . . . . . 305
Starter Switch Check . . . . . . . . . 306
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 307
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 307
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 307
Wiper Blade Replacement . . . . 308
Glass Replacement . . . . . . . . . . 309
Windshield Replacement . . . . . 309
Gas Strut(s) . . . . . . . . . . . . . . . . . . 309
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 310
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 311
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 311
LED Lighting . . . . . . . . . . . . . . . . . . 311
Fog Lamps . . . . . . . . . . . . . . . . . . . 311
Back-Up Lamps . . . . . . . . . . . . . . 311
License Plate Lamp . . . . . . . . . . 312
Electrical System
Electrical System Overload . . . 313
Fuses and Circuit Breakers . . . 313
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 314
Instrument Panel Fuse
Block (Left) . . . . . . . . . . . . . . . . . 318
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 321
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 323
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 324
All-Season Tires . . . . . . . . . . . . . . 325
Winter Tires . . . . . . . . . . . . . . . . . . 325
Low-Profile Tires . . . . . . . . . . . . . 326
All-Terrain Tires . . . . . . . . . . . . . . . 326
Tire Sidewall Labeling . . . . . . . . 326
Tire Designations . . . . . . . . . . . . . 327
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 328
Tire Pressure . . . . . . . . . . . . . . . . . 331
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 332
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 333
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 334
Tire Inspection . . . . . . . . . . . . . . . . 337
Page 282 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 281
Tire Rotation . . . . . . . . . . . . . . . . . 338
When It Is Time for NewTires . . . . . . . . . . . . . . . . . . . . . . . . 339
Buying New Tires . . . . . . . . . . . . . 340
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 341
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 342
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 343
Wheel Replacement . . . . . . . . . . 343
Tire Chains . . . . . . . . . . . . . . . . . . . 344
If a Tire Goes Flat . . . . . . . . . . . . 345
Tire Changing . . . . . . . . . . . . . . . . 346
Full-Size Spare Tire . . . . . . . . . . 355
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 356
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 360
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 360
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 365
Interior Care . . . . . . . . . . . . . . . . . . 369
Floor Mats . . . . . . . . . . . . . . . . . . . . 373
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
{Warning
Most motor vehicles, including
this one, as well as many of its
service parts and fluids, contain
and/or emit chemicals known to
the State of California to cause
cancer and birth defects or other
reproductive harm. Engine
exhaust, many parts and
systems, many fluids, and some
component wear by-products
contain and/or emit these
chemicals. For more information
go to www.P65Warnings.ca.gov/
passenger-vehicle.
See Battery - North America 0303
and Jump Starting - North America
0 356 and the back cover.
Page 283 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
282 Vehicle Care
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 098.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner ’s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 401.
Page 284 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 283
This vehicle has an airbag system.
Before attempting to do your own
service work, seeServicing the
Airbag-Equipped Vehicle 098.
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records 0387.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull the handle with this symbol
on it. It is inside the vehicle
under the steering wheel.
2. Go to the front of the vehicle tofind the secondary hood
release. The handle is under
the front edge of the hood near
the center. Push the handle to
the right and at the same time
raise the hood.
Before closing the hood, be sure all
the filler caps are on properly. Then
bring the hood from full open to
within 15 cm (6 in) from the closed
position, pause, and push the front
center of the hood with a swift, firm
motion to fully close the hood.
Page 285 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
284 Vehicle Care

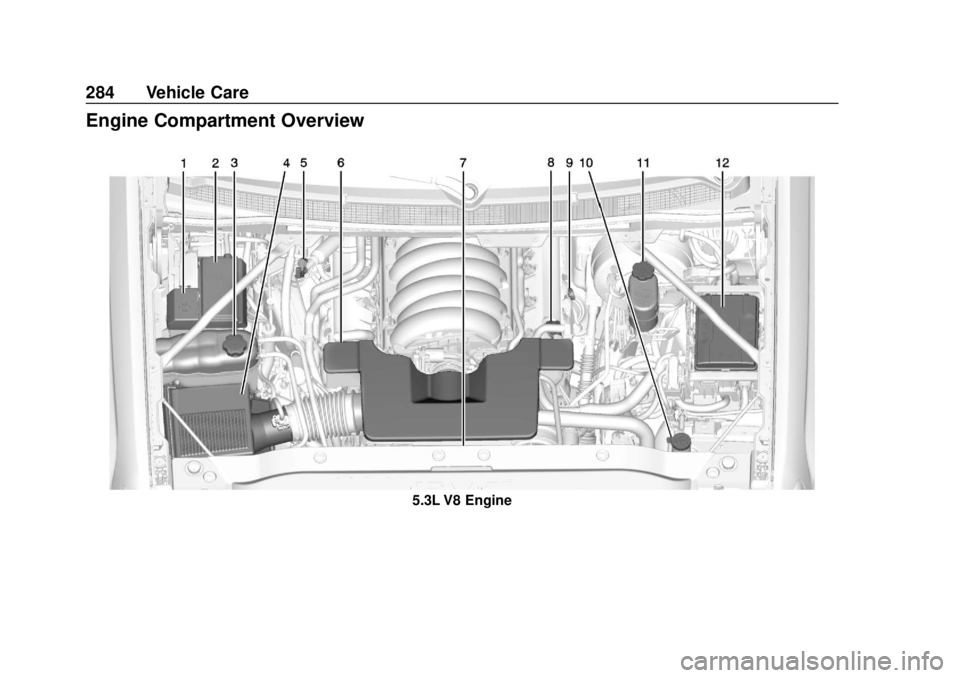

Engine Compartment Overview
5.3L V8 Engine
Page 286 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 285
1. Positive (+) Terminal. SeeJump Starting - North America
0356.
2. Battery - North America 0303.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0295.
4. Engine Air Cleaner/Filter 0294.
5. Automatic Transmission Dipstick. See “How to Check
Automatic Transmission Fluid”
under Automatic Transmission
Fluid (6 Speed Transmission)
0 290 orAutomatic
Transmission Fluid (8 and 10
Speed Transmission) 0293. 6. Remote Negative (–) Location
(Out of View). See Jump
Starting - North America 0356.
7. Engine Cooling Fans (Out of View). See Cooling System
0 295.
8. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0287.
9. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil 0287. 10. Windshield Washer Fluid
Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 300.
11. Brake Fluid Reservoir. See Brake Fluid 0302.
12. Engine Compartment Fuse
Block 0314.
Page 287 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
286 Vehicle Care

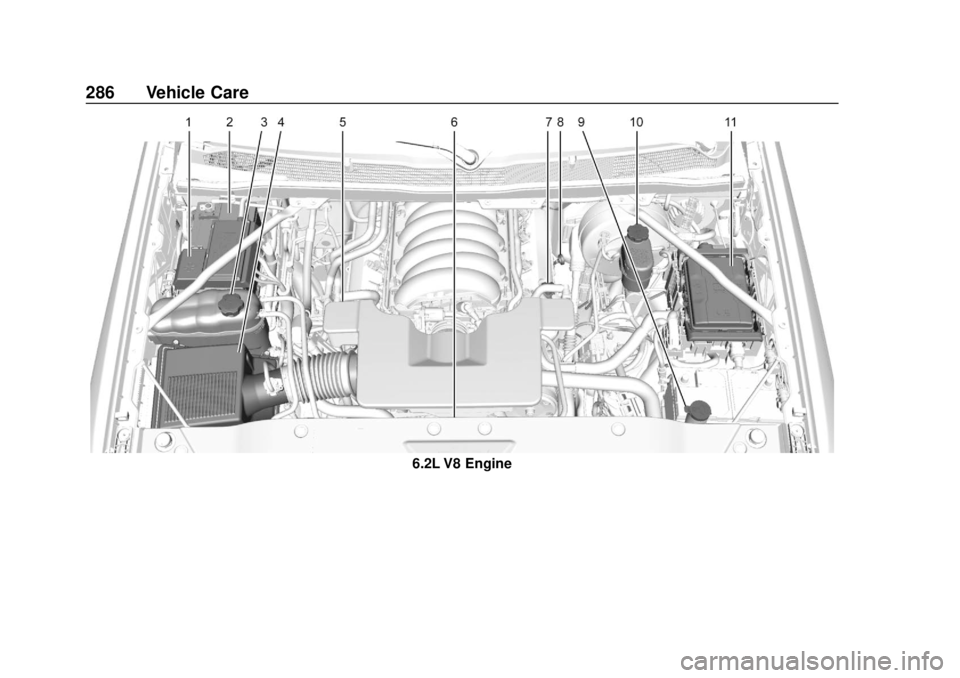

6.2L V8 Engine
Page 288 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 287
1. Positive (+) Terminal. SeeJump Starting - North America
0356.
2. Battery - North America 0303.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0295.
4. Engine Air Cleaner/Filter 0294.
5. Remote Negative (–) Location (Out of View). See Jump
Starting - North America 0356.
6. Engine Cooling Fans (Out of View). See Cooling System
0 295.
7. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0287.
8. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil 0287.
9. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 300.
10. Brake Fluid Reservoir. See Brake Fluid 0302. 11.
Engine Compartment Fuse
Block 0314.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.
Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
. Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
. Change the engine oil at the
appropriate time. See Engine Oil
Life System 0289.
. Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
If equipped, the ENGINE OIL LOW
ADD OIL message displays when
the engine oil level may be too low.
Check the oil level before filling to
the recommended level. If the oil is
not low and this message remains
on, see your dealer.
Check the engine oil level regularly,
every 650 km (400 mi), especially
prior to a long trip. The engine oil
dipstick handle is a loop. See
Engine Compartment Overview
0284 for the location.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
Follow these guidelines:
. To get an accurate reading, park
the vehicle on level ground.
Check the engine oil level after
the engine has been off for at
least two hours. Checking the
Page 289 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
288 Vehicle Care
engine oil level on steep grades
or too soon after engine shutoff
can result in incorrect readings.
Accuracy improves when
checking a cold engine prior to
starting. Remove the dipstick
and check the level.
. If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is
warm, or at least 30 minutes if
the engine is not warm. Pull out
the dipstick, wipe it with a clean
paper towel or cloth, then push it
back in all the way. Remove it
again, keeping the tip down, and
check the level.
When to Add Engine Oil
If the oil is below the cross-hatched
area at the tip of the dipstick and
the engine has been off for at least
15 minutes, add 1 L (1 qt) of the
recommended oil and then recheck
the level. See “Selecting the Right
Engine Oil” later in this section for
an explanation of what kind of oil to
use. For engine oil crankcase
capacity, see Capacities and
Specifications 0389.
Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
(Continued)
Caution (Continued)
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
0 284 for the location of the engine
oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.
Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade.
See Recommended Fluids and
Lubricants 0384.
Specification
Ask for and use engine oils that
meet the dexos1 specification.
Page 290 of 431

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - CRC - 11/3/17
Vehicle Care 289
Engine oils that have been
approved by GM as meeting the
dexos1 specification are marked
with the dexos1 approved logo. See
www.gmdexos.com.
Caution
Failure to use the recommended
engine oil or equivalent can result
in engine damage not covered by
the vehicle warranty.
Viscosity Grade
Use SAE 0W-20 viscosity grade
engine oil.
When selecting an oil of the
appropriate viscosity grade, it is
recommended to select an oil of the
correct specification. See
“Specification” earlier in this section.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils meeting the
dexos1 specification are all that is
needed for good performance and
engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your
own oil, be sure to drain all the oil
from the filter before disposal. Never dispose of oil by putting it in the
trash or pouring it on the ground,
into sewers, or into streams or
bodies of water. Recycle it by taking
it to a place that collects used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and filter. This is based
on a combination of factors which
include engine revolutions, engine
temperature, and miles driven.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably. For
the oil life system to work properly,
the system must be reset every time
the oil is changed.
When the system has calculated
that oil life has been diminished, a
CHANGE ENGINE OIL SOON
message comes on to indicate that
an oil change is necessary. Change
the oil as soon as possible within
the next 1 000 km (600 mi). It is
possible that, if driving under the
