specifications GMC YUKON 2020 User Guide

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19

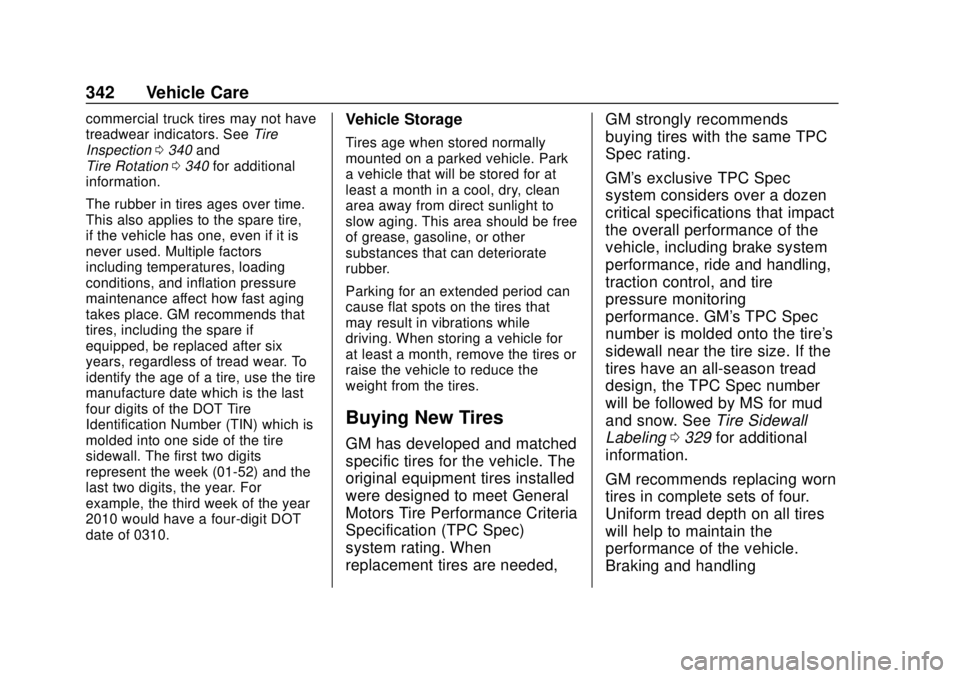

342 Vehicle Care
commercial truck tires may not have
treadwear indicators. SeeTire
Inspection 0340 and
Tire Rotation 0340 for additional
information.
The rubber in tires ages over time.
This also applies to the spare tire,
if the vehicle has one, even if it is
never used. Multiple factors
including temperatures, loading
conditions, and inflation pressure
maintenance affect how fast aging
takes place. GM recommends that
tires, including the spare if
equipped, be replaced after six
years, regardless of tread wear. To
identify the age of a tire, use the tire
manufacture date which is the last
four digits of the DOT Tire
Identification Number (TIN) which is
molded into one side of the tire
sidewall. The first two digits
represent the week (01-52) and the
last two digits, the year. For
example, the third week of the year
2010 would have a four-digit DOT
date of 0310.Vehicle Storage
Tires age when stored normally
mounted on a parked vehicle. Park
a vehicle that will be stored for at
least a month in a cool, dry, clean
area away from direct sunlight to
slow aging. This area should be free
of grease, gasoline, or other
substances that can deteriorate
rubber.
Parking for an extended period can
cause flat spots on the tires that
may result in vibrations while
driving. When storing a vehicle for
at least a month, remove the tires or
raise the vehicle to reduce the
weight from the tires.
Buying New Tires
GM has developed and matched
specific tires for the vehicle. The
original equipment tires installed
were designed to meet General
Motors Tire Performance Criteria
Specification (TPC Spec)
system rating. When
replacement tires are needed, GM strongly recommends
buying tires with the same TPC
Spec rating.
GM's exclusive TPC Spec
system considers over a dozen
critical specifications that impact
the overall performance of the
vehicle, including brake system
performance, ride and handling,
traction control, and tire
pressure monitoring
performance. GM's TPC Spec
number is molded onto the tire's
sidewall near the tire size. If the
tires have an all-season tread
design, the TPC Spec number
will be followed by MS for mud
and snow. See
Tire Sidewall
Labeling 0329 for additional
information.
GM recommends replacing worn
tires in complete sets of four.
Uniform tread depth on all tires
will help to maintain the
performance of the vehicle.
Braking and handling

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
Vehicle Care 355
{Warning
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.
9. Tighten each wheel nut by hand. Then use the wheel
wrench to tighten the nuts until
the wheel is held against
the hub.
10. Turn the wheel wrench counterclockwise to lower the
vehicle. Lower the jack
completely.
11. Tighten the nuts firmly in acrisscross sequence as shown
by turning the wheel wrench
clockwise.
{Warning
Wheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
(Continued)
Warning (Continued)
aftermarket manufacturer when
using accessory locking wheel
nuts. SeeCapacities and
Specifications 0393 for original
equipment wheel nut torque
specifications.
Caution
Improperly tightened wheel nuts
can lead to brake pulsation and
rotor damage. To avoid expensive
brake repairs, evenly tighten the
wheel nuts in the proper
sequence and to the proper
torque specification. See
Capacities and Specifications
0 393 for the wheel nut torque
specification.
When reinstalling the regular wheel
and tire, also reinstall either the
center cap or the bolt-on hub cap,
depending on which one the
vehicle has.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
392 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 392
Service Parts Identification . . . 392
Vehicle Data
Capacities and Specifications . . . . . . . . . . . . . . . 393
Engine Drive Belt Routing . . . . 395
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement parts. See
“Engine Specifications”
under Capacities and Specifications
0 393 for the vehicle's engine code.
Service Parts
Identification
There may be a large barcode on
the certification label on the center
pillar that you can scan for the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options
If there is not a large barcode on
this label, then you will find this
same information on a label inside
of the glove box.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
Technical Data 393
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0388 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System* 5.3L V8 16.8 L 17.8 qt
6.2L V8 16.8 L 17.8 qt
Engine Oil with Filter 5.3L V8 7.6 L 8.0 qt
6.2L V8 7.6 L 8.0 qt
Fuel Tank Short Wheelbase 98.4 L 26.0 gal
Long Wheelbase 119.2 L 31.5 gal
Transfer Case Fluid 1.5 L 1.6 qt

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
394 Technical Data
ApplicationCapacities
Metric English
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeSpark Plug Gap
5.3L V8 C0.95–1.10mm (0.037–
0.043 in)
6.2L V8 J0.95–1.10mm (0.037–
0.043 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage
the spark plug.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-13566587) - 2020 - CRC - 4/15/19
422 Index
Assistance Program,Roadside . . . . . . . . . . . . . . . . . . . . . . 400
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 245
Assistance Systems for Parking and Backing . . . . . . . . . . 242
Automatic
Dimming Mirrors . . . . . . . . . . . . . . . . 39
Door Locks . . . . . . . . . . . . . . . . . . . . . 25
Emergency Braking (AEB) . . . . 248
Headlamp System . . . . . . . . . . . . 167
Level Control . . . . . . . . . . . . . . . . . 229
Transmission . . . . . . . . . . . . . . . . . 213
Transmission Fluid . . . . . . 292, 295
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 216
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 308
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 306
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 306
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 173
Load Management . . . . . . . . . . . . 172 Battery (cont'd)
Power Protection . . . . . . . . . . . . . 172
Battery - North America . . . . 305, 360
Blade Replacement, Wiper . . . . . 309
Blind Spot Mirrors . . . . . . . . . . . . . . . 39
Brake Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 201
System Warning Light . . . . . . . . 138
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 303 Antilock . . . . . . . . . . . . . . . . . . . . . . . 224
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 225
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Parking . . . . . . . . . . . . . . . . . . . . . . . 225
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 186 AutomaticEmergency (AEB) . . . . . . . . . . . 248
Break-In, New Vehicle . . . . . . . . . . 201
Bulb Replacement
Back-up Lamps . . . . . . . . . . . . . . . 313
Fog Lamps . . . . . . . . . . . . . . . . . . . 312
Headlamp Aiming . . . . . . . . . . . . . 312
Headlamps . . . . . . . . . . . . . . . . . . . 312
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 312
License Plate Lamps . . . . . . . . . 314
Buying New Tires . . . . . . . . . . . . . . . 342
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 119
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 283
California Proposition
65 Warning . . . . . . . . . .282, 305, 360, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 393
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 212
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 27
Winter Driving . . . . . . . . . . . . . . . . 194
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . .112
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 110
Center Seat . . . . . . . . . . . . . . . . . . . . . 48
Chains, Tire . . . . . . . . . . . . . . . . . . . . 347
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 122
Charging System Light . . . . . . . . . 135
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 136

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-13566587) - 2020 - CRC - 4/15/19
430 Index
Seats (cont'd)Second Row . . . . . . . . . . . . . . . . . . . . 56
Third Row Seat . . . . . . . . . . . . . . . . . 60
Second Row Seats . . . . . . . . . . . . . . 56
Securing Child
Restraints . . . . . . . . . . .103, 105, 106
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 143
OnStar . . . . . . . . . . . . . . . . . . . . . . . 412
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 33
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 33
Service . . . . . . . . . . . . . . . . . . . . . . . . . 182 Accessories andModifications . . . . . . . . . . . . . . . . 283
Doing Your Own Work . . . . . . . . 283
Maintenance Records . . . . . . . . 391
Maintenance, General Information . . . . . . . . . . . . . . . . . . 377
Parts Identification . . . . . . . . . . . . 392
Scheduling Appointments . . . . . 401
Services Special Application . . . . . . . . . . . 384
Servicing the Airbag . . . . . . . . . . . . . 84
Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 308
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 209 Shifting (cont'd)
Out of Park . . . . . . . . . . . . . . . . . . . 210
Side Blind Zone Alert (SBZA) . . . 249
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 169
Special Application Services . . . . 384
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 393
Speedometer . . . . . . . . . . . . . . . . . . . 129
StabiliTrak
OFF Light . . . . . . . . . . . . . . . . . . . . . 140
Start Assist, Hill . . . . . . . . . . . . . . . . . 225
Start Vehicle, Remote . . . . . . . . . . . 23
Starter Switch Check . . . . . . . . . . . 308
Starting the Engine . . . . . . . . . . . . . 206
Steering . . . . . . . . . . . . . . . . . . . . . . . . 186 Heated Wheel . . . . . . . . . . . . . . . . .116
Wheel Adjustment . . . . . . . . . . . . .115
Wheel Controls . . . . . . . . . . . . . . . .116
Steering Column Lock . . . . . . . . . . . 35
Steps Power Assist . . . . . . . . . . . . . . . . . . . 32
Storage
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Storage Areas Armrest . . . . . . . . . . . . . . . . . . . . . . . .110
Center Console . . . . . . . . . . . . . . . .110
Convenience Net . . . . . . . . . . . . . .112 Storage Areas (cont'd)
Floor Console . . . . . . . . . . . . . . . . . 111
Glove Box . . . . . . . . . . . . . . . . . . . . 109
Roof Rack System . . . . . . . . . . . . .112
Sunglasses . . . . . . . . . . . . . . . . . . . .110
Storage Compartments . . . . . . . . . 109
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 195
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 43
Sunglass Storage . . . . . . . . . . . . . . . 110
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 245
Infotainment . . . . . . . . . . . . . 174, 409
Noise Control . . . . . . . . . . . . . . . . . 306
Roof Rack . . . . . . . . . . . . . . . . . . . . .112
Systems Driver Assistance . . . . . . . . . . . . . 240
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 129
Text Telephone (TTY) Users . . . . 399
Theft-Deterrent Systems . . . . . . . . . 36Immobilizer . . . . . . . . . . . . . . . . . . . . . 36
Third-Row Seats . . . . . . . . . . . . . . . . . 60
