Forward Collision System
This setting controls the vehicle
response when detecting a vehicle
ahead of you. The Off setting
disables all FCA and AEB functions.
With the Alert and Brake setting,
both FCA and AEB are available.
The Alert setting disables AEB. See
Automatic Emergency Braking
(AEB)0248.
Select Off, Alert, or Alert and Brake.
Adaptive Cruise Go Notifier
This feature will give a reminder that
Adaptive Cruise Control provides
when it has brought the vehicle to a
complete stop behind another
stopping vehicle, and then that
vehicle drives on.
Select Off or On.
Park Assist
This allows the feature to be turned
on or off. See Assistance Systems
for Parking or Backing 0242.
Select Off, On, or On with Towbar
Attached. Rear Cross Traffic Alert
This allows the feature to be turned
on or off. See
Assistance Systems
for Parking or Backing 0242.
Select Off or On.
Lane Change Alert
This allows the feature to be turned
on or off. See Lane Change Alert
(LCA) 0250.
Select Off or On.
Comfort and Convenience
Select and the following may
display:
. Auto Power Assist Steps
. Auto Memory Recall
. Easy Exit Options
. Chime Volume
. Hands Free Liftgate Control
. Reverse Tilt Mirror
. Auto Mirror Folding
. Auto Wipe in Reverse Gear Auto Power Assist Steps
This allows the feature to be turned
on or off. See
Power Assist Steps
0 32.
Select Off, On, or Extended.
Auto Memory Recall
This feature automatically recalls
the current driver ’s previously stored
1 or 2 button positions when the
ignition is changed from off to on or
ACC/ACCESSORY. See Memory
Seats 051.
Select Off or On.
Easy Exit Options
This feature automatically recalls
the previously stored Exit button
position when exiting the vehicle.
See Memory Seats 051.
Select Off or On.
Chime Volume
This allows the selection of the
chime volume level.
Touch + or −to adjust the volume.
Page 246 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
Driving and Operating 245
object location, or both sides of the
Safety Alert Seat will pulse five
times. Beeps for FPA are higher
pitched than for RPA.
Rear Cross Traffic Alert (RCTA)
If equipped, when the vehicle is
shifted into R (Reverse), RCTA
displays a red warning triangle with
a left or right pointing arrow to warn
of traffic coming from the left or
right. This system detects objects
coming from up to 20 m (65 ft) from
the left or right side of the vehicle.
When an object is detected, either
three beeps sound from the left or
right or three Safety Alert Seat
pulses occur on the left or right side,
depending on the direction of the
detected vehicle.
Use caution while backing up when
towing a trailer, as the RCTA
detection zones that extend out
from the back of the vehicle do not
move further back when a trailer is
towed.Turning the Features On or Off
TheXbutton to the left of the
steering wheel is used to turn on or
off the Front and Rear Park Assist.
The indicator light in the button
comes on when the features are on
and turns off when the features
have been disabled.
Front and Rear Park Assist can be
set to Off, On, or On with Towbar
through vehicle personalization. See
“Park Assist” underVehicle
Personalization 0152. If Park Assist
is turned off through vehicle
personalization, the Park Assist
button will be disabled. To turn the
Park Assist on again, select On in
vehicle personalization. The On with
Towbar setting allows for Park
Assist to work properly with an
attached trailer hitch. Turn off Park
Assist when towing a trailer.
To turn the RPA symbols, guidance
lines, or Rear Cross Traffic Alert on
or off, see “Rear Camera” and
“Collision/Detection Systems” under
Vehicle Personalization 0152. On some models, select the guidance
lines button on the infotainment
display to turn them on or off.
Assistance Systems for
Driving
If equipped, when driving the
vehicle in a forward gear, Forward
Collision Alert (FCA), Lane
Departure Warning (LDW), Lane
Keep Assist (LKA), Side Blind Zone
Alert (SBZA), Lane Change Alert
(LCA), and/or Automatic Emergency
Braking (AEB) can help to avoid a
crash or reduce crash damage.
Forward Collision Alert
(FCA) System
If equipped, the FCA system may
help to avoid or reduce the harm
caused by front-end crashes. When
approaching a vehicle ahead too
quickly, FCA provides a red flashing
alert on the windshield and rapidly
beeps or pulses the driver seat.
FCA also lights an amber visual
alert if following another vehicle
much too closely.
Page 252 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
Driving and Operating 251
blind zone or rapidly approaching
that zone. If the turn signal is
activated in the same direction as a
detected vehicle, this display will
flash as an extra warning not to
change lanes.
LCA can be disabled through
vehicle personalization. When you
disable LCA, Side Blind Zone Alert
is also disabled. See“Collision/
Detection Systems” underVehicle
Personalization 0152. If LCA is
disabled by the driver, the LCA
mirror displays will not light up.
When the System Does Not
Seem to Work Properly
The LCA system requires some
driving for the system to calibrate to
maximum performance. This
calibration may occur more quickly if
the vehicle is driving on a straight
highway road with traffic and
roadside objects (e.g., guardrails,
barriers).
LCA displays may not come on
when passing a vehicle quickly, for
a stopped vehicle, or when towing a
trailer. The LCA detection zones that extend back from the side of
the vehicle do not move further back
when a trailer is towed. Use caution
while changing lanes when towing a
trailer. LCA may alert to objects
attached to the vehicle, such as a
trailer, bicycle, or object extending
out to either side of the vehicle.
Attached objects may also interfere
with the detection of vehicles. This
is normal system operation; the
vehicle does not need service.
LCA may not always alert the driver
to vehicles in the next lane over,
especially in wet conditions or when
driving on sharp curves. The system
does not need to be serviced. The
system may light up due to
guardrails, signs, trees, shrubs, and
other non-moving objects. This is
normal system operation; the
vehicle does not need service.
LCA may not operate when the LCA
sensors in the left or right corners of
the rear bumper are covered with
mud, dirt, snow, ice, or slush, or in
heavy rainstorms. For cleaning
instructions, see "Washing the
Vehicle" under
Exterior Care0367. If the DIC still displays the system
unavailable message after cleaning
both sides of the vehicle toward the
rear corners of the vehicle, see your
dealer.
If the LCA displays do not light up
when moving vehicles are in the
side blind zone or are rapidly
approaching this zone and the
system is clean, the system may
need service. Take the vehicle to
your dealer.
Radio Frequency Information
See
Radio Frequency Statement
0 405.
Lane Keep Assist (LKA)
If equipped, LKA may help avoid
crashes due to unintentional lane
departures. This system uses a
camera to detect lane markings
between 60 km/h (37 mph) and
180 km/h (112 mph). It may assist by
gently turning the steering wheel if
the vehicle approaches a detected
lane marking. It may also provide a
Lane Departure Warning (LDW)
alert if the vehicle crosses a
Page 266 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
Driving and Operating 265
Trailering Weight Ratings
When towing a trailer, the combined
weight of the vehicle, vehicle
contents, trailer, and trailer contents
must be below all of the maximum
weight ratings for the vehicle,
including:
.GCWR: Gross Combined Weight
Rating
. GVWR: Gross Vehicle Weight
Rating
. Maximum Trailer Weight Rating
. GAWR-RR: Gross Axle Weight
Rating-Rear
. Maximum Trailer Tongue Weight
Rating
See “Weight-Distributing Hitch
Adjustment” underTowing
Equipment 0270 to determine if
equalizer bars are required to obtain
the maximum trailer weight rating.
See “Trailer Brakes” underTowing
Equipment 0270 to determine if
brakes are required based on your
trailer's weight. The only way to be sure the weight
is not exceeding any of these
ratings is to weigh the tow vehicle
and trailer combination, fully loaded
for the trip, getting individual
weights for each of these items.
{Warning
You and others could be seriously
injured or killed if the trailer is too
heavy or the trailer brakes are
inadequate for the load. The
vehicle may be damaged, and the
repairs would not be covered by
the vehicle warranty.
Only tow a trailer if all the steps in
this section have been followed.
Ask your dealer for advice and
information about towing a trailer.
Gross Combined Weight
Rating (GCWR)
GCWR is the total allowable weight
of the completely loaded vehicle
and trailer including any fuel,
passengers, cargo, equipment, and
accessories. Do not exceed theGCWR for your vehicle. The GCWR
for the vehicle is on the Tow Rating
Chart following.
To check that the weight of the
vehicle and trailer are within the
GCWR for the vehicle, follow these
steps:
.
Start with the "curb weight" from
the trailering information label
. Add the weight of the trailer
loaded with cargo and ready for
the trip
. Add the weight of all passengers
. Add the weight of all cargo in the
vehicle
. Add the weight of hitch hardware
such as a draw bar, ball, load
equalizer bars, or sway bars
. Add the weight of any
accessories or aftermarket
equipment added to the vehicle
The resulting weight cannot exceed
the GCWR value shown on the
Trailering Information Label.
Page 271 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
270 Driving and Operating
including the carrier, is no more than
half of the maximum allowable
tongue weight for the vehicle or
227 kg (500 lb), whichever is less.
Rear Gross Axle Weight Rating
(GAWR-RR)
The GAWR-RR is the total weight
that can be supported by the rear
axle of the vehicle. Do not exceed
the GAWR-RR for the vehicle, with
the tow vehicle and trailer fully
loaded for the trip including the
weight of the trailer tongue. If using
a weight-distributing hitch, do not
exceed the GAWR-RR before
applying the weight distribution
spring bars.
Ask your dealer for trailering
information or assistance.
Towing Equipment
Hitches
Always use the correct hitch
equipment for your vehicle.
Crosswinds, large trucks going by,
and rough roads can affect the

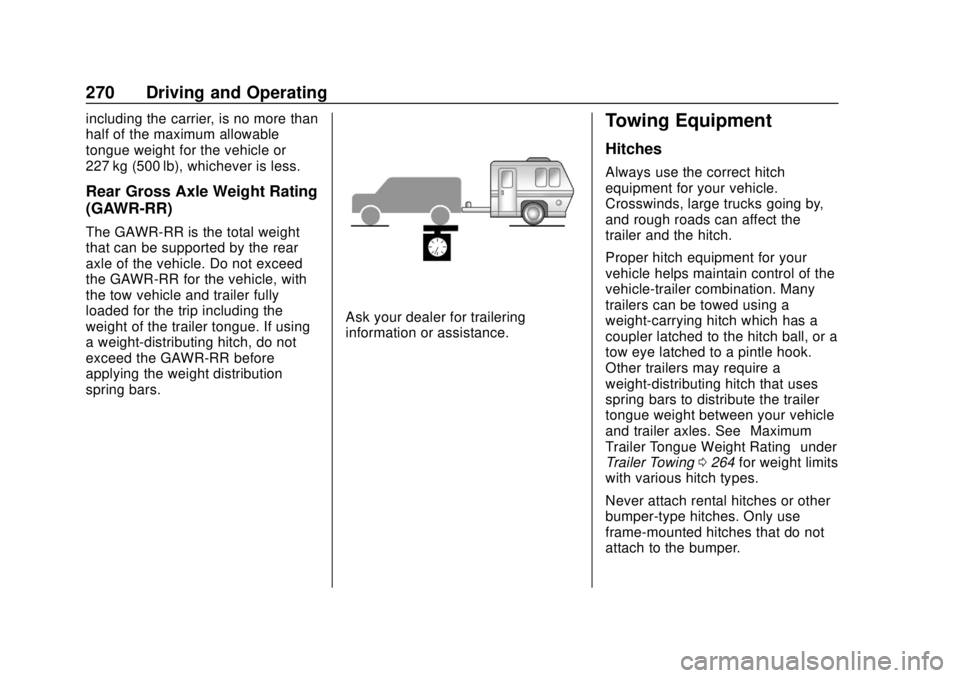

trailer and the hitch.
Proper hitch equipment for your
vehicle helps maintain control of the
vehicle-trailer combination. Many
trailers can be towed using a
weight-carrying hitch which has a
coupler latched to the hitch ball, or a
tow eye latched to a pintle hook.
Other trailers may require a
weight-distributing hitch that uses
spring bars to distribute the trailer
tongue weight between your vehicle
and trailer axles. See“Maximum
Trailer Tongue Weight Rating” under
Trailer Towing 0264 for weight limits
with various hitch types.
Never attach rental hitches or other
bumper-type hitches. Only use
frame-mounted hitches that do not
attach to the bumper.
Page 273 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-13566587) - 2020 - CRC - 4/15/19
272 Driving and Operating
Vehicle SeriesTrailer WeightWeight-Distributing Hitch
Usage Hitch Distribution
1500 Up to 3 175 kg (7,000 lb) OptionalRefer to trailer
manufacturer ’s
recommendation
1500 Over 3 175 kg (7,000 lb) Required50%
1. Front of Vehicle
2. Body to Ground Distance
When using a weight-distributing
hitch, measure the front fender
height above the front axle
distance (2) before and after
connecting trailer. Adjust the spring bars until the front fender height
distance (2) is approximately half
way between the first and second
measurements.
If equipped with
Automatic Level
Control 0229, it is recommended to
allow the shocks to inflate, leveling
the vehicle prior to adjusting the
hitch.
Tires
. Do not tow a trailer while using a
compact spare tire on the
vehicle.
. Tires must be properly inflated to
support loads while towing a
trailer. See Tires0326 for
instructions on proper tire
inflation.
Safety Chains
Always attach chains between the
vehicle and the trailer, and attach
the chains to the holes on the trailer
hitch platform. Instructions about
safety chains may be provided by
the hitch manufacturer or by the
trailer manufacturer.
Cross the safety chains under the
tongue of the trailer to help prevent
the tongue from contacting the road
if it becomes separated from the
hitch. Always leave just enough
slack so the combination can turn.
Never allow safety chains to drag on
the ground.
Page 428 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-13566587) - 2020 - CRC - 4/15/19
Index 427
Lighting (cont'd)LED . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Lights Airbag Readiness . . . . . . . . . . . . . 134
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 138
Brake System Warning . . . . . . . 138
Charging System . . . . . . . . . . . . . 135
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 136
Cruise Control . . . . . . . . . . . . . . . . 144
Door Ajar . . . . . . . . . . . . . . . . . . . . . 144
Engine Coolant Temperature Warning . . . . . . . 141
Engine Oil Pressure . . . . . . . . . . 142
Flash-to-Pass . . . . . . . . . . . . . . . . . 167
Four-Wheel-Drive . . . . . . . . . . . . . 139
Front Fog Lamp . . . . . . . . . . . . . . 143
High-Beam On . . . . . . . . . . . . . . . . 143
High/Low Beam Changer . . . . . 166
Lane Keep Assist . . . . . . . . . . . . . 139
Low Fuel Warning . . . . . . . . . . . . 142
Seat Belt Reminders . . . . . . . . . . 133
Security . . . . . . . . . . . . . . . . . . . . . . 143
StabiliTrak OFF . . . . . . . . . . . . . . . 140
Tire Pressure . . . . . . . . . . . . . . . . . 141
Tow/Haul Mode . . . . . . . . . . . . . . . 139 Lights (cont'd)
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . 141
Traction Off . . . . . . . . . . . . . . . . . . . 140
Lock Steering Column . . . . . . . . . . . . . . . . 35
Locking Rear Axle . . . . . . . . . . . . . . 229
Locks Automatic Door . . . . . . . . . . . . . . . . . 25
Delayed Locking . . . . . . . . . . . . . . . . 25
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lockout Protection . . . . . . . . . . . . . . 26
Power Door . . . . . . . . . . . . . . . . . . . . . 25
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Loss of Control . . . . . . . . . . . . . . . . . 187
Low Fuel Warning Light . . . . . . . . . 142
Low-Profile Tires . . . . . . . . . . . . . . . . 328
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 93
Lumbar Adjustment . . . . . . . . . . . . . . 49 Front Seats . . . . . . . . . . . . . . . . . . . . . 49
M
Magnetic Ride Control . . . . . . . . . . 229
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 391 Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 385
Maintenance Schedule . . . . . . . . . 379 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 388
Transfer Case . . . . . . . . . . . . . . . . 219
Malfunction Indicator Lamp . . . . . 136
Manual Mode . . . . . . . . . . . . . . . . . . . 216
Memory Seats . . . . . . . . . . . . . . . . . . . 51
Messages Engine Power . . . . . . . . . . . . . . . . 151
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 151
Vehicle Speed . . . . . . . . . . . . . . . . 152
Mirror Child-View . . . . . . . . . . . . . . . . . . . . . . 41
Mirrors
Automatic Dimming . . . . . . . . . . . . . 39
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 41
Blind Spot . . . . . . . . . . . . . . . . . . . . . . 39
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 37
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 38
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 39
Manual Rearview . . . . . . . . . . . . . . . 41
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Tilt in Reverse . . . . . . . . . . . . . . . . . . 40
Mirrors, Interior Rearview . . . . . . . . 41
Page 430 of 434

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-13566587) - 2020 - CRC - 4/15/19
Index 429
Rear Axle (cont'd)Locking . . . . . . . . . . . . . . . . . . . . . . . 229
Rear Climate Control System . . . 179
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 55 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 55
Rear Storage . . . . . . . . . . . . . . . . . . . 110
Rear Vision Camera (RVC) . . . . . 242
Rear Window Washer/Wiper . . . . 118
Rearview Mirrors . . . . . . . . . . . . . . . . 41 Automatic Dimming . . . . . . . . . . . . . 41
Reclining Seatbacks . . . . . . . . . . . . . 50
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 388
Records Maintenance . . . . . . . . . . . . . . . . . . 391
Recreational Vehicle Towing . . . . 364
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . . 399
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . 13, 16
Remote Vehicle Start . . . . . . . . . . . . 23
Replacement
Glass . . . . . . . . . . . . . . . . . . . . . . . . . 310
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 86
Maintenance . . . . . . . . . . . . . . . . . . 390 Replacing Airbag System . . . . . . . . 86
Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . 103
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 72
Reporting Safety Defects Canadian Government . . . . . . . . 407
General Motors . . . . . . . . . . . . . . . 407
U.S. Government . . . . . . . . . . . . . 406
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 92
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 209
Reverse Tilt Mirrors . . . . . . . . . . . . . . 40
Ride Control Systems Magnetic . . . . . . . . . . . . . . . . . . . . . 229
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 193
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 400
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 44
Roof Rack System . . . . . . . . . . . . . . 112
Rotation, Tires . . . . . . . . . . . . . . . . . . 340
Routing, Engine Drive Belt . . . . . . 395
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 212S
Safety Defects ReportingCanadian Government . . . . . . . . 407
General Motors . . . . . . . . . . . . . . . 407
U.S. Government . . . . . . . . . . . . . 406
Safety Locks . . . . . . . . . . . . . . . . . . . . . 26
Safety System Check . . . . . . . . . . . . 71
Scheduling Appointments . . . . . . . 401
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 62 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Extender . . . . . . . . . . . . . . . . . . . . . . . . 71
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . 63
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . 71
Lap-Shoulder Belt . . . . . . . . . . . . . . 65
Reminders . . . . . . . . . . . . . . . . . . . . 133
Replacing after a Crash . . . . . . . . 72
Use During Pregnancy . . . . . . . . . . 70
Seats
Center Seat . . . . . . . . . . . . . . . . . . . . 48
Head Restraints . . . . . . . . . . . . . . . . 47
Heated and Ventilated Front . . . . 54
Heated, Rear . . . . . . . . . . . . . . . . . . . 55
Lumbar Adjustment, Front . . . . . . 49
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 51
Power Adjustment, Front . . . . . . . 48
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Reclining Seatbacks . . . . . . . . . . . . 50
