remote control GMC YUKON 2022 Owner's Manual

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15555988) - 2022 - CRC - 12/3/21
238 Driving and Operating
The vehicle ahead indicator is in the
instrument cluster and HUD, if equipped.
It only displays when a vehicle is detected
in your vehicle’s path moving in the same
direction. If this symbol is not displaying,
ACC will not respond to or brake for vehicles
ahead.
ACC automatically slows the vehicle down
and adjusts vehicle speed to follow a
detected vehicle ahead at the selected
following gap. The vehicle speed increases or
decreases to follow a detected vehicle in
front of your vehicle when that vehicle is
traveling slower than your vehicle set speed.
It may apply limited braking, if necessary.
When braking is active, the brake lamps will
come on. The automatic braking may feel or
sound different than if the brakes were
applied manually. This is normal.
Passing a Vehicle While Using ACC
If the set speed is high enough, and the left
turn signal is used to pass a vehicle ahead
in the selected following gap, ACC may
assist by gradually accelerating the vehicle
prior to the lane change.{Warning
When using ACC to pass a vehicle or
perform a lane change, the following
distance to the vehicle being passed may
be reduced. ACC may not apply sufficient
acceleration or braking when passing a
vehicle or performing a lane change.
Always be ready to manually accelerate
or brake to complete the pass or lane
change.
Stationary or Very Slow-Moving Objects
{Warning
ACC may not detect and react to stopped
or slow-moving vehicles ahead of you. For
example, the system may not brake for a
vehicle it has never detected moving. This
can occur in stop-and-go traffic or when a
vehicle suddenly appears due to a vehicle
ahead changing lanes. Your vehicle may
not stop and could cause a crash. Use
caution when using ACC. Your complete
attention is always required while driving
and you should be ready to take action
and apply the brakes. Irregular Objects Affecting ACC
ACC may have difficulty detecting the
following objects:
.Vehicles with cargo extending from the
back end.
.Non-standard shaped vehicles, such as
vehicle transport, vehicles with a side car
fitted, or horse carriages.
.Objects that are close to the front of your
vehicle.
ACC Automatically Disengages
ACC may automatically disengage and the
driver will need to manually apply the
brakes to slow the vehicle if:
.The sensors are blocked.
.The Traction Control System (TCS) or
StabiliTrak/ESC system has activated or
been disabled.
.There is a fault in the system.
.The radar falsely reports blockage when
driving in a desert or remote area with
no other vehicles or roadside objects.
A DIC message may display to indicate
that ACC is temporarily unavailable.
The ACC indicator will turn white when ACC
is no longer active.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15555988) - 2022 - CRC - 12/3/21
Driving and Operating 279
Use only a round, seven-wire connector with
flat blade terminals meeting SAE J2863
specifications for proper electrical
connectivity.
The seven-wire harness contains the
following trailer circuits:
.Yellow/Grey: Left Stop/Turn Signal
.Green/Violet: Right Stop/Turn Signal
.Grey/Brown: Taillamps
.White: Ground
.White/Green: Back-up Lamps
.Red/Green: Battery Feed
.Dark Blue: Trailer Brake
To help charge a remote (non-vehicle)
battery change drive mode to Tow Haul.
If the trailer is too light for Tow/Haul Mode,
turn on the headlamps to help charge the
battery.
Electric Brake Control Wiring Provisions
These wiring provisions are included with
the vehicle as part of the trailer wiring
package. These provisions are for an electric
brake controller.
The harness should be installed by your
dealer or a qualified service center. Refer to the aftermarket electric trailer brake
controller owner's manual to determine wire
color coding of the electric trailer brake
controller. The wire colors on the brake
controller may be different from the vehicle.
Trailer Lamps
Always check all trailer lamps are working at
the beginning of each trip, and periodically
on longer trips.
If equipped, the Trailering App will monitor
the RH turn/brake lamp circuit, LH turn/
brake lamp circuit, running lamp circuit, and
reverse lamp circuits on the trailer. DIC
messages and Trailering App alerts may be
displayed if lighting circuit issues are
detected on the trailer.
Pressing START LIGHT TEST in the Trailering
App automatically activates trailer lamps.
The Trailering App is not a substitute for
manually inspecting your trailer lamps. See
Trailering App
0285.
Trailer Connection and Lamp Messages
When a trailer is properly connected and
working, no trailer connection or lamp
messages appear on the Driver Information Center (DIC). However; if the vehicle detects
an issue with a trailer connection or lamp,
you may see the following DIC message(s):
.TRAILER DISCONNECTED CHECK
CONNECTION appears when a connected
trailer is disconnected. It appears
immediately when the vehicle is on,
or upon the next start-up if the trailer
was disconnected while the vehicle was
off. Check the trailer connection as
appropriate.
.CHECK TRAILER XXX LAMP appears when
there is a detected lamp or wiring fault
on the trailer. Check the trailer wiring and
lamps.
Turn Signals When Towing a Trailer
When properly connected, the trailer turn
signals should will illuminate to indicate the
vehicle is turning, changing lanes,
or stopping. When towing a trailer, the
arrows on the instrument cluster will
illuminate even if the trailer is not properly
connected or the bulbs are burned out.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15555988) - 2022 - CRC - 12/3/21

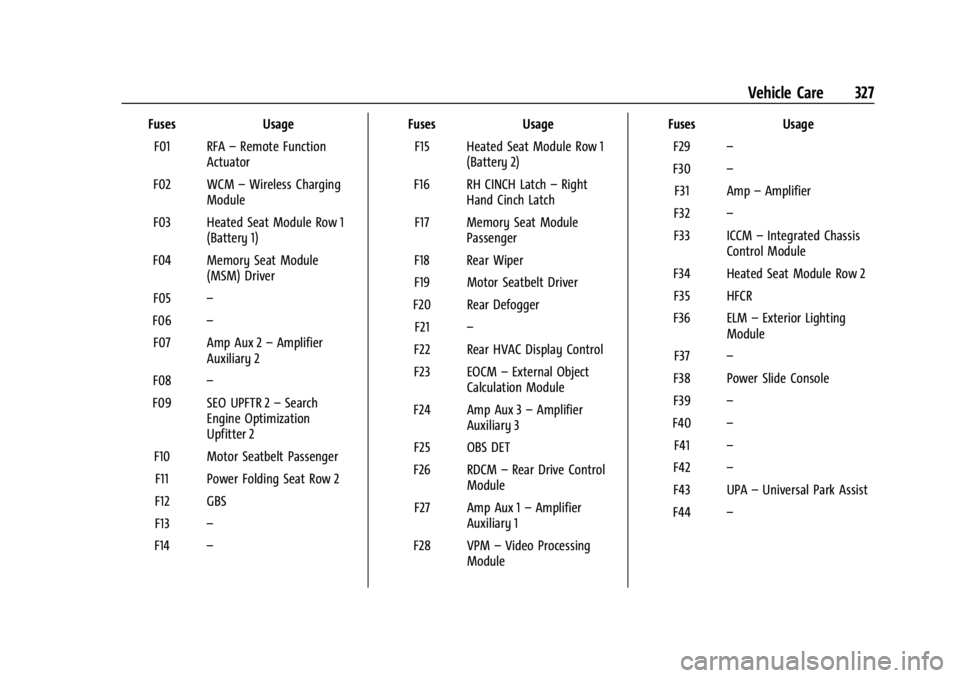

Vehicle Care 327
FusesUsage
F01 RFA –Remote Function
Actuator
F02 WCM –Wireless Charging
Module
F03 Heated Seat Module Row 1 (Battery 1)
F04 Memory Seat Module (MSM) Driver
F05 –
F06 –
F07 Amp Aux 2 –Amplifier
Auxiliary 2
F08 –
F09 SEO UPFTR 2 –Search
Engine Optimization
Upfitter 2
F10 Motor Seatbelt Passenger F11 Power Folding Seat Row 2
F12 GBS
F13 –
F14 – Fuses
Usage
F15 Heated Seat Module Row 1 (Battery 2)
F16 RH CINCH Latch –Right
Hand Cinch Latch
F17 Memory Seat Module Passenger
F18 Rear Wiper
F19 Motor Seatbelt Driver
F20 Rear Defogger F21 –
F22 Rear HVAC Display Control
F23 EOCM –External Object
Calculation Module
F24 Amp Aux 3 –Amplifier
Auxiliary 3
F25 OBS DET
F26 RDCM –Rear Drive Control
Module
F27 Amp Aux 1 –Amplifier
Auxiliary 1
F28 VPM –Video Processing
Module Fuses
Usage
F29 –
F30 –
F31 Amp –Amplifier
F32 –
F33 ICCM –Integrated Chassis
Control Module
F34 Heated Seat Module Row 2 F35 HFCR
F36 ELM –Exterior Lighting
Module
F37 –
F38 Power Slide Console
F39 –
F40 –
F41 –
F42 –
F43 UPA –Universal Park Assist
F44 –

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15555988) - 2022 - CRC - 12/3/21
OnStar 403
How OnStar Service Works
Automatic Crash Response, Emergency
Services, Crisis Assist, Stolen Vehicle
Assistance, Remote Services, and Roadside
Assistance are available on most vehicles.
Not all OnStar services are available
everywhere or on all vehicles. For more
information, a full description of OnStar
services, system limitations, and OnStar User
Terms, Privacy Statement, and Software
Terms:
.Call 1-888-4ONSTAR (1-888-466-7827).
.See www.onstar.com (U.S.).
.See www.onstar.ca (Canada).
.Call TTY 1-877-248-2080.
.PressQto speak with an Advisor.
OnStar or connected services cannot work
unless the vehicle is in a place where OnStar
has an agreement with a wireless service
provider for service in that area. The
wireless service provider must also have
coverage, network capacity, reception, and
technology compatible with OnStar or
connected services. Service involving location
information about the vehicle cannot work
unless GPS signals are available,
unobstructed, and compatible with the
OnStar hardware. OnStar or connected services may not work if the OnStar
equipment is not properly installed or it has
not been properly maintained. If equipment
or software is added, connected,
or modified, OnStar or connected services
may not work. Other problems beyond the
control of OnStar
—such as hills, tall
buildings, tunnels, weather, electrical system
design and architecture of the vehicle,
damage to the vehicle in a crash, or wireless
phone network congestion or jamming —
may prevent service.
See Radio Frequency Statement 0398.
Services for People with Disabilities
Advisors provide services to help with
physical disabilities and medical conditions.
Press
Qto help:
.Locate a gas station with an attendant to
pump gas.
.Find a hotel, restaurant, etc., that meets
accessibility needs.
.Provide directions to the closest hospital
or pharmacy in urgent situations.
TTY Users
OnStar has the ability to communicate to
deaf, hard-of-hearing, or speech-impaired
customers while in the vehicle. The available
TTY system can provide in-vehicle access to
all OnStar services, except Virtual Advisor
and OnStar Turn-by-Turn Navigation.
If equipped, TTY mode can be turned on or
off by touching Settings, then Apps, and
then Phone. When TTY mode is on, phone
calls can be made or received with OnStar
using the infotainment display.
OnStar Personal Identification
Number (PIN)
A PIN is needed to access some OnStar
services. The PIN will need to be changed
the first time when speaking with an
Advisor. To change the OnStar PIN, contact
an OnStar Advisor by pressing
Qor calling
1-888-4ONSTAR.
Warranty
OnStar equipment may be warranted as part
of the vehicle warranty.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15555988) - 2022 - CRC - 12/3/21
Connected Services 407
Ensuring Security
.Change the default passwords for the
Wi-Fi hotspot and myGMC mobile
application. Make these passwords
different from each other and use a
combination of letters and numbers to
increase the security.
.Change the default name of the SSID
(Service Set Identifier). This is your
network’s name that is visible to other
wireless devices. Choose a unique name
and avoid family names or vehicle
descriptions.
Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in Wi-Fi
hotspot that provides access to the Internet
and web content at 4G LTE speed. Up to
seven mobile devices can be connected.
A data plan is required. Use the in-vehicle
controls only when it is safe to do so. 1. To retrieve Wi-Fi hotspot information, press
=to open the OnStar app on the
infotainment display, then select Wi-Fi
Hotspot. On some vehicles, touch Wi-Fi
or Wi-Fi Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID), password, and on
some vehicles, the connection type (no Internet connection, 3G, 4G, 4G LTE), and
signal quality (poor, good, excellent). The
LTE icon shows connection to Wi-Fi. It is
possible that the icon may not illuminate
even though the vehicle has an active
connection.
3. To change the SSID or password, press
Qor call 1-888-4ONSTAR to connect
with an Advisor. On some vehicles, the
SSID and password can be changed in
the Wi-Fi Hotspot menu.
After initial set-up, your vehicle’s Wi-Fi
hotspot will connect automatically to your
mobile devices. Manage data usage by
turning Wi-Fi on or off on your mobile
device, using the myGMC mobile app, or by
contacting an OnStar Advisor. On some
vehicles, Wi-Fi can also be managed from
the Wi-Fi Hotspot menu.
MyGMC Mobile App (If Available)
Download the myGMC mobile app to
compatible Apple and Android smartphones.
GMC users can access the following services
from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
.Lock/unlock doors, if equipped with
automatic locks.
.Activate the horn and lamps.
.Check the vehicle’s fuel level, oil life,
or tire pressure, if factory-equipped with
the Tire Pressure Monitor System.
.Send destinations to the vehicle.
.Locate the vehicle on a map (U.S.
market only).
.Turn the vehicle's Wi-Fi hotspot on/off,
manage settings, and monitor data
consumption, if equipped.
.Locate a dealer and schedule service.
.Request Roadside Assistance.
.Set a parking reminder with pin drop,
take a photo, make a note, and set a
timer.
.Connect with GMC on social media.
Features are subject to change. For myGMC
mobile app information and compatibility,
see my.gmc.com.
An active OnStar or connected service plan
may be required. A compatible device,
factory-installed remote start, and power
locks are required. Data rates apply. See
www.onstar.com for details and system
limitations.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15555988) - 2022 - RegulatoryCompliance - 12/3/21
414 Index
I
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 205
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
IndicatorPedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 118
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Infants and Young Children, Restraints . . . . .72
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 397
Infotainment
Rear Seat System . . . . . . . . . . . . . . . . . . . . . . 156
Infotainment System . . . . . . . . . . . . . . . . . . . .400
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 105
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 29
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 146
J
Jump Starting - North America . . . . . . . . . . . 357
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . . . . 8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 330
Lamps Daytime Running (DRL) . . . . . . . . . . . . . . . . 140
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 138
Exterior Lamps Off Reminder . . . . . . . . . . 140
Exterior Lighting Battery Saver . . . . . . . . 145
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . 259
Lane Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . 261
Lane Keep Assist Light . . . . . . . . . . . . . . . . . . . . 117
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 56
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 84
LATCH, Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .318
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Illumination Control . . . . . . . . . . . . . . . . . . . 143
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318 Lights
Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 112
Antilock Brake System (ABS)
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Brake System Warning . . . . . . . . . . . . . . . . . 115
Charging System . . . . . . . . . . . . . . . . . . . . . . . 113
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . 123
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Driver Mode Control . . . . . . . . . . . . . . . . . . . . 119
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 116
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 121
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Four Corner Air Suspension . . . . . . . . . . . . 120
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . . 117
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . 122
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . 122
High/Low Beam Changer . . . . . . . . . . . . . . 140
Hill Descent Control . . . . . . . . . . . . . . . . . . . . 117
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . . 117
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 122
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 111
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Service Electric Parking Brake . . . . . . . . . . . 116
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 118

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15555988) - 2022 - RegulatoryCompliance - 12/3/21
Index 417
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . 40
RecognitionVoice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Recommended Fluids and Lubricants . . . . . 383
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Recreational Vehicle Towing . . . . . . . . . . . . . 361
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Remote Keyless Entry (RKE) System . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . . 13
Replacement Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Replacing Airbag System . . . . . . . . . . . . . . . . . . 70
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Reporting Safety Defects Canadian Government . . . . . . . . . . . . . . . . . 398
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 399
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 398 Restraints
Where to Put . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Retained Accessory Power (RAP) . . . . . . . . . 209
Reverse Automatic Braking . . . . . . . . . . . . . . . 251
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . . . 29
Ride Control Systems Magnetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Roadside Assistance Program . . . . . . . . . . . . 393
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . . . 94
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Routing, Engine Drive Belt . . . . . . . . . . . . . . . 389
Running the Vehicle While Parked . . . . . . . . 211
S
Safety Defects Reporting Canadian Government . . . . . . . . . . . . . . . . . 398
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 399
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 398
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety System Check . . . . . . . . . . . . . . . . . . . . . 59
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Scheduling Appointments . . . . . . . . . . . . . . . . 395
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . 54 Seat Belts (cont'd)
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How to Wear Seat Belts Properly . . . . . . . 54
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . 56
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Replacing after a Crash . . . . . . . . . . . . . . . . . 60
Use During Pregnancy . . . . . . . . . . . . . . . . . . 59
Seats Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . 37
Heated and Ventilated Front . . . . . . . . . . . . 43
Heated, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Lumbar Adjustment, Front . . . . . . . . . . . . . . 40
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power Adjustment, Front . . . . . . . . . . . . . . . 39
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . 40
Second Row . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Third Row Seat . . . . . . . . . . . . . . . . . . . . . . . . . 49
Second Row Seats . . . . . . . . . . . . . . . . . . . . . . . . 45
Securing Child Restraints . . . . . . . . . . .85, 87, 89
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Accessories and Modifications . . . . . . . . . 296

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15555988) - 2022 - RegulatoryCompliance - 12/3/21
418 Index
Service (cont'd)Doing Your Own Work . . . . . . . . . . . . . . . . . 297
Maintenance Records . . . . . . . . . . . . . . . . . . 385
Maintenance, General Information . . . . . 373
Parts Identification . . . . . . . . . . . . . . . . . . . . . 386
Scheduling Appointments . . . . . . . . . . . . . . 395
Service Electric Parking Brake Light . . . . . . . 116
Services
Special Application . . . . . . . . . . . . . . . . . . . . . 380
Servicing the Airbag . . . . . . . . . . . . . . . . . . . . . . 69
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Side Blind Zone Alert (SBZA) . . . . . . . . . . . . . 259
Signals, Turn and Lane-Change . . . . . . . . . . . .142
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . 151
Special Application Services . . . . . . . . . . . . . . 380
Specifications and Capacities . . . . . . . . . . . . . 387
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . . 13
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 207
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Heated Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 97 Steering (cont'd)
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 97
Steering Column Lock . . . . . . . . . . . . . . . . . . . . . 26
Steering Wheel Controls . . . . . . . . . . . . . . . . . 148
Steps Power Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . 208
Storage
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Storage Areas Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 92
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . 94
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . 90
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 94
Storage Compartments . . . . . . . . . . . . . . . . . . . 90
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Surround Vision System . . . . . . . . . . . . . . . . . 244
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
System Brake Pad Life . . . . . . . . . . . . . . . . . . . . . . . . . 312 System (cont'd)
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 305
Forward Collision Alert (FCA) . . . . . . . . . . . 254
Four Corner Air Suspension . . . . . . . . . . . . 227
Global Positioning . . . . . . . . . . . . . . . . . . . . . 165
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 253
Rear Seat Infotainment (RSI) . . . . . . . . . . . 156
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 244
Systems Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 241
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Text Telephone (TTY) Users . . . . . . . . . . . . . . 392
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 26
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Third-Row Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 341
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 331

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15555988) - 2022 - RegulatoryCompliance - 12/3/21

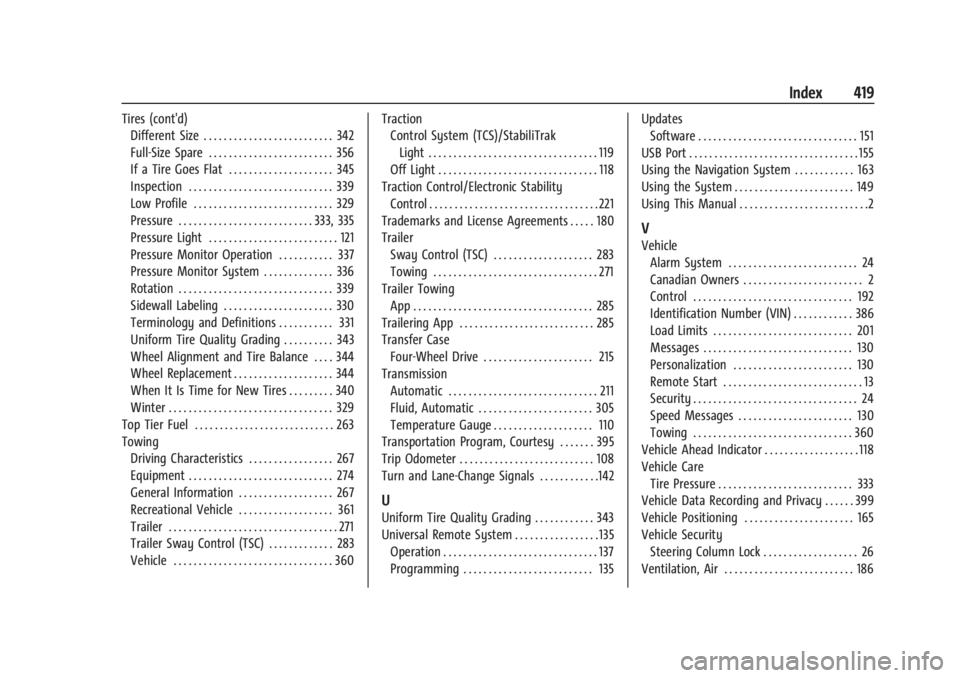

Index 419
Tires (cont'd)Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Full-Size Spare . . . . . . . . . . . . . . . . . . . . . . . . . 356
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 345
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 333, 335
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Pressure Monitor Operation . . . . . . . . . . . 337
Pressure Monitor System . . . . . . . . . . . . . . 336
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 330
Terminology and Definitions . . . . . . . . . . . 331
Uniform Tire Quality Grading . . . . . . . . . . 343
Wheel Alignment and Tire Balance . . . . 344
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 344
When It Is Time for New Tires . . . . . . . . . 340
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Towing Driving Characteristics . . . . . . . . . . . . . . . . . 267
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
General Information . . . . . . . . . . . . . . . . . . . 267
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 361
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Trailer Sway Control (TSC) . . . . . . . . . . . . . 283
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 Traction
Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Trademarks and License Agreements . . . . . 180
Trailer
Sway Control (TSC) . . . . . . . . . . . . . . . . . . . . 283
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Trailer Towing
App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Trailering App . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Transfer Case Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 215
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 305
Temperature Gauge . . . . . . . . . . . . . . . . . . . . 110
Transportation Program, Courtesy . . . . . . . 395
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Turn and Lane-Change Signals . . . . . . . . . . . .142
U
Uniform Tire Quality Grading . . . . . . . . . . . . 343
Universal Remote System . . . . . . . . . . . . . . . . . 135 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Updates
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Using the Navigation System . . . . . . . . . . . . 163
Using the System . . . . . . . . . . . . . . . . . . . . . . . . 149
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Identification Number (VIN) . . . . . . . . . . . . 386
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Personalization . . . . . . . . . . . . . . . . . . . . . . . . 130
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . 130
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 118
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Vehicle Data Recording and Privacy . . . . . . 399
Vehicle Positioning . . . . . . . . . . . . . . . . . . . . . . 165
Vehicle Security Steering Column Lock . . . . . . . . . . . . . . . . . . . 26
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . 186
