2-43
Temperature Display
Pressing the TEMP button once briefly will toggle the
compass/temperature reading on and off. To alternate
the temperature reading between Fahrenheit and Celsius,
press and hold the TEMP button for three seconds until
the display blinks F
and C
. Press and release the
TEMP button to toggle between the Fahrenheit and
Celsius readings. After five seconds of inactivity, the
display will stop flashing and stay at the last setting.
If an abnormal reading is displayed, please consult
your dealer.Electrochromic Mirror Operation
Each time the vehicle is started, the electrochromic
mirror is activated. If you do not want it on, then you
will have to manually turn it off. The time period you
need to press and hold the TEMP button to turn the
electrochromic feature on or off is six seconds. The
indicator light to the right of the TEMP button will
turn on or off to show you when the electrochromic
feature is activated.
Compass Operation
With the ignition on, the compass will show
two character boxes. The mirror will display the
compass heading.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.

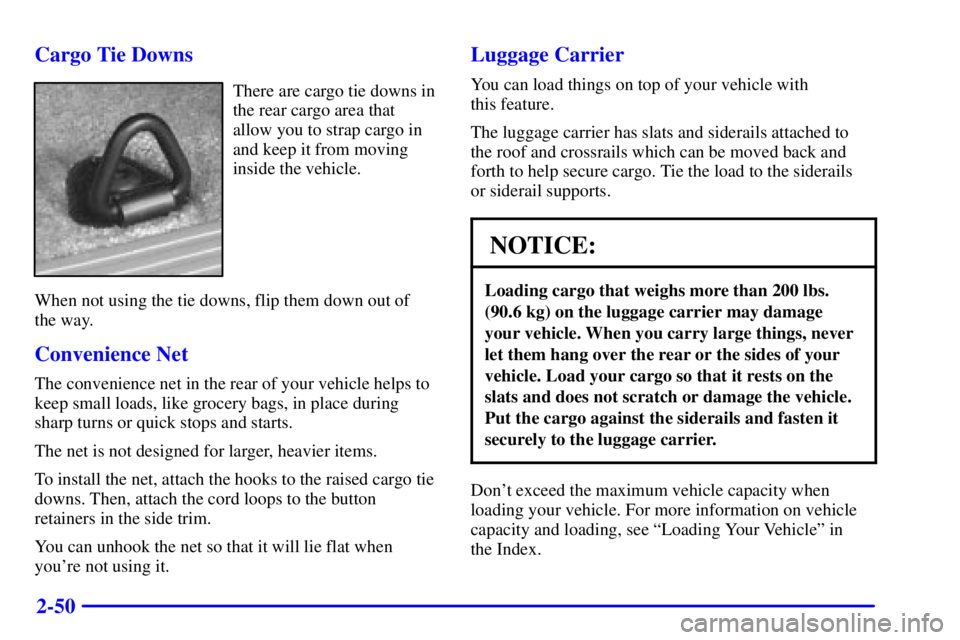

2-50 Cargo Tie Downs
There are cargo tie downs in
the rear cargo area that
allow you to strap cargo in
and keep it from moving
inside the vehicle.
When not using the tie downs, flip them down out of
the way.
Convenience Net
The convenience net in the rear of your vehicle helps to
keep small loads, like grocery bags, in place during
sharp turns or quick stops and starts.
The net is not designed for larger, heavier items.
To install the net, attach the hooks to the raised cargo tie
downs. Then, attach the cord loops to the button
retainers in the side trim.
You can unhook the net so that it will lie flat when
you're not using it.
Luggage Carrier
You can load things on top of your vehicle with
this feature.
The luggage carrier has slats and siderails attached to
the roof and crossrails which can be moved back and
forth to help secure cargo. Tie the load to the siderails
or siderail supports.
NOTICE:
Loading cargo that weighs more than 200 lbs.
(90.6 kg) on the luggage carrier may damage
your vehicle. When you carry large things, never
let them hang over the rear or the sides of your
vehicle. Load your cargo so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the siderails and fasten it
securely to the luggage carrier.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.

3-18
SEEK: While listening to AM, FM1 or FM2,
press the up arrow to tune to the next station and stay
there. Press the down arrow to tune to the previous
station and stay there. The sound will mute while
seeking. If the front radio is in use, you cannot seek
through different stations.
While listening to a cassette tape, press the up arrow to
hear the next selection on the tape. Press the down arrow
to go back to the previous selection. If the cassette tape
on the front radio is in use, you cannot seek through
different selections on a tape.
While listening to a CD, press the up arrow to hear the
next track on the CD. Press the down arrow to go back
to the start of the current track (if more than eight
seconds have played). If the CD player on the front
radio is in use, you cannot seek through different tracks.
To scan preset stations, press and hold SEEK until
the radio goes into scan mode. The radio will go to a
station, play for a few seconds, then go on to the next
station. Press either SEEK arrow again to stop scanning.
If the front radio is in use, you cannot scan through
different stations.P.SET PROG (Preset Program): The front passengers
must be listening to something different for each of
these functions to work:

Press this button to scan through the preset radio
stations set on the pushbuttons on the main radio.
The radio will go to a preset station, play for a few
seconds, then go on to the next preset station.
Press this button again to stop scanning.

When a cassette tape is playing, press this button to
go to the other side of the tape.

When a CD is playing in the CD changer, press this
button to select a disc.
CD TAPE: Press this button to switch between playing
a tape and CD changer if both are loaded. Press AM FM
to return to the radio when a cassette tape or CD is
playing. The inactive tape or CD will remain safely
inside the radio for future listening.

4-47
Your vehicle is provided with a button at the end of the
shift lever which when pressed enables tow/haul. When
the button is pressed, a light on the instrument panel will
illuminate to indicate that tow/haul has been selected.
Tow/haul may be turned off by pressing the button
again, at which time the indicator light on the instrument
panel will turn off. The vehicle will automatically turn
off tow/haul every time it is started.
Tow/haul is designed to be most effective when the
vehicle and trailer combined weight is at least
75 percent of the vehicle's Gross Combined Weight
Rating (GCWR). See ªWeight of the Trailerº later in
this section. Tow/haul is most useful under the following
driving conditions:

When pulling a heavy trailer or a large or heavy load
through rolling terrain.

When pulling a heavy trailer or a large or heavy load
in stop and go traffic.

When pulling a heavy trailer or a large or heavy load
in busy parking lots where improved low speed
control of the vehicle is desired.Operating the vehicle in tow/haul when lightly loaded or
with no trailer at all will not cause damage. However,
there is no benefit to the selection of tow/haul when the
vehicle is unloaded. Such a selection when unloaded
may result in unpleasant engine and transmission
driving characteristics and reduced fuel economy.
Tow/haul is recommended only when pulling a heavy
trailer or a large or heavy load.
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig.
For example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to pull a
trailer are all important. And, it can also depend on any
special equipment that you have on your vehicle.
Use one of the following charts to determine how much
your vehicle can weigh, based upon your vehicle model
and options.
