GMC YUKON DENALI 2007 Owners Manual

Cargo Cover
{CAUTION:
An improperly stored cargo cover could
be thrown about the vehicle during a
collision or sudden maneuver. You or
others could be injured. If you remove the
cover, always store it in the proper
storage location. When you put it back,
always be sure that it is securely
reattached.
If you have a cargo cover, you can use it to cover
items in the cargo area of your vehicle.
To use the cover, do the following:
1. Pull the cover handle toward the rear of the
vehicle.
2. Latch the cover posts into the retaining
sockets on the cargo area trim panels.To return the cover to the retracted position, do
the following:
1. Pull up on the cover handle to release the
cover posts from the retaining sockets.
2. Let the cover move forward to the full retracted
position.
To remove the cover, from a regular wheelbase
model, do the following:
1. Let the cover go all the way into the holder.
2. Then, grasping the driver’s side cover endcap,
push the cover endcap toward the passenger’s
side of the vehicle.
3. Swing the cover rearward and take it out of
the vehicle.
To put the cover in the vehicle, do the following:
1. Make sure the cover slot in the holder
faces rearward with the round surface
facing down.
2. Then, hold the cover at an angle and place
the cover endcap into the slot in the
passenger’s side trim panel.
3. Move the other end of the cover forward and
hold it next to the driver’s side trim panel slot.
181

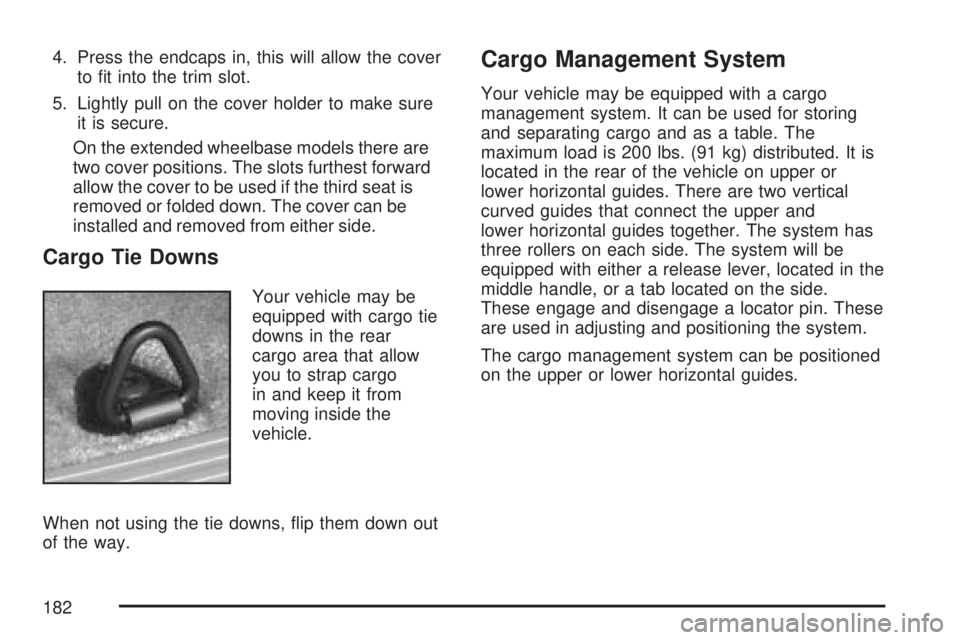

4. Press the endcaps in, this will allow the cover
to t into the trim slot.
5. Lightly pull on the cover holder to make sure
it is secure.
On the extended wheelbase models there are
two cover positions. The slots furthest forward
allow the cover to be used if the third seat is
removed or folded down. The cover can be
installed and removed from either side.
Cargo Tie Downs
Your vehicle may be
equipped with cargo tie
downs in the rear
cargo area that allow
you to strap cargo
in and keep it from
moving inside the
vehicle.
When not using the tie downs, ip them down out
of the way.
Cargo Management System
Your vehicle may be equipped with a cargo
management system. It can be used for storing
and separating cargo and as a table. The
maximum load is 200 lbs. (91 kg) distributed. It is
located in the rear of the vehicle on upper or
lower horizontal guides. There are two vertical
curved guides that connect the upper and
lower horizontal guides together. The system has
three rollers on each side. The system will be
equipped with either a release lever, located in the
middle handle, or a tab located on the side.
These engage and disengage a locator pin. These
are used in adjusting and positioning the system.
The cargo management system can be positioned
on the upper or lower horizontal guides.
182

To adjust the system from the upper guide to the
lower guide, do the following:
1. Squeeze and hold the release lever, or slide
the tab towards the inside of the vehicle, to
retract the locator pin.
2. Pull the system back until the front rollers
reach the vertical curved guides.
3. Lower the front rollers to the lower guides and
pull the system back until the middle set of
rollers clear the upper guides.4. Lower the system until the middle rollers are
lined up with lower guides. While holding in
the release lever or tab, push the system
forward until all three sets of rollers are on the
guides.
5. Release the lever or tab and push the system
until the locator pin reaches the locator hole.
To adjust the system from the lower guide to the
upper guide, do the following:
1. Squeeze and hold the release lever, or slide
the tab towards the inside of the vehicle, to
retract the locator pin.
2. Pull the system back until the middle rollers
can be raised and placed into the upper
guides.
3. Push the system forward until the front rollers
are lined up with the vertical curved guides.
4. Push down on the rear of the system and
raise the front rollers up the vertical curved
guides.
183

5. Push the system forward until all three sets of
rollers are resting on the guides and release
the lever or tab.
6. Push the system forward until the locator pin
reaches the locator hole.
The cargo management system can be pulled out
and used as a table on both the upper and
lower guide. To use a table, squeeze the release
lever and pull the system towards you. Release
the lever and pull the system until the locator pin
reaches the next hole. The system will extend
out of the vehicle. The liftgate can not be closed in
this position. Do not the operate the vehicle with
liftgate open.
The cargo management system can be removed
from the vehicle. This procedure should be
completed by two people. While squeezing the
release lever, pull the system back until the rollers
clear the guides.On one side of the system is a retractable
storage area.
To access, pull the handle in the center of the
system up.
184

Slide the hinge covers to the center of each side.
This will keep the sides of the storage system
stationary allowing it to stay upright. Inside
the system are two removable dividers. To
remove, unhook the loops at the ends of each
divider. When not in use, slide the hinge covers
back and the storage system will fold back
down. Press down on the storage cover to lock it
into place.
On the opposite side of the system are two
cupholders.
Sunroof
Your vehicle may be equipped with a power
sliding sunroof. To open or close the sunroof, the
ignition needs to be turned to ON, or Retained
Accessory Power (RAP) must be active.
When RAP is active, the sunroof will work for
10 minutes after the ignition is turned off, or until a
front door is opened. SeeRetained Accessory
Power (RAP) on page 141for more information.
There are two switches
in the overhead console
that operate the
sunroof.
Manual-Open/Manual-Close:To open the
sunroof press and hold the rear of the driver’s side
switch until the sunroof reaches the desired
position.
185

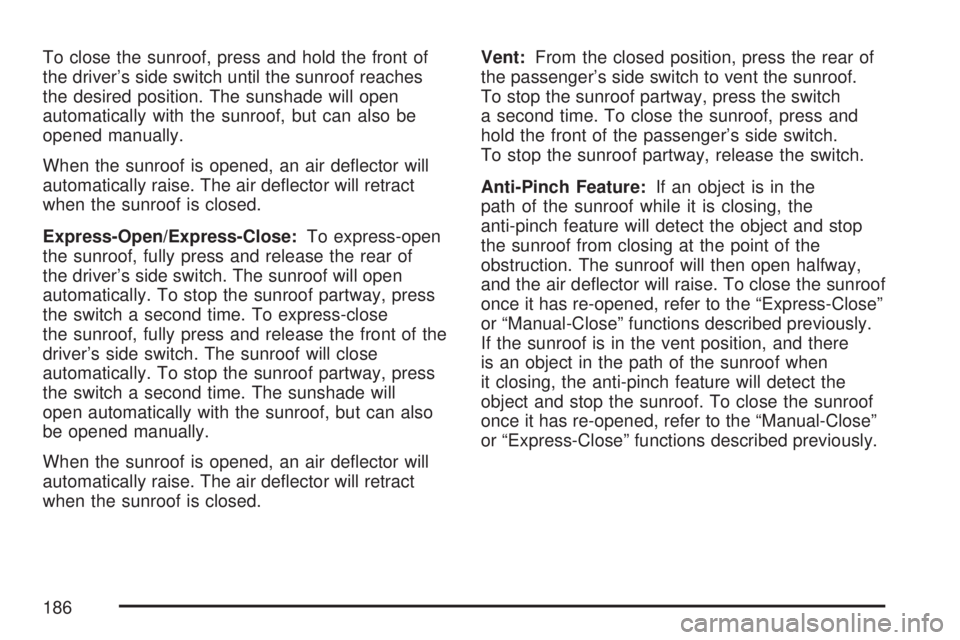

To close the sunroof, press and hold the front of
the driver’s side switch until the sunroof reaches
the desired position. The sunshade will open
automatically with the sunroof, but can also be
opened manually.
When the sunroof is opened, an air deector will
automatically raise. The air deector will retract
when the sunroof is closed.
Express-Open/Express-Close:To express-open
the sunroof, fully press and release the rear of
the driver’s side switch. The sunroof will open
automatically. To stop the sunroof partway, press
the switch a second time. To express-close
the sunroof, fully press and release the front of the
driver’s side switch. The sunroof will close
automatically. To stop the sunroof partway, press
the switch a second time. The sunshade will
open automatically with the sunroof, but can also
be opened manually.
When the sunroof is opened, an air deector will
automatically raise. The air deector will retract
when the sunroof is closed.Vent:From the closed position, press the rear of
the passenger’s side switch to vent the sunroof.
To stop the sunroof partway, press the switch
a second time. To close the sunroof, press and
hold the front of the passenger’s side switch.
To stop the sunroof partway, release the switch.
Anti-Pinch Feature:If an object is in the
path of the sunroof while it is closing, the
anti-pinch feature will detect the object and stop
the sunroof from closing at the point of the
obstruction. The sunroof will then open halfway,
and the air deector will raise. To close the sunroof
once it has re-opened, refer to the “Express-Close”
or “Manual-Close” functions described previously.
If the sunroof is in the vent position, and there
is an object in the path of the sunroof when
it closing, the anti-pinch feature will detect the
object and stop the sunroof. To close the sunroof
once it has re-opened, refer to the “Manual-Close”
or “Express-Close” functions described previously.
186

Instrument Panel Overview........................ 190
Hazard Warning Flashers.......................... 192
Other Warning Devices............................. 192
Horn.......................................................... 192
Tilt Wheel.................................................. 193
Turn Signal/Multifunction Lever.................. 193
Turn and Lane-Change Signals................. 194
Headlamp High/Low-Beam Changer.......... 195
Flash-to-Pass............................................ 195
Windshield Wipers..................................... 196
Rainsense™ II Wipers............................... 197
Windshield Washer.................................... 198
Rear Window Wiper/Washer...................... 199
Cruise Control........................................... 200
Exterior Lamps.......................................... 203
Headlamps on Reminder........................... 205
Daytime Running Lamps (DRL)................. 205
Automatic Headlamp System..................... 205
Fog Lamps................................................ 206
Instrument Panel Brightness...................... 207
Dome Lamps............................................. 207
Dome Lamp Override................................ 207
Entry Lighting............................................ 207
Exit Lighting.............................................. 207Front Reading Lamps................................ 208
Battery Run-Down Protection..................... 208
Ultrasonic Rear Parking Assist (URPA)...... 208
Accessory Power Outlet(s)........................ 213
Ashtray(s) and Cigarette Lighter................ 214
Climate Controls......................................... 214
Dual Automatic Climate Control System....... 214
Outlet Adjustment...................................... 222
Rear Air Conditioning and Heating
System and Electronic Climate
Controls................................................. 223
Warning Lights, Gages, and Indicators..... 225
Instrument Panel Cluster........................... 226
Speedometer and Odometer...................... 227
Trip Odometer........................................... 227
Tachometer............................................... 227
Safety Belt Reminder Light........................ 228
Passenger Safety Belt Reminder Light....... 228
Airbag Readiness Light............................. 229
Passenger Airbag Status Indicator............. 230
Charging System Light.............................. 232
Voltmeter Gage......................................... 232
Brake System Warning Light..................... 233
Section 3 Instrument Panel
187

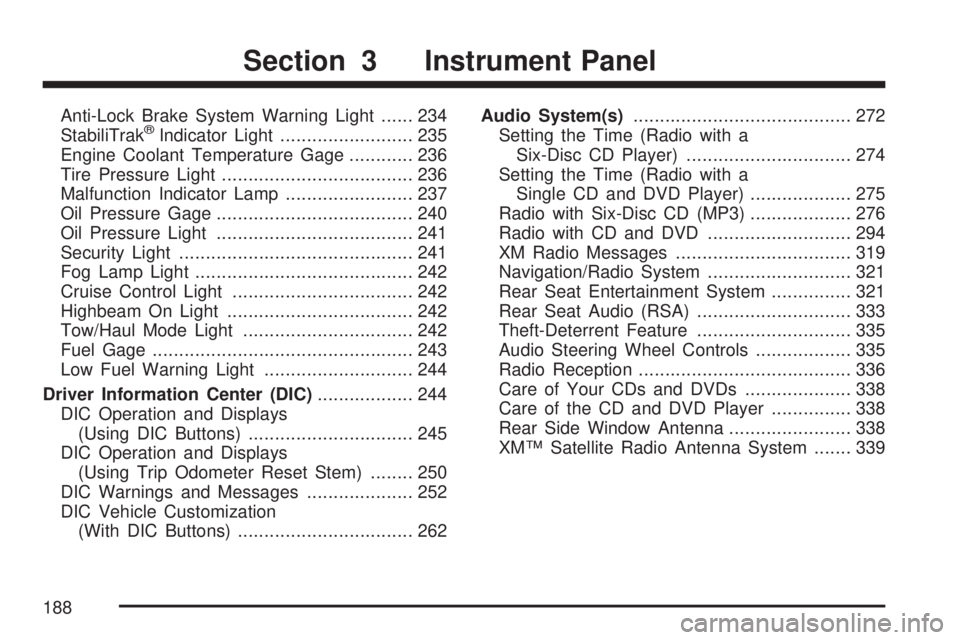

Anti-Lock Brake System Warning Light...... 234
StabiliTrak®Indicator Light......................... 235
Engine Coolant Temperature Gage............ 236
Tire Pressure Light.................................... 236
Malfunction Indicator Lamp........................ 237
Oil Pressure Gage..................................... 240
Oil Pressure Light..................................... 241
Security Light............................................ 241
Fog Lamp Light......................................... 242
Cruise Control Light.................................. 242
Highbeam On Light................................... 242
Tow/Haul Mode Light................................ 242
Fuel Gage................................................. 243
Low Fuel Warning Light............................ 244
Driver Information Center (DIC).................. 244
DIC Operation and Displays
(Using DIC Buttons)............................... 245
DIC Operation and Displays
(Using Trip Odometer Reset Stem)........ 250
DIC Warnings and Messages.................... 252
DIC Vehicle Customization
(With DIC Buttons)................................. 262Audio System(s)......................................... 272
Setting the Time (Radio with a
Six-Disc CD Player)............................... 274
Setting the Time (Radio with a
Single CD and DVD Player)................... 275
Radio with Six-Disc CD (MP3)................... 276
Radio with CD and DVD........................... 294
XM Radio Messages................................. 319
Navigation/Radio System........................... 321
Rear Seat Entertainment System............... 321
Rear Seat Audio (RSA)............................. 333
Theft-Deterrent Feature............................. 335
Audio Steering Wheel Controls.................. 335
Radio Reception........................................ 336
Care of Your CDs and DVDs.................... 338
Care of the CD and DVD Player............... 338
Rear Side Window Antenna....................... 338
XM™ Satellite Radio Antenna System....... 339
Section 3 Instrument Panel
188

✍NOTES
189

Instrument Panel Overview
United States version shown; Canada Similar
190
