GMC YUKON XL 2002 Owners Manual

2-43Temperature Display
Pressing the TEMP button once briefly will toggle the
compass/temperature reading on and off. To alternate
the temperature reading between Fahrenheit and Celsius,
press and hold the TEMP button for three seconds until
the display blinks F
and C
. Press and release the
TEMP button to toggle between the Fahrenheit and
Celsius readings. After five seconds of inactivity, the
display will stop flashing and stay at the last setting.
If an abnormal reading is displayed, please consult
your dealer. Electrochromic Mirror Operation
Each time the vehicle is started, the electrochromic
mirror is activated. If you do not want it on, then you
will have to manually turn it off. The time period you
need to press and hold the TEMP button to turn the
electrochromic feature on or off is six seconds. The
indicator light to the right of the TEMP button will
turn on or off to show you when the electrochromic
feature is activated.
Compass Operation
With the ignition on, the compass will show
two character boxes. The mirror will display the
compass heading.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.

2-44 Compass Calibration
The compass may need calibration if:

After five seconds, the display does not show a
compass heading (N for North, for example), there
may be a strong magnetic field interfering with the
compass. Such interference may be caused by a
magnetic antenna mount, magnetic note pad holder
or a similar magnetic item.

The compass does not display the correct heading
and the compass zone variance is set correctly.
In order to calibrate, the letters CAL must be displayed
in the mirror compass windows. If CAL is not
displayed, push in the COMP button for approximately
eight seconds or until the letters CAL are displayed.
The compass can be calibrated in one of two ways:

Drive the vehicle in circles at 5 mph (8 km/h) or less
until the display reads a direction, or

drive the vehicle on your everyday routine and after
several turns the compass will become calibrated and
will display a direction. Compass Variance
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if you live outside zone eight.
Under certain circumstances, as during a long distance
cross
- country trip, it will be necessary to adjust for
compass variance. Compass variance is the difference
between earth's magnetic north and true geographic
north. If not adjusted to account for compass variance,
your compass could give false readings.
To adjust for compass variance, do the following:
1. Press and hold the COMP button located at the
bottom of the mirror for three seconds until a zone
number appears in the display.
2. Find your current location and variance zone number
on the following zone map.

2-453. Press the COMP button on the bottom of the mirror
until the new zone number appears in the display.
After you stop pressing the button in, the display will
show a compass direction within a few seconds. Power Outside Rearview Mirrors
The control is located on the driver's door armrest.
Move the upper selector switch to the left or right
to choose the mirror you want to adjust, then press
the arrows located on the lower control pad to adjust
the mirror.
The mirrors include ground illumination lamps (puddle
lamps) in the base of the mirror. For more information
on these lamps, see ªPuddle Lampsº in the Index.

2-46Driver's Outside Auto-Dimming
Rearview Mirror The driver's outside mirror will adjust for the glare of
headlamps behind you. This feature is controlled by the
on and off settings on the electrochromic mirror. See
ªElectrochromic Inside Rearview Mirror with Compass
and Temperature Displayº earlier in this section.
Convex Outside Mirror Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from
the driver's seat.
CAUTION:A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes. Heated Outside Rearview Mirrors The outside rearview mirrors have a defrost mode.
To turn on the defrost feature, press the rear window
defogger button. See ªRear Window Defoggerº in the
Index for further information.
Storage Compartments Glove Box To open your glove box, lift up the latch and pull the
door open.

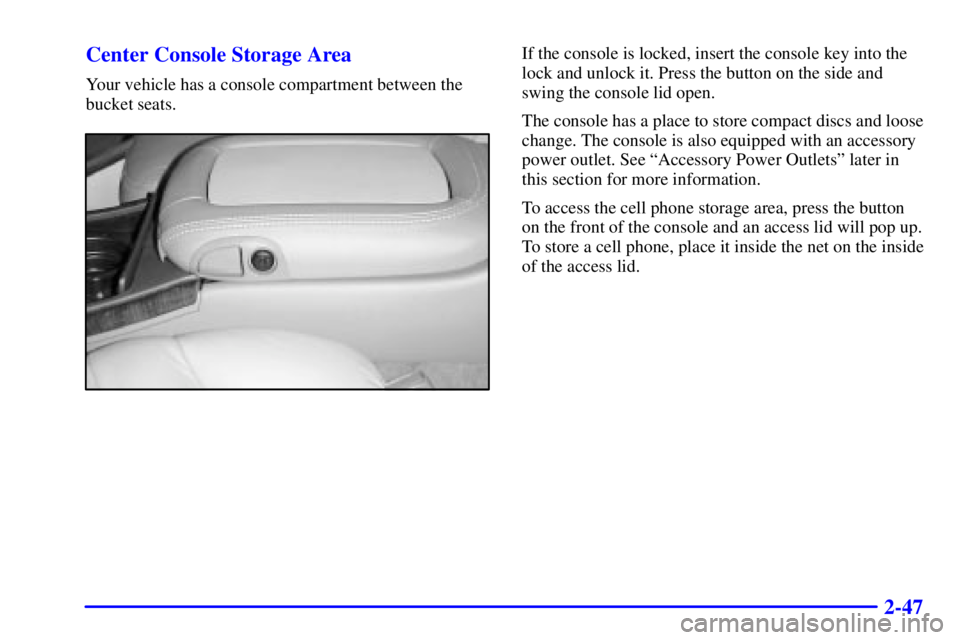

2-47Center Console Storage Area Your vehicle has a console compartment between the
bucket seats. If the console is locked, insert the console key into the
lock and unlock it. Press the button on the side and
swing the console lid open.
The console has a place to store compact discs and loose
change. The console is also equipped with an accessory
power outlet. See ªAccessory Power Outletsº later in
this section for more information.
To access the cell phone storage area, press the button
on the front of the console and an access lid will pop up.
To store a cell phone, place it inside the net on the inside
of the access lid.

2-48 Center Console Storage Area Access Door
If you ever drop something between the cupholder door
and the center console area you can easily remove it by
following these steps:
1. Open the center console storage area by pressing the
button on the side of the console lid.
2. Locate the access door inside the storage area toward
the front.
3. Press the release button on the access door and pull it out.
You should now be able to retrieve the lost item(s).
Reverse the procedure to reinstall the access door. Rear Storage Compartment Your vehicle has a storage compartment located in
the rear cargo area of the vehicle in the driver's side
trim panel.
To open the Yukon Denali compartment, press in on the
release latch and swing the compartment door open.
To open the Yukon XL Denali compartment, pull the
latch to access the compartment.
Cupholders Your vehicle is equipped with cupholders for the front
and rear passengers located in the center console and on
the rear of the center console storage area. To use the
front cupholders press down on the raised area of the
access door. To access the rear cupholders, pull down on
the door located on the back of the console.

2-49Cargo Security Shade
CAUTION:An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.
If you have a cargo security shade, you can use it to
cover items in the cargo area of your vehicle.
To use the shade, do the following:
1. Pull the shade handle toward the rear of the vehicle.
2. Latch the shade posts into the retaining sockets on
the cargo area trim panels.
To return the shade to the retracted position, do
the following:
1. Pull up on the shade handle to release the shade posts
from the retaining sockets.
2. Let the shade move forward to the full retracted position. To remove the shade from the vehicle, do the following:
1. Let the shade go all the way into the holder.
2. Then, grasping the passenger's side shade endcap,
push the shade endcap toward the driver's side of
the vehicle. The endcap should lock in the
compressed position.
3. Lift the shade up on the passenger's side, swing the
shade rearward and take it out of the vehicle.
To put the shade in the vehicle, do the following:
1. Make sure the shade slot in the holder faces rearward
with the round surface facing down.
2. Then, hold the shade at an angle and place the shade
holder tab into the slot in the driver's side trim panel.
3. Move the other end of the shade forward and hold it
next to the passenger's side trim panel slot.
4. Push the button on top of the passenger's side
endcap. This will allow the shade to extend into the
trim slot.
5. Lightly pull on the shade holder to make sure it is
secure. On Yukon XL Denali models there are two
slots. The slots furthest forward allow the shade to
be used if the third seat is removed or folded down.

2-50Cargo Tie Downs There are cargo tie downs in
the rear cargo area that
allow you to strap cargo in
and keep it from moving
inside the vehicle.
When not using the tie downs, flip them down out of
the way.
Convenience Net The convenience net in the rear of your vehicle helps to
keep small loads, like grocery bags, in place during
sharp turns or quick stops and starts.
The net is not designed for larger, heavier items.
To install the net, attach the hooks to the raised cargo tie
downs. Then, attach the cord loops to the button
retainers in the side trim.
You can unhook the net so that it will lie flat when
you're not using it. Luggage Carrier You can load things on top of your vehicle with
this feature.
The luggage carrier has slats and siderails attached to
the roof and crossrails which can be moved back and
forth to help secure cargo. Tie the load to the siderails
or siderail supports.
NOTICE: Loading cargo that weighs more than 200 lbs.
(90.6 kg) on the luggage carrier may damage
your vehicle. When you carry large things, never
let them hang over the rear or the sides of your
vehicle. Load your cargo so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the siderails and fasten it
securely to the luggage carrier.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.

2-51To prevent damage or loss of cargo as you're leaving,
check now and then to make sure the luggage and cargo
are still securely fastened.
Be sure the cargo is properly loaded.

If small heavy objects are placed on the roof, place
the load in the area over the rear wheels (behind the
rear side door on Yukon XL Denali models). If you
need to, cut a piece of 3/8 inch plywood to fit inside
the crossrails and siderails to spread the load. If
plywood is used, tie it to the siderail supports.

Tie the load to the crossrails or the siderail supports.
Use the crossrails only to keep the load from sliding.
To move the crossrails, pull out on the latch release
handle at each end. Slide the crossrail to the desired
position balancing the force side to side. Push the
release handle back into the latched position and
slide the crossrail back and forth slightly to be
sure the latch snaps securely into place.
If you need to carry long items, move the crossrails
as far apart as they will go. Tie the load to the
crossrails and the siderails or siderail supports. Also
tie the load to the bumpers. Do not tie the load so
tightly that the crossrails or siderails are damaged.

For the purpose of wind noise reduction, locate
the front crossrail approximately 18 to 24 inches
(46 cm to 58 cm) rearward of the front supports.

After moving a crossrail, be sure it is securely locked
into the siderail.
Your vehicle has a Center High
- Mounted Stoplamp
(CHMSL) located above the rear glass.
If items are loaded on the roof of the vehicle,
care should be taken not to block or damage the
CHMSL unit.

2-52Ashtrays and Cigarette Lighter The front ashtray is located in the center console. Press
the raised area on the access door to use the ashtray.
NOTICE: If you store paper or other things that burn in
your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do not store papers and other things that burn
in your ashtrays.
To remove the ashtray first locate the indent on the right
side of the ashtray. Then, place the tip of your finger in
the indent and pry the ashtray out.
To use the cigarette lighter, push it in all the way, and let
go. When it's ready, it will pop back out by itself. NOTICE: Holding a cigarette lighter in with your hand
while it's heating can make it overload, damaging
the lighter and the heating element. Just push the
lighter all the way in and let go. When it's done,
it will pop back out by itself.
Sun Visors To block out glare, you can swing down the visors.
You can also swing them out to help block glare at
the front and side windows.
Illuminated Visor Vanity Mirrors Pull the sunvisor down and lift the mirror cover to turn
on the lamps. There is a switch to adjust the intensity
of the lamps.
