1-41The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's more
likely that the fetus won't be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position To learn how to wear the right front passenger's
safety belt properly, see ªDriver Positionº earlier
in this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for one thing.
If you ever pull the shoulder portion of the belt out all
the way, you will engage the child restraint locking
feature. If this happens, just let the belt go back all the
way and start again. Air Bag Systems This part explains the frontal and side impact air
bag systems.
Your vehicle has four air bags
-- a frontal air bag for
the driver, another frontal air bag for the right front
passenger, a side impact air bag for the driver, and
another side impact air bag for the right front passenger.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inflating frontal air bag. But
these air bags must inflate very quickly to do their job
and comply with federal regulations.

1-49Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:For up to 10 minutes after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid yellow connectors. They are
probably part of the air bag systems. Be sure to
follow proper service procedures, and make sure
the person performing work for you is qualified
to do so.
The air bag systems do not need regular maintenance. Adding Equipment to Your Air
Bag-Equipped Vehicle
Q: If I add a push bumper or bicycle rack to the
front of my vehicle, will it keep the air bags
from working properly?
A: As long as the push bumper or bicycle rack is
attached to your vehicle so that the vehicle's basic
structure isn't changed, it's not likely to keep the
air bags from working properly in a crash.
Q: Is there anything I might add to the front or
sides of the vehicle that could keep the air bags
from working properly?
A: Yes. If you add things that change your vehicle's
frame, bumper system, front end or side sheet
metal or height, they may keep the air bag system
from working properly. Also, the air bag system
may not work properly if you relocate any of the
air bag sensors. If you have any questions about
this, you should contact Customer Assistance
before you modify your vehicle. The phone
numbers and addresses for Customer Assistance
are in Step Two of the Customer Satisfaction
Procedure in this manual. See ªCustomer
Satisfaction Procedureº in the Index.

2-
2-1Section 2 Features and ControlsHere you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
- 2 Windows
2
- 4 Keys
2
- 6 Door Locks
2
- 9 Keyless Entry System
2
- 12 Liftgate/Liftgate Glass
2
- 12 Theft
2
- 14 Content Theft
- Deterrent
2
- 15 Passlock

2
- 16 New Vehicle ªBreak Inº
2
- 16 Ignition Positions
2
- 17 Starting Your Engine
2
- 19 Engine Coolant Heater (If Equipped)
2
- 20 Automatic Transmission Operation
2
- 23 Parking Brake
2
- 24 Shifting Into PARK (P)
2
- 27 Shifting Out of PARK (P)
2
- 27 Parking Over Things That Burn
2
- 28 Engine Exhaust 2
- 28 Running Your Engine While You're Parked
2
- 30 Locking Rear Axle
2
- 30 All
- Wheel Drive
2
- 30 Tilt Wheel
2
- 31 Turn Signal/Multifunction Lever
2
- 37 Exterior Lamps
2
- 41 Interior Lamps
2
- 42 Mirrors
2
- 46 Storage Compartments
2
- 54 OnStar

System (If Equipped)
2
- 57 Sunroof (If Equipped)
2
- 58 HomeLink

Transmitter
2
- 62 The Instrument Panel
- Your
Information System
2
- 64 Instrument Panel Cluster
2
- 65 Warning Lights, Gages and Indicators
2
- 77 Message Center
2
- 83 Secondary Information Center (SIC)

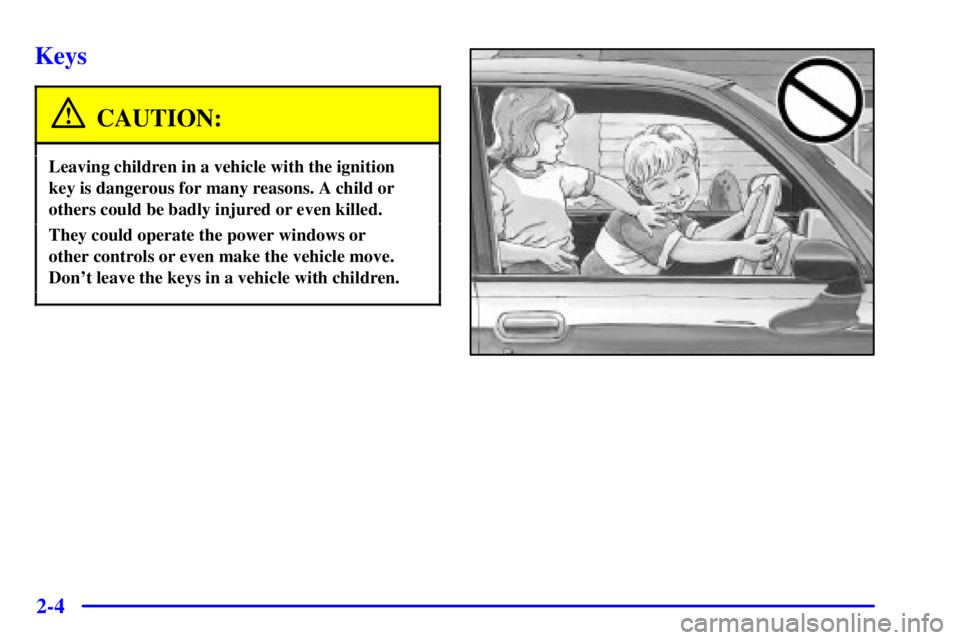

2-4Keys
CAUTION:Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5Your vehicle has one
double
- sided key for the
ignition and all door locks
as well as the spare tire
hoist lock. Your vehicle also has a key
that locks and unlocks the
console storage area only.
If you ever lose your keys, your dealer will be able to
assist you with obtaining replacements.
In an emergency contact roadside assistance.
See ªRoadside Assistanceº in the Index for
more information.
If you ever lock your keys in your vehicle, you may
be able to have your doors unlocked automatically with
the OnStar system if you have an active OnStar

subscription. For more information see ªOnStarº
in the Index.

2-6Door Locks
CAUTION:Unlocked doors can be dangerous.

Passengers
-- especially children
-- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening. There are several ways to lock and unlock your vehicle.
To unlock the door form the outside, use the keyless
entry system or the key.
To unlock the door from
the inside, slide the manual
lever forward. To lock the
door, slide the manual
lever rearward.

2-7Power Door Locks Press the raised side of the
switch, marked L on either
front door to lock all the
doors at once.
Press the recessed side of the switch marked U to unlock
all the doors at once.
On the passenger side of the
liftgate opening trim there is
a power lock switch which
can be used to lock or
unlock all of the doors. The power door locks will operate at any time without
the ignition being on.
Programmable Locks
The power door locks can be programmed to
automatically lock and unlock depending on the settings
you have chosen in the Secondary Information Center
(SIC). See ªSecondary Information Centerº in the Index
for more information.
Operating the power locks may interact with the
theft
- deterrent system. See ªContent Theft
- Deterrentº
in the Index.
Lockout Prevention This feature protects you from locking your key in
the vehicle when the key is in the ignition and a door
is open.
If the power lock switch is pressed when a door is open
and the key is in the ignition, all of the doors will lock
and then the driver's door will unlock.

2-9Keyless Entry System You can lock and unlock your doors and liftgate from
about 3 feet (1 m) up to 30 feet (9 m) away using
the remote keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
- 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device. Changes or modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-10Operation UNLOCK: Pressing this button once will unlock the
driver's door. The interior lamps will come on. Pressing
UNLOCK again within three seconds will cause the
remaining doors to unlock.
You can choose different feedback options for each
press of the UNLOCK button, such as having the
perimeter lamps come on and/or have the horn chirp.
See ªSecondary Information Centerº in the Index for
more information.
LOCK: Pressing this button once will lock all of the
doors. You can choose different feedback options for
each press of the LOCK button, such as having the
perimeter lamps come on and/or have the horn chirp.
See ªSecondary Information Centerº in the Index for
more information.
Operating the keyless entry transmitter may interact
with the theft
- deterrent system. See ªContent
- Theft
Deterrentº and ªSecondary Information Centerº in the
Index for more information. Remote Panic Alarm
When the horn symbol on the remote keyless entry
transmitter is pressed, the horn will sound and the
headlamps and taillamps will flash for up to 30 seconds.
This can be turned off by pressing the horn symbol
again, waiting for 30 seconds, or starting the vehicle.
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.

2-11Battery Replacement Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE: When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter. To replace the battery in the keyless entry transmitter,
do the following:
1. Insert a thin object, such as a coin, in the slot
between the covers of the transmitter housing near
the key ring hole. Remove the bottom by twisting
the coin.
2. Remove and replace the battery with a three
- volt
CR2032 or equivalent battery, positive (+) side up.
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
