When It Is Time for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining. Some
commercial truck tires may
not have treadwear
indicators.
You need a new tire if any of the following statements
are true:
You can see the indicators at three or more places
around the tire.
You can see cord or fabric showing through the
tire’s rubber.
The tread or sidewall is cracked, cut or snagged
deep enough to show cord or fabric.
The tire has a bump, bulge or split.
The tire has a puncture, cut or other damage that
can’t be repaired well because of the size or
location of the damage.
Buying New Tires
To nd out what kind and size of tires you need, look at
the Certication/Tire label or the Tire and Loading
Information label. SeeLoading Your Vehicle on
page 4-44for more information about these labels and
where they can be found on your vehicle.
The tires installed on your vehicle when it was new had a
Tire Performance Criteria Specications (TPC Spec)
number on each tire’s sidewall. When you get new tires,
GM recommends that you get tires with that same TPC
Spec number. That way your vehicle will continue to have
tires that are designed to give proper endurance,
handling, speed rating, load range, traction, ride, tire
pressure monitoring system performance and other
things during normal service on your vehicle. If your tires
have an all-season tread design, the TPC number will be
followed by an “MS” (for mud and snow).
Whenever you replace your tires with those not having
a TPC Spec number, make sure they are the same
size, load range, speed rating and construction
type (bias, bias-belted or radial) as your original tires.
If you replace your vehicle’s tires with those not having
a TPC Spec number, the tire pressure monitoring
system may give an inaccurate low pressure warning.
Non-TPC Spec tires may give a low pressure warning
that is higher or lower than the proper warning level you
would get with TPC Spec numbered tires.
5-68

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-14. Reset oil life
system. SeeEngine Oil Life System on page 5-17.An Emission Control
Service.••
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If necessary,
replace lter. SeeEngine Air Cleaner/Filter on page 5-19.An Emission Control
Service. See footnotes † and (k).•
Rotate tires and check ination pressures and wear. SeeTires on page 5-56.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
6-5

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(41 500)50,000
(83 000)75,000
(125 000)100,000
(166 000)125,000
(207 500)150,000
(240 000)
Inspect fuel system for damage or leaks.••••••
Inspect exhaust system for loose or
damaged components.••••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. SeeEngine Air Cleaner/Filter on
page 5-19.An Emission Control Service.•••
Change automatic transmission uid
and lter (severe service).
See footnote (h).•••
Change automatic transmission uid
and lter (normal service).•
Inspect evaporative control system.An
Emission Control Service. See footnotes
† and (g).•••
Replace spark plugs and inspect spark
plug wires.An Emission Control Service.•
6-6

Light (cont.)
Highbeam On.............................................3-44
Low Fuel Warning.......................................3-45
Malfunction Indicator....................................3-39
Passenger Airbag Status Indicator..................3-32
Safety Belt Reminder...................................3-30
Security.....................................................3-43
Tire Pressure..............................................3-39
Tow/Haul Mode...........................................3-44
Traction Off................................................3-36
Lighting
Entry.........................................................3-18
Exit...........................................................3-18
Lockout Protection..........................................2-13
Locks
Delayed Locking..........................................2-10
Door........................................................... 2-8
Lockout Protection.......................................2-13
Power Door.................................................. 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-12
Loss of Control...............................................4-15
Low Fuel Warning Light...................................3-45
Luggage Carrier..............................................2-44
Lumbar
Power Controls............................................. 1-4M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-9
At Least Once a Month.................................. 6-9
At Least Once a Year..................................6-10
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-15
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-14
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-12
Scheduled Maintenance................................. 6-4
Using Your................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-39
Memory Seat.................................................2-48
Message
DIC Warnings and Messages........................3-50
Mirrors
Automatic Dimming Rearview with OnStar
®,
Compass and Temperature Display.............2-32
Outside Automatic Dimming Mirror with Curb
View Assist.............................................2-36
8

Mirrors (cont.)
Outside Convex Mirror.................................2-35
Outside Heated Mirrors................................2-36
Outside Power Mirrors..................................2-34
MyGMLink.com................................................ 7-3
N
Navigation/Radio System..................................3-94
New Vehicle Break-In......................................2-19
Normal Maintenance Replacement Parts............6-14
O
Odometer......................................................3-30
Off-Road Recovery..........................................4-13
Oil
Engine.......................................................5-14
Pressure Gage............................................3-42
Older Children, Restraints................................1-47
Online Owner Center........................................ 7-3
OnStar
®System.............................................2-37
Operating Your All-Wheel-Drive Vehicle Off
Paved Roads..............................................4-16
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-25Outside
Automatic Dimming Mirror with Curb View
Assist.....................................................2-36
Convex Mirror.............................................2-35
Heated Mirrors............................................2-36
Power Mirrors.............................................2-34
Overheated Engine Protection Operating Mode....5-30
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Park (P)
Shifting Into................................................2-28
Shifting Out of............................................2-29
Parking
Brake........................................................2-27
Over Things That Burn.................................2-30
Passenger Airbag Status Indicator.....................3-32
Passenger Sensing System..............................1-79
Passing.........................................................4-14
Passlock
®......................................................2-19
Power
Accessory Outlets........................................3-19
Door Locks.................................................. 2-9
Electrical System.......................................5-105
9

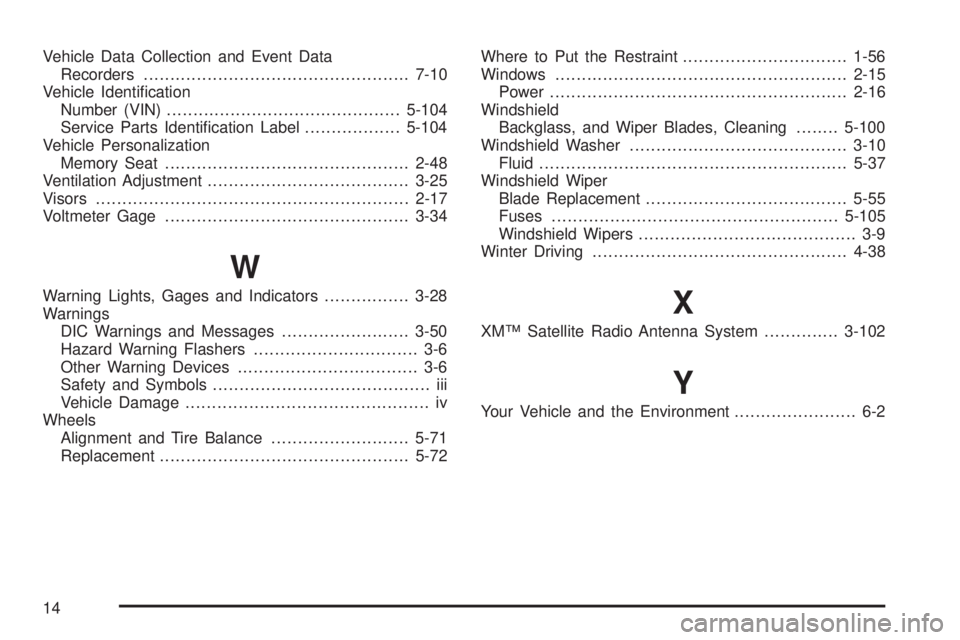

Vehicle Data Collection and Event Data
Recorders..................................................7-10
Vehicle Identication
Number (VIN)............................................5-104
Service Parts Identication Label..................5-104
Vehicle Personalization
Memory Seat..............................................2-48
Ventilation Adjustment......................................3-25
Visors...........................................................2-17
Voltmeter Gage..............................................3-34
W
Warning Lights, Gages and Indicators................3-28
Warnings
DIC Warnings and Messages........................3-50
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Wheels
Alignment and Tire Balance..........................5-71
Replacement...............................................5-72Where to Put the Restraint...............................1-56
Windows.......................................................2-15
Power........................................................2-16
Windshield
Backglass, and Wiper Blades, Cleaning........5-100
Windshield Washer.........................................3-10
Fluid..........................................................5-37
Windshield Wiper
Blade Replacement......................................5-55
Fuses......................................................5-105
Windshield Wipers......................................... 3-9
Winter Driving................................................4-38X
XM™ Satellite Radio Antenna System..............3-102
Y
Your Vehicle and the Environment....................... 6-2
