technical specifications GMC YUKON XL 2018 Owners Manual

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Technical Data 383
Technical Data Vehicle Identification Vehicle Identification
Number (VIN) . . . . . . . . . . . . . . . 383
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . . 383
Vehicle Data Capacities and
Specifications . . . . . . . . . . . . . . . 384
Engine Drive Belt Routing . . . . 385
Vehicle Identification Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “ Engine Specifications ”
under Capacities and Specifications
0 384 for the vehicle's engine code. Service Parts
Identification Label There may be a label on the inside
of the glove box that contains the
following information:
.
Vehicle Identification
Number (VIN)
.
Model designation
.
Paint information
.
Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
384 Technical Data

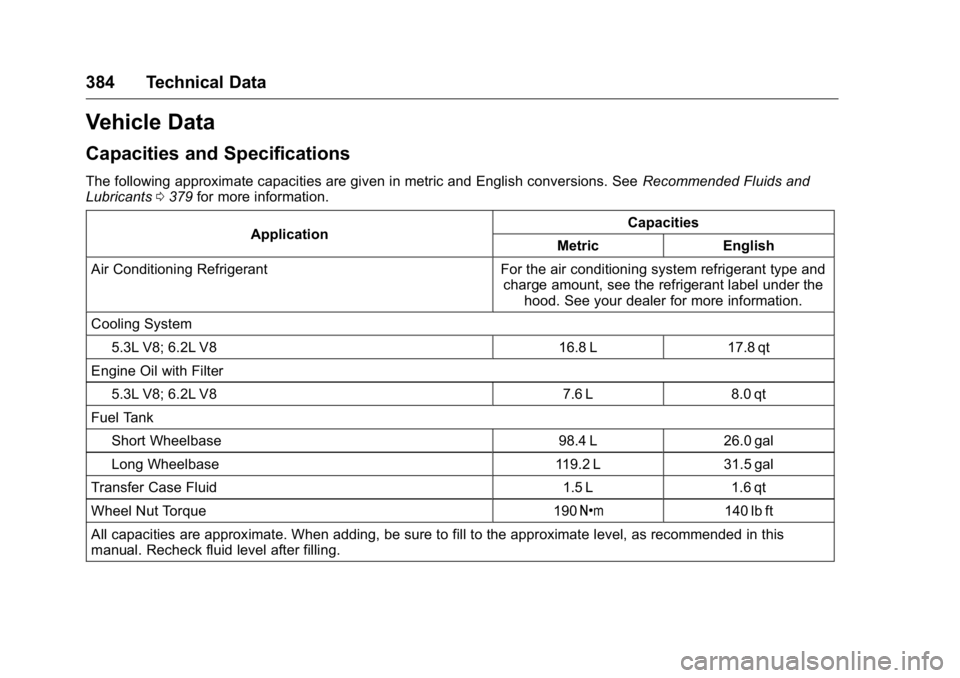

Vehicle Data Capacities and Specifications The following approximate capacities are given in metric and English conversions. See Recommended Fluids and
Lubricants 0 379 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and
charge amount, see the refrigerant label under the
hood. See your dealer for more information.
Cooling System
5.3L V8; 6.2L V8 16.8 L 17.8 qt
Engine Oil with Filter
5.3L V8; 6.2L V8 7.6 L 8.0 qt
Fuel Tank
Short Wheelbase 98.4 L 26.0 gal
Long Wheelbase 119.2 L 31.5 gal
Transfer Case Fluid 1.5 L 1.6 qt
Wheel Nut Torque 190 Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17

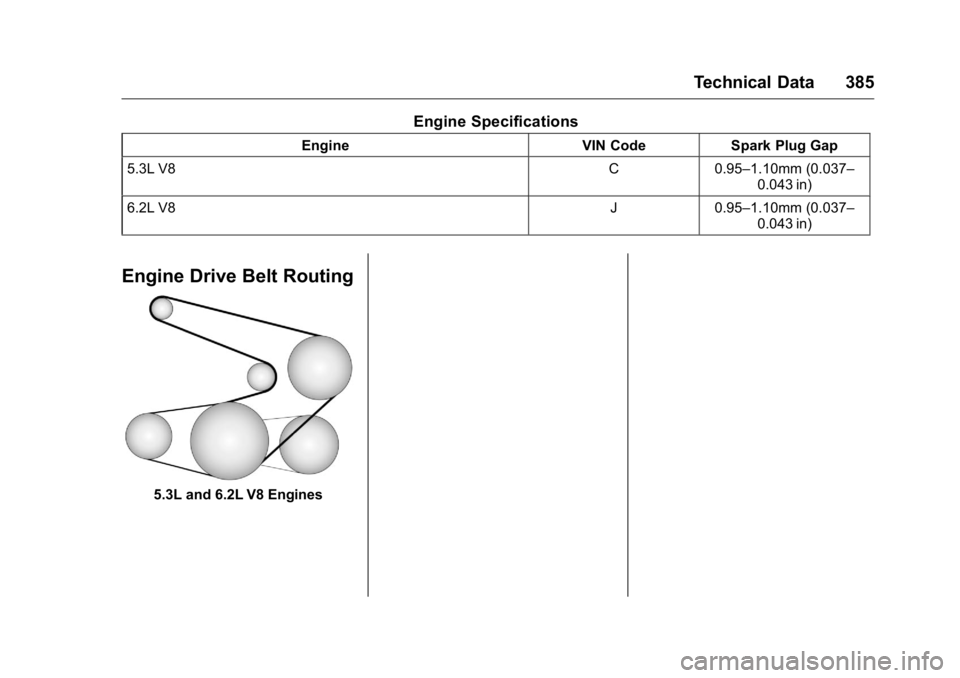

Technical Data 385Engine SpecificationsEngine VIN Code Spark Plug Gap
5.3L V8 C 0.95 – 1.10mm (0.037 –
0.043 in)
6.2L V8 J 0.95 – 1.10mm (0.037 –
0.043 in)
Engine Drive Belt Routing
5.3L and 6.2L V8 Engines
