GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 311
What to Use
{Warning
Plain water, or other liquids such
as alcohol, can boil before the
proper coolant mixture will. With
plain water or the wrong mixture,
the engine could get too hot but
there would not be an overheat
warning. The engine could catch
fire and you or others could be
burned.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
coolant. This mixture:
. Gives freezing protection down
to−37 °C (−34 °F), outside
temperature
. Gives boiling protection up to
129 °C (265 °F), engine
temperature
. Protects against rust and
corrosion
. Will not damage aluminum parts .
Helps keep the proper engine
temperatureCaution
Do not use anything other than a
mix of DEX-COOL coolant that
meets GM Standard
GMW3420 and clean, drinkable
water. Anything else can cause
damage to the engine cooling
system and the vehicle, which
would not be covered by the
vehicle warranty.
Never dispose of engine coolant by
putting it in the trash, or by pouring
it on the ground, or into sewers,
streams, or bodies of water. Have
the coolant changed by an
authorized service center, familiar
with legal requirements regarding
used coolant disposal. This will help
protect the environment and your
health.
Checking Coolant
The coolant surge tank is in the
engine compartment on the
passenger side of the vehicle. See
Engine Compartment Overview
0 299.
The vehicle must be on a level
surface when checking the coolant
level.
Check to see if coolant is visible in
the coolant surge tank. If the coolant
inside the coolant surge tank is
boiling, wait until it cools down. The
coolant level should be at or above

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
312 Vehicle Care
the full cold mark. If it is not, there
may be a leak in the cooling
system.
If coolant is visible but the coolant
level is not at or above the full cold
mark, see“How to Add Coolant to
the Coolant Surge Tank,” following.
How to Add Coolant to the
Coolant Surge Tank
{Warning
Spilling coolant on hot engine
parts can burn you. Coolant
contains ethylene glycol and it will
burn if the engine parts are hot
enough.
{Warning
Plain water, or other liquids such
as alcohol, can boil before the
proper coolant mixture will. With
plain water or the wrong mixture,
the engine could get too hot but
(Continued)
Warning (Continued)
there would not be an overheat
warning. The engine could catch
fire and you or others could be
burned.
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure
cap, even a little, can cause them
to come out at high speed and
you could be burned. Never turn
the cap when the cooling system,
including the pressure cap, is hot.
Wait for the cooling system and
pressure cap to cool.
Caution
Failure to follow the specific
coolant fill procedure could cause
the engine to overheat and could
cause system damage. If coolant
is not visible in the surge tank,
contact your dealer.
If no coolant is visible in the surge
tank, add coolant.
1. Remove the coolant surge tank pressure cap when the cooling
system, including the coolant
surge tank pressure cap and
upper radiator hose, is no
longer hot.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 313
Turn the pressure cap slowly
counterclockwise about one full
turn. If a hiss is heard, wait for
that to stop. A hiss means
there is still some pressure left.
2. Keep turning the pressure cap slowly, and remove it.
3. Fill the coolant surge tank with the proper mixture to the full
cold mark.
4. With the coolant surge tank pressure cap off, start the
engine and let it run until the
engine coolant temperature
gauge indicates approximately
90 °C (195 °F).
By this time, the coolant level
inside the coolant surge tank
may be lower. If the level is
lower, add more of the proper
mixture to the coolant surge
tank until the level reaches the
full cold mark.
5. Replace the pressure cap tightly. 6. Verify coolant level after the
engine is shut off and the
coolant is cold. If necessary,
repeat coolant fill procedure
Steps 1–6.
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the
cap is properly and tightly
secured.
Engine Overheating
Caution
Do not run the engine if there is a
leak in the engine cooling system.
This can cause a loss of all
coolant and can damage the
system and vehicle. Have any
leaks fixed right away.
The vehicle has several indicators
to warn of engine overheating. There is a coolant temperature
gauge in the vehicle's instrument
cluster. See
Engine Coolant
Temperature Gauge 0148.
In addition, there are ENGINE
OVERHEATED STOP ENGINE,
ENGINE OVERHEATED IDLE
ENGINE, and ENGINE POWER IS
REDUCED messages in the Driver
Information Center (DIC).
If the decision is made not to lift the
hood when this warning appears,
get service help right away. See
Roadside Assistance Program
0 415.
If the decision is made to lift the
hood, make sure the vehicle is
parked on a level surface.
Check to see if the engine cooling
fan(s) are running. If the engine is
overheating, the fans should be
running. If they are not, do not
continue to run the engine. Have the
vehicle serviced.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
314 Vehicle Care
If Steam is Coming from the
Engine Compartment
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure
cap, even a little, can cause them
to come out at high speed and
you could be burned. Never turn
the cap when the cooling system,
including the pressure cap, is hot.
Wait for the cooling system and
pressure cap to cool.
If No Steam is Coming from
the Engine Compartment
The ENGINE OVERHEATED STOP
ENGINE or the ENGINE
OVERHEATED IDLE ENGINE
message, along with a low coolant
condition, can indicate a serious
problem.If there is an engine overheat
warning, but no steam is seen or
heard, the problem may not be too
serious. Sometimes the engine can
get a little too hot when the vehicle:
.
Climbs a long hill on a hot day.
. Stops after high-speed driving.
. Idles for long periods in traffic.
. Tows a trailer; see Trailer Towing
0 278.
If the ENGINE OVERHEATED
STOP ENGINE or the ENGINE
OVERHEATED IDLE ENGINE
message appears with no sign of
steam, try this for a minute or so: 1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the
highest fan speed. Open the
windows as necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or
N (Neutral), and let the
engine idle. If the engine coolant temperature
gauge is no longer in the overheat
zone or an overheat warning no
longer displays, the vehicle can be
driven. Continue to drive the vehicle
slowly for about 10 minutes. Keep a
safe vehicle distance from the
vehicle in front. If the warning does
not come back on, continue to drive
normally and have the cooling
system checked for proper fill and
function.
If the warning continues, pull over,
stop, and park the vehicle
right away.
If there is still no sign of steam and
the vehicle is equipped with an
engine driven cooling fan, push
down the accelerator until the
engine speed is about twice as fast
as normal idle speed for at least
five minutes while the vehicle is
parked. If the warning is still there,
turn off the engine and get everyone
out of the vehicle until it cools down.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 315

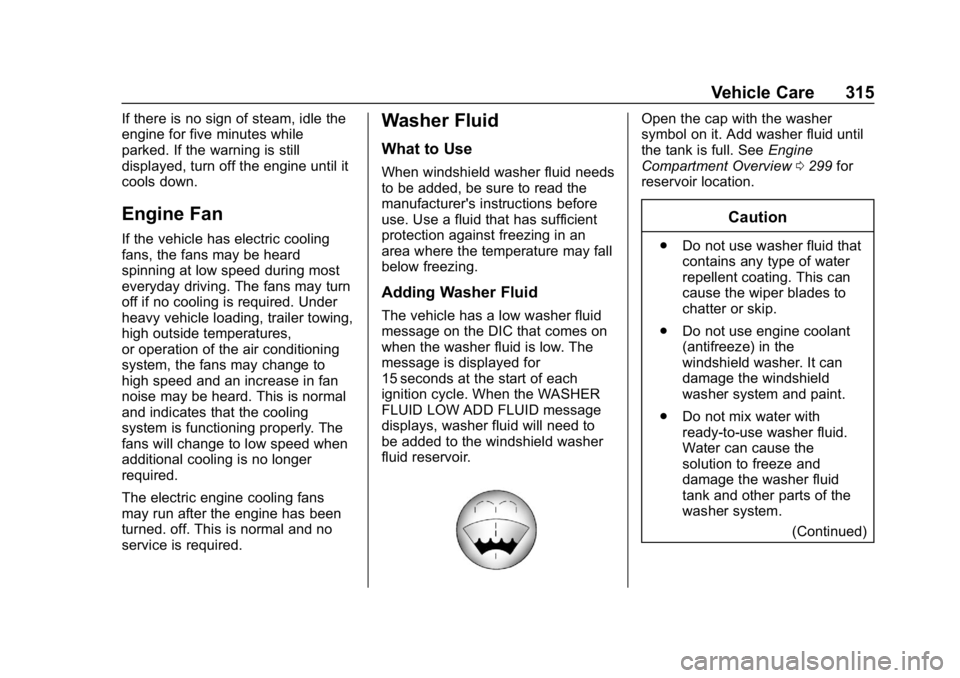

If there is no sign of steam, idle the
engine for five minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down.
Engine Fan
If the vehicle has electric cooling
fans, the fans may be heard
spinning at low speed during most
everyday driving. The fans may turn
off if no cooling is required. Under
heavy vehicle loading, trailer towing,
high outside temperatures,
or operation of the air conditioning
system, the fans may change to
high speed and an increase in fan
noise may be heard. This is normal
and indicates that the cooling
system is functioning properly. The
fans will change to low speed when
additional cooling is no longer
required.
The electric engine cooling fans
may run after the engine has been
turned. off. This is normal and no
service is required.
Washer Fluid
What to Use
When windshield washer fluid needs
to be added, be sure to read the
manufacturer's instructions before
use. Use a fluid that has sufficient
protection against freezing in an
area where the temperature may fall
below freezing.
Adding Washer Fluid
The vehicle has a low washer fluid
message on the DIC that comes on
when the washer fluid is low. The
message is displayed for
15 seconds at the start of each
ignition cycle. When the WASHER
FLUID LOW ADD FLUID message
displays, washer fluid will need to
be added to the windshield washer
fluid reservoir.
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. SeeEngine
Compartment Overview 0299 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
(Continued)

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Service and Maintenance 395
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0302.
Once a Month
. Check the tire inflation
pressures, including the spare.
See Tire Pressure 0348.
. Inspect the tires for wear. See
Tire Inspection 0354.
. Check the windshield washer
fluid level. See Washer Fluid
0 315.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
See
Engine Oil Life System 0304.
Power Take Off (PTO) and
Extended Idle Use
When the vehicle is used with the
PTO equipment or used in a way
that requires extended idle time,
one hour of use shall be deemed
the same as 53 km (33 mi). See
Driver Information Center (DIC)
0161 for hourmeter.
Air Conditioning Desiccant
(Replace Every Seven Years)
The air conditioning system requires
maintenance every seven years.
This service requires replacement of
the desiccant to help the longevity
and efficient operation of the air
conditioning system. This service
can be complex. See your dealer.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0355.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0302 and
Engine Oil Life System 0304.
. Check engine coolant level. See
Cooling System 0310.
. Check windshield washer fluid
level. See Washer Fluid 0315.
. Check tire inflation pressures,
including the spare. See Tire
Pressure 0348.
. Inspect tire wear. See Tire
Inspection 0354.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 309.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
404 Service and Maintenance

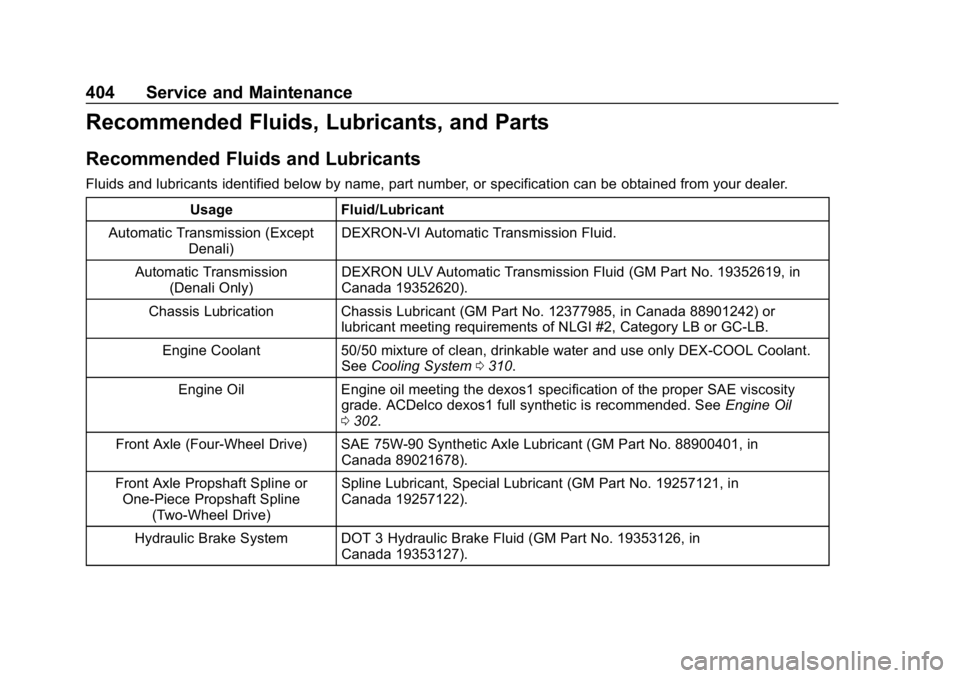

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission (Except Denali) DEXRON-VI Automatic Transmission Fluid.
Automatic Transmission (Denali Only) DEXRON ULV Automatic Transmission Fluid (GM Part No. 19352619, in
Canada 19352620).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. SeeCooling System 0310.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade. ACDelco dexos1 full synthetic is recommended. See Engine Oil
0 302.
Front Axle (Four-Wheel Drive) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88900401, in Canada 89021678).
Front Axle Propshaft Spline or One-Piece Propshaft Spline (Two-Wheel Drive) Spline Lubricant, Special Lubricant (GM Part No. 19257121, in
Canada 19257122).
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19353127).

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-12460267) - 2019 - crc - 9/11/18
Index 439
Check (cont'd)Ignition Transmission Lock . . . 322
Child Restraints Infants and Young Children . . . 106
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . 111
Older Children . . . . . . . . . . . . . . . . 104
Securing . . . . . . . . . . . . 120, 122, 123
Systems . . . . . . . . . . . . . . . . . . . . . . 108
Child-View Mirror . . . . . . . . . . . . . . . . 60
Circuit Breakers . . . . . . . . . . . . . . . . 329
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 383
Interior Care . . . . . . . . . . . . . . . . . . 388
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . 191
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Cluster, Instrument . . . . . . . . . . . . . 143
Collision Damage Repair . . . . . . . 418
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . 126
Compass . . . . . . . . . . . . . . . . . . . . . . . 136
Connected Services
Connections . . . . . . . . . . . . . . . . . . 434
Diagnostics . . . . . . . . . . . . . . . . . . . 436 Connected Services (cont'd)
Navigation . . . . . . . . . . . . . . . . . . . . 433
Connections Connected Services . . . . . . . . . . 434
Control Hill Descent . . . . . . . . . . . . . . . . . . 244
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 242
Control of a Vehicle . . . . . . . . . . . . . 201
Convenience Net . . . . . . . . . . . . . . . 129
Convex Mirrors . . . . . . . . . . . . . . . . . . 56
Coolant
Engine Temperature Gauge . . 148
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 158
Cooling . . . . . . . . . . . . . . . . . . . . 191, 195
Cooling System . . . . . . . . . . . . . . . . . 310
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 417
Cruise Control . . . . . . . . . . . . . . . . . . 245 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Cruise Control, Adaptive . . . . . . . . 248
Cupholders . . . . . . . . . . . . . . . . . . . . . 126
Customer Assistance . . . . . . . . . . . 414 Offices . . . . . . . . . . . . . . . . . . . . . . . . 413
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 414 Customer Information
Publications Ordering
Information . . . . . . . . . . . . . . . . . . 420
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 411
D
Damage Repair, Collision . . . . . . . 418
Danger, Warning, and Caution . . . . 2
Data CollectionInfotainment System . . . . . . . . . . 424
OnStar . . . . . . . . . . . . . . . . . . . . . . . 424
Data Recorders, Event . . . . . . . . . 423
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 184
Defensive Driving . . . . . . . . . . . . . . . 201
Delayed Locking . . . . . . . . . . . . . . . . . 45
Diagnostics Connected Services . . . . . . . . . . 436
Distracted Driving . . . . . . . . . . . . . . . 200
Dome Lamps . . . . . . . . . . . . . . . . . . . 187
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . 161
Delayed Locking . . . . . . . . . . . . . . . . 45
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Power Locks . . . . . . . . . . . . . . . . . . . . 45
Drive Belt Routing, Engine . . . . . . 410
Driver Assistance Systems . . . . . 255

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-12460267) - 2019 - crc - 9/11/18
440 Index
Driver InformationCenter (DIC) . . . . . . . . . . . . . . . . . . 161
Driving Assistance Systems . . . . . . . . . . 260
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 273
Defensive . . . . . . . . . . . . . . . . . . . . . 201
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 201
For Better Fuel Economy . . . . . . . 27
Hill and Mountain Roads . . . . . . 209
If the Vehicle is Stuck . . . . . . . . . .211
Loss of Control . . . . . . . . . . . . . . . 203
Off-Road . . . . . . . . . . . . . . . . . . . . . 203
Off-Road Recovery . . . . . . . . . . . 202
Vehicle Load Limits . . . . . . . . . . . 212
Wet Roads . . . . . . . . . . . . . . . . . . . 208
Winter . . . . . . . . . . . . . . . . . . . . . . . . 209
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 191
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 270
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 294
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 330
Fuses and Circuit Breakers . . . 329 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . 334, 337
Overload . . . . . . . . . . . . . . . . . . . . . 329
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 339
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 426
Engine
Air Cleaner/Filter . . . . . . . . . . . . . 309
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 153
Compartment Overview . . . . . . . 299
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 148
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 158
Cooling System . . . . . . . . . . . . . . . 310
Drive Belt Routing . . . . . . . . . . . . 410
Exhaust . . . . . . . . . . . . . . . . . . . . . . 227
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Heater . . . . . . . . . . . . . . . . . . . . . . . . 223
Oil Life System . . . . . . . . . . . . . . . 304
Oil Pressure Gauge . . . . . . . . . . 147
Oil Pressure Light . . . . . . . . . . . . 159
Overheating . . . . . . . . . . . . . . . . . . 313
Power Messages . . . . . . . . . . . . . 168
Running While Parked . . . . . . . . 228 Engine (cont'd)
Starting . . . . . . . . . . . . . . . . . . . . . . . 221
Entry Lighting . . . . . . . . . . . . . . . . . . . 188
Equipment, Towing . . . . . . . . . . . . . 284
Event Data Recorders . . . . . . . . . . 423
Exit Lighting . . . . . . . . . . . . . . . . . . . . 188
Extended Parking . . . . . . . . . . . . . . . 226
Extender, Seat Belt . . . . . . . . . . . . . . 90
Exterior Lamp Controls . . . . . . . . . 181
Exterior Lamps Off Reminder . . . 183
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 189
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . 315
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter,
Engine Air Cleaner . . . . . . . . . . . 309
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 184
Flashers, Hazard Warning . . . . . . 185
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 362 Changing . . . . . . . . . . . . . . . . . . . . . 363
FlexFuel E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Floor Console Storage . . . . . . . . . . 129
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 391

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-12460267) - 2019 - crc - 9/11/18
Index 441
FluidAutomatic
Transmission . . . . . . . . . . . 305, 308
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 317
Four-Wheel Drive Transfer Case . . . . . . . . . . . . . . . 234
Washer . . . . . . . . . . . . . . . . . . . . . . . 315
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 186 Bulb Replacement . . . . . . . . . . . . 326
Folding Mirrors . . . . . . . . . . . . . . . . . . 57
Forward Automatic Braking . . . . . 262
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 260
Four-Wheel Drive . . . . . . . . . . 234, 318
Four-Wheel-Drive Light . . . . . . . . . 156
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 421
Front Axle . . . . . . . . . . . . . . . . . . . . . . 319
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Front Seats
Heated and Ventilated . . . . . . . . . . 72
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 270
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 272
Filling the Tank . . . . . . . . . . . . . . . 271 Fuel (cont'd)
Foreign Countries . . . . . . . . . . . . 270
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 147
Low Fuel Warning Light . . . . . . . 159
Management, Active . . . . . . . . . . 226
Prohibited Fuels . . . . . . . . . . . . . . 269
Recommended . . . . . . . . . . . . . . . 269
Top Tier . . . . . . . . . . . . . . . . . . . . . . 268
Full-Size Spare Tire . . . . . . . . . . . . 373
Fuses
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 330
Fuses and Circuit Breakers . . . 329
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 334, 337
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 339
G
Garage Door Opener . . . . . . . . . . . 177Programming . . . . . . . . . . . . . . . . . 177
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 324
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 148
Engine Oil Pressure . . . . . . . . . . 147
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Odometer . . . . . . . . . . . . . . . . . . . . . 146 Gauges (cont'd)
Speedometer . . . . . . . . . . . . . . . . . 146
Tachometer . . . . . . . . . . . . . . . . . . . 146
Transmission Temperature . . . . 149
Trip Odometer . . . . . . . . . . . . . . . . 146
Voltmeter . . . . . . . . . . . . . . . . . . . . . 150
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 142
General Information
Service and Maintenance . . . . . 393
Towing . . . . . . . . . . . . . . . . . . . . . . . . 273
Vehicle Care . . . . . . . . . . . . . . . . . . 296
Glass Replacement . . . . . . . . . . . . . 324
Glove Box . . . . . . . . . . . . . . . . . . . . . . 126
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 415
H
Hazard Warning Flashers . . . . . . . 185
Head Restraints . . . . . . . . . . . . . . . . . 66
Head-up Display . . . . . . . . . . . . . . . . 164
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 325
Automatic . . . . . . . . . . . . . . . . . . . . . 184
Bulb Replacement . . . . . . . . . . . . 326
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 184
Flash-to-Pass . . . . . . . . . . . . . . . . . 184
