GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 365
To access the spare tire, refer to the
following graphics and instructions:
1. Hoist Assembly
2. Hoist Shaft
3. Hoist Shaft AccessCover/Hole
4. Jack Handle Extensions
5. Wheel Wrench
6. Spare Tire Lock
7. Hoist End of Extension Tool
8. Hoist Shaft Access Hole
9. Spare Tire (Valve Stem Pointed Down)
10. Tire/Wheel Retainer
11. Hoist Cable
1. Open the hoist shaft access door (3) on the bumper to
access the spare tire lock (6).
If equipped with a hitch cover,
turn the hitch cover retainers
counterclockwise and pull the
cover downward to remove it
before removing the hoist shaft
access door.
2. To remove the spare tire lock (6), insert the ignition key, turn
it clockwise and then pull it
straight out.3. Assemble the two jack handleextensions (4) and wheel
wrench (5), as shown.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 381
10. Keep the ignition key in thetowed vehicle in ACC/
ACCESSORY to prevent the
steering column from locking.
If equipped with Keyless
Access, keep the RKE
transmitter outside of the
vehicle, and manually lock the
doors. Access the vehicle as if
it has a dead RKE transmitter
battery, by using the key in the
door lock.
Disconnecting the Towed Vehicle
Before disconnecting the towed
vehicle: 1. Park on a level surface.
2. Set the parking brake, then shift the transmission to
P (Park).
3. Connect the battery.
4. Apply the brake pedal.
5. Turn the ignition to ON/RUN with the engine off. Shift the
transfer case out of N (Neutral)
to 2
m. See “Shifting out of
N (Neutral)” underFour-Wheel Drive
0234. See your dealer if
the transfer case cannot be
shifted out of N (Neutral).
6. Check that the vehicle is in 2
m
by starting the engine and
shifting the transmission to
R (Reverse) and then to D
(Drive). There should be
movement of the vehicle while
shifting.
7. Shift the transmission to P (Park) and turn off the
ignition.
8. Disconnect the vehicle from the tow vehicle.
9. Release the parking brake.
10. Reset any lost presets. The outside temperature
display will default to 0 °C
(32 °F) but will reset with
normal usage.
Dolly Towing –Front Towing
(Front Wheels Off the Ground)
Caution
If a two-wheel-drive vehicle is
towed with the rear wheels on the
ground, the transmission could be
damaged. The repairs would not
be covered by the vehicle
warranty. Never tow the vehicle
with the rear wheels on the
ground.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Vehicle Care 387
Caution (Continued)
brushes. Damage could occur
and the repairs would not be
covered by the vehicle warranty.

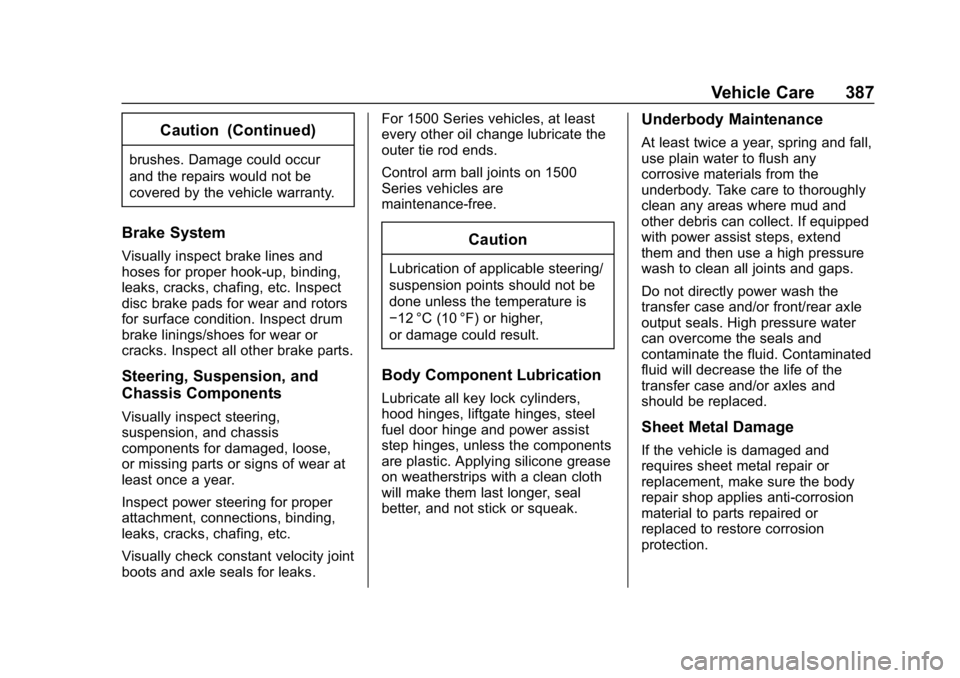

Brake System
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect drum
brake linings/shoes for wear or
cracks. Inspect all other brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear at
least once a year.
Inspect power steering for proper
attachment, connections, binding,
leaks, cracks, chafing, etc.
Visually check constant velocity joint
boots and axle seals for leaks.For 1500 Series vehicles, at least
every other oil change lubricate the
outer tie rod ends.
Control arm ball joints on 1500
Series vehicles are
maintenance-free.
Caution
Lubrication of applicable steering/
suspension points should not be
done unless the temperature is
−12 °C (10 °F) or higher,
or damage could result.
Body Component Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges, steel
fuel door hinge and power assist
step hinges, unless the components
are plastic. Applying silicone grease
on weatherstrips with a clean cloth
will make them last longer, seal
better, and not stick or squeak.
Underbody Maintenance
At least twice a year, spring and fall,
use plain water to flush any
corrosive materials from the
underbody. Take care to thoroughly
clean any areas where mud and
other debris can collect. If equipped
with power assist steps, extend
them and then use a high pressure
wash to clean all joints and gaps.
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion
material to parts repaired or
replaced to restore corrosion
protection.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
396 Service and Maintenance
.Inspect brake system. See
Exterior Care 0383.
. Visually inspect steering,
suspension, and chassis
components for damage,
including cracks or tears in the
rubber boots, loose or missing
parts, or signs of wear at least
once a year. See Exterior Care
0 383. Lubricate the suspension
and steering components at
least every other oil change (if
equipped with grease fittings).
. Inspect power steering for
proper attachment, connections,
binding, leaks, cracks,
chafing, etc.
. Visually inspect halfshafts and
drive shafts for excessive wear,
lubricant leaks, and/or damage
including: tube dents or cracks,
constant velocity joint or
universal joint looseness,
cracked or missing boots, loose
or missing boot clamps, center
bearing excessive looseness,
loose or missing fasteners, and
axle seal leaks. .
Check restraint system
components. See Safety System
Check 090.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0383.
. Check starter switch. See Starter
Switch Check 0321.
. Check automatic transmission
shift lock control function. See
Automatic Transmission Shift
Lock Control Function Check
0322.
. Check ignition transmission lock.
See Ignition Transmission Lock
Check 0322.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check
0 322. .
Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold
open is low, service the gas
strut. See Gas Strut(s) 0324.
. Inspect sunroof track and seal,
if equipped. See Sunroof063.
. Verify spare tire key lock
operation and lubricate as
needed. See Tire Changing
0 363.
. Visually inspect the spare tire to
ensure that it is tightly stowed
under the vehicle. Push, pull,
and try to turn the tire. If the
spare tire moves, tighten as
necessary. Verify that the wheel
retainer plate compression
spring is fully compressed. See
Tire Changing 0363.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
Service and Maintenance 405

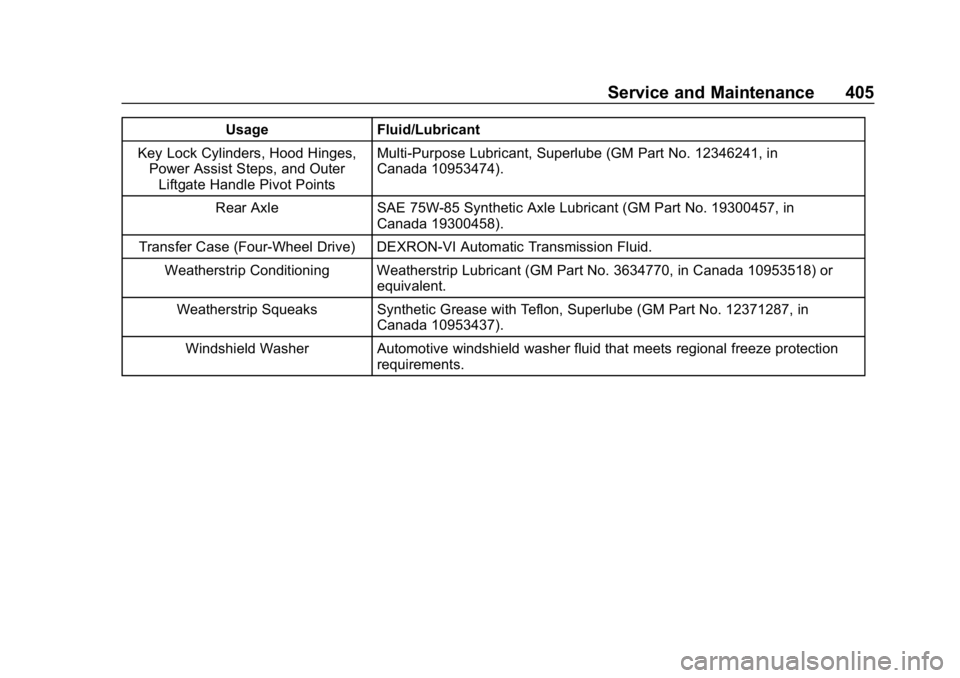

UsageFluid/Lubricant
Key Lock Cylinders, Hood Hinges, Power Assist Steps, and Outer
Liftgate Handle Pivot Points Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Rear Axle SAE 75W-85 Synthetic Axle Lubricant (GM Part No. 19300457, in
Canada 19300458).
Transfer Case (Four-Wheel Drive) DEXRON-VI Automatic Transmission Fluid. Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, in Canada 10953437).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
426 OnStar
Press=to:
. Open the OnStar app on the
infotainment display. See the
infotainment manual for
information on how to use the
OnStar app.
Or
. Make a call, end a call,
or answer an incoming call.
. Give OnStar Hands-Free Calling
voice commands.
. Give OnStar Turn-by-Turn
Navigation voice commands.
. Obtain and customize the Wi-Fi
hotspot name or SSID and
password, if equipped. PressQto connect to an
Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of
the vehicle's key operating
systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority connection
to an OnStar Advisor available 24/
7 to:
. Get help for an emergency.
. Be a Good Samaritan or
respond to an AMBER Alert.
. Get assistance in severe
weather or other crisis situations
and find evacuation routes.
OnStar Services
Emergency
Emergency Services require an
active safety and security plan. With
Automatic Crash Response, built-in
sensors can automatically alert a
specially trained OnStar Advisor
who is immediately connected in to
the vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and
relay important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider
to help with a flat tire, a battery
jump, or an empty gas tank.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-12460267) - 2019 - crc - 9/11/18
436 Connected Services
Make a Call1. Press
=. System responds:
“OnStar ready.”
2. Say “Call.”System responds:
“Call. Please say the name or
number to call.”
3. Say the entire number without pausing, including a “1”and the
area code. System responds:
“OK, calling.”
Calling 911 Emergency
1. Press=. System responds:
“OnStar ready.”
2. Say “Call.”System responds:
“Call. Please say the name or
number to call.”
3. Say “911”without pausing.
System responds: “911.”
4. Say “Call.”System responds:
“OK, dialing 911.”
Retrieve My Number
1. Press=. System responds:
“OnStar ready.”
2. Say “My number.” System
responds: “Your OnStar
Hands-Free Calling number is,”
then says the number.
End a Call
Press=. System responds: “Call
ended.”
Verify Minutes and Expiration
Press=and say “Minutes” then
“Verify” to check how many minutes
remain and their expiration date.
If equipped, press
=and touch
Account Services to view the
number of remaining minutes,
available Wi-Fi data, and other
account information.
Diagnostics
By monitoring and reporting on the
vehicle's key systems, OnStar
Advanced Diagnostics, if equipped,
provides a way to keep up on
maintenance. Capabilities vary by
model. See www.onstar.com for
details and system limitations.
Features are subject to change. For
updates on feature capabilities, see
my.gmc.com. Message and data
rates may apply.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-12460267) - 2019 - crc - 9/11/18
442 Index
Headlamps (cont'd)High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 326
High-Beam On Light . . . . . . . . . . 160
High/Low Beam Changer . . . . . 183
Lamps On Reminder . . . . . . . . . 160
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 74
Steering Wheel . . . . . . . . . . . . . . . 133
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Heated Mirrors . . . . . . . . . . . . . . . . . . . 58
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 223
Heating . . . . . . . . . . . . . . . . . . . . 191, 195
High-Beam On Light . . . . . . . . . . . . 160
High-Speed Operation . . . . . . . . . . 349
Hill and Mountain Roads . . . . . . . . 209
Hill Descent Control (HDC) . . . . . 244
Hill Start Assist (HSA) . . . . . . . . . . 241
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 82
HVAC . . . . . . . . . . . . . . . . . . . . . . 191, 195I
Ignition Positions . . . . . . . . . . 217, 219
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 322
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 55
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 157
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . 106
Information
Publication Ordering . . . . . . . . . . 420
Infotainment . . . . . . . . . . . . . . . . . . . . 190
Infotainment System . . . . . . . . . . . . 424
Instrument Cluster . . . . . . . . . . . . . . 143
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . 126
Interior Rearview Mirrors . . . . . . . . . 60
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 374
K
Keyless EntryRemote (RKE) System . . . . . 34, 41
Keys . . . . . . . . . . . . . . . . . . . . . . . . . 29, 30
L
Labeling, Tire Sidewall . . . . . . . . . . 343
Lamps Daytime Running (DRL) . . . . . . 184
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 187
Exterior Controls . . . . . . . . . . . . . . 181
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 183
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 189
License Plate . . . . . . . . . . . . . . . . . 328
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 153
On Reminder . . . . . . . . . . . . . . . . . 160
Reading . . . . . . . . . . . . . . . . . . . . . . 187
Lane Change Alert (LCA) . . . . . . . 264
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 266
Lane Keep Assist (LKA) . . . . . . . . 266
Lane Keep Assist Light . . . . . . . . . 156
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 89
Lap-Shoulder Belt . . . . . . . . . . . . . . . 84
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . 120
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . 111
LED Lighting . . . . . . . . . . . . . . . . . . . . 326

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-12460267) - 2019 - crc - 9/11/18
Index 445
R
Radio Frequency Statement . . . . 421
Reading Lamps . . . . . . . . . . . . . . . . . 187
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . 320Locking . . . . . . . . . . . . . . . . . . . . . . . 245
Rear Climate Control System . . . 195
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 74 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 74
Rear Storage . . . . . . . . . . . . . . . . . . . 127
Rear Vision Camera (RVC) . . . . . 256
Rear Window Washer/Wiper . . . . 135
Rearview Mirrors . . . . . . . . . . . . . . . . 60 Automatic Dimming . . . . . . . . . . . . . 60
Reclining Seatbacks . . . . . . . . . . . . . 69
Recommended
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 404
Records
Maintenance . . . . . . . . . . . . . . . . . . 407
Recreational Vehicle Towing . . . . 378
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 415
Remote Keyless Entry
(RKE) System . . . . . . . . . . 33, 34, 41
Remote Vehicle Start . . . . . . . . . . . . 43
Replacement Glass . . . . . . . . . . . . . . . . . . . . . . . . . 324 Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . 104
Maintenance . . . . . . . . . . . . . . . . . . 406
Replacing Airbag System . . . . . . . 104
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . 120
Replacing Seat Belt System
Parts after a Crash . . . . . . . . . . . . . 91
Reporting Safety Defects Canadian Government . . . . . . . . 422
General Motors . . . . . . . . . . . . . . . 422
U.S. Government . . . . . . . . . . . . . 421
Restraints Where to Put . . . . . . . . . . . . . . . . . .110
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 224
Reverse Tilt Mirrors . . . . . . . . . . . . . . 59
Ride Control Systems Magnetic . . . . . . . . . . . . . . . . . . . . . 244
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 208
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 415
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 63
Roof Rack System . . . . . . . . . . . . . . 129
Rotation, Tires . . . . . . . . . . . . . . . . . . 355 Routing, Engine Drive Belt . . . . . . 410
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 228
S
Safety Defects ReportingCanadian Government . . . . . . . . 422
General Motors . . . . . . . . . . . . . . . 422
U.S. Government . . . . . . . . . . . . . 421
Safety Locks . . . . . . . . . . . . . . . . . . . . . 46
Safety System Check . . . . . . . . . . . . 90
Scheduling Appointments . . . . . . . 417
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 81 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Extender . . . . . . . . . . . . . . . . . . . . . . . . 90
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 82
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . 89
Lap-Shoulder Belt . . . . . . . . . . . . . . 84
Reminders . . . . . . . . . . . . . . . . . . . . 150
Replacing after a Crash . . . . . . . . 91
Use During Pregnancy . . . . . . . . . . 88
Seats Center Seat . . . . . . . . . . . . . . . . . . . . 67
Head Restraints . . . . . . . . . . . . . . . . 66
Heated and Ventilated Front . . . . 72
Heated, Rear . . . . . . . . . . . . . . . . . . . 74
Lumbar Adjustment, Front . . . . . . 68
