relay GMC YUKON XL DENALI 2002 Owners Manual

6-63
NAME Usage
IGN 0 PRND321 Display,
Odometer, VCM/PCM
CRUISE Cruise Control, Instrument Cluster
4WD Not Used
TURN Exterior Lamps, Turn Signals,
Hazard Lamps
RR WIPER Rear Window Wiper
WS WPR Windshield Wipers
SEO IGN Special Equipment
Option, Ignition
L BODY Retained Accessory Power Relay
ILLUM Interior Lamps
IGN 1 Ignition, Instrument Panel
SEO ACCY Special Equipment
Option Accessory
CRANK Starting System
AIR BAG Air BagNAME Usage
SEAT Power Seat Circuit Breaker
MIR/LOCK Power Mirrors, Power Door Locks
DR LOCK Power Door Locks
RAP #1 Retained Accessory Power Relay
LOCK Power Door Locks
INT PRK Interior Lamps
UNLOCK Power Door Locks
DRV UNLOCK Power Door Lock Relay
L DOOR Power Door Lock Relay
PWR WDO Power Window Circuit Breaker
RDO 1 Audio System
LOCK Power Door Lock Relay
UNLOCK Power Door Lock Relay
RAP #2 Rear Power Windows,
Sunroof, Radio

6-64
Center Instrument Panel Utility Block
The center instrument panel utility block is located
underneath the instrument panel, to the left of the
steering column.Relay Name Usage
SEO Special Equipment Option
TRAILER Trailer Brake Wiring
UPF Upfitter
SPARE 2 Not Used
SPARE 3 Not Used
HTD ST Heated Seats
PWR ST Power Seats
PARK LAMP Parking Lamps
INADV PWR Interior Lamps Feed
SPARE Not Used
SPARE Not Used
*FRT PRK EXPT Not Used
PUDDLE LP Puddle Lamps
CTSY LP Courtesy Lamps
VANITY Headliner Wiring
BLANK Not Used
SL RIDE Not Used
CEL PHONE Not Used

6-65

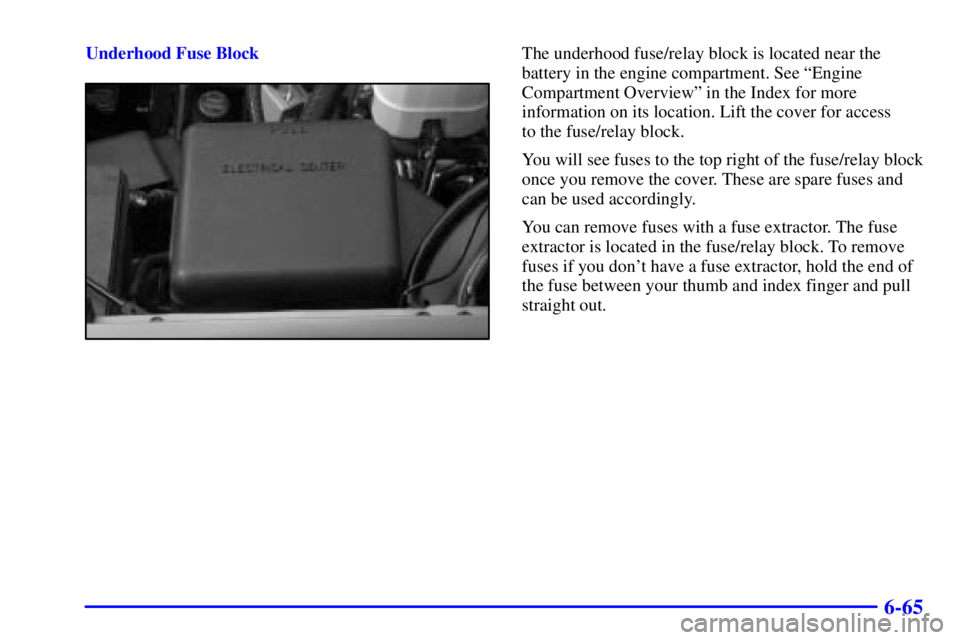

Underhood Fuse BlockThe underhood fuse/relay block is located near the
battery in the engine compartment. See ªEngine
Compartment Overviewº in the Index for more
information on its location. Lift the cover for access
to the fuse/relay block.
You will see fuses to the top right of the fuse/relay block
once you remove the cover. These are spare fuses and
can be used accordingly.
You can remove fuses with a fuse extractor. The fuse
extractor is located in the fuse/relay block. To remove
fuses if you don't have a fuse extractor, hold the end of
the fuse between your thumb and index finger and pull
straight out.

6-67
Name Usage
STUD #1 Accessory Power/Trailer Wiring
Feed/Load Leveling
ABS Anti
-Lock Brakes
IGN A Ignition Switch
AIR A.I.R. System
RAP #1 Retained Accessory Power,
Power Mirrors, Power Door
Locks, Power Seat(s)
IGN B Ignition Switch
RAP #2 Retained Accessory Power/Rear
Power Windows, Sunroof, Radio
STUD #2 Accessory Power/Trailer Wiring
Brake Feed
TRL R TRN Right Turn Signal Trailer Wiring
TRL L TRN Left Turn Signal Trailer Wiring
IGN 1 Ignition, Fuel Controls
INJ
-B Ignition, Fuel Controls (Relay)Name Usage
STARTER Starter (Relay)
PARK LP Parking Lamps
FRT HVAC Climate Control System
STOP LP Exterior Lamps, Stoplamps
ECM 1 VCM/PCM
CHMSL Center High Mounted Stoplamp
VEH STOP Stoplamps, Cruise Control
TRL B/U Backup Lamps Trailer Wiring
INJ
-A Fuel Controls, Ignition
RR HVAC Rear Climate Control System
VEH B/U Vehicle Backup Lamps
ENG 1 Engine Controls, Canister Purge,
Fuel System
ETC Electronic Throttle Control
IGN E A/C Compressor Relay, Rear
Window Defogger, Daytime
Running Lamps, A.I.R. System

6-68
Name Usage
B/U LP Backup Lamps, Automatic
Transmission Shift Lock
Control System
ATC Automatic Transfer Case
RR DEFOG Rear Window Defogger, Heated
Mirrors (Relay)
RTD Autoride
(Real Time Damping)
RR PRK Right Rear Parking Lamps
ECM B VCM/PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Left Rear Parking Lamps
RR DEFOG Rear Window Defogger, Heated
Mirrors
HDLP Headlamps (Relay)
TRL PRK Parking Lamps Trailer Wiring
PRIME Not UsedName Usage
RT HDLP Right Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated Mirrors
LT HDLP Left Headlamps
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary
Power Outlets
SEO 2 Special Equipment Option Power,
Power Seats
SEO 1 Special Equipment Option Power
DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Cluster,
Climate Control System
CIGAR Cigarette Lighter, Auxiliary
Power Outlets

6-69
Name Usage
RT TURN Right Turn Signals
BTSI Automatic Transmission Shift
Lock Control System
LT TURN Left Turn Signals
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Rear Wipers
TBC Body Control Module, Remote
Keyless Entry, HeadlampsReplacement Bulbs
Bulb Number
Low
-Beam Headlamps 9005 or 9005LL. . . . . . . . . .
(Long Life) (Preferred)
High
-Beam Headlamps 9005. . . . . . . . . . . . . . . . . . .
Daytime Running Lamps (DRL) 3157KX or. . . . . . .
4157K (Preferred)
Front Marker Lamp 194. . . . . . . . . . . . . . . . . . . . . .
Front Parking and Turn Lamp 3157 or. . . . . . . . . . .
3157K (long life)
Rear Marker Lamp, Taillamp and
Stop Lamp 3157. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Lamp 3157. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-up Lamp 3157. . . . . . . . . . . . . . . . . . . . . . . . . .
For replacement bulbs not listed here, please consult
your dealer.
