BE-85

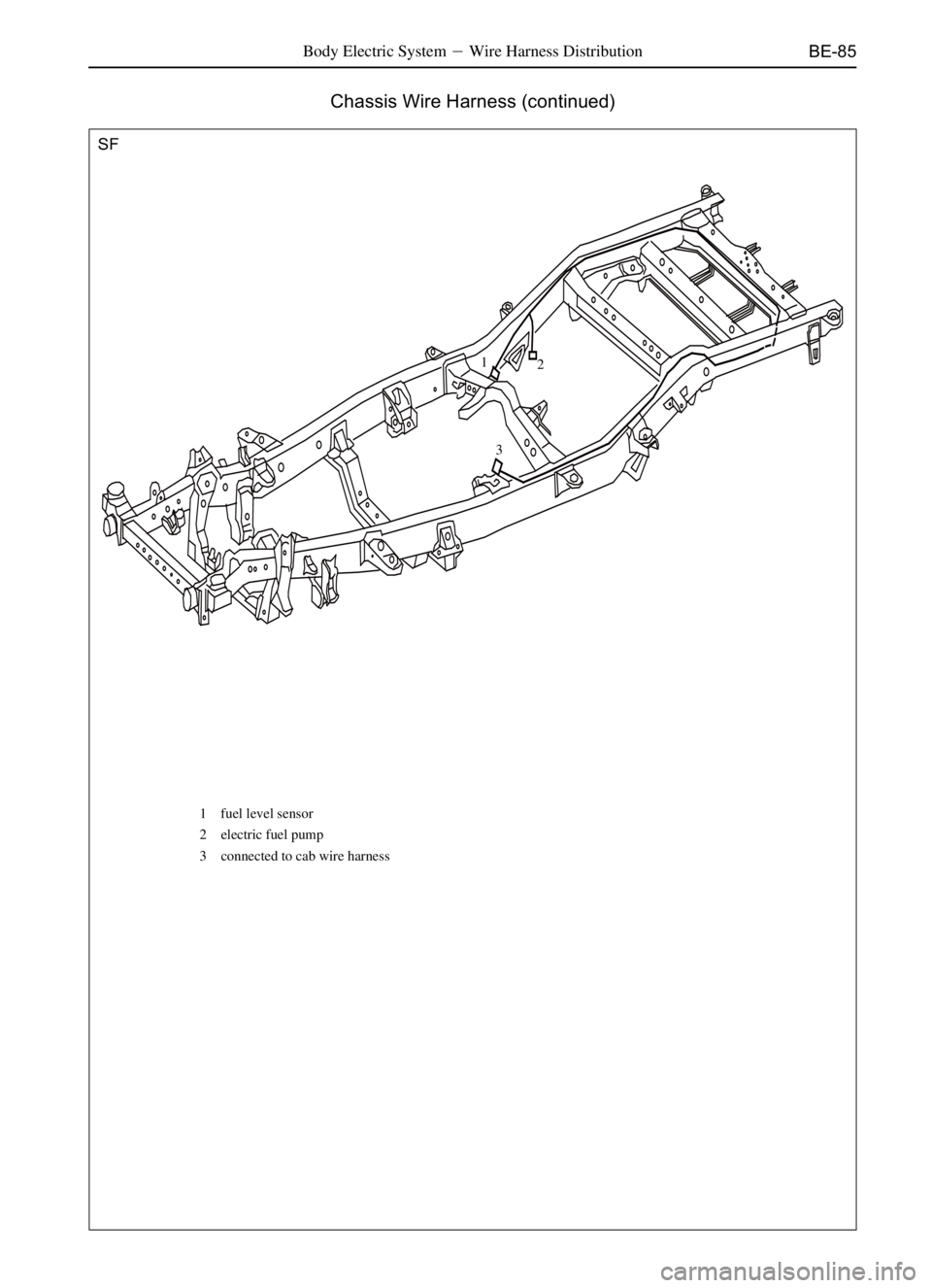

SF
1 fuel level sensor
2 electric fuel pump
3 connected to cab wire harness
1
2
3
Chassis Wire Harness (continued)
Body Electric System
Wire Harness Distribution

AC-19Air-Conditioning System
Refrigeration Device
inspectionofevaporator
1. Check the radiating ribs of evaporator to see whether there is
block.
If the radiating rib is blocked, clean it with the compressed air.
Notice: do not wash the evaporator with water.
2. Check the joint to see whether there is crack or scrape.
Make reparation as requirement.
Mount the evaporator parts:
(a) Connect the expansion valve to the entrance joint of evaporator
and screw up the nuts.
Remark: Carefulness should be put on the O-ring seal.
(b) Mount the bracket on the suction pipe with thermal sensor;
(c) Connect the liquid pipe to the entrance joint of expansion
valve and screw up nuts.
(d) Mount the lower cluster housing on evaporator.
(e) Mount the upper cluster housing;
(f) Mount the four screws;
(g) Mount the two clipes;
(h) Mount the HP/LP pressure rubber washer; and
(i) Connect the plugging elements;
1. Mount the refrigeration device.
Mount the refrigeration device with three nuts.
2. Connect the plugging elements;
3. Mount the right glove box (SY rear air-conditioner: mount the
interior trim panel at left rear side).
4. Mount the insulation ring on the inlet and outlet joints;
5. Connect the liquid pipe to the outlet joint of refrigeration device;
Tightening moment
(see page AC-8)
6. Connect the suction pipe to the outlet joint of refrigeration pipe;
Tightening moment
(see page AC-8)
7. Connect the cathode lead to the storage cell.
8. Vacuumize the air-conditioning system:
Vacuumizing time:
Dr SL SK SF SJ
vacuumize for 20min and maintain the
pressure for 30min
SY: vacuumize for 30min and maintain the pressure for
another 30min.
9. Inflate the refrigerant in the air-conditioning system and
check to see whether there is air leakage;
Refrigerant quantity:
Dr
(600-650)g
SL
700
0g
SK SJ
560
0g
SF
(700-720)g
SY
850
0g
expansion valveHP pipe LP pipe
