Power steering system GREAT WALL SAILOR 2006 User Guide

SR-17Steering System
Power Steering (Oil Pump of Power Steering)
Points on disassembly and mount

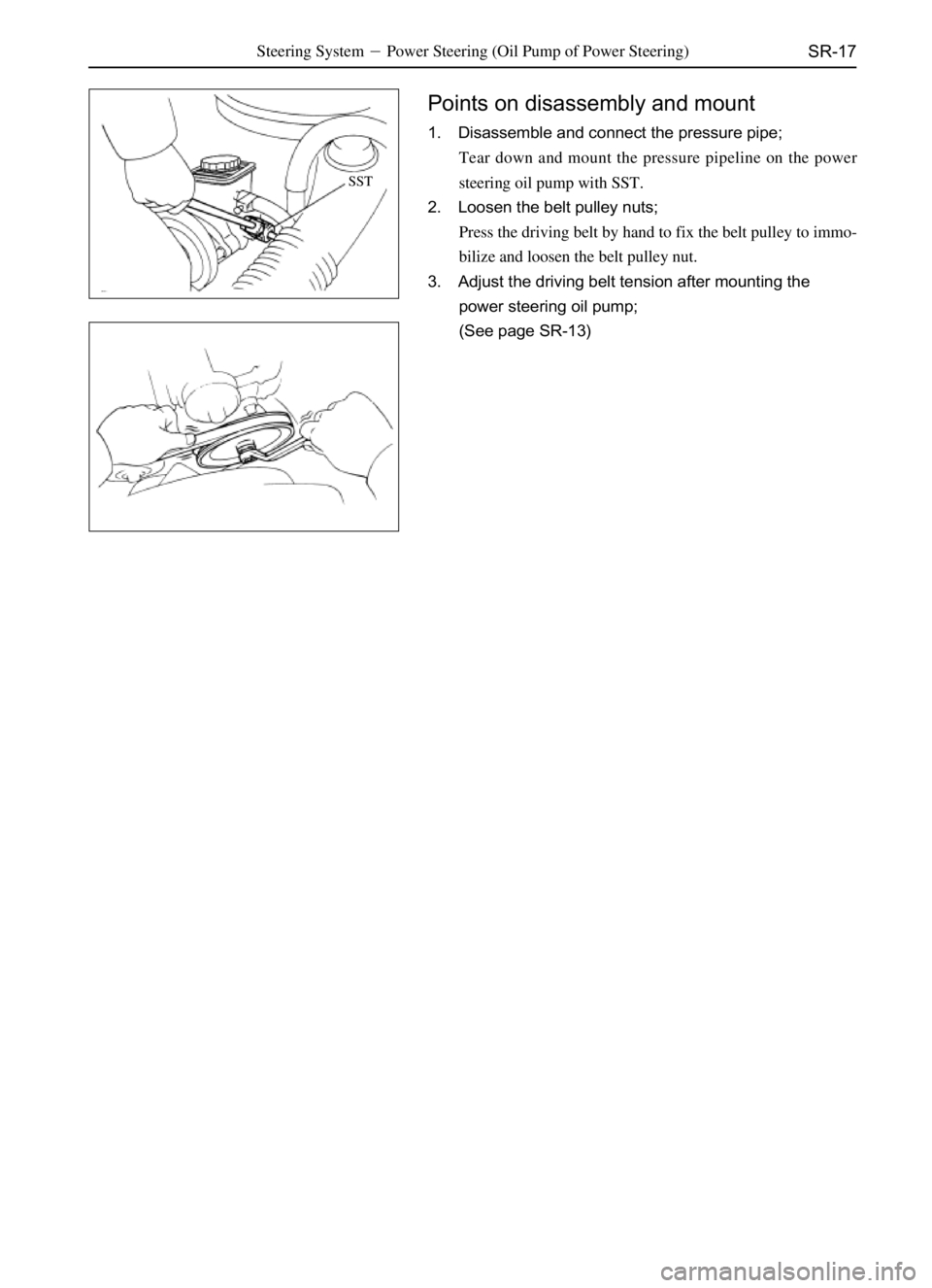

1. Disassemble and connect the pressure pipe;
Tear down and mount the pressure pipeline on the power
steering oil pump with SST.
2. Loosen the belt pulley nuts;
Press the driving belt by hand to fix the belt pulley to immo-
bilize and loosen the belt pulley nut.
3. Adjust the driving belt tension after mounting the
power steering oil pump;
(See page SR-13)
SST

SR-18Steering System
Power Steering Gear
Power steering gear

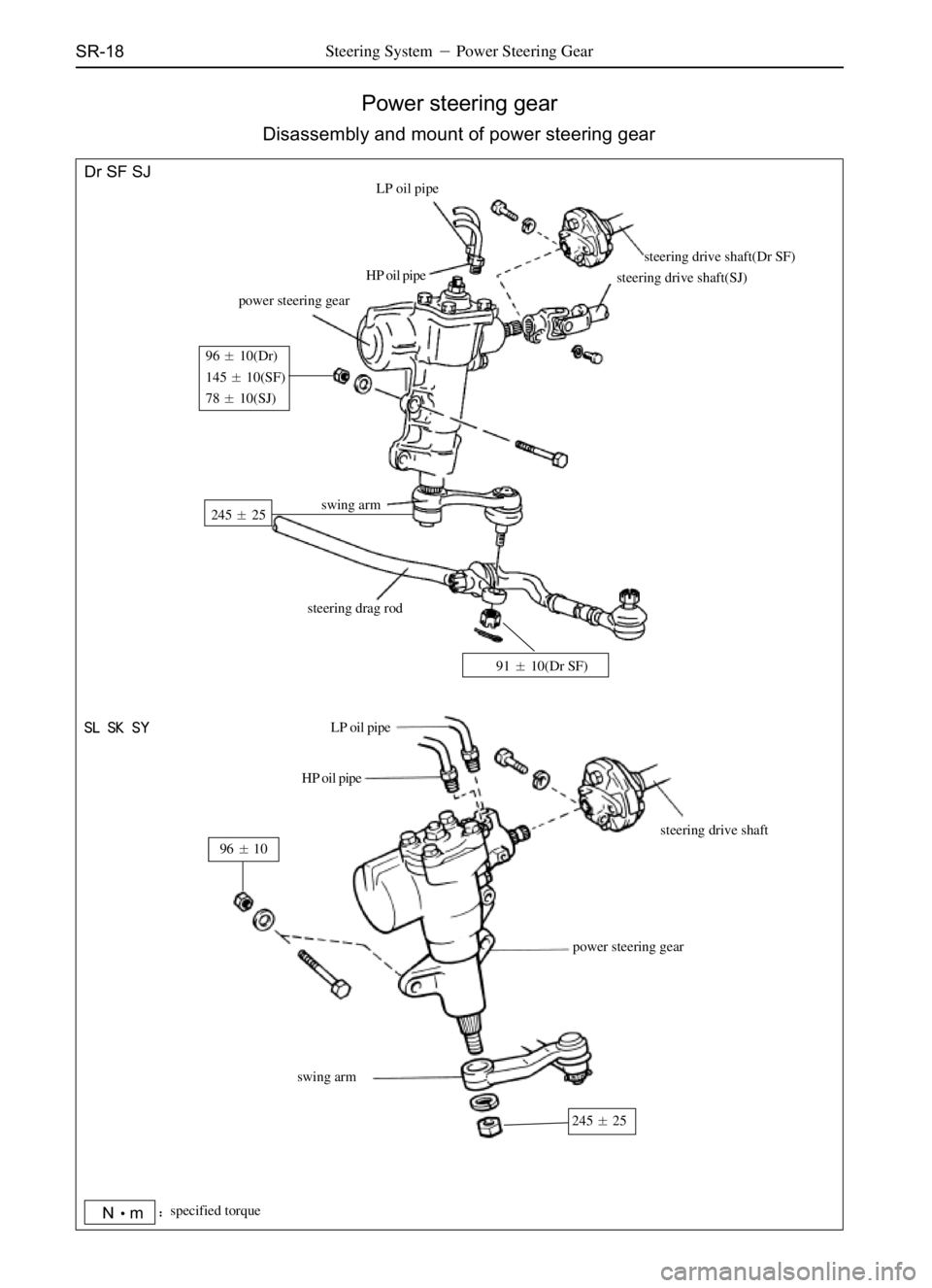

Disassembly and mount of power steering gear
Dr SF SJ
LP oil pipe
HP oil pipe
steering drive shaft
power steering gear
swing arm
N
m
specified torque
pi=ph=pv
96
10
96
10(Dr)
145
10(SF)
78
10(SJ)
swing arm
245
25
LP oil pipe
HP oil pipe
steering drive shaft(SJ)
power steering gear
steering drag rod
91
10(Dr SF)
steering drive shaft(Dr SF)
245
25

SR-19
assembly mark
SST
Points on disassembly and mount

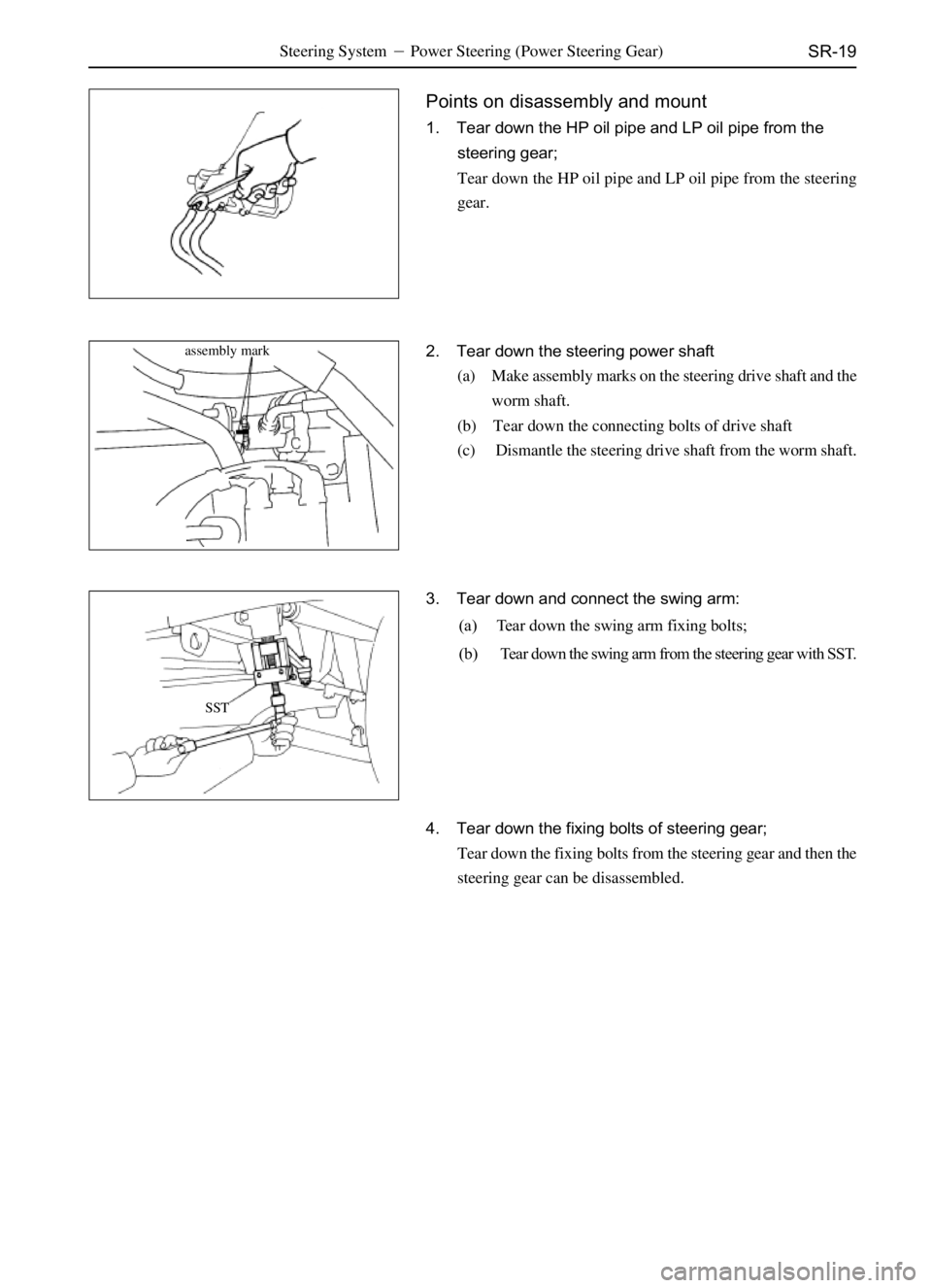

1. Tear down the HP oil pipe and LP oil pipe from the
steering gear;
Tear down the HP oil pipe and LP oil pipe from the steering
gear.
2. Tear down the steering power shaft
(a) Make assembly marks on the steering drive shaft and the
worm shaft.
(b) Tear down the connecting bolts of drive shaft
(c) Dismantle the steering drive shaft from the worm shaft.
3. Tear down and connect the swing arm:
(a) Tear down the swing arm fixing bolts;
(b) Tear down the swing arm from the steering gear with SST.
4. Tear down the fixing bolts of steering gear;
Tear down the fixing bolts from the steering gear and then the
steering gear can be disassembled. Steering System
Power Steering (Power Steering Gear)

BE-10Body Electric System
Protective Box Position Content
FuseVehicle
Model
1. Standby 30A
Standby 20A SJ
2. Standby 15A SY
Standby 10A SJ
3. Standby 10A SY SJ
4. Unload SY
Bass bubble 10A SJ
Power amplification 10 A top SY
5. Unload SY SJ
6. Unload SY SJ
7. Unload SY SJ
8. Air-conditioner 10A SY SJ
9. Charging 10A SY
Instrument 10A SJ
10. ECU 10A SY SJ
11. Back-up lamp 10A SY SJ
12. Cigarette lighter 30A SY SJ
receiver
13. Unload SY
Refrigerant 10A SJ top SY
14. Unload SY SJ
15. Steering electric window 10A SY
Humid display of steering 10A SJ
sindicating lamp
16. Stop lamp 10A SY SJ
17. Power aerial of inside lamp 10A SY SJ
18. Central control lock 20A SY SJ
19. Dual flasher 10A SY SJ
20. Front rain brush 10A SY SJ
21. Rear air-conditioner 15A SY
Unload SJ
22. Rear defroster 15A SY
Unload SJ
23. Rear rain brush 10A SY
Unload SJ
1Protective box I (continued)pv=pg
1
2
3
4
567
8
91011
12 13
14 15
16 17 18 19
20 21 22 23

BE-11Body Electric System
Protective Box Position and Content
Fuse Vehicle model
1. Standby 10A (SL diesel)(SY diesel)
2. Standby 15A (SL diesel) (SY diesel)
3. Standby 30A (SL diesel) (SY diesel)
4. Unload (SL diesel) (SY diesel)
5. Unload (SL diesel) (SY diesel)
6. Unload (SL diesel) (SY diesel)
7. Unload (SL diesel) (SY diesel)
8. Start 10A (SL diesel) (SY diesel)
9. Rear defroster 15A (SY diesel)
Unload (SL diesel)
10.Cigarette lighter
and receiver 30A (SY diesel)
Cigarette lighter 15A (SL diesel)
11.Rear rain brush 10A (SY diesel)
Unload (SL diesel)
12.Front rain brush 15A (SY diesel)
Rain brush 5A (SL diesel)
13.Steering 10A (SY diesel)
Dual flasher 10A (SL diesel)
14.Preheating 15A (SL diesel)(SY diesel)
15.Electric window 30A (SL diesel)(SY diesel)
16.Small lamp 10A (SL diesel)(SY diesel)
17.Stop lamp 10A (SL diesel)(SY diesel)
18.Inside lamp
and electric aerial 15A (SY diesel)
eiling lamp 10A (SL diesel)
19.Central control lock 20A (SY diesel)
Central control lock 15A (SL diesel)
20.Rear air-conditioner 15A (SY diesel)
Unload (SL diesel)
21.Unload (SL diesel)(SY diesel)
Refrigerant 10A (top SY diesel)
22.Unload (SL diesel )(SY diesel)
Power amplification 10A (top SY diesel)
23.Unload (SL diesel)(SY diesel)
1.Protective box I (continued)SLDiesel SYDiesel
1
2
3
4 567
89NM11
12 13 14 15
16 17 18 19
2021
22 23
