Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the page given.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
youfillthefueltank.Seepage .
Windshield washer f luid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers f requently, check
the reservoir each time you stop
f or f uel. See page .Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page . 182
184
246
247 251 267
274
Owner Maintenance Checks
Maint enance 231

To add oil, unscrew and remove the
engine oil f ill cap on top of the valve
cover. Pour in the oil, and install the
engine oil f ill cap. Tighten it securely.
Wait a f ew minutes and recheck the
oil level. Do not f ill above the upper
mark; you could damage the engine.
A dding Oil
Maint enance
Engine Oil
234
EENNGGIINNEEOOIILLFFIILLLLCCAAPP
44--ccyylliinnddeerrmmooddeellss
EENNGGIINNEEOOIILLFFIILLLLCCAAPP
66--ccyylliinnddeerrmmooddeellss

Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Genuine Honda Motor Oil is the
pref erred 5W-20 lubricant f or your
vehicle. It is highly recommended
that you use Genuine Honda Motor
Oil in your vehicle f or optimum
engine protection.Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
5W-20 oil is f ormulated f or year-
round protection of your Honda, to
improve cold weather starting, and
to help your engine use less f uel.
If 5W-20 oil is not available, a 5W-30
oil may be used. However, it should
be replaced with 5W-20 at the next
oil change.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight as shown
on the chart. When using synthetic
oil, you must f ollow the oil and f ilter
change intervals given in the
maintenance schedule.
Your Honda does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
The SAE number tells you the oil’s
viscosity or weight. Select the oil f or
your vehicle according to this chart.
Engine Oil
Maint enance
Recommended Oil
Synthetic Oil
A dditives235
AAPPIICCEERRTTIIFFIICCAATTIIOONNSSEEAALL
AAmmbbiieennttTTeemmppeerraattuurree

Always change the oil and f ilter
accordingtothetimeanddistance
(miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and f ilter collect contami-
nants that can damage your engine if
they are not removed regularly.Changing the oil and f ilter requires
special tools and access f rom
underneath the car. The car should
be raised on a service station-type
hydraulic lif t f or this service. Unless
you have the knowledge and proper
equipment, you should have this
maintenance done by a skilled
mechanic. Run the engine until it reaches
normal operating temperature,
then shut it off.
1.
Maint enance
Engine Oil
Changing the Oil and Filter 236

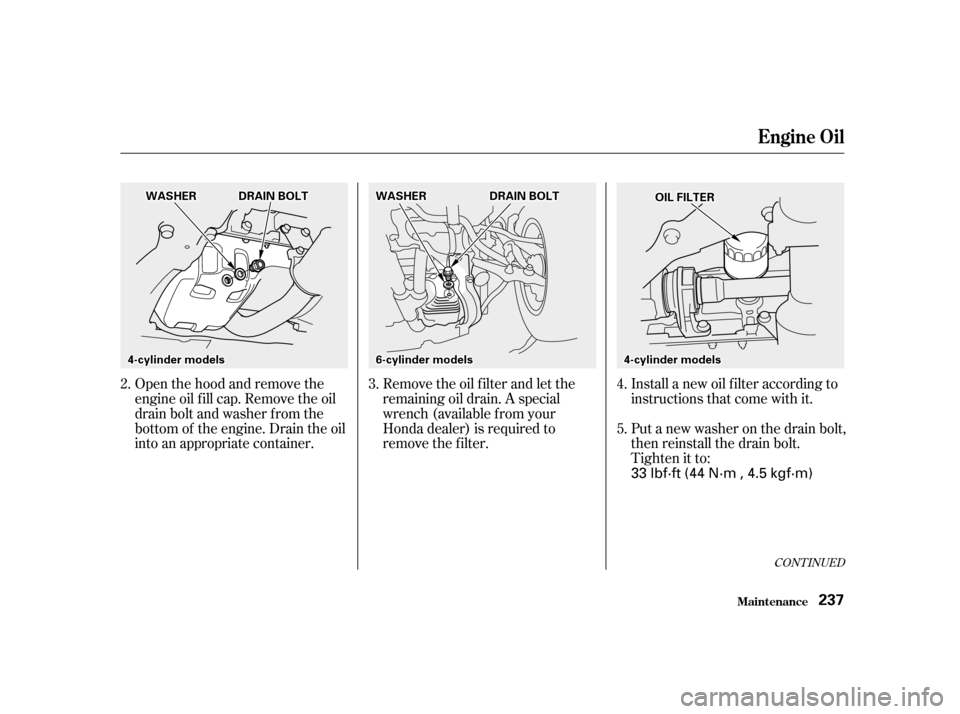

Open the hood and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.Remove the oil f ilter and let the
remaining oil drain. A special
wrench (available f rom your
Honda dealer) is required to
remove the f ilter.Install a new oil f ilter according to
instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
4. 5.
3.
2.
CONT INUED
Engine Oil
Maint enance 237
44--ccyylliinnddeerrmmooddeellss
DDRRAAIINNBBOOLLTT
66--ccyylliinnddeerrmmooddeellss44--ccyylliinnddeerrmmooddeellss
DDRRAAIINNBBOOLLTTWWAASSHHEERROOIILLFFIILLTTEERRWWAASSHHEERR
33 lbf·ft (44 N·m , 4.5 kgf·m)

Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):Let the engine run f or several
minutes and check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator light should go out within
f ive seconds. If it does not, turn of f
the engine and reinspect your
work.
9.
8.
7.
6. (4-cylinder models)
(6-cylinder models)
Engine Oil
Maint enance
238
OOIILLFFIILLTTEERR
66--ccyylliinnddeerrmmooddeellss
4.6 US qt (4.4
, 3.9 Imp qt)
4.5 US qt (4.3
, 3.8 Imp qt) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.

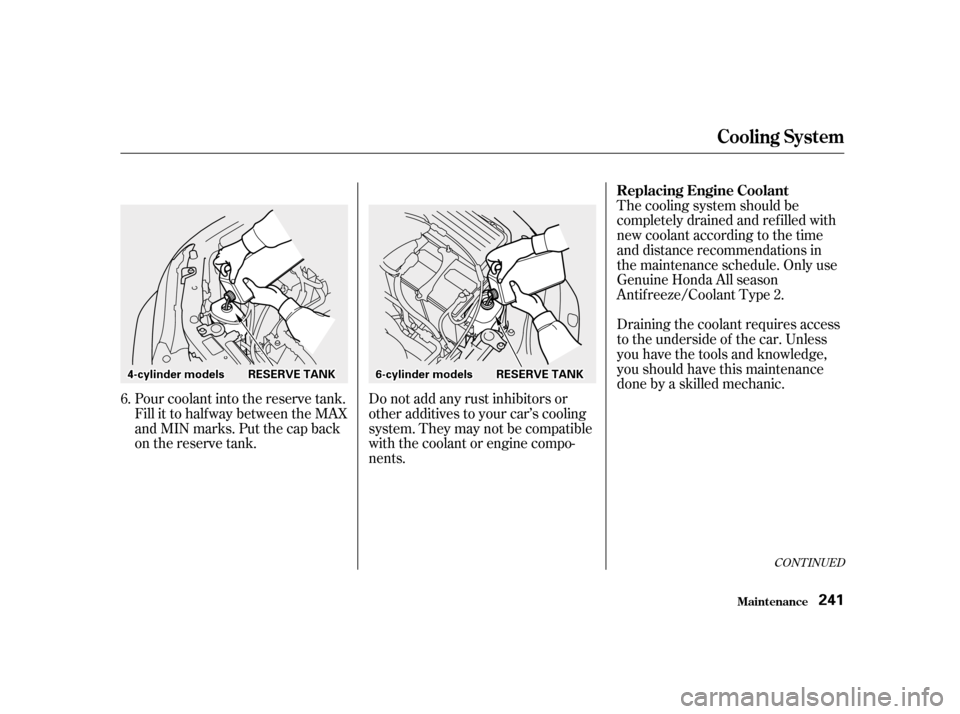

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
This coolant should always be a
mixtureof 50percentantifreezeand
50 percent water. Never add straight
antif reeze or plain water.Always use Genuine Honda All
Season Antif reeze/Coolant Type 2.
This coolant is pre-mixed with 50
percent antif reeze and 50 percent
water. It does not require any
additional mixing. If it is not available,
you may use another major-brand
non-silicate coolant as a temporary
replacement. Make sure it is a high-
quality coolant recommended f or
aluminum engines. However,
continued use of any non-Hondacoolant can result in corrosion,
causingthecoolingsystemto
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
CONT INUED
A dding Engine Coolant
Maint enance
Cooling Syst em
239
66--ccyylliinnddeerrmmooddeellss44--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKKRREESSEERRVVEETTAANNKK

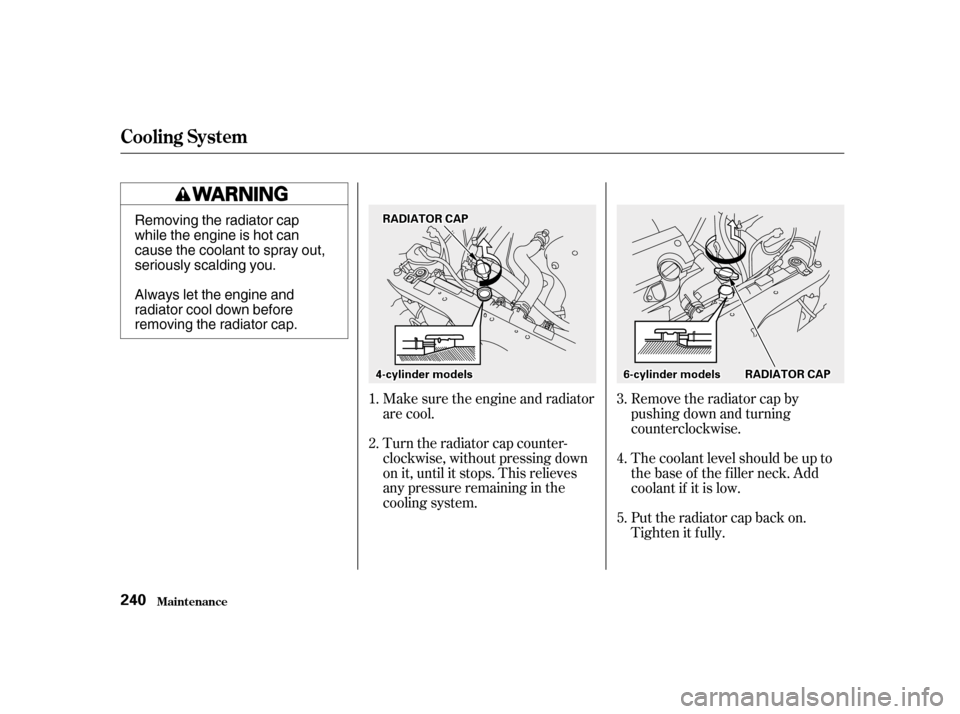

Remove the radiator cap by
pushing down and turning
counterclockwise.
Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system.
Make sure the engine and radiator
are cool.
The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Put the radiator cap back on.
Tighten it f ully.
3.
1. 2.
4. 5.
Cooling Syst em
Maint enance
240
44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellssRRAADDIIAATTOORRCCAAPP
RRAADDIIAATTOORRCCAAPP
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Genuine Honda All season
Antif reeze/Coolant Type 2.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank. Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents. Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic.
6.
CONT INUED
Replacing Engine Coolant
Cooling Syst em
Maint enance 241
44--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKK66--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKK

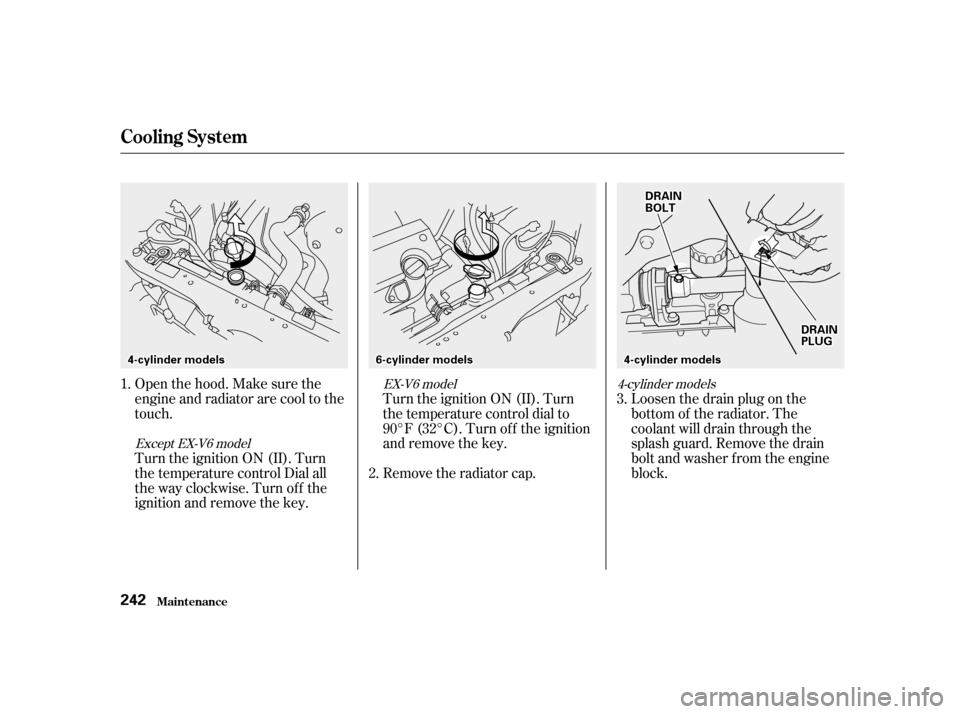

Loosen the drain plug on the
bottom of the radiator. The
coolant will drain through the
splash guard. Remove the drain
bolt and washer f rom the engine
block.
Openthehood.Makesurethe
engine and radiator are cool to the
touch.
Turn the ignition ON (II). Turn
the temperature control dial to
90°F (32°C). Turn of f the ignition
and remove the key.
Remove the radiator cap.
Turn the ignition ON (II). Turn
the temperature control Dial all
the way clockwise. Turn of f the
ignition and remove the key.
1.
3.
2.
4-cylinder models
EX-V6 model
Except EX-V6 model
Maint enance
Cooling Syst em
242
44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellss44--ccyylliinnddeerrmmooddeellss
DDRRAAIINNBBOOLLTT
DDRRAAIINNPPLLUUGG
