Page 50 of 355
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations . 52
...............................
Indicator Lights . 53
.............................................
Gauges . 58
...............................
Speedometer . 58
.................................
Tachometer . 58
.....................................
Odometer . 58
...................................
Trip Meter . 59
...................
Temperature Gauge . 59
..................................
Fuel Gauge . 59
Maintenance Required
...................................
Indicator . 60
Controls Near the Steering
.......................................
Wheel . 61
...................................
Headlights . 62
Automatic Lighting Off
.....................................
Feature . 63
............
Daytime Running Lights . 63 ....
Instrument Panel Brightness . 63
................................
Turn Signals . 64
.....................
Windshield Wipers . 64
..................
Windshield Washers . 66
..........................
Hazard Warning . 66
.............
Rear Window Def ogger . 66
......
Steering Wheel Adjustment . 67
...............
Steering Wheel Controls . 68
.............................
Cruise Control . 68
.............
Remote Audio Controls . 70
...............................
Keys and Locks . 71
..............................................
Keys . 71
....................
Immobilizer System . 72
............................
Ignition Switch . 73
..................................
Door Locks . 74
......................
Power Door Locks . 75
...................
Remote Transmitter . 76
..............
Childproof Door Locks . 80
...........................................
Trunk . 80
..................
Inside Trunk Opener . 82
....................................
Glove Box . 82
......... 83
............................
Seat Adjustments . 88
.............
Front Seat Adjustments . 88
Driver’s Seat Manual Height
..............................
Adjustment . 89 Driver’s Seat Power Height
..............................
Adjustment . 89
Driver’s Seat Full Power ............................
Adjustments . 90
...........
Driver’s Lumbar Support . 91
Front Passenger’s Seat
............................
Adjustments . 92
..........................
Head Restraints . 92
.......................
Folding Rear Seat . 93
......................
Rear Seat Armrest . 94
........
Trunk Pass-through Cover . 95
....................................
Seat Heaters . 96
..............................
Power Windows . 97
.........................................
Moonroof . 98
.............................................
Mirrors . 99
..
Adjusting the Power Mirrors . 100
...............................
Parking Brake . 101
..................................
Digital Clock . 102
.................
Console Compartment . 103
........................................
Coin Box . 103
...........................
Beverage Holder . 104
........................................
Sun Visor . 105
................................
Vanity Mirror . 105
........................
Sunglasses Holder . 106
.............
Accessory Power Socket . 106
...............................
Interior Lights . 107
HomeLink Universal Transmitter
Instruments and Controls
Inst rument s and Cont rols 51
Page 55 of 355
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash.
The appropriate light comes on in
this display if the trunk or any door
is not closed tightly. If a brake light
does not work, the
indicator comes on when you push
the brake pedal with the ignition
switch ON (II).
A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Have your brake
lights repaired right away.
All the lights in the monitor display
come on f or a f ew seconds when you
turn the ignition switch ON (II).
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the Traction
Control System.
It f lashes when the TCS is
regulating wheelspin.
If itcomesonandstaysonwhen
the Traction Control System is on,
it indicates that there is a problem
in the TCS.
This light also comes on when you
turn the ignition ON (II) and goes off
af ter the engine starts. See page f or more inf ormation on the
TCS.
1. 2. 3.
206 277
On all V6 models
Indicator L ights
Inst rument s and Cont rols Turn Signal and
Hazard Warning
Indicators
Door and Brake L amp Monitor
Traction Control System
(T CS) Indicator
56 BRAKE LAMP
Page 58 of 355
4-cylinder models6-cylinder models
The gauge stays at the same f uel
level reading af ter you turn of f the
ignition. When you add f uel, the
gauge slowly changes to the new
readingafteryouturntheignition
switch back ON (II).
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper grey zone. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.
239
Gauges
Inst rument s and Cont rols
Trip Meter Temperature Gauge Fuel Gauge
59
Page 101 of 355
The digital clock displays the time
with the ignition switch in any
position.
To set the clock:Press and hold the H button until
the hour advances to the desired
time.
Press and hold the M button until
the numbers advance to the
desired time. You can use R to quickly set the time
to the nearest hour. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example:
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
1. 2.
Digital Clock
Inst rument s and Cont rols
102
RRMMHH
Page 118 of 355
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set between the lower and upper limits,
the system regulates the interior
temperature to the set value.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
In cold weather, the fan will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.

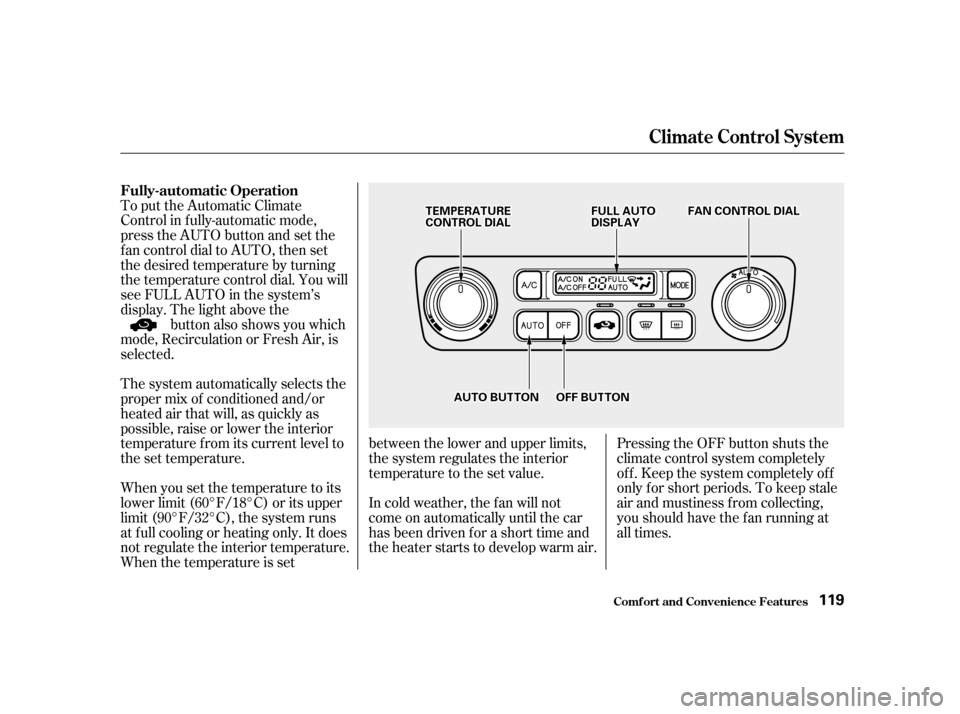

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
f an control dial to AUTO, then set
the desired temperature by turning
the temperature control dial. You will
see FULL AUTO in the system’s
display. The light above the
buttonalsoshowsyouwhich
mode, Recirculation or Fresh Air, is
selected.
Fully-automatic Operation
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
119
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL
AAUUTTOOBBUUTTTTOONN
FFUULLLLAAUUTTOODDIISSPPLLAAYYFFAANNCCOONNTTRROOLLDDIIAALL
OOFFFFBBUUTTTTOONN
Page 119 of 355

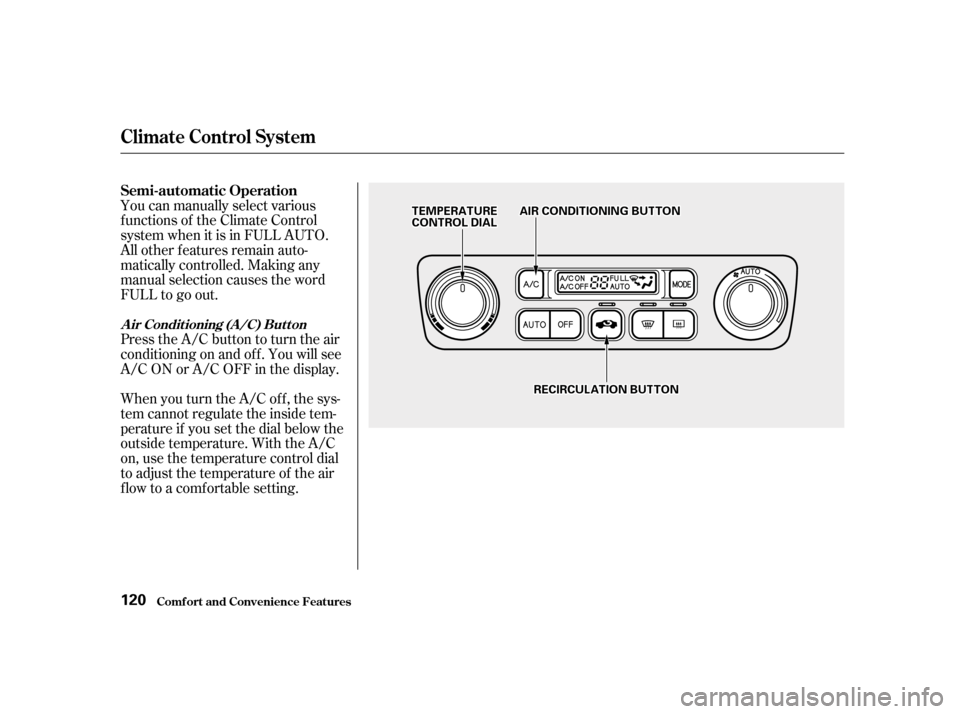

You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
120
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALLAAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN
Page 120 of 355
Some air will come out of the side
vents in all modes.

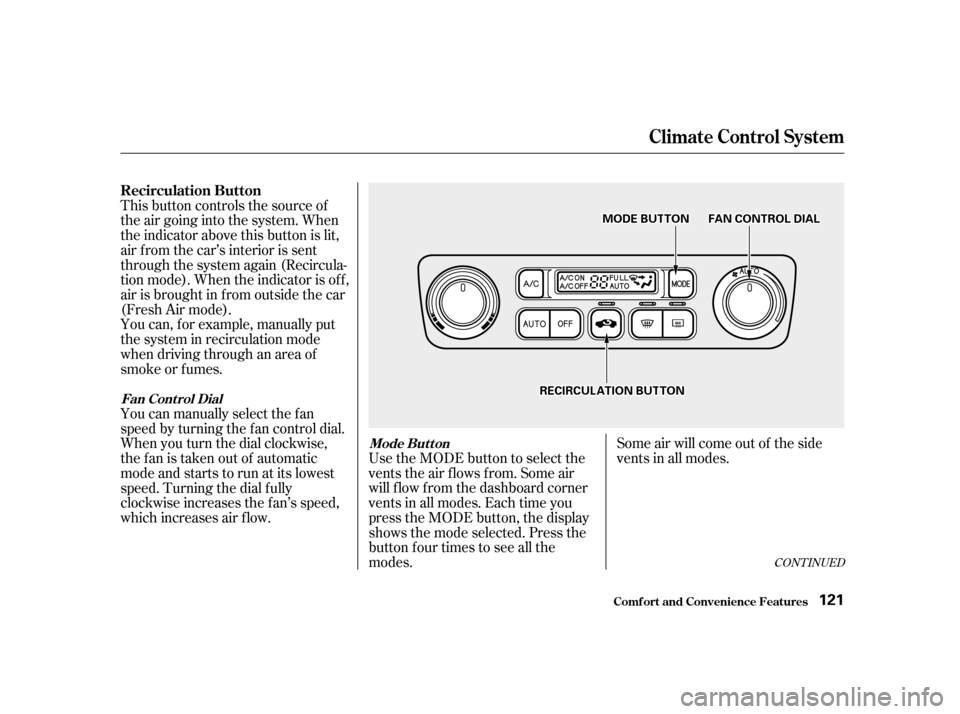

Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes. Each time you
press the MODE button, the display
shows the mode selected. Press the
button four times to see all the
modes.
You can manually select the f an
speedbyturningthefancontroldial.
When you turn the dial clockwise,
the fan is taken out of automatic
mode and starts to run at its lowest
speed. Turning the dial f ully
clockwise increases the f an’s speed,
which increases air flow.
This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
CONT INUED
Mode Button
Fan Cont rol Dial
Recirculation Button
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
121
FFAANNCCOONNTTRROOLLDDIIAALL
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
MMOODDEEBBUUTTTTOONN
Page 125 of 355
µµ
Û
Ý
You can use any of f our methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the upper part ( ) to tune
toahigherfrequency,orthelower
part ( ) to tune to a lower
f requency. The f requency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired f requency. To change the
f requency in small increments, press
and release the TUNE bar quickly. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, push
the SEEK switch up or down, then
release it. Depending on which way
you push the switch, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob.
Adjust the volume by turning the
PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Audio System
Comf ort and Convenience Feat ures
Operating the Radio
TUNESEEK
126
Page 129 of 355
Ûµ µ

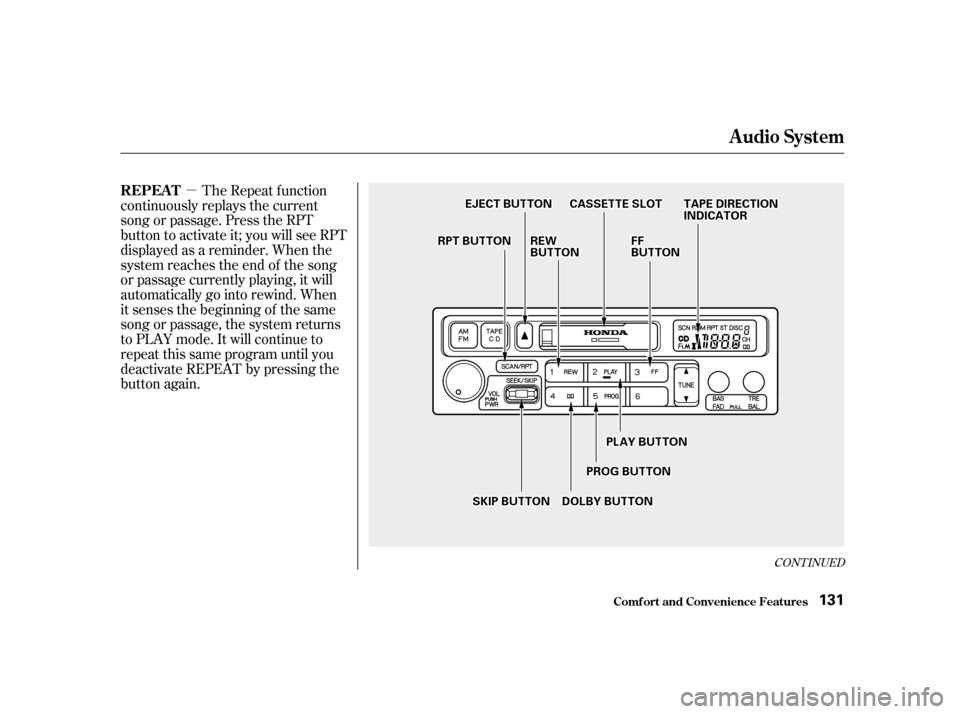

Turn the audio system ON. Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button.
Dolby B noise reduction turns on
when you insert a cassette. If the
tape was not recorded with Dolby B
noise reduction, turn it of f by
pressing the button. When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
fast forward the tape, push the FF
button. You will see FF displayed.
Press the PLAY button to take the
system out of rewind or f ast f orward.
If the system reaches the end of the
tape while in f ast f orward or rewind,
it automatically stops that function,
reverses direction, and begins to play. The Skip Function allows
you to f ind the beginning of a song
or passage. To f ind the beginning of
the song or passage currently
playing, push the SKIP switch down.
You will see REW f lashing in the
display as the tape rewinds. To f ind
the beginning of the next song, push
the SKIP switch up. You will see FF
flashing in the display as the tape
f ast f orwards. When the system
f inds the beginning of a song or
passage, it goes back to PLAY mode.
Operating the Cassette Player
T ape Search Functions
FF/REWSK IP
Audio System
Comf ort and Convenience Feat ures
130
Page 130 of 355
µ
CONT INUED
The Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
Audio System
Comf ort and Convenience Feat ures
REPEAT
131
FFFFBBUUTTTTOONN
EEJJEECCTTBBUUTTTTOONN
RREEWWBBUUTTTTOONN
PPLLAAYYBBUUTTTTOONN
DDOOLLBBYYBBUUTTTTOONNSSKKIIPPBBUUTTTTOONN
CCAASSSSEETTTTEESSLLOOTT
PPRROOGGBBUUTTTTOONN
TTAAPPEEDDIIRREECCTTIIOONNIINNDDIICCAATTOORR
RRPPTTBBUUTTTTOONN
