Page 115 of 380
CONT INUED
To adjust the air f low f rom the
center vent, move the tab up-and-
down and side-to-side.Thesideventscanbeopenedand
closed with the dials underneath
them.
For the climate control system to
provide heating and cooling, the
engine must be running.
The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable.
The automatic climate control
system in your Honda picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
On 4-cylinder EX models with lether
interior and EX-V6 models only
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures119
CENTER VENTS TAB
TABS
Close
Open
SIDE VENT
— —y y
( y
y
Page 117 of 380
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button, then set the
desired temperature by turning the
driver’s temperature control dial.
You will see AUTO in the system’s
display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit (60°F/18°C ‘‘ ’’)
or its upper limit (90°F/32°C
‘‘ ’’), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
In cold weather, the f an will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
Without Navigation System
121
RECIRCULATION BUTTON
OFF BUTTON TEMPERATURE DISPLAY
FAN CONTROL
BUTTONS
AUTO BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
— —y
y
( y
y
Page 118 of 380
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
You can manually select various
f unctions of the Climate Control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
of f , use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures122
RECIRCULATION BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
AIR CONDITIONING
(A/C) BUTTON
— —y
y
( y
y
Page 123 of 380
Û
Ý
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button. The
indicator in the button will light.
Then set the desired temperature by
pressing the temperature buttons:
to raise the temperature above the
displayed value, or to lower the
temperature.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit (60°F/18°C ‘‘ ’’)
or its upper limit (90°F/32°C
‘‘ ’’), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When the temperature is set between the lower and upper limits,
the system regulates the interior
temperature to the set value.
In cold weather, the f an will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
With Navigation System
Fully-automatic Operation
127
AUTO BUTTON
OFF BUTTON
RECIRCULATION
BUTTON
TEMPERATURE DISPLAY
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
— —y
y
( y
y
Page 124 of 380
Touching ‘‘ON’’ or ‘‘OFF’’ in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
You can manually select various
f unctions of the Climate Control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Some of
these f unctions appear in the A/C
display. Press the A/C button next to
the display to show these functions.
Making any manual selection causes
the indicator in the AUTO button to
go out.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the temperature
control buttons below the outside
temperature. With the A/C off, use
the temperature control buttons to
adjust the temperature of the air
flow to a comfortable setting.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Manual Operation

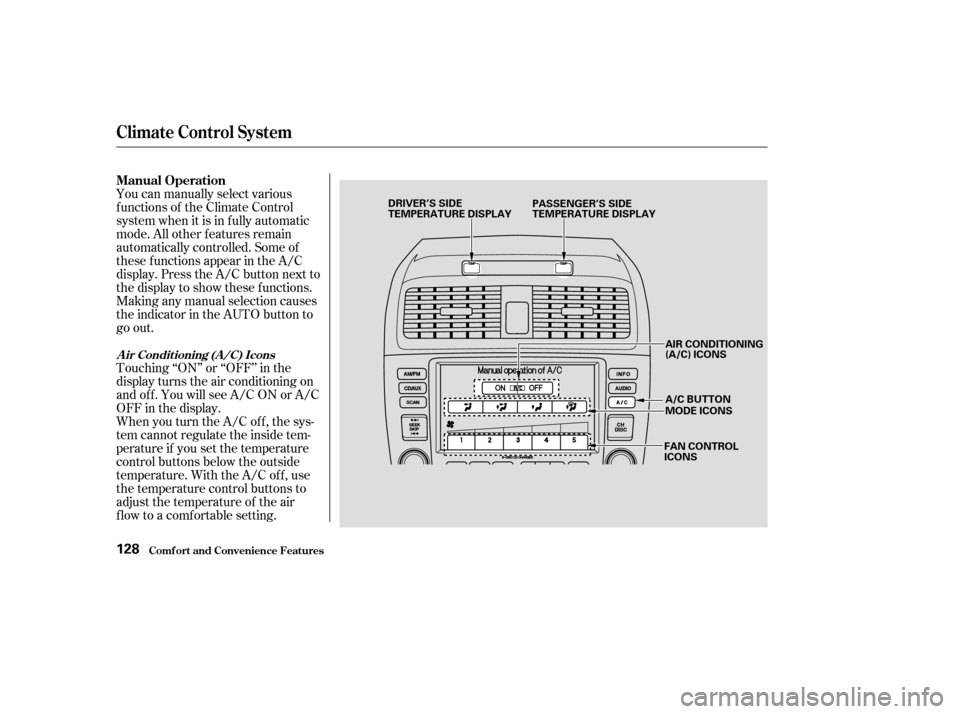

A ir Condit ioning (A /C) Icons
128
PASSENGER’S SIDE
TEMPERATURE DISPLAY
DRIVER’S SIDE
TEMPERATURE DISPLAY
AIR CONDITIONING
(A/C) ICONS
MODE ICONS
FAN CONTROL ICONS A/C BUTTON
— —y
y
( y
y
Page 128 of 380
ÛÝÛÝ
ÛÝ
Your car has f our temperature
control buttons on the climate
control panel, two f or the driver and
two f or the passenger. The driver’s
andpassenger’ssidescanbe
controlled independently by pushing
these buttons when the green
indicator in the DUAL button is lit.
Push AUTO or and the set
temperatures appear in the display.
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
pressing the or buttons on the
driver’s side.
To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then press the or buttons on
the driver’s side. To set the
passenger’s side to a dif f erent value
than the driver’s, press the or
buttons on the passenger’s side. You
can adjust the passenger’s side
without pressing the DUAL button
first.When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), it will be
displayed as ‘‘ ’’ or ‘‘ ’’.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures

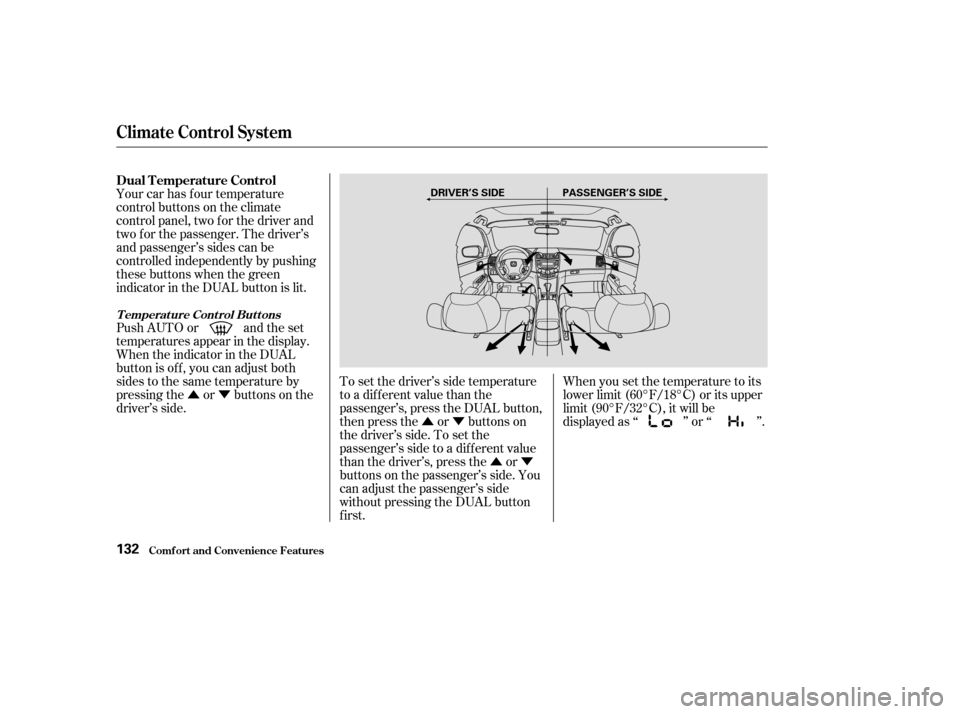

Dual Temperature Control
Temperature Control Buttons
132
DRIVER’S SIDE PASSENGER’S SIDE
— —y
y
( y
y
Page 129 of 380
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Sunlight Sensor/T emperature
Sensor
133
SUNLIGHT SENSORTEMPERATURE SENSOR
— —y
y
( y
y
Page 333 of 380
Turn of f all the electrical acces-
sories: climate control, stereo
system, lights, etc.
Put the transmission in Neutral or
Park, and set the parking brake.
Open the hood and check the
physical condition of the battery
(see page ). In very cold
weather, check the condition of
the electrolyte. If it seems slushy
or like ice, do not try jump starting
until it thaws.
To jump start your car, f ollow these
directions closely:
If your car’s battery has run down,
you may be able to start the engine
by using a booster battery. Although
this seems like a simple procedure,
you should take several precautions.
You cannot start a Honda with an
automatic transmission by pushing
or pulling it.1. 2.294
T aking Care of t he Unexpect ed
Jump Starting
342
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyonenearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
— —y y
( y y
Page 337 of 380
If the temperature gauge stays at
the red mark, turn of f the engine.
Wait until you see no more signs
of steam or spray, then open thehood.
If there was no coolant in the
reserve tank, you may also have to
add coolant to the radiator. Let the
engine cool down until the pointerreaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. This
releases any remaining pressure in
the cooling system. After the
pressure releases, push down on
the cap and turn it until it comes
off.
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page
). If the level is below the
MIN mark, add coolant to halfway
between the MIN and MAX marks. Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the f iller neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
ref illed with the proper mixture as
soon as you can.
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see
on page ). Put the radiator cap back on
tightly. Run the engine and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair. (See on page .)
4. 5.
6. 7. 8. 9.
11.12.10.
210 358
358
T aking Care of t he Unexpect ed
If Your Engine Overheats
Emergency
Towing
Emergency
Towing
346
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
— —yy
( y y
Page 357 of 380
µ
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate. The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
The tires on your car meet all U.S.
Federal Saf ety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to Department of
Transportation (DOT) standards.
The f ollowing explains these
gradings.
T echnical Inf ormation
Treadwear Traction AA, A, B, C
T readwear 200
Traction AA
Temperature A
Unif orm T ire Quality Grading
DOT T ire Quality Grading (U.S. Cars)
367
— —y
y
( y y
