Maint enance
4-cylinder Models
205
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km)
Every 3 years (independent of mileage)
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 160,000 miles (256,000 km)
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) Every 30,000 miles (48,000 km) or every 2 years, whichever comes firstEvery 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See dust and pollen filter on page for replacement information under special driving conditions.
See information on maintenance and emissions warranty, last column, page . 1016
2032 304840645080 70
112 80
128 90
144 100160 110176120192130208 140224150240
6096
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 241 )
Replace engine oil filter
Check front and rear brake wear
Lubricate all hinges, locks and latches
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
1:2: 202
235
1
2
Maintenance Schedule for Severe Conditions
— — y
y
(
y y
Page 205 of 301
Ì ÎÌ
Ì
Î
Maint enance
6-cylinder Models
206
Service the items listed at the indicated distance (or time, if given).
See information on maintenance and emissions warranty, last column, page .
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years. miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy Inspect every 165,000 miles (264,000 km)
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first 4572
3048 609675
120 90
144 105168120192 135216150240
1524
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 241 )
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
:: 202
Maintenance Schedule for Normal Conditions
— — y
y
(
y y
Page 206 of 301
Ì
Î ÎÎ Ì
Ì
Î
Î
ÌÎ
Maint enance
6-cylinder Models
207
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first Every 7,500 miles (12,000 km)
1524
30484572 75
120 150240
135216
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) 105168
6096 90
144 120192
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy Inspect every 165,000 miles (264,000 km)
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first
120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See timing belt on page for replacement information under special driving conditions. Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 241 )
Check front and rear brake wear
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid
:
1:2:
3: 223 202
235
1
2
3
Maintenance Schedule for Severe Conditions
— — y
y
(
y
y
Page 211 of 301
Fluid Locations
4-cylinder Models
Maint enance212

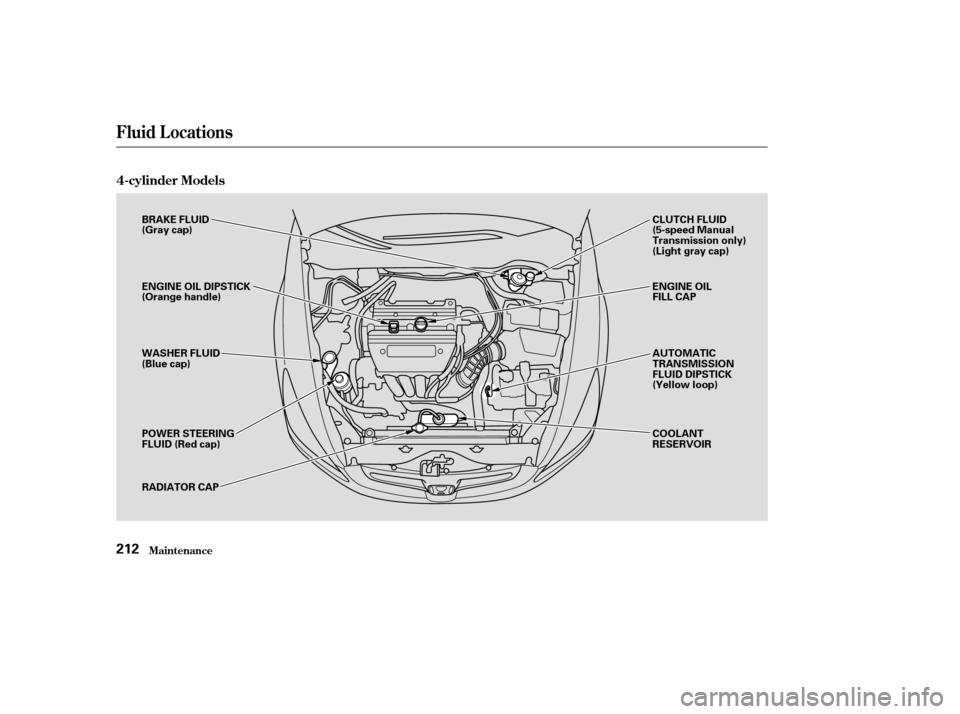

BRAKE FLUID
(Gray cap)
ENGINE OIL DIPSTICK
(Orange handle)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
RADIATOR CAPCLUTCH FLUID
(5-speed Manual
Transmission only)
(Light gray cap)
ENGINE OIL
FILL CAP
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
COOLANT
RESERVOIR
— — y
y
(
y
y
Page 212 of 301
Fluid Locations
6-cylinder Models
Maint enance213

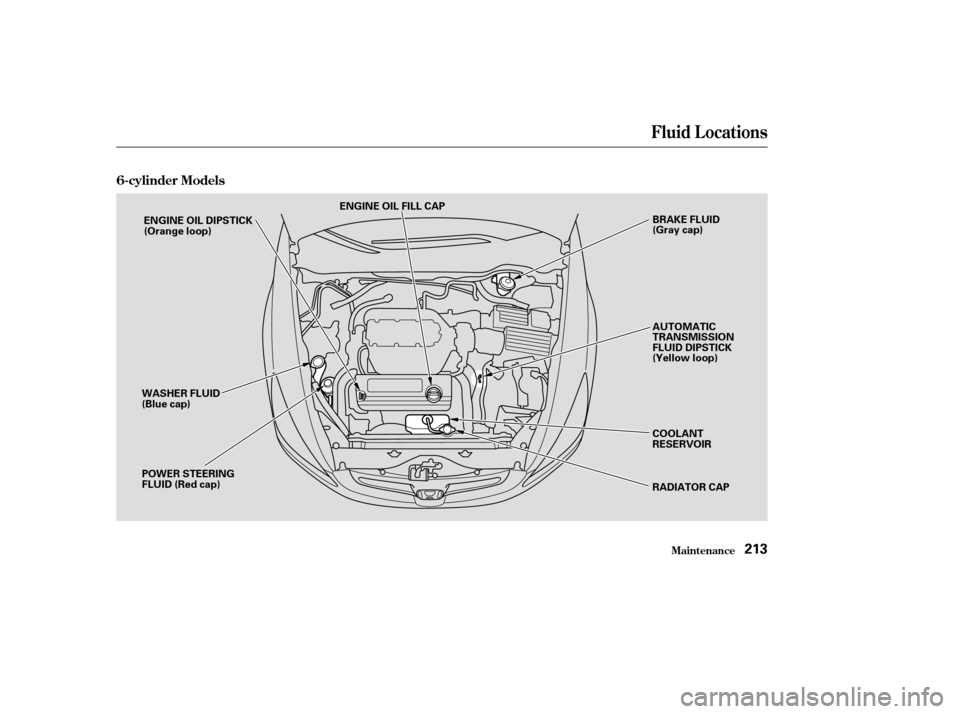

ENGINE OIL FILL CAPBRAKE FLUID
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
COOLANT
RESERVOIR
RADIATOR CAP
POWER STEERING
FLUID (Red cap)
WASHER FLUID
(Blue cap) ENGINE OIL DIPSTICK
(Orange loop)
— — y
y
(
y
y
Page 213 of 301
Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil f ill cap and
tighten it securely. Wait a f ew
minutes and recheck the oil level. Do
not f ill above the upper mark; you
could damage the engine.
A dding Engine Oil
Maint enance
Recommended Engine Oil
214

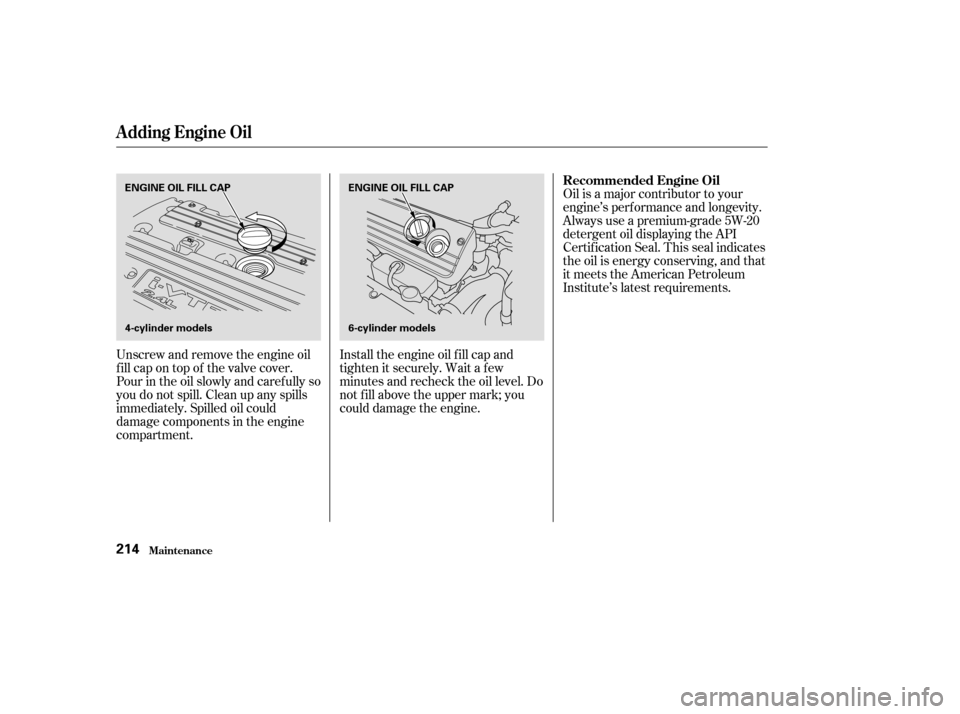

ENGINE OIL FILL CAP ENGINE OIL FILL CAP
6-cylinder models
4-cylinder models
— — y
y
(
y
y
Page 214 of 301
Honda Motor Oil is the pref erred
5W-20 lubricant f or your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
optimum engine protection. Make
sure the API Certif ication Seal says
‘‘For Gasoline Engines’’.The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is f ormulated f or year-
round protection of your Honda to
improve cold weather starting and
f uel economy.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals given on the maintenance
schedule.
Your Honda does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
A dding Engine Oil
Maint enance
Synthetic Oil
Engine Oil A dditives
215
API CERTIFICATION SEAL
Ambient Temperature
— — y
y
(
y
y
Page 215 of 301
Remove the oil f ilter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required.
Open the hood and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and f ilter
according to the recommendations in
the maintenance schedule. The oil
and f ilter collect contaminants that
can damage your engine if they are
not removed regularly.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
3.
2.
1.
Changing the Oil and Filter
Maint enance216
WASHER
4-cylinder models WASHER
6-cylinder models
OIL DRAIN BOLT
OIL DRAIN BOLT
— — y
y
(
y
y
Page 216 of 301
Install a new oil f ilter according to
the instructions that come with it.Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):
(4-cylinder models)
(6-cylinder models)Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine and check your work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
(6-cylinder models)
(4-cylinder models)
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Make sure to clean of f any dirt
and dust on the connecting
surf ace of a new oil f ilter. 9.
8.
7.
6.
4. 5.
Changing the Oil and Filter
Maint enance217

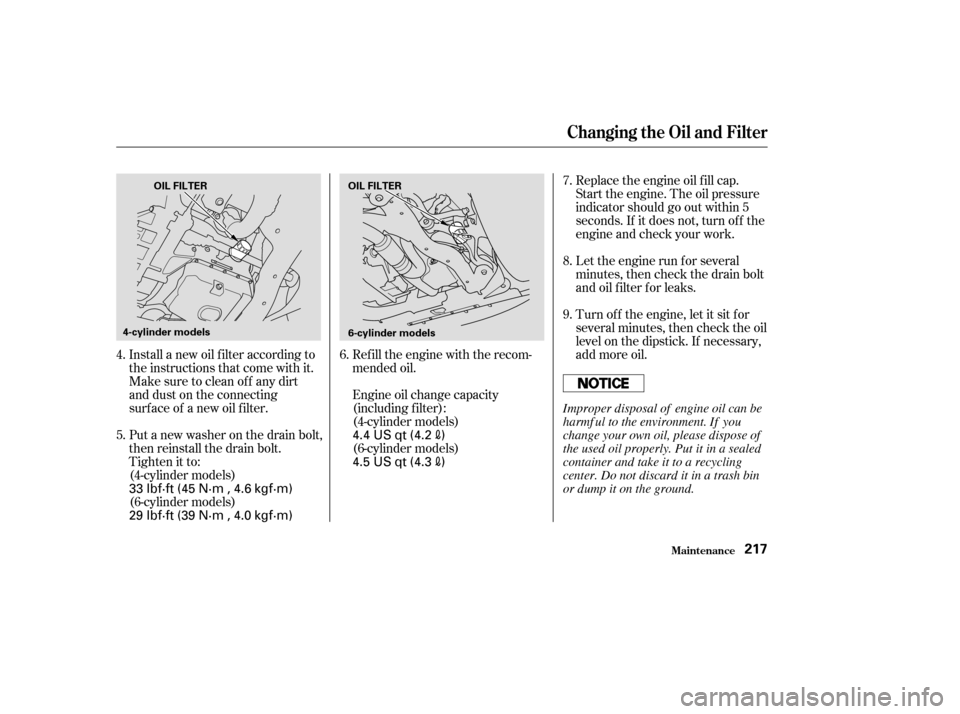

OIL FILTER
6-cylinder models
OIL FILTER
4-cylinder models
4.4 US qt (4.2)
4.5 US qt (4.3
)
29 lbf·ft (39 N·m , 4.0 kgf·m)
33 lbf·ft (45 N·m , 4.6 kgf·m) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
— — y
y
(
y y
Page 217 of 301
Check the level in the windshield
washer reservoir at least monthly
during normal use.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
The low washer
level indicator will light when the
level is low (see page ).
Check the reservoir’s f luid level by
removing the cap and looking at the
level gauge attached to the cap.
67
Canadian Models:
Windshield Washers
Maint enance218
NOTICE:
LEVEL GAUGE
4-cylinder models 6-cylinder models LEVEL GAUGE
Do not use engine antif reeze
or a vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
— — y
y
(
y
y
