key HONDA ACCORD 2005 CL7 / 7.G User Guide

µµ
µ
µ
CONT INUED
Press this button once to
lock both doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a beep to verify that the
doors are locked and (if equipped)
that the security system has set. You
cannot lock the doors if either door
is not f ully closed or the key is in the
ignition switch. You can also open both power
windows from outside the vehicle
with the remote transmitter (see
page ).
Press this
button f or about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch.
Pressthisbuttonfor
about 2 seconds to attract attention:
thehornwillsoundandtheexterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
Press this button once
to unlock the driver’s door. Push it
twice to unlock the passenger’s door.
Some exterior lights will f lash twice
each time you push the button.
The ceiling light (if the ceiling light
switch is in the center position) and
the spotlights (if the switch is in the
Door position) will come on when
you press the UNLOCK button. If
you do not open either door within
30 seconds, the lights f ade out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the lights will go of f
immediately.
If you do not open either door within
30 seconds, the doors automatically
relock, and the security system sets
(except f or 4-cylinder LX model).
You cannot unlock it if the key is in
the ignition switch. 90

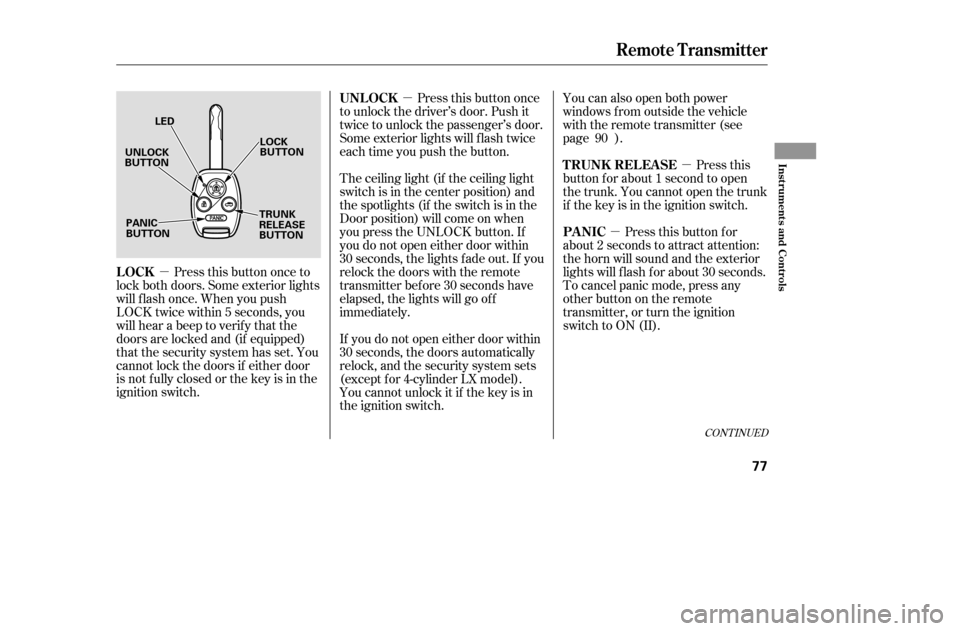

Remote Transmitter
LOCK
T RUNK REL EA SE
PA NIC
UNL OCK
Inst rument s and Cont rols
77
UNLOCK
BUTTON
LOCK
BUTTON
TRUNK
RELEASE
BUTTON
PANIC
BUTTON LED
——y

y
(%yy

Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
To replace the battery:
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616 Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover.
Separate the transmitter by prying
its middle seam with your
f ingernail.
1. 2. 3.
Remote Transmitter
Remote Transmitter CareReplacing the Transmitter
Battery
78
SCREW
TAB
BATTERY
——y
y
(%y
y

Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas f rom
getting into the interior. Seeon page .
To protect items in the trunk when
you need to give the key to someone
else: Lock the trunk release handle
with the master key.
Give the person the valet key. As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside. To open the trunk, push the
release lever to the lef t.
Parents should decide if their
children should be shown how to use
this f eature. For more inf ormation
about child saf ety, see page .
Youcanopenthetrunkintwoways:
Pull the trunk release handle to
the lef t of the driver’s seat.
Press and hold the trunk release
button on the remote transmitter.
To close the trunk, press down on
the trunk lid. 1. 2. 35
49
Trunk
Carbon
Monoxide Hazard Emergency T runk Opener
80
Pull
TRUNK RELEASE HANDLE MASTER
KEY
——y
y
(%yy

CONT INUED
When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt f rom
the guide.Do not put any heavy items on the
seat-back when it is folded.
To release the seat-back from inside
the trunk, pull the release under the
trunk panel. Push the seat-back
down, then let go of the release.
To lock the seat-back upright, push it
firmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.

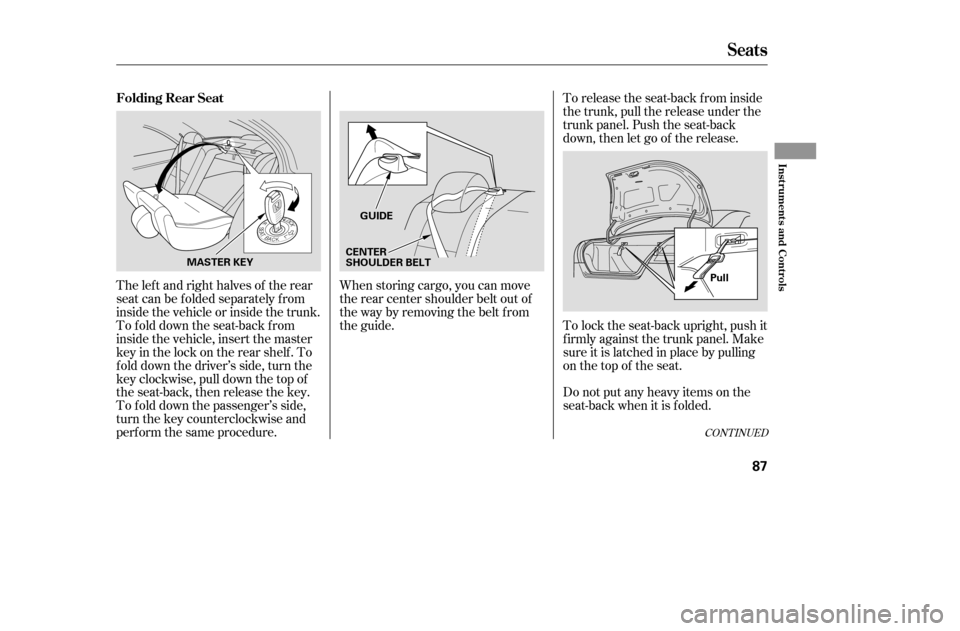

The left and right halves of the rear
seat can be folded separately from
inside the vehicle or inside the trunk.
To fold down the seat-back from
inside the vehicle, insert the master
keyinthelockontherearshelf.To
f old down the driver’s side, turn the
key clockwise, pull down the top of
the seat-back, then release the key.
To f old down the passenger’s side,
turn the key counterclockwise and
perf orm the same procedure.
Seats
Folding Rear Seat
Inst rument s and Cont rols
87
GUIDE
Pull
CENTER
SHOULDER BELT
MASTER KEY
——y
y
(%yy

To close the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3.
Turnthekeyclockwiseagain,and
hold it. Both windows start to open.
To stop the windows, release thekey.
To open the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3.
To close: Insert the key in the driver’s door
lock.
Turn the key counterclockwise
again, and hold it. Both windows
starttoclose.Tostopthewindows,
release the key.
Turn the key counterclockwise,
then release it.
Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.
To open:

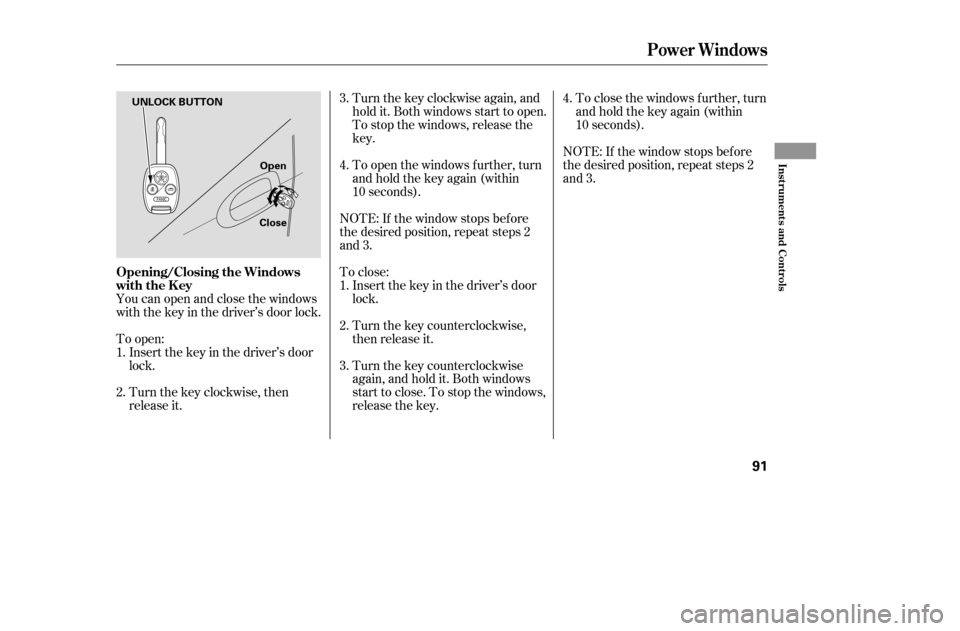

You can open and close the windows
with the key in the driver’s door lock.
1. 2.3.
4.
3.
4.
1.2.
Opening/Closing the Windows
with the Key
Power Windows
Inst rument s and Cont rols
91
UNLOCK BUTTON
Open
Close
——y
y
(%yy

To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the upper part of the
switch ( ). To open the
moonroof , press and hold the lower
part of the switch ( ).The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition switch. The
key-of f delay cancels as soon as you
open either door.

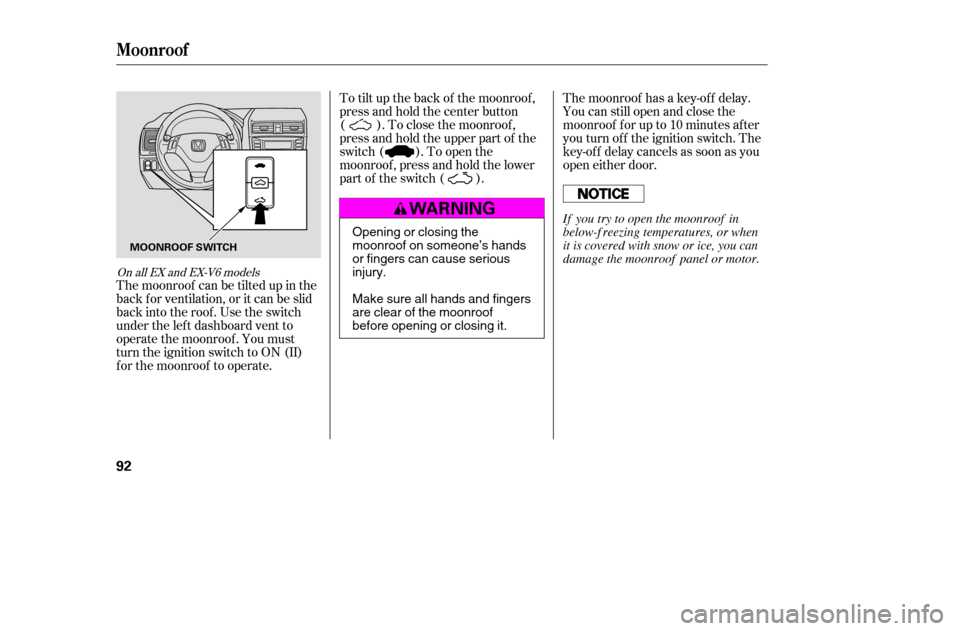

The moonroof can be tilted up in the
back f or ventilation, or it can be slid
back into the roof. Use the switch
under the lef t dashboard vent to
operate the moonroof . You must
turn the ignition switch to ON (II)
f or the moonroof to operate.
On all EX and EX-V6 models
Moonroof
92
MOONROOF SWITCH
Opening or closing the
moonroof on someone’s hands
or fingers can cause seriousinjury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
——y
y
(%yy

Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the door pocket beverage
holders when you open or close the
doors. Use only resealable
containers in the door pockets.
The glove box light comes on only
when the parking lights are on.
Glove Box
Beverage Holders
Interior Convenience Items
96
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
——y
y
(%yy

Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
Af ter both doors are closed tightly,
the light dims slightly, then f ades out
in about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
If you leave either door open without
the key in the ignition switch, the
ceiling light will go of f af ter 3
minutes.

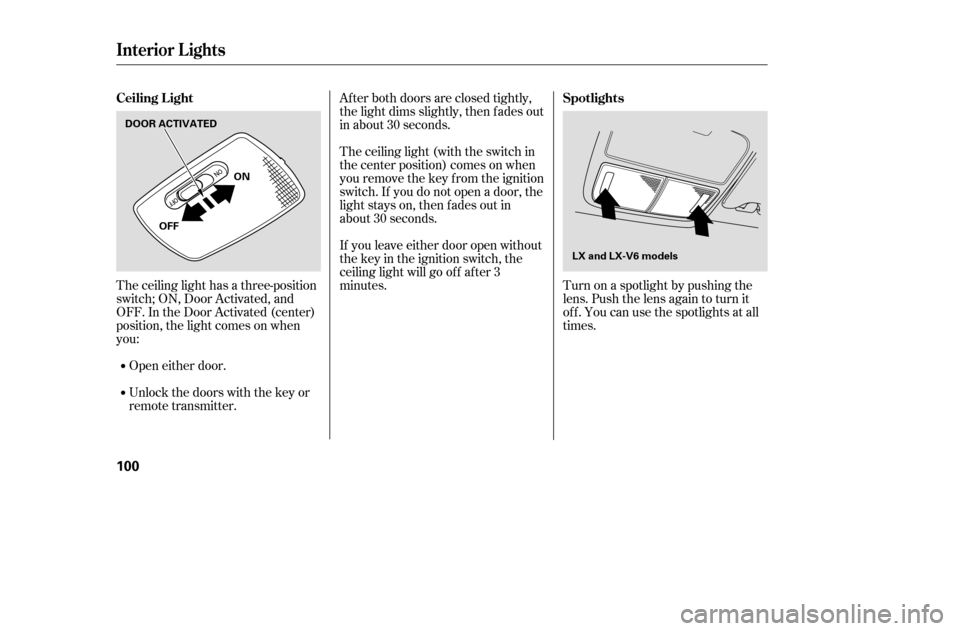

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
Open either door.
Unlock the doors with the key or
remote transmitter.
Interior Lights
Spotlights
Ceiling L ight
100
LX and LX-V6 models
OFF
DOOR ACTIVATED
ON
——y

y
(%y
y

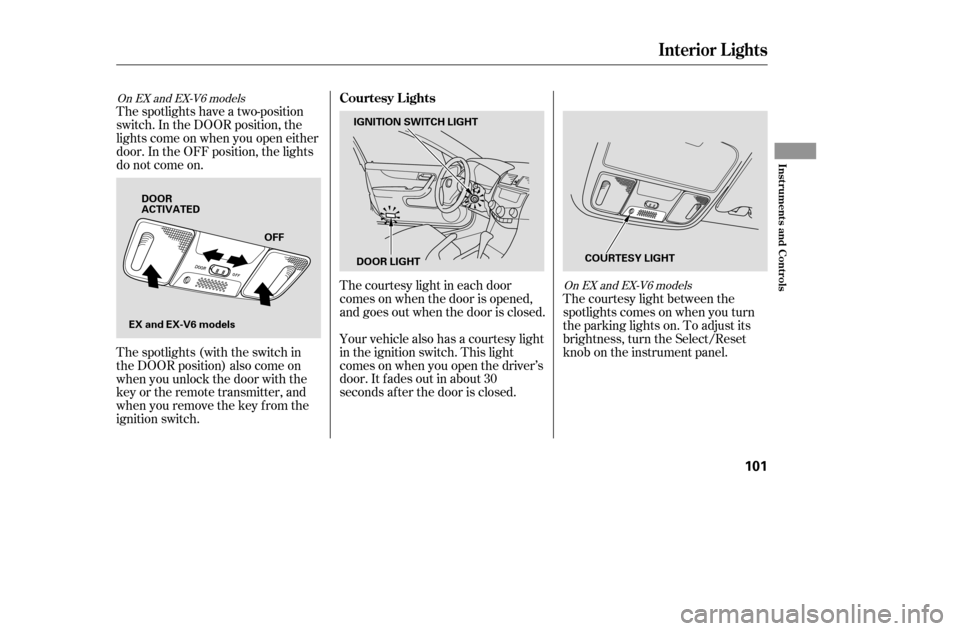

The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.
The courtesy light in each door
comes on when the door is opened,
and goes out when the door is closed.
Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyouopenthedriver’s
door. It f ades out in about 30
seconds af ter the door is closed.
The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open either
door. In the OFF position, the lights
do not come on.
The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.
On EX and EX-V6 models
On EX and EX-V6 models
Interior Lights
Courtesy Lights
Inst rument s and Cont rols
101
IGNITION SWITCH LIGHT
DOOR LIGHT COURTESY LIGHT
EX and EX-V6 models DOOR
ACTIVATED
OFF
——y

y
(%y
y

Once the security system is set,
opening either door without using
the key or the remote transmitter,
the hood, or the trunk will cause the
system to alarm. It also alarms if the
radio is removed f rom the dashboard
or the wiring is cut.With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk lock is f orced, or the trunk is
opened with the trunk release handle
or the emergency trunk opener.
The security system will not set if
the hood, trunk, or either door is not
f ully closed. If the system will not set,
check the door and trunk open
monitor on the instrument panel (see
page ), to see if the doors and the
trunk are f ully closed. Since it is not
part of the monitor display, manually
check the hood.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights, and taillights f lashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or 2 minutes, then
the system resets. To reset an
alarming system bef ore the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors f rom the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator on the instrument panel
starts blinking immediately to show
you the system is setting itself .
59
If equipped
Security System
Features
151
SECURITY SYSTEM INDICATOR
——y



y
(%y
y
