4-cylinder Models
202
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km)
Every 3 years (independent of mileage) Every 160,000 miles (256,000 km)
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
Every 30,000 miles (48,000 km) or every 2 years, whichever comes firstEvery 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years. 1016
2032 304840645080 70
112 80
128 90
144 100160 110176120192130208 140224150240
6096
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
See dust and pollen filter on page for replacement information under special driving conditions.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 241 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
See information on maintenance and emissions warranty, middle column, page .
:
1:2: 200
235
1
2
Maintenance Schedule for Severe Conditions
——y


y
(%yy

Ì ÎÌ
Ì
Î
6-cylinder Models
206
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy 4572
3048 609675
120 90
144 105168120192135216 150240
1524
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years. Every 3 years (independent of mileage)
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 165,000 miles (264,000 km)
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 241 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
See information on maintenance and emissions warranty, middle column, page .
:: 200
Maintenance Schedule for Normal Conditions
——y

y
(%yy

Ì
Î ÎÎ Ì
Ì
Î
Î
ÌÎ
6-cylinder Models
207
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first Every 7,500 miles (12,000 km)
1524
30484572 75
120 135216
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) 105168
6096 90
144 120192
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
See timing belt on page for replacement information under special driving conditions.
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See dust and pollen filter on page for replacement information under special driving conditions. Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 105,000 miles (168,000 km) or every 7 years, whichever comes first Every 165,000 miles (264,000 km)
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy 150240
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 241 )
Check front and rear brakes
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid
See information on maintenance and emissions warranty, middle column, page .
:
1:2:3: 235
226 200
1
2
3
Maintenance Schedule for Severe Conditions
——y


y
(%y
y

Fluid Locations
4-cylinder Models
Maint enance
211
BRAKE FLUID
(Gray cap)
ENGINE OIL DIPSTICK
(Orange handle)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
RADIATOR CAPAUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE OIL
FILL CAP
ENGINE
COOLANT
RESERVOIR
CLUTCH FLUID
(5-speed manual
transmission only)
(Light gray cap)
——y


y
(%y
y

Fluid Locations
6-cylinder Models
212
ENGINE OIL FILL CAPRADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap) BRAKE FLUID
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE
COOLANT
RESERVOIR
CLUTCH FLUID
(Gray cap)
(6-speed manual
transmission only)
——y


y
(%y
y

Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
If the level is below the lower
mark, remove the f ill plug and add
f luid to bring it to the upper mark.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient. To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1, then drive the
vehicle f or a short distance. Do this
three times. Then drain and ref ill the
transmission a f inal time.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
Make sure the notch fits in the
dipstick guide and the dipstick is
down all the way.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your dealer. Check the f luid level with the
transmission at normal operating
temperature and the vehicle
sitting on level ground. Remove
the transmission f iller bolt, and
caref ully f eel inside the bolt hole
with your f inger.
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
5.
6.
4.
CONT INUED
On 4-cylinder models
T ransmission Fluid
Manual Transmission
Maint enance
223

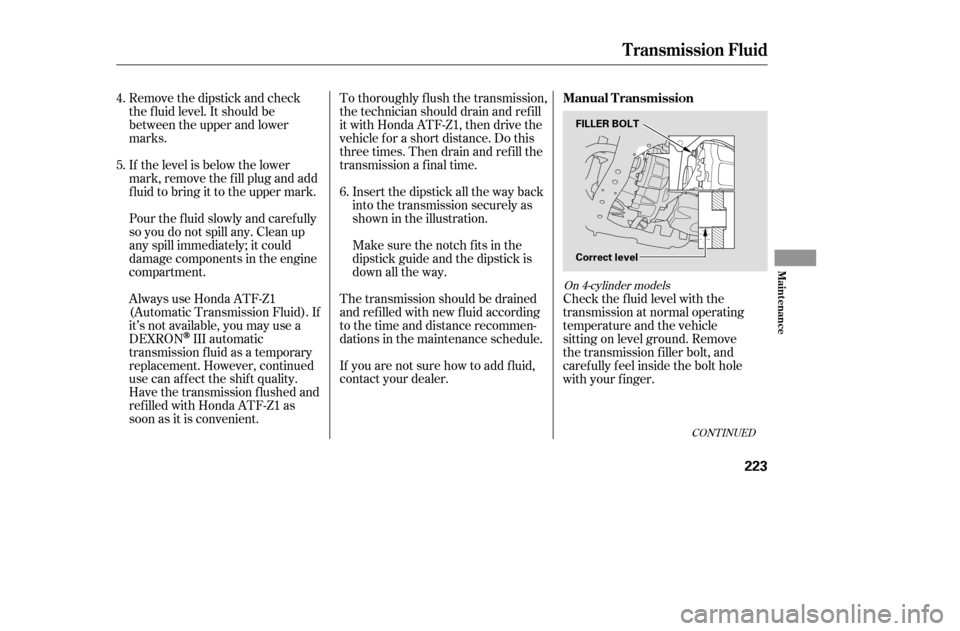

FILLER BOLT
Correct level
——y


y
(%yy

The f luid level should be up to the
edge of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole. Reinstall the f iller bolt, and
tighten it securely.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to check and
add f luid, contact your dealer.Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground.
Remove the check bolt and look for
transmission f luid coming out of the
bolt hole. If a small amount of f luid
drips out of the bolt hole, reinstall
the check bolt.
If no f luid comes out, remove the
f iller bolt. Slowly add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the check bolt
hole. Let the f luid run out until it
stops, then reinstall the check bolt
and the f iller bolt.
On EX-V6 model
T ransmission Fluid
Manual Transmission
224

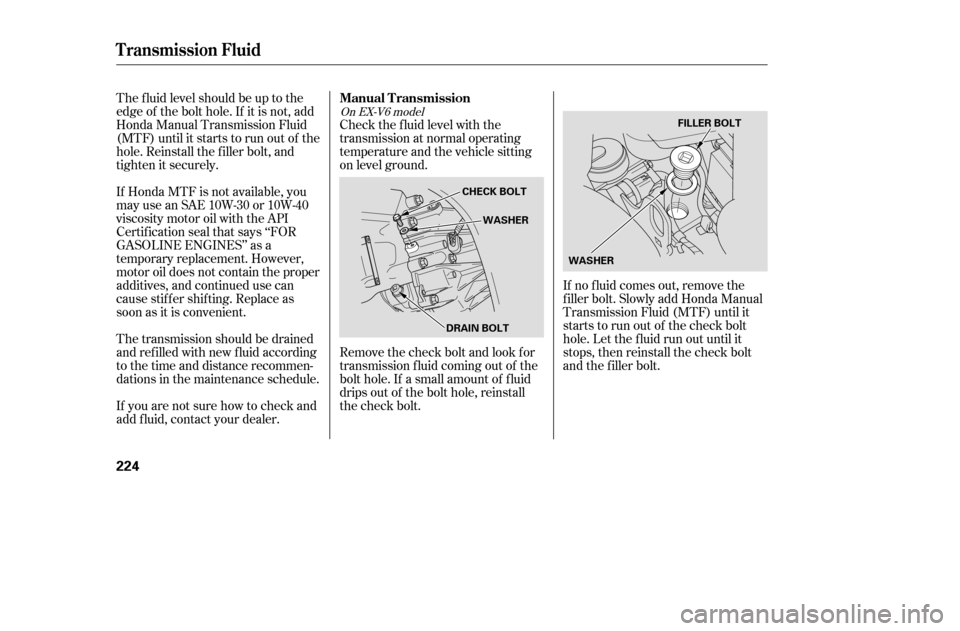

CHECK BOLT
WASHER
DRAIN BOLT FILLER BOLT
WASHER
——y


y
(%yy

Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to check and
add f luid, contact your dealer.
Pour the f luid into the f iller hole
slowly and caref ully so you do not
spill. Clean up any spill immediately;
it could damage components in the
engine compartment.
Replace the brake f luid according to
the time recommendation in the
maintenance schedule.Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Transmission Fluid, Brake and Clutch Fluid
Brake and Clutch Fluid
Maint enance
225
——y



y
(%yy

Remove the electrical connector
fromthebulbbysqueezingthe
connector to unlock the tab, then
slide the connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender. Pull the inner f ender cover away
f rom the f ender and bumper.
To change the low beam headlight
bulb on the driver’s side, remove
the air intake duct. You can reach
the air intake duct f rom the back
side of the inner f ender.
6.
5.
4.
1. 2. 3.
On EX-V6 model with manual
transmission
Lights
L ow Beam Headlight
230

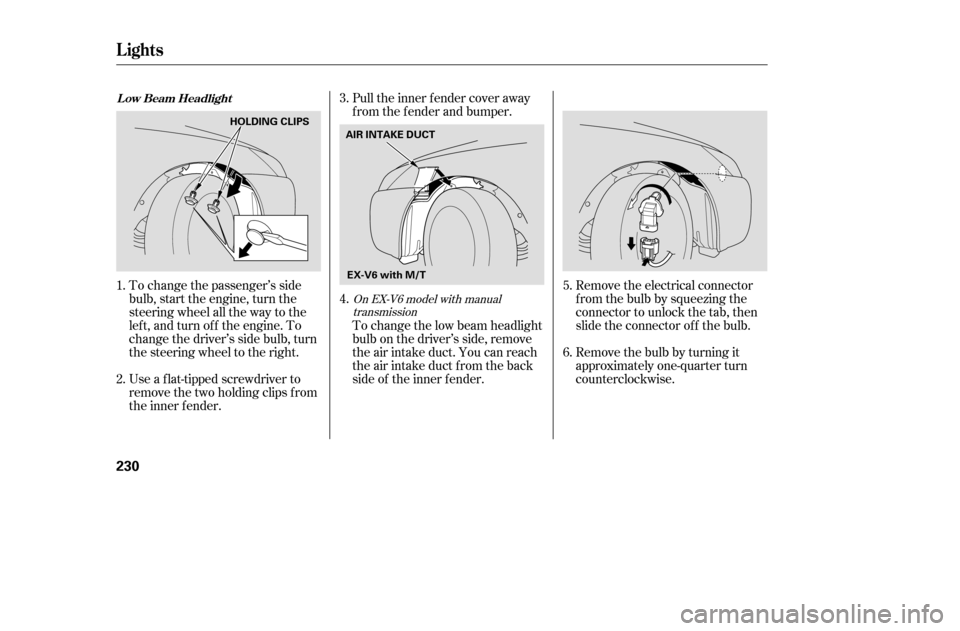

AIR INTAKE DUCT
EX-V6 with M/T
HOLDING CLIPS
——y


y
(%yy

Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Install the new bulb and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
Reinstall the air intake duct
securely.
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
1.
3.
2. 4.
9.
7.
8.
10. 11.
CONT INUED
On EX-V6 model with manual transmission
Lights
Replacing a Front T urn Signal/
Parking/Side Marker Light Bulb
Maint enance
231
HOLDING CLIPS
——y



y
(%yy
