Push the electrical connector onto
the bulb.To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Remove the electrical connector
fromthebulbbysqueezingthe
connector to unlock the tab, then
slide the connector of f the bulb.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
Turn on the headlights to test the
new bulb.
Reinstall the air intake cover.
Reinstall the two fasteners and
secure them by pushing on the
heads until they lock.
6.
5.
3. 4. 5.
1. 2.
7.
Lights
L ow Beam Headlight
220
HOLDING CLIPS
TAB BULB
6-cylinder models BULB
——y

y
(yy

Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Put the inner f ender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
Turn on the headlights to test the
new bulb.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
1.
3.
2. 4.
8.
7.
6. 9.
CONT INUED
Lights
Replacing the Front Side Marker/
Turn Signal and Parking L ightBulb
Maint enance
221
HOLDING CLIPS
BULB
——y
y
(yy

To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
Install the new bulb and turn it
clockwise to lock it in place.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter.
Testthenewbulbtomakesureit
works.
Set the lining back.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Open the trunk.
Remove the holding clips f rom the
lining by using a f lat-tipped
screwdriver.
Testthenewbulbtomakesureit
works.
5. 6. 7. 8. 9.
2.
1.
4.
3. 5. 6.
Lights
Replacing Rear T urn Signal L ight Bulbs
222
HOLDING CLIPS
BULB
SOCKET
——yy
(yy

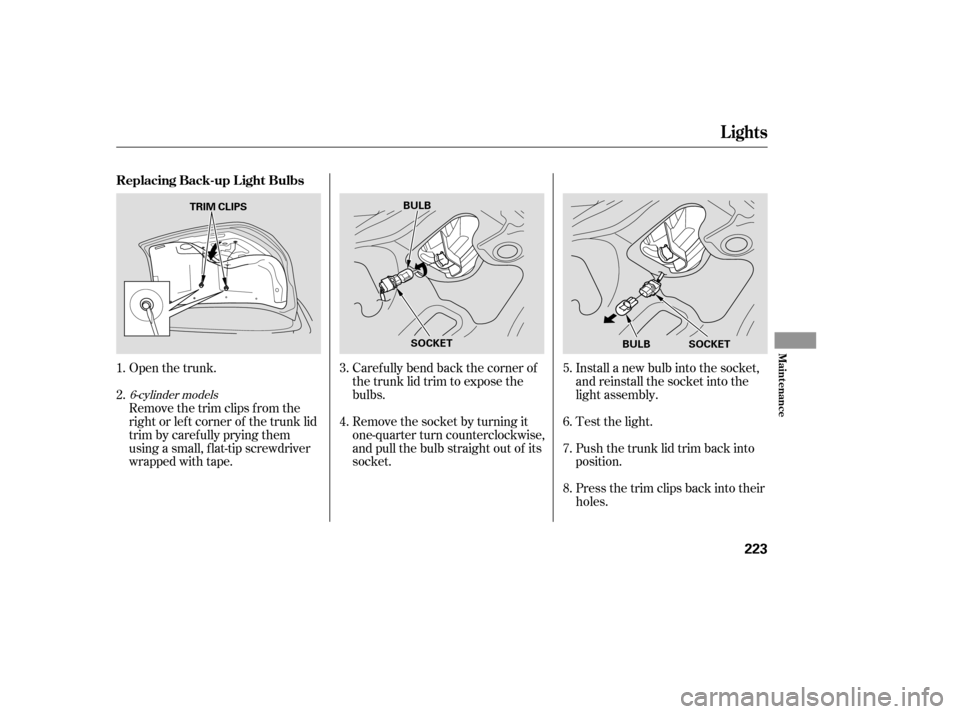

Open the trunk.
Remove the trim clips f rom the
right or lef t corner of the trunk lid
trim by caref ully prying them
using a small, f lat-tip screwdriver
wrapped with tape.Caref ully bend back the corner of
the trunk lid trim to expose thebulbs.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.Install a new bulb into the socket,
and reinstall the socket into the
light assembly.
Test the light.
Push the trunk lid trim back into
position.
Press the trim clips back into their
holes.
1.
3.
2.
4.5. 6. 7. 8.
6-cylinder models
Lights
Replacing Back-up L ight Bulbs
Maint enance
223
TRIM CLIPS
BULB
SOCKET SOCKET
BULB
——yy
(yy

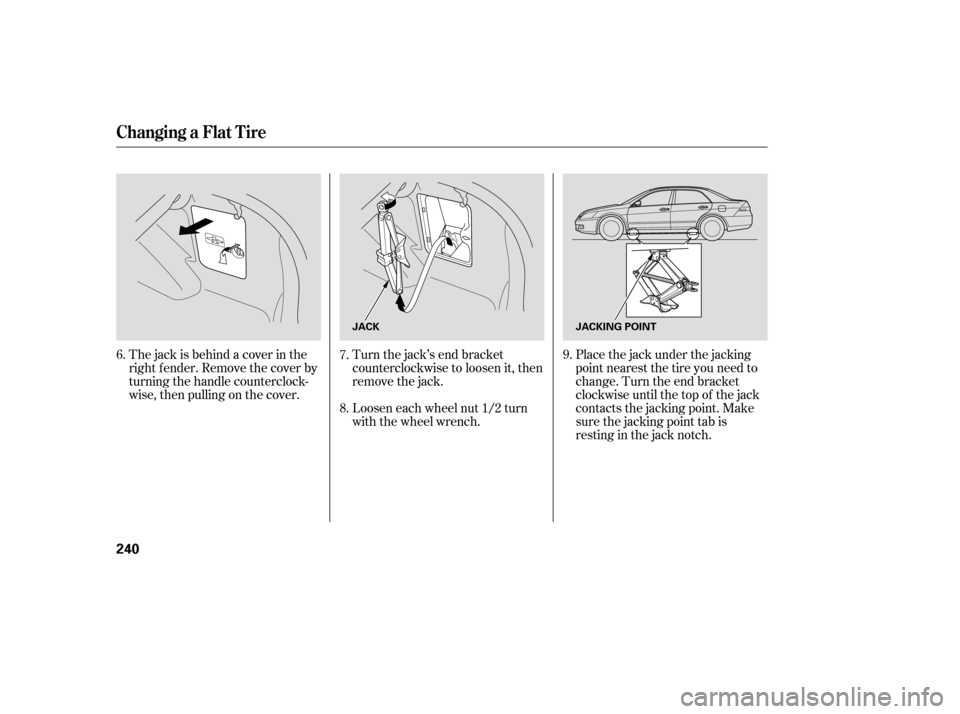

The jack is behind a cover in the
right f ender. Remove the cover by
turning the handle counterclock-
wise, then pulling on the cover.Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
Loosen each wheel nut 1/2 turn
with the wheel wrench.Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
6.
7. 8.9.
Changing a Flat T ire
240
JACK
JACKING POINT
——yy
(yy

Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off.
Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the f iller neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
ref illed with the proper mixture as
soon as you can.Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If you do not f ind an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.
7.
6.
8. 9.10. 11.
255
Emergency
Towing
If theEngineOverheats
T aking Care of t he Unexpect ed
249
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
——yy
(yy

.......................................
