Page 28 of 281
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor and the f ront
passenger’s weight sensors to
make sure they are operating
properly.
However, if the indicator comes on
with no passenger in the f ront, or
with an adult in the seat, there may
be a problem with the advanced
airbag system. Have the vehicle
checked by the dealer as soon as
possible.
If no one is riding in the f ront seat,
the airbag will be automatically shut
of f . However, the indicator will not
come on.
The passenger airbag of f indicator
may also come on and of f repeatedly
if total weight on the seat is near the
airbag cutof f threshold.
If this happens, have the passenger
ride properly restrained in a back
seat. If the passenger must ride in
front, move the seat as far to the
rear as possible, have the passenger
sit upright and wear the seat belt
properly. Your airbag systems are virtually
maintenance f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
f ront airbag inf lates, the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by your dealer or a
knowledgeable body shop. Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Additional Inf ormation About Your Airbags
If your vehicle has a moderat e t o
severe impact .
An airbag ever inf lates. T he SRS indicat or alert s you t o a
problem.
Airbag Service
32
— — y y
( y y
Page 58 of 281
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
145
145 193
75
207Only on models equipped with Cruise Control System
Only on models equipped with CruiseControl System
Canadian models only
Immobilizer System
Indicator
Cruise Control Main
Indicator Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
— — y
y
( y y
Page 150 of 281

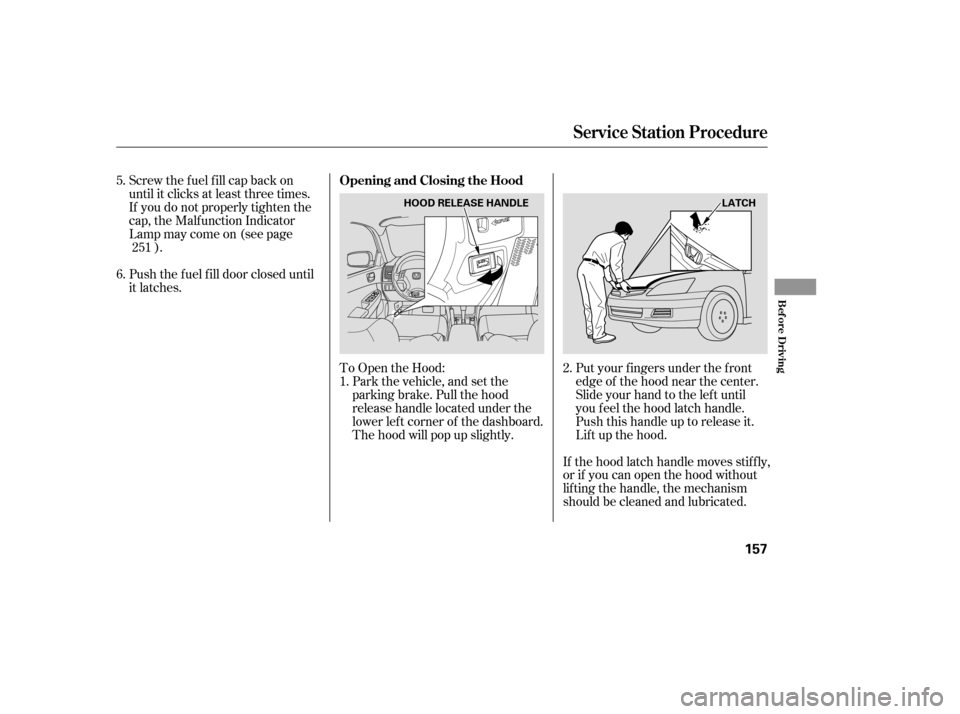

To Open the Hood:Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malf unction Indicator
Lampmaycomeon(seepage
).
Push the f uel f ill door closed until
it latches.
Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to the lef t until
you f eel the hood latch handle.
Push this handle up to release it.
Lif t up the hood.
If the hood latch handle moves stif f ly,
or if you can open the hood without
lifting the handle, the mechanism
should be cleaned and lubricated.
1.
2.
5. 6.
251 Opening and Closing the Hood
Service Station Procedure
Bef ore Driving
157
HOOD RELEASE HANDLE
LATCH
— — y y
( y
y
Page 184 of 281
CONT INUED

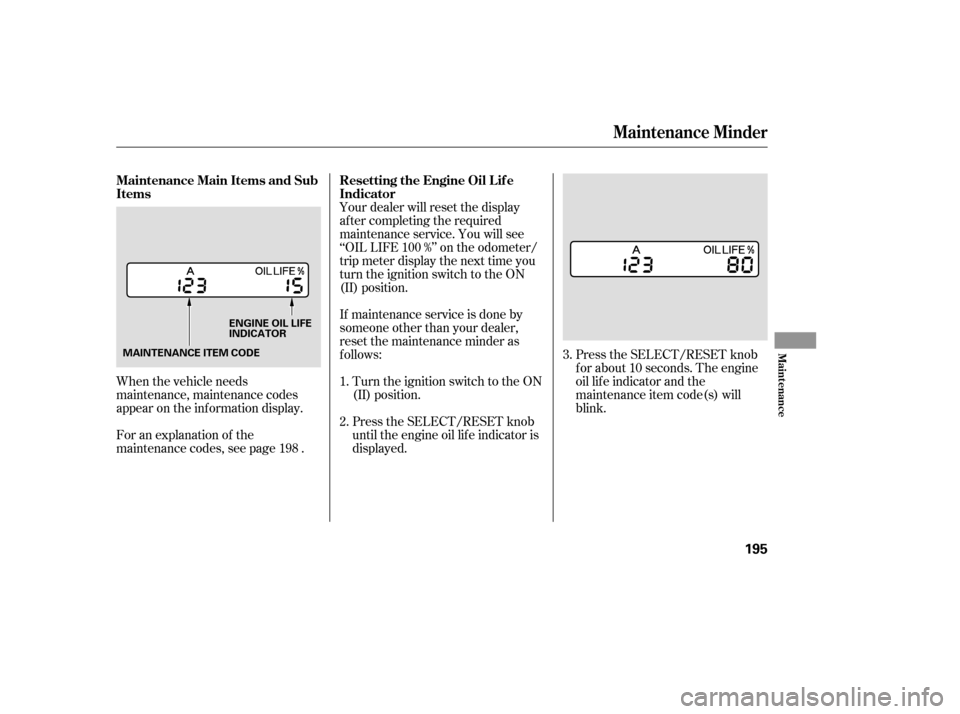

Your vehicle displays engine oil lif e
and maintenance service items in the
inf ormation display to show you
when you should have your dealer
perf orm engine oil replacement and
indicated maintenance service.To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and push and release
the SELECT/RESET knob on the
instrument panel 3 times.If the oil lif e is 15 to 6 percent, you
will see the oil lif e indicator f or
several seconds every time you turn
the ignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil lif e indicator.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage.
Maintenance Minder
Engine Oil L if e Indicator
Maint enance
193
MAINTENANCE ITEM CODE
ENGINE OIL LIFE
INDICATOR
MAINTENANCE MINDER
INFORMATION DISPLAY
— — y
y
( y
y
Page 185 of 281
µ
When the remaining engine oil lif e is
5 to 1 percent, you will see a
‘‘SERVICE OIL LIFE’’ message in
the odometer/trip meter display,
along with the same maintenance
item code(s), every time you turn the
ignition switch to the ON (II)
position. When the engine oil lif e is 0 percent,
the ‘‘0’’ indicator will blink. When
you see this message, have the
indicated maintenance perf ormed by
your dealer as soon as possible. The
display shows ‘‘0 %’’ until you drive 10
miles (U.S. models) or 10 km
(Canadian models).The display shows ‘‘ 10’’ when you
have driven 10 miles or 10 km.
Af terward, it shows your driving
distance if you continue to drive.
Maintenance Minder
194
— — y y
( y
y
Page 186 of 281
Press the SELECT/RESET knob
f or about 10 seconds. The engine
oil lif e indicator and the
maintenance item code(s) will
blink.
Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100 %’’ on the odometer/
trip meter display the next time you
turn the ignition switch to the ON
(II) position.
When the vehicle needs
maintenance, maintenance codes
appear on the inf ormation display.
For an explanation of the
maintenance codes, see page . Press the SELECT/RESET knob
until the engine oil lif e indicator is
displayed.
Turn the ignition switch to the ON
(II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows: 3. 1. 2.
198 Resetting the Engine Oil Lif e
Indicator
Maintenance Main Items and Sub
Items
Maintenance Minder
Maint enance
195
ENGINE OIL LIFE
INDICATOR
MAINTENANCE ITEM CODE
— — y y
( y
y
Page 187 of 281
Press the SELECT/RESET knob
f or more than 5 seconds. The
maintenance items code(s) will
disappear, and the engine oil lif e
indicator will reset to ‘‘100.’’If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Your authorized Honda dealer
knows your vehicle best and can
provide competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
We recommend the use of Honda
parts and f luids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their performance and durability.
4.
Maintenance Minder
Important Maintenance
Precautions
196
— — y
y
( y
y
Page 241 of 281
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.

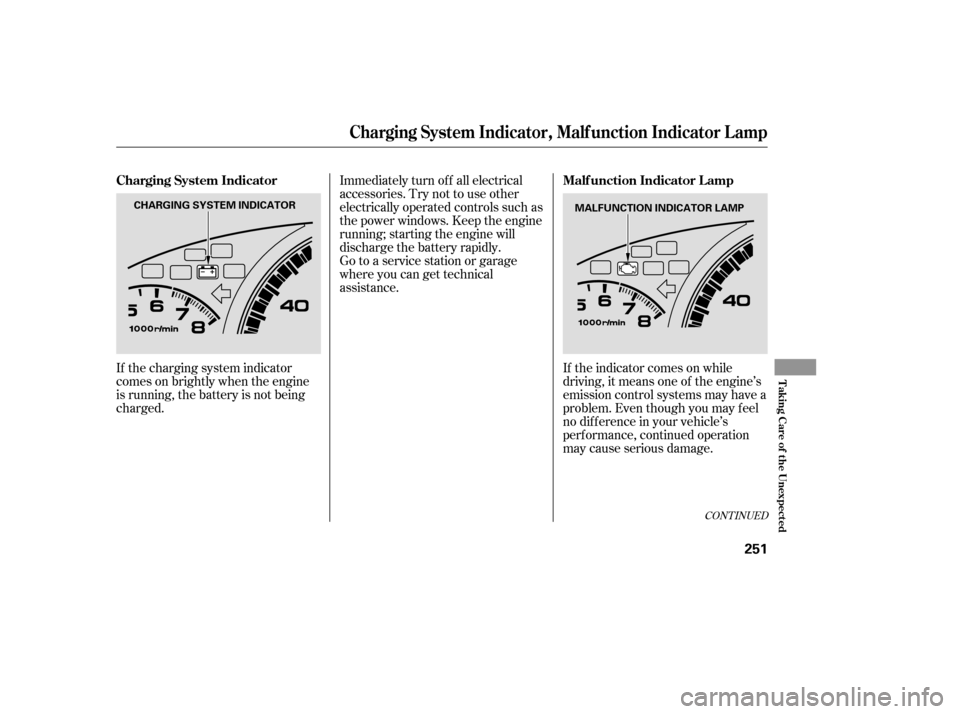

If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged. If the indicator comes on while
driving, it means one of the engine’s
emission control systems may have a
problem. Even though you may f eel
no dif f erence in your vehicle’s
perf ormance, continued operation
may cause serious damage.
CONT INUED
Malf unction Indicator L amp
Charging System Indicator
Charging System Indicator, Malf unction Indicator L amp
T aking Care of t he Unexpect ed
251
CHARGING SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
— — y
y
( y y
Page 243 of 281
However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.If the ABS indicator comes on with
this indicator, have the vehicle
inspected by your dealer
immediately.
If this indicator comes on while
driving, the brake f luid level is
probably low in the reservoir. Press
lightly on the brake pedal to see if it
f eels normal. If it does, check the
brake f luid level the next time you
stop at a service station (see page
). If the f luid level is low, take
the vehicle to your dealer and have
the brake system inspected f or leaks
or worn brake pads. If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
215 255
Emergency
Towing
Brake System Indicator
T aking Care of t he Unexpect ed
253
BRAKE SYSTEM INDICATOR
U.S. models shown
— — y y
( y y
Page 272 of 281
.......................................
Child Seats . 34
...........
Lower Anchorage Points . 43
..........
Tether Anchorage Points . 47
..............
Climate Control Sensors . 113
.........................
Clock, Setting the . 143
...................................
Clutch Fluid . 216
........................
CO in the Exhaust . 274
............
Cold Weather, Starting in . 169
..............................
Compact Spare . 238
...................
Console Compartment . 99
.................
Consumer Inf ormation . 280
.............
Controls, Instruments and . 55
Coolant
........................................
Adding . 208
....................................
Checking . 160
.........................
Proper Solution . 208
...................
Temperature Gauge . 65
Crankcase Emissions Control ........................................
System . 274
............
Cruise Control Operation . 145
.............
Customer Service Of f ice . 280
................
DANGER, Explanation of . ii
...................................
Dashboard . 4, 56 ................
Daytime Running Lights . 70
............
Def ects, Reporting Saf ety . 282
................
Def ogger, Rear Window . 72
....................................
Dimensions . 266
...............
Dimming the Headlights . 69
Dipstick
.
Automatic Transmission . 210, 211
..................................
Engine Oil . 159
..........................
Directional Signals . 69
........
Disc Brake Wear Indicators . 179
.....................
Disposal of Used Oil . 206
Doors
..............
Locking and Unlocking . 77
..........
DOT Tire Quality Grading . 269
Downshif ting, Manual
.............................
Transmission . 170
...........
Driver and Passenger Safety . 7
...........................................
Driving . 167
....................................
Economy . 161
..........
Dual Temperature Control . 111
..............................
Economy, Fuel . 161
............
Emergencies on the Road . 237
.............
Battery, Jump Starting . 245 ...........
Brake System Indicator . 253
................
Changing a Flat Tire . 239
.....
Charging System Indicator . 251
..................
Checking the Fuses . 257
.....
Low Oil Pressure Indicator . 250
...
Malf unction Indicator Lamp . 251
...
Manually Closing Moonroof . 254
..................
Overheated Engine . 248
...........................
Emergency Brake . 95
......................
Emergency Flashers . 71
......................
Emergency Towing . 255
.......................
Emissions Controls . 274Engine
....
Coolant Temperature Gauge . 65
Malf unction Indicator
......................................
Lamp . 251
.......................
Oil Lif e Indicator . 193
..............
Oil Pressure Indicator . 250
..............
Oil, What Kind to Use . 203
...............................
Overheating . 248
............................
Specif ications . 266
....................
Speed Limiter . 172, 175
.......................................
Starting . 169
..........
Engine Speed Limiter . 172, 175
.
Evaporative Emissions Controls . 274
...............................
Exhaust Fumes . 52
Index
D E
II
— — y
y
( y y
