Page 168 of 435
Most audio system f unctions can be
controlled by standard buttons, bars,
and knobs. In addition this, you can
access some f unctions by using the
selector knob on the audio system.The knob turns lef t and right. Use it
to scroll through lists, to make
selections or adjustments to a list or
menu item on the display. When you
make a selection, push the center of
the selector (ENTER) to go to that
selection.
When the audio system is in XM
satellite radio mode or playing discs,
pushing the selector (ENTER) knob
switches the display between the
normal display and the extended
display. The extended display has
three segments to display the
detailed inf ormation.
To select any setting such as a clock,
sound adjusting, or the compass (if
equipped), press the MENU button
with the ignition switch in the
ACCESSORY (I) or ON (II) position.
You can select the item by turning
the selector knob. To go back to the
previous display, press the RETURN
button.
Pressing the MENU button again
will also cancel the menu display
mode.
Audio System (EX, EX-L and V6 models without navigation system)
Selector K nob
Menu Display
Features
149
SELECTOR KNOBMENU
BUTTON
RETURN
BUTTON
— —
y
y
) y
y
Page 169 of 435

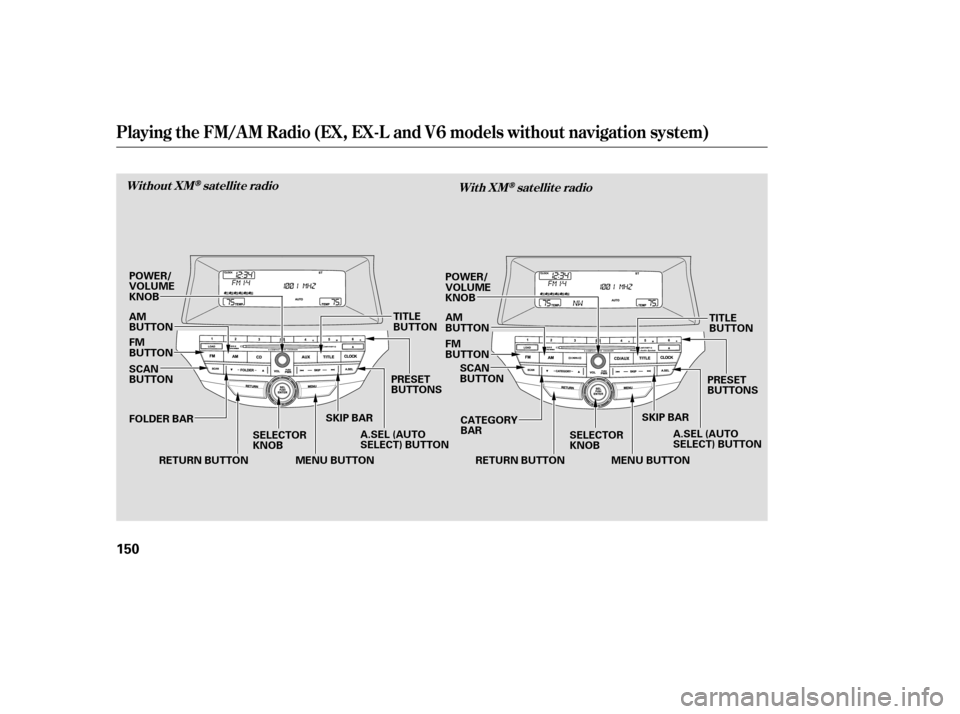

Playing the FM/AM Radio (EX, EX-L and V6 models without navigationsystem)
Without XMsatellite radio
With XMsatellite radio
150
SKIP BAR
SELECTOR KNOB PRESET
BUTTONS
RETURN BUTTON A.SEL (AUTO
SELECT) BUTTONSCAN
BUTTON
MENU BUTTONSKIP BAR
SELECTORKNOB PRESET
BUTTONS
RETURN BUTTON
CATEGORY
BAR
A.SEL (AUTO
SELECT) BUTTON
TITLE
BUTTON
TITLE
BUTTON
MENU BUTTON
FM
BUTTON
SCAN
BUTTON
FOLDER BAR
POWER/
VOLUMEKNOB AM
BUTTON
POWER/
VOLUMEKNOB AM
BUTTON FM
BUTTON
— —
y
y
) y
y
Page 174 of 435
Î
Î
The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press and release the SCAN button.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal in the selected
RDS category. You will also see the
selected RDS category name
blinking while searching it. When it
f inds one, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station. You can use the RDS program
search or scan f unction even if the
PS name display f unction is of f . In
this case, the display shows a
f requency in place of a PS name.
Press the MENU button to display
the sound settings. Turn the selector
knob to select an appropriate setting:
bass, treble, fader, balance, SUBW
(subwoof er) and SVC (speed-
sensitive volume compensation).
Press the selector (ENTER) knob to
enter the setting, then turn the
selector knob to adjust the setting.If equipped
:
CONT INUED
Playing the FM/AM Radio (EX, EX-L and V6 models without navigation system)
RDS Program SCANAdjusting the Sound
Features
155
Selector knob adjustable
direction is shown.
FADER is selectable.
— —
y
y
) y
y
Page 175 of 435
µµ
µ
µ µ
µ
Adjusts the bass. The SVC has f our modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the selector knob to
adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high.
This f unction is set to MID as the
def ault setting when the vehicle
leaves the factory.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble. Adjusts the strength of
sound f rom the subwoof er speaker.
Adjusts the volume level
basedonthevehiclespeed.
Eachmodeisshowninthedisplayas
it changes. Turn the selector knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display.
To return to the normal playing,
push the RETURN or MENU button
af ter you stop adjusting a mode.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases. 72
If equipped
Playing the FM/AM Radio (EX, EX-L and V6 models without navigation
system)
BASSA udio System L ighting
BAL ANCE
FADER
TREBLE SUBW
SVC
Speed-sensit ive Volume
Compensat ion (SVC)
156
SUBWOOFER is selectable.
— —y
y
) y
y
Page 176 of 435
CONT INUED

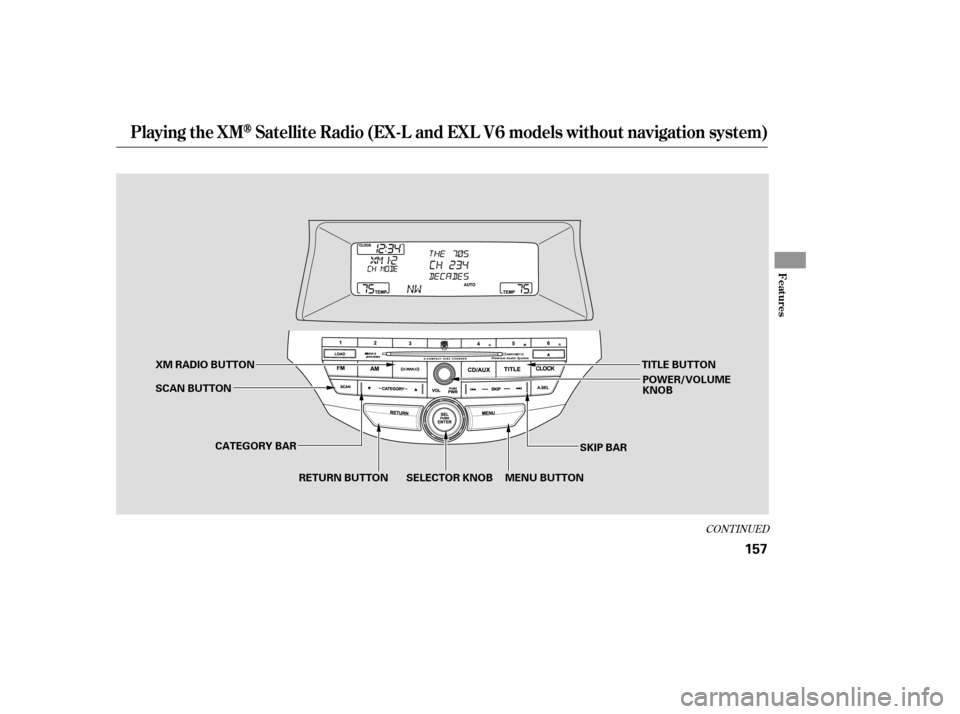

Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system)
Features
157
CATEGORY BAR
SKIP BAR
XM RADIO BUTTON
MENU BUTTON
RETURN BUTTON SELECTOR KNOB
SCAN BUTTON
POWER/VOLUME KNOB
TITLE BUTTON
— —
y
y
) y
y
Page 177 of 435
µ
To listen to XM satellite radio, turn
the ignition switch to the
ACCESSORY (I) or ON (II) position,
and press the button. The
last channel you listened to will show
in the display. Adjust the volume by
turning the power/volume knob.
To switch between
channel mode and category mode,
press and hold the TITLE button
until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
Your vehicle is capable of receivingXM
Satellite Radio anywhere in the
United States, and Canada, except
Hawaii and Alaska. XM
is a
registered trade mark of XM
Satellite Radio, Inc.
XM satellite radio receives signals
f rom two satellites to produce clear,
high-quality digital reception. It
of f ers many channels in several
categories. Along with a large
selection of dif f erent types of music,
XM satellite radio allows you to view
channel and category selections in
the display. Each time you press and release the
TITLE button, the display changes in
the f ollowing sequence: name, title,
and category.
You can also change the mode from
the menu items. Press the MENU
button to display the menu items,
then turn the selector knob to select
MODE/CATEGORY and press the
selector knob (ENTER). Each time
you press and release the selector
knob (ENTER), the display changes
between CHANNEL and
CATEGORY. To enter the setting,
press the TITLE button.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system
)
Operating the Satellite Radio
MODE
158
— —
y
y
) y
y
Page 178 of 435
µÝÛµ
µ
CONT INUED
The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Press
either side of the CATEGORY bar to
select another category.
You can also select a channel or
category from the list by using the
selector knob. Push the selector
knob (ENTER) to switch the display
to the list displayed with three
segments, then turn the knob to
select a channel or category. Press
the selector knob (ENTER) to set
your selection.
Turn the selector knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system )
SCAN
CAT EGORY ( or )
TUNE
Features
159
Channel list is shown.
— —
y
y
) y
y
Page 179 of 435
µµ
µ
µ µ
µ µ
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the button. Either
XM1 or XM2 will show in the
display.
Use the selector knob, or the
CATEGORYbarorSCANbutton
to tune to a desired channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep. Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally. The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
3. 4. 5.
2.
1.
Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system
)
Preset
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’‘‘NO SIGNA L ’’
‘‘----’’
‘‘A NT ENNA ’’
160
— —
y
y
) y
y
Page 180 of 435

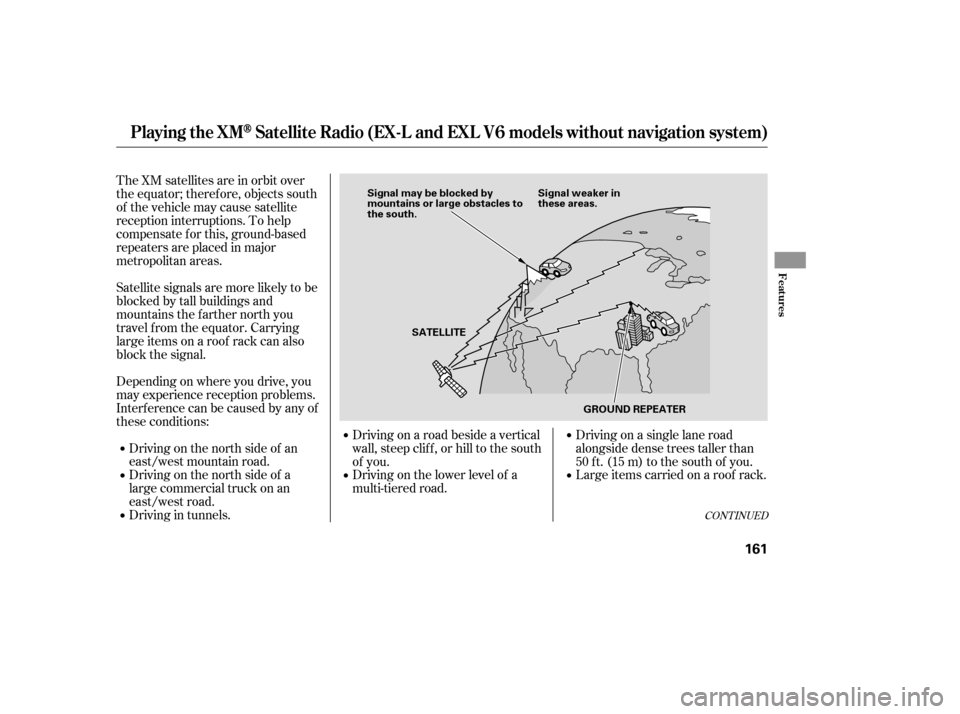

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels. Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
CONT INUED
Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system
)
Features
161
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
— —
y
y
) y
y
Page 181 of 435
There may be other geographic
situations that could af f ect XM radio
reception.After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CHANNEL’’ will
appear in the display, and you’ll be
able to listen to XM Radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, press the
button. A variety of music
types and styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. In Canada, contact , or call 1-877-438-
9677. You will need to give them
your radio I.D. number and your
credit card number. To get your
radio I.D. number, press the button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
www.xmradio.com
www.xmradio.ca
Playing t he XMSatellite Radio (EX-L and EXL V6 models without navigation system )
Receiving Satellite Radio Service
162
— —y
y
) y
y
