HONDA ACCORD 2011 8.G Owners Manual

To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Pull the inner f ender cover away
f rom the f ender and bumper.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.
Reinstall the air intake cover and
duct securely. Reinstall the
f astener and secure it by pushing
on the head until it locks.
6.
5.
3. 4. 5.
1. 2.
7.
4.
CONT INUED
Passenger’s side
Driver’s side on V6 models L ow Beam Headlight
Lights
Maint enance
367
HOLDING CLIPS
BULB
TAB
Main Menu

Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Put the inner f ender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
Turn on the headlights to test the
new bulb.
Open the hood.
To change the turn signal bulb on
the passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
Remove the air intake duct (see
page ).
1.
2.
8.
7.
6. 9.
3.
366
Driver’s side on V6 models
Lights
Replacing a Front T urn Signal/
Parking L ight Bulb
368
BULB
STAY
V6 model is shown.
Main Menu

Install the new bulb and turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the coolant reserve tank.To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn of f the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
lef t.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the burned out bulb straight
out of its socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the air intake cover and
duct securely. Reinstall the
f astener and secure it by pushing
on the head until it locks.
6.
1.
7.
5.
4.
2.3. 4.
CONT INUED
Passenger’s side
Driver’s side on V6 models
Lights
Replacing a Front Side Marker
Light Bulb
Maint enance
369
HOLDING CLIPS BULB
Main Menu

Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the inner f ender cover.
Then reinstall the holding clips,
andlocktheminplacebypushing
on their centers.Open the trunk.
Remove the screw in the center of
the fastener on the side of the
trunk lining. Pull the lining back.
Determine which of the three
bulbs is burned out: stop/taillight,
back-up light or turn signal light.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Remove the socket by turning it
one-quarter turn counterclockwise.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
5. 6. 7.
2.
1.
4.
3. 5.
Lights
Replacing Rear Bulbs
370
SCREW SOCKET
BULB
Main Menu

Turn on the lights to make sure
the new bulb is working.
Push the trunk lid trim back into
position.
Put the f astener into the hole on
the side of the trunk lining.
Reinstall the screw.Open the trunk, and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.Reinstall the socket. Turn it
clockwise until it locks. Make sure
the new bulb is working.
2.
1. 3.
6. 7.8.
Lights
Replacing a High-mount Brake
Light Bulb
Maint enance
371
BULB
SOCKET
Main Menu

If equippedPassenger’s side
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
The license plate has two lights
above it. The bulbs should be
replaced by your dealer.
Pull down the under cover f rom
the bumper caref ully.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustment should
be done by your dealer or another
qualif ied technician. Remove the three holding clips
with a flat-tip screwdriver.
1.
Lights
ReplacingaFogLightBulb
Rear License Plate Light Bulbs
372
HOLDING CLIPSHalogen light bulbs get very hot when
lit. Oil, perspiration, or a scratch on
the glass can cause the bulb to overheat
and shatter.
Main Menu

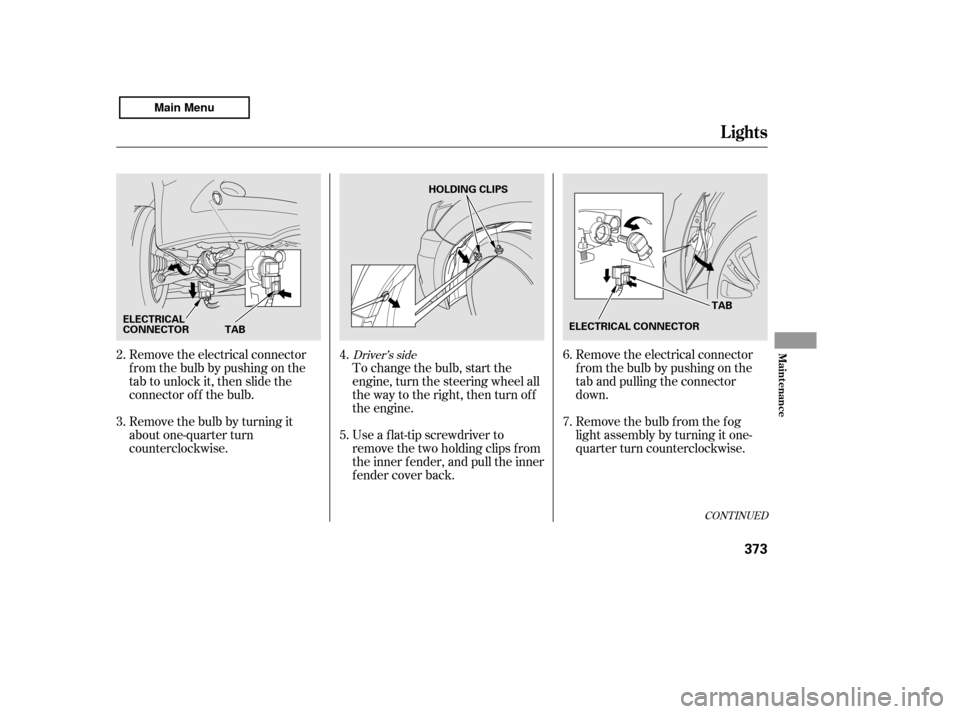

Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb f rom the f og
light assembly by turning it one-
quarter turn counterclockwise.
To change the bulb, start the
engine, turn the steering wheel all
the way to the right, then turn off
the engine.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender, and pull the inner
f ender cover back.
Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
6. 7.
4. 5.
2. 3.
CONT INUED
Driver’s side
Lights
Maint enance
373
ELECTRICAL CONNECTOR
TAB
HOLDING CLIPS
ELECTRICAL
CONNECTOR TAB
Main Menu

Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the f og lights to test the
new bulb.
Reinstall the inner f ender. Make
sure it is installed under the edge
of the f ront bumper.
Reinstall the holding clips, and
push in the head of each clip.
Reinstall the under cover and put
the holding clips back in place.
8. 9.
10. 11.
Passenger’s side
Driver’s side
Lights
374
Main Menu

If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore

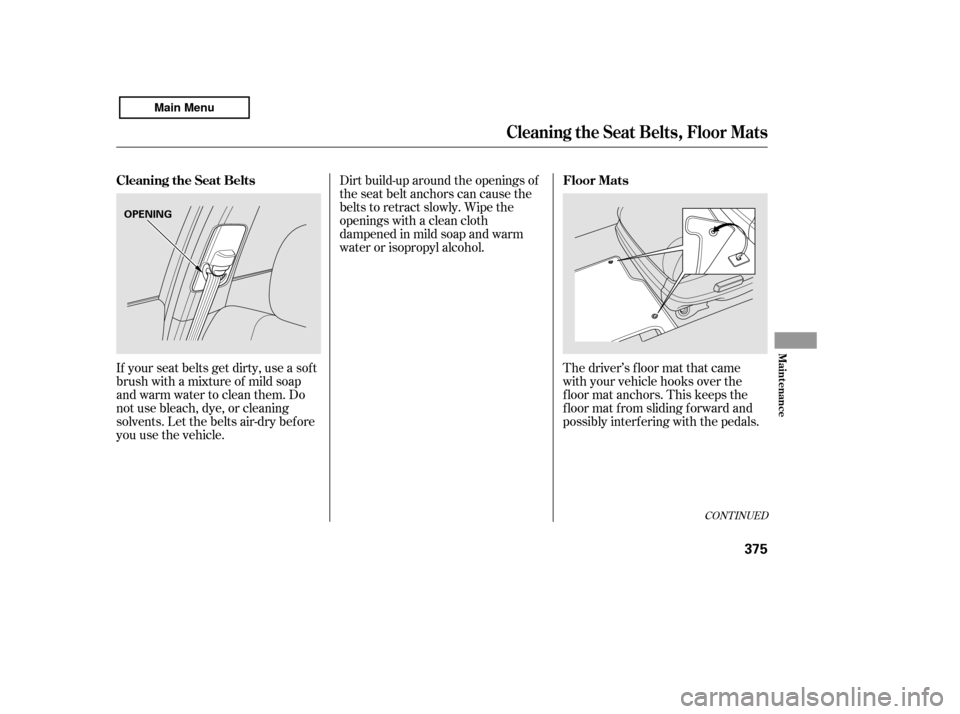

you use the vehicle.Dirt build-up around the openings of
the seat belt anchors can cause the
belts to retract slowly. Wipe the
openings with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s f loor mat that came
with your vehicle hooks over the
f loor mat anchors. This keeps the
f loor mat f rom sliding f orward and
possibly interf ering with the pedals.
CONT INUED
Cleaning the Seat Belts Floor Mats
Cleaning the Seat Belts, Floor Mats
Maint enance
375
OPENING
Main Menu

If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
If you use a non-Honda f loor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mat.This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system/climate control
system.
Have your dealer replace this filter
when this service is indicated by a
maintenance message on the
inf ormation display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the airf low
from the heating and cooling
system/climate control system
becomeslessthanusual.
Make sure the f ront passenger and
rear f loor mats are properly
positioned. If not, the f loor mat will
interf ere with the seat operation and
make the f ront passenger’s weight
sensors inef f ective. Dust and Pollen Filter
Floor Mats, Dust and Pollen Filter
376
