HONDA ACCORD 2011 8.G Owners Manual

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 418
Specif ications
..................
(4-cylinder models) . 420
Specif ications
...............................
(V6 models) . 422
DOT Tire Quality Grading
..........................
(U.S. Vehicles) . 424
.................................
Tire Labeling . 426
Tire Pressure Monitoring System
(TPMS) Required Federal
............................
Explanation . 428
.......................
Emissions Controls . 430
Three Way Catalytic
.................................
Converters . 432
........................
Emissions Testing . 433
T echnical Inf ormation
T echnical Inf ormation
417
Main Menu

Your vehicle has several identif ying
numbers in various places.

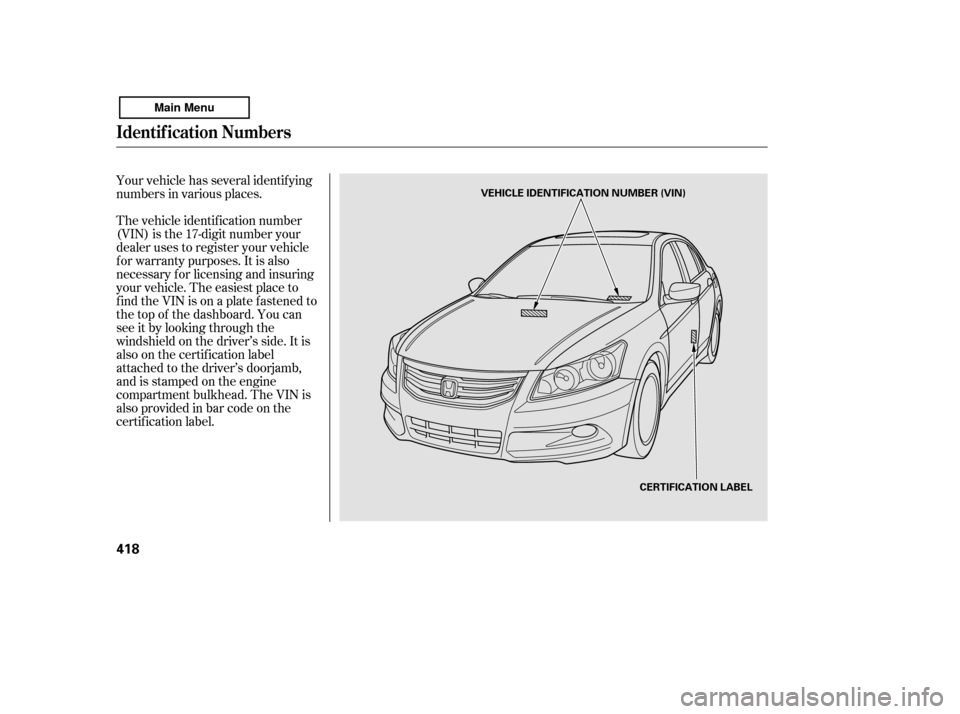

The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
418
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
Main Menu

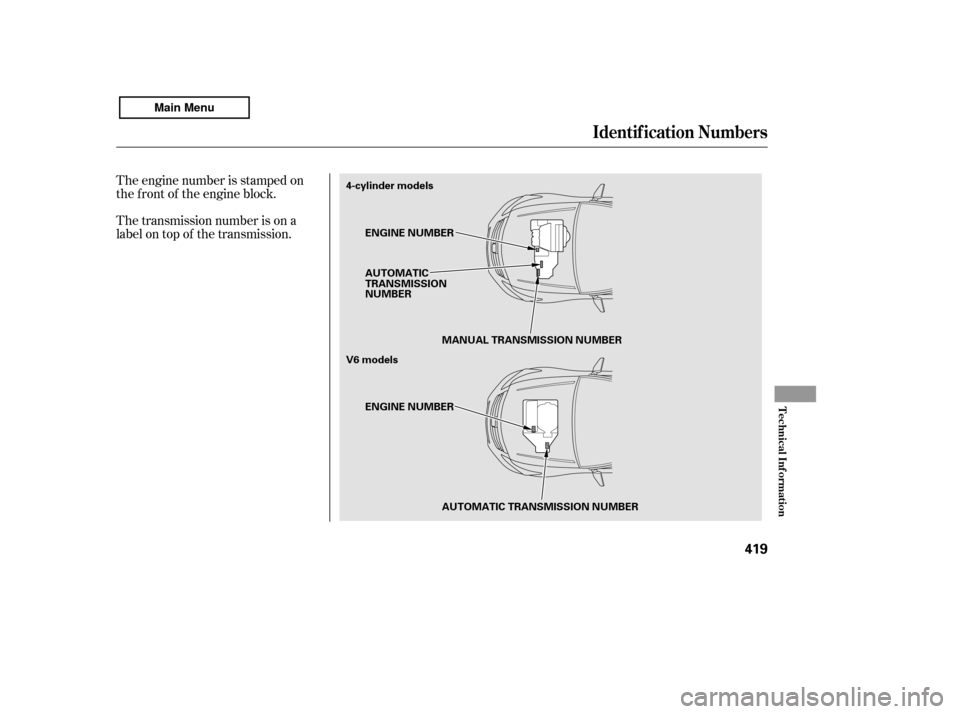

The transmission number is on a
label on top of the transmission.
The engine number is stamped on
the f ront of the engine block.
Identif ication Numbers
T echnical Inf ormation
419
ENGINE NUMBER
V6 models
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
AUTOMATIC
TRANSMISSION
NUMBER
MANUAL TRANSMISSION NUMBER
4-cylinder models
Main Menu

µµÎ Î
ÎÎ
Î
Î Î
Î
Specif icat ions (4-cylinder models)
420
Dimensions Seating Capacities
Weights
Air Conditioning
Engine Capacities
110.2 in (2,800 mm)
62.6 in (1,590 mm)
Length
Width
Height
Wheelbase
Track
194.1 in (4,930 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
2.1 US qt (2.0
)
2.0 US qt (1.9)
5.4 US qt (5.1)
4.0 US qt (3.8)
4.2 US qt (4.0)
1.96 US gal (7.4
)
1.90 US gal (7.2)
1.64 US gal (6.2
)
1.59 US gal (6.0)
5 23
62.2 in (1,580 mm) Total
FrontRear
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) ND-OIL8
Water cooled 4-stroke
DOHC i-VTEC 4-cylinder gasoline engine
3.43 x 3.9 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
10.5 : 1
ILZKR7B11S SXU22HCR11S
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada)
SXU22HCR11S
ILZKR7B11S
DILZKR7B11GS 18.5 US gal (70.0
)
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.180 US gal (0.68
)
Fuel tank
Engine
coolant
Engine oil Manual
transmission
fluidAutomatic
transmission
fluid
Windshield
washer
reservoir
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.50 US qt (6.15
)
2.6 US qt (2.5)
Approx.
Change Manual Automatic
Total ManualAutomatic
1: 2:
NGK:
DENSO:
Front/Rear
ULEV PZEV
1: 2: EX,EX-L
NGK:NGK:
DENSO:
LX, LX-P, SE
ChangeIncluding filter
Without filter
Total
ChangeTotal
Change Total U.S.
Canada
1
12
2
Main Menu

µ
µ µµµµµ
Î ÎÎ
Î
Î Î
Î
Î
Î
Specif icat ions (4-cylinder models)
T echnical Inf ormation
421
Lights Battery Fuses
Tires
Alignment
Headlights
Front turn signal/parking lights
Front side marker lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Trunk light
Front door courtesy lights
Vanity mirror lights
Capacity 12 V
12 V
12 V
12 V
12 V
12 V36 AH/5 HR
38 AH/5 HR
45 AH/20 HR
47 AH/20 HR
52 AH/5 HR
65 AH/20 HR Interior
Under-hood Size
Pressure
P215/60R16 94H
P225/50R17 93V
T135/80D16 101M
32 psi (220 kPa , 2.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm
)
Toe-in
CamberCaster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
1°
3°48’
See page 413 or the fuse label
attached on the side panel.
See page 414 or the fuse label
attached to the inside of the fuse
box door.
See page 412 or the fuse box
cover.
60 W (HB3)
51 W (HB4)
21/5 W
3CP
21 W
21 W
21/5 W5W
21 W8W8W5W
1.4 W
2CP
High Low
: Passenger’s side
Driver’s side
Front/Rear
Spare
Front/Rear
Spare
1: 2:
FrontRear
FrontRear
Front
PZEV engine model, and Canadian models LX, LX-P, SE
EX, EX-L
(Amber)
2
1
2
1
Main Menu

µµÎ Î
Î
Î
Specif icat ions (V6 models)
422
Dimensions
Seating Capacities
Weights
Air Conditioning
Engine Capacities
110.2 in (2,800 mm)
Length
Width
Height
Wheelbase
Track 194.3 in (4,936 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
62.2 in (1,580 mm)Total
FrontRear
523
1.74 US gal (6.6
)
2.27 US gal (8.6)
4.5 US qt (4.3
)
5.3 US qt (5.0
)
3.5 US qt (3.3)
7.9 US qt (7.5)
2.6 US qt (2.5
)
4.8 US qt (4.5)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
Excluding the oil remaining in the engine 0.180 US gal (0.68
)
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g)
ND-OIL8
3.50 x 3.66 in (89.0 x 93.0 mm) 212 cu-in (3,471 cm
)
10.5 : 1
ILZKR7B11 SXU22HCR11 18.5 US gal (70.0
)
Water cooled 4-stroke
SOHC i-VTEC 6-cylinder (V6)
gasoline engine 4.2 US qt (4.0
)
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada) ILZKR7B11 SXU22HCR11Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid
Windshield
washer
reservoir
Approx.
1: 2: Change
Including filter
Without filter
Total
ChangeTotal U.S.
Canada
ChangeTotal
Front/Rear
NGK:
DENSO:NGK:
DENSO:
2
1
Main Menu

µ
Î
µ µ
Î
Specif icat ions (V6 models)
Technical Inf ormation
423
Fuses
Tires
Alignment
Lights Battery Interior
Under-hood Size
Pressure
P225/50R17 93V
T135/80D16 101M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Toe-in
CamberCaster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
1°
3°48’
Headlights
Front turn signal/parking lights
Front side marker lights
Fog lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Trunk light
Front door courtesy lights
Vanity mirror lights
Capacity
12 V
12 V
60 AH/5 HR
72 AH/20 HR See page 413 or the fuse label
attached on the side panel.
See page 414 or the fuse label
attached to the inside of the fuse
box door.
See page 412 or the fuse box
cover.
60 W (HB3)
51 W (HB4)
21/5 W
3CP
55 W
21 W
21 W
21/5 W5W
21 W8W8W5W
2CP
1.4 W
HighLow
: Front/Rear
Spare
Front/Rear
Spare
Front Rear
FrontRear
Front
Driver’s side
Passenger’s side
If equipped (H11)
(Amber)
Main Menu

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
DOT Tire Quality Grading (U.S. Vehicles)
424
Main Menu

Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
Temperature
DOT Tire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
425
Main Menu

µ µ µ µ µµ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Speed symbol (an
alphabetical code indicating
the maximum speed rating).
P R V
225 50 93
17
Tire Labeling
Tire Size
426
(3)
(4)

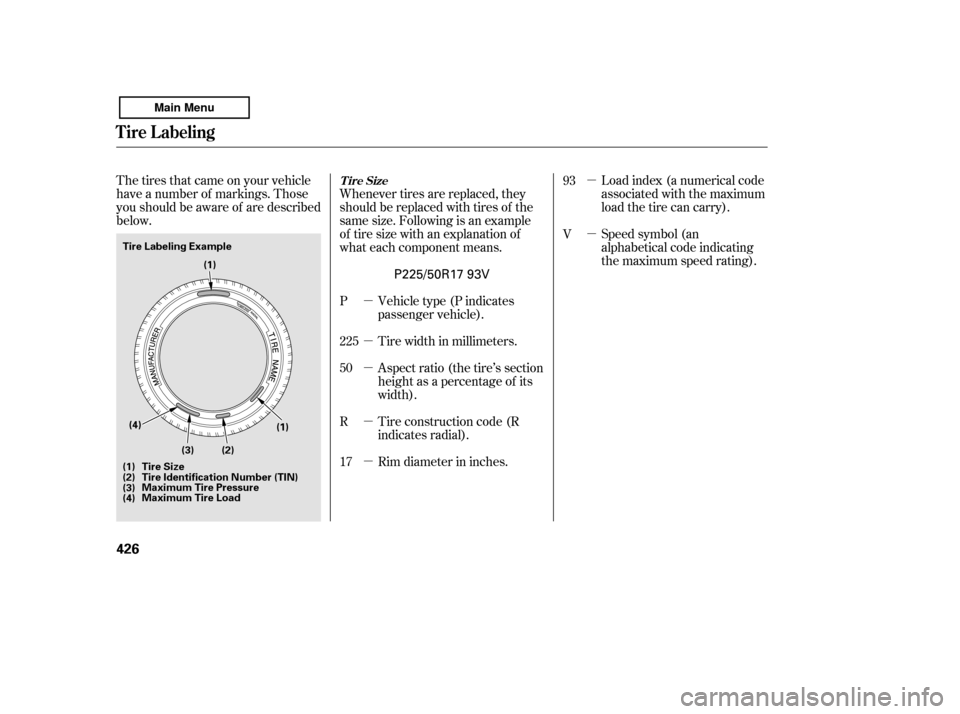

Tire Labeling Example
(1)
(2) (1)
Tire Size
Tire Identification Number (TIN)
Maximum Tire Pressure
Maximum Tire Load
(1)
(2)
(3)
(4)
P225/50R17 93V
Main Menu
