HONDA ACCORD 2012 8.G Owners Manual

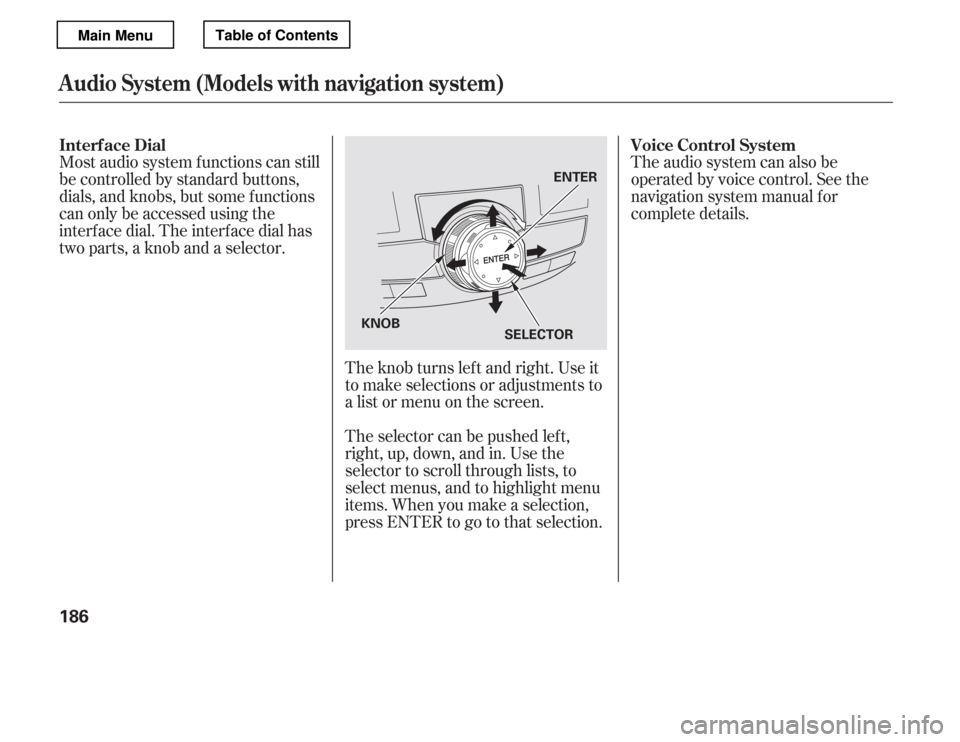

Most audio system f unctions can still
be controlled by standard buttons,
dials, and knobs, but some f unctions
can only be accessed using the
interf ace dial. The interf ace dial has
two parts, a knob and a selector.The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.
The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
press ENTER to go to that selection. The audio system can also be
operated by voice control. See the
navigation system manual f or
complete details.
Interf ace Dial
Voice Control System
Audio System (Models with navigation system)
186
SELECTOR
KNOB ENTER
Main MenuTable of Contents

Playing the FM/A M Radio (Models with navigation system)
Features
187

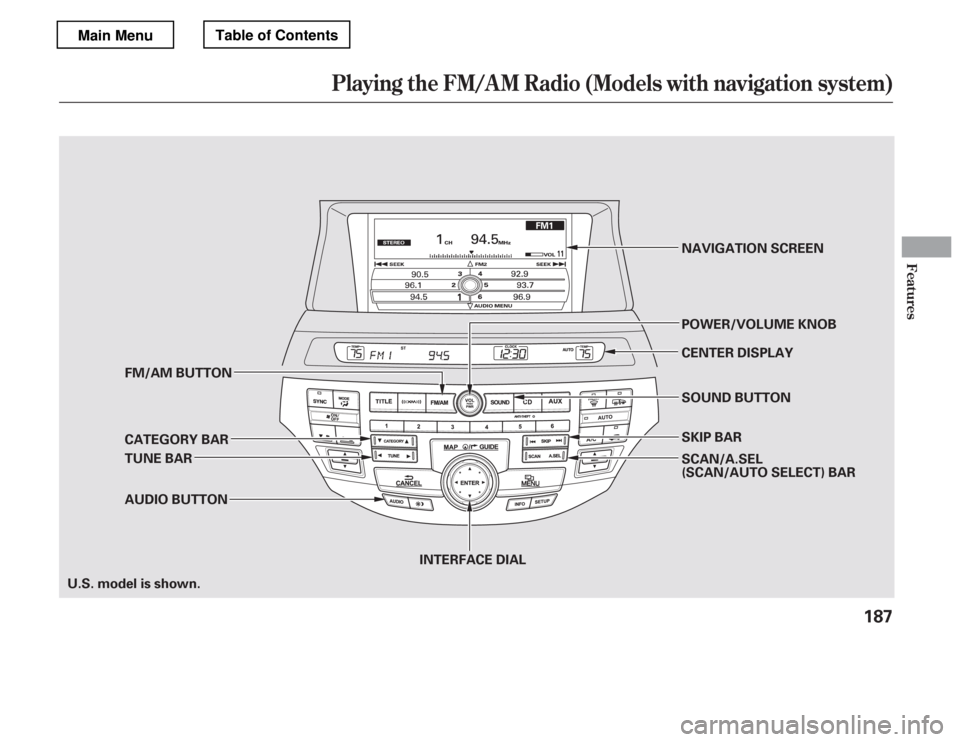

INTERFACE DIALCENTER DISPLAY
SKIP BAR
NAVIGATION SCREEN
POWER/VOLUME KNOB
TUNE BAR
FM/AM BUTTON
CATEGORY BAR
AUDIO BUTTON SOUND BUTTON
U.S. model is shown. SCAN/A.SEL
(SCAN/AUTO SELECT) BAR
Main MenuTable of Contents

µ
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob or the FM/AM
button. Adjust the volume by turning
the power/volume knob.
The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press the FM/AM button. You can also
change bands by pushing the
interf ace selector up. Each time you
push it up, the band will change to
FM1, FM2, or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
center display, if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
. Use the TUNE bar to tune
the radio to a desired f requency.
Press the right side of the bar to
tune to a higher f requency, or the
lef t side to tune to a lower f requency.
To tune with the interf ace dial, push
the selector down, and turn the knob
to the TUNE icon. Then press
ENTER on the selector, and turn the
knob to the desired f requency. To
exit the TUNE mode, press ENTER
on the selector, then push the
selector up.
191
Playing the FM/A M Radio (Models with navigation system)

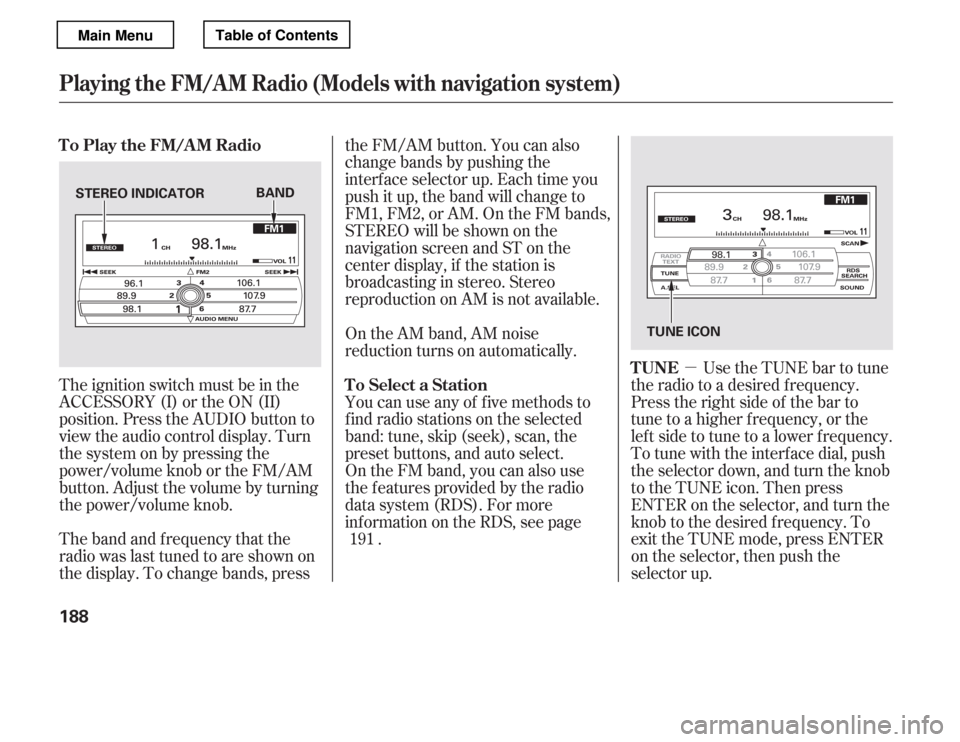

To Play the FM/AM Radio
To Select a Station TUNE
188
BAND
TUNE ICON
STEREO INDICATOR
Main MenuTable of Contents

µµ µ
CONT INUED

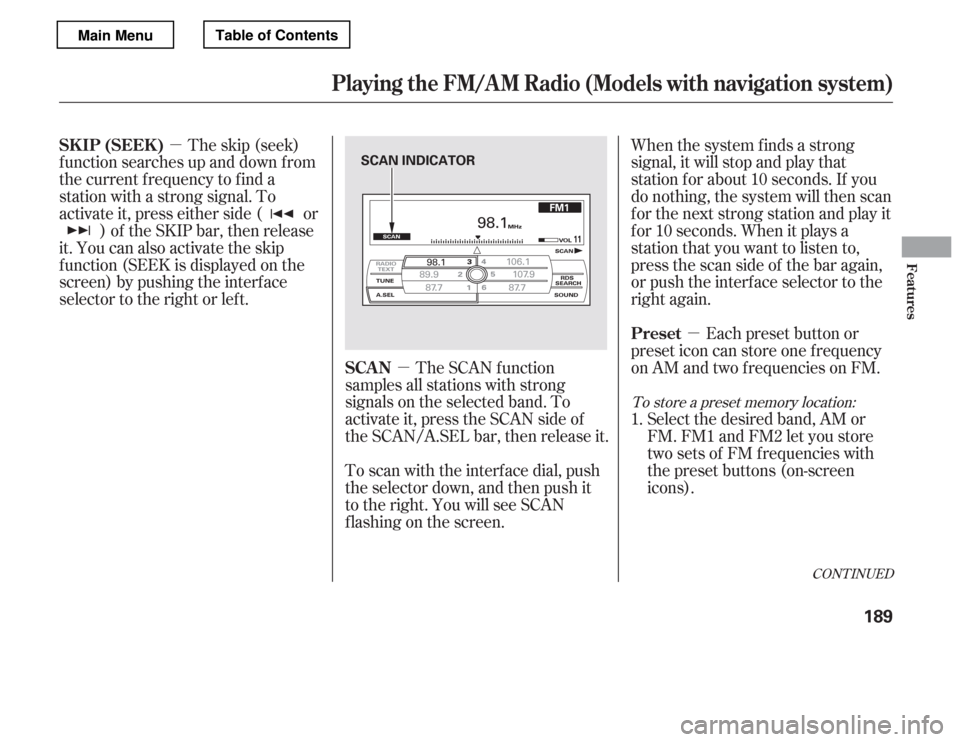

The skip (seek)
f unction searches up and down f rom
the current f requency to f ind a
station with a strong signal. To
activate it, press either side ( or ) of the SKIP bar, then release
it. You can also activate the skip
f unction (SEEK is displayed on the
screen) by pushing the interf ace
selector to the right or lef t.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN side of
the SCAN/A.SEL bar, then release it.
To scan with the interf ace dial, push
the selector down, and then push it
to the right. You will see SCAN
f lashing on the screen. When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds. If you
do nothing, the system will then scan
f or the next strong station and play it
f or 10 seconds. When it plays a
station that you want to listen to,
press the scan side of the bar again,
or push the interf ace selector to the
right again.
Each preset button or
preset icon can store one f requency
onAMandtwofrequenciesonFM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twosetsof FMfrequencieswith
the preset buttons (on-screen
icons).
1.
To store a preset memory location:
Playing the FM/A M Radio (Models with navigation system)
SK IP (SEEK )
SCAN Preset
Features
189
SCAN INDICATOR
Main MenuTable of Contents

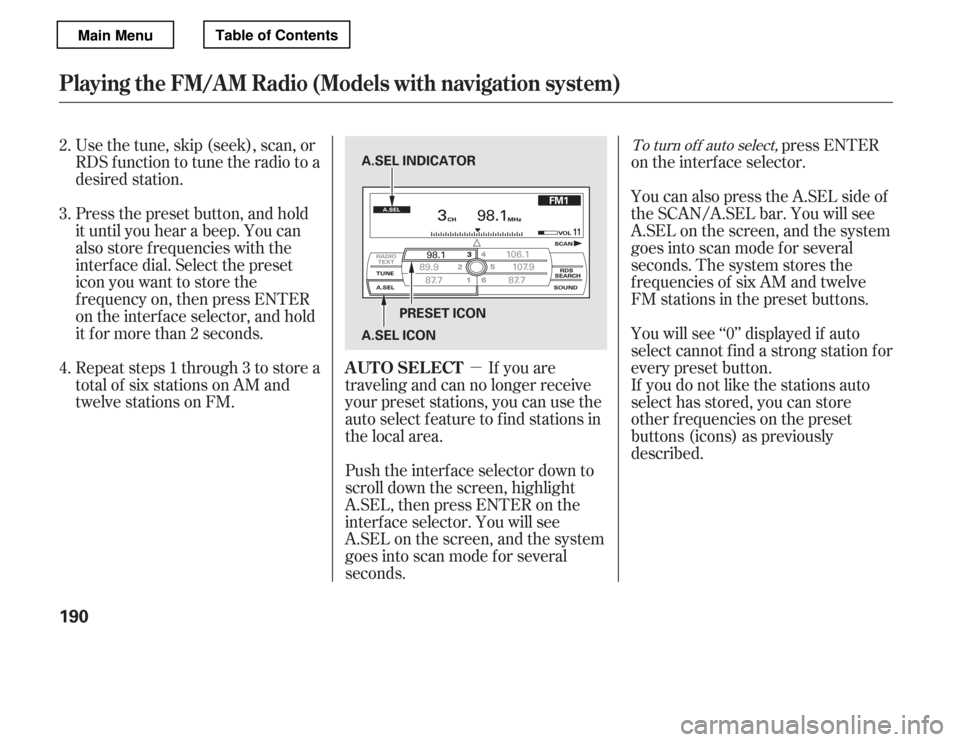

µIf you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
Usethetune,skip(seek),scan,or
RDS function to tune the radio to a
desired station.
Press the preset button, and hold
it until you hear a beep. You can
also store f requencies with the
interf ace dial. Select the preset
icon you want to store the
f requency on, then press ENTER
on the interf ace selector, and hold
it f or more than 2 seconds.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Push the interf ace selector down to
scroll down the screen, highlight
A.SEL, then press ENTER on the
interf ace selector. You will see
A.SEL on the screen, and the system
goes into scan mode f or severalseconds. press ENTER
on the interf ace selector.
You can also press the A.SEL side of
the SCAN/A.SEL bar. You will see
A.SEL on the screen, and the system
goes into scan mode f or several
seconds. The system stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described.
2. 3. 4.
To turn of f auto select,
AUTO SELECT
Playing the FM/A M Radio (Models with navigation system)
190
A.SEL INDICATOR
A.SEL ICON
PRESET ICON
Main MenuTable of Contents

CONT INUED
On the FM band, you can select a
favorite station and display the
program service name provided by
the radio data system (RDS).
,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
For inf ormation on FM/AM radio
f requencies and reception, see page .

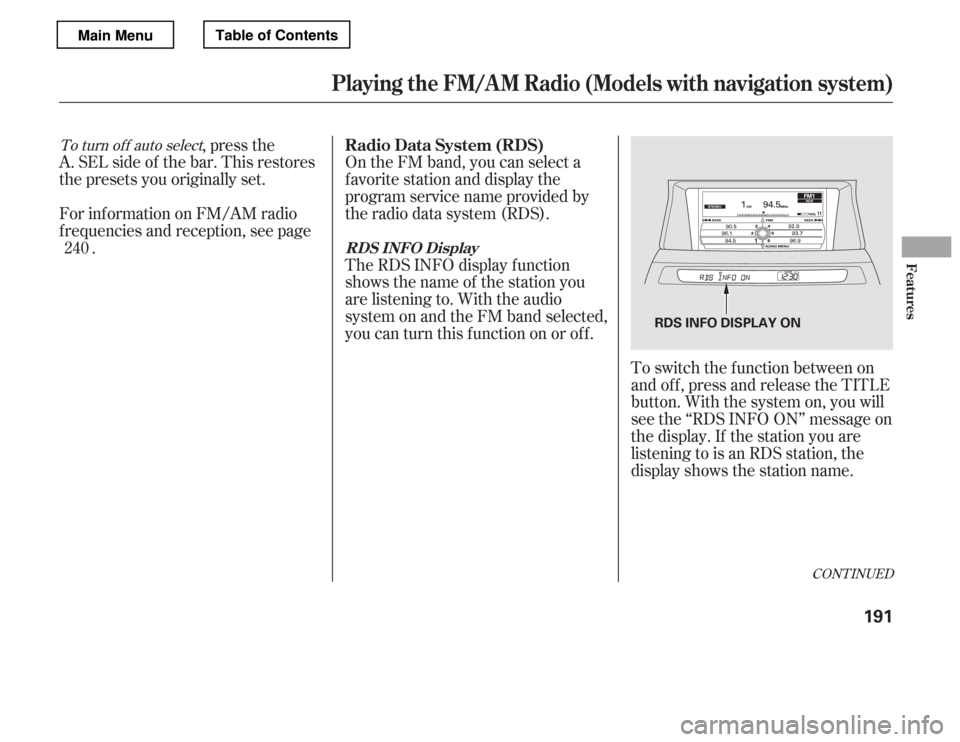

To switch the function between on
and off, press and release the TITLE
button. With the system on, you will
see the ‘‘RDS INFO ON’’ message on
the display. If the station you are
listening to is an RDS station, the
display shows the station name.
The RDS INFO display f unction
shows the name of the station you
are listening to. With the audio
system on and the FM band selected,
you can turn this f unction on or of f .
240
To turn of f auto select
Playing the FM/A M Radio (Models with navigation system)
Radio Data System (RDS)
RDS INFO DisplayFeatures
191
RDS INFO DISPLAY ON
Main MenuTable of Contents

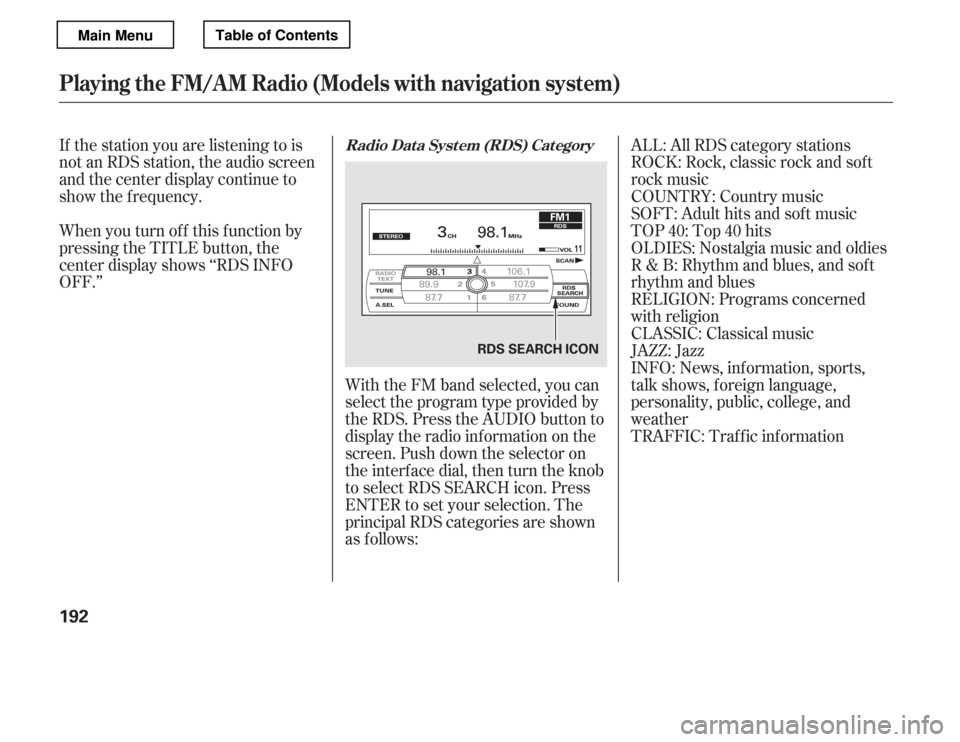

With the FM band selected, you can
select the program type provided by
the RDS. Press the AUDIO button to
display the radio inf ormation on the
screen. Push down the selector on
the interface dial, then turn the knob
to select RDS SEARCH icon. Press
ENTER to set your selection. The
principal RDS categories are shown
as f ollows:
If the station you are listening to is
not an RDS station, the audio screen
and the center display continue to
show the f requency.
INFO: News, inf ormation, sports,
talk shows, f oreign language,
personality, public, college, and
weather
JAZZ: Jazz
CLASSIC: Classical music
RELIGION: Programs concerned
with religion
R & B: Rhythm and blues, and sof t
rhythm and blues
OLDIES: Nostalgia music and oldies
TOP 40: Top 40 hits
SOFT: Adult hits and sof t music
COUNTRY: Country music
ROCK: Rock, classic rock and sof t
rock music
ALL: All RDS category stations
TRAFFIC: Traffic information
When you turn of f this f unction by
pressing the TITLE button, the
center display shows ‘‘RDS INFO
OFF.’’
Playing the FM/A M Radio (Models with navigation system)
Radio Data System (RDS) Category
192
RDS SEARCH ICON
Main MenuTable of Contents

ÛÝ
CONT INUED
This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press and release either side
( or ) of the SKIP bar. You
will also see the selected RDS
category name blinking in the center
display while searching it. When the
system f inds a station, the selected
RDS category name will be displayed
again for about 5 seconds in the
center display.
If the system does not find a station,
‘‘NOTHING’’ blinks f or about f ive
seconds, then the system goes back
to the last selected station.

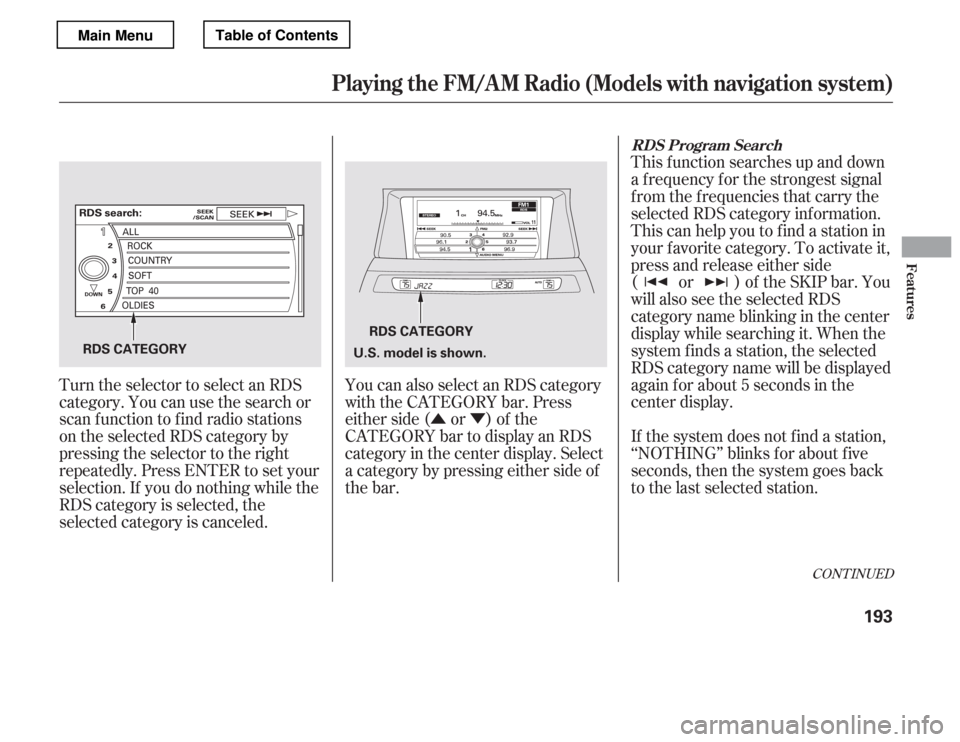

Turn the selector to select an RDS
category. You can use the search or
scan function to find radio stations
on the selected RDS category by
pressing the selector to the right
repeatedly. Press ENTER to set your
selection. If you do nothing while the
RDS category is selected, the
selected category is canceled. You can also select an RDS category
with the CATEGORY bar. Press
either side ( or ) of the
CATEGORY bar to display an RDS
category in the center display. Select
a category by pressing either side of
the bar.
Playing the FM/A M Radio (Models with navigation system)
RDS Program Search
Features
193
U.S. model is shown.
RDS CATEGORY RDS CATEGORY
Main MenuTable of Contents

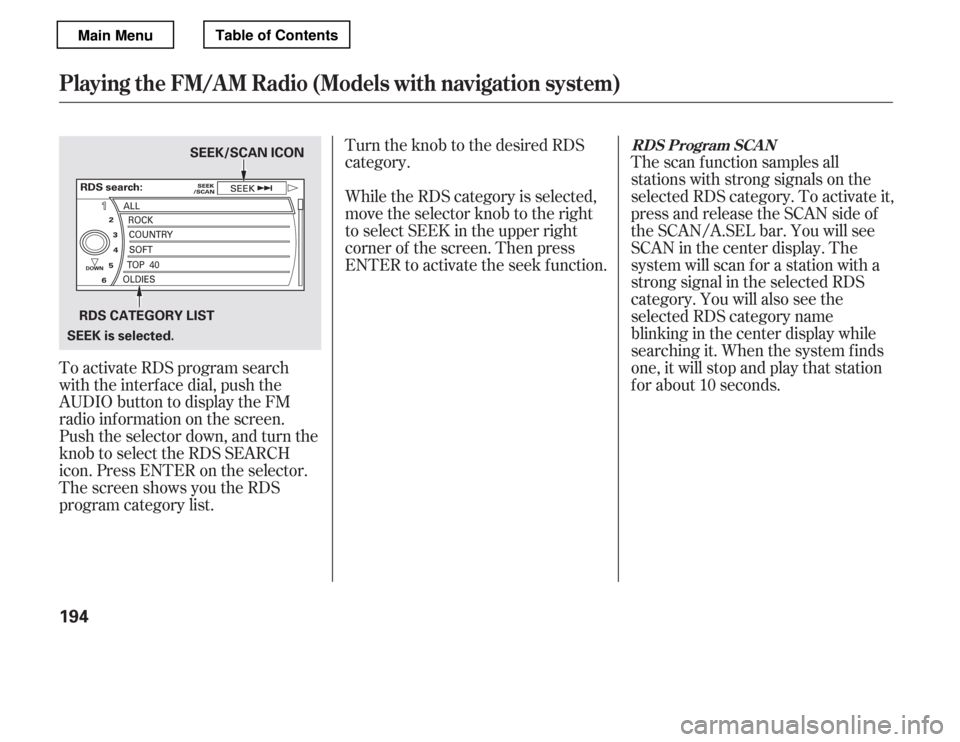

To activate RDS program search
with the interf ace dial, push the
AUDIO button to display the FM
radio inf ormation on the screen.
Push the selector down, and turn the
knob to select the RDS SEARCH
icon. Press ENTER on the selector.
The screen shows you the RDS
program category list.Turn the knob to the desired RDS
category. The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press and release the SCAN side of
the SCAN/A.SEL bar. You will see
SCAN in the center display. The
system will scan f or a station with a
strong signal in the selected RDS
category. You will also see the
selected RDS category name
blinking in the center display while
searching it. When the system finds
one, it will stop and play that station
f or about 10 seconds.
While the RDS category is selected,
move the selector knob to the right
to select SEEK in the upper right
corner of the screen. Then press
ENTER to activate the seek f unction.
Playing the FM/A M Radio (Models with navigation system)
RDS Program SCAN
194
SEEK/SCAN ICON
SEEK is selected. RDS CATEGORY LIST
Main MenuTable of Contents

Turn the knob to the desired RDS
category.

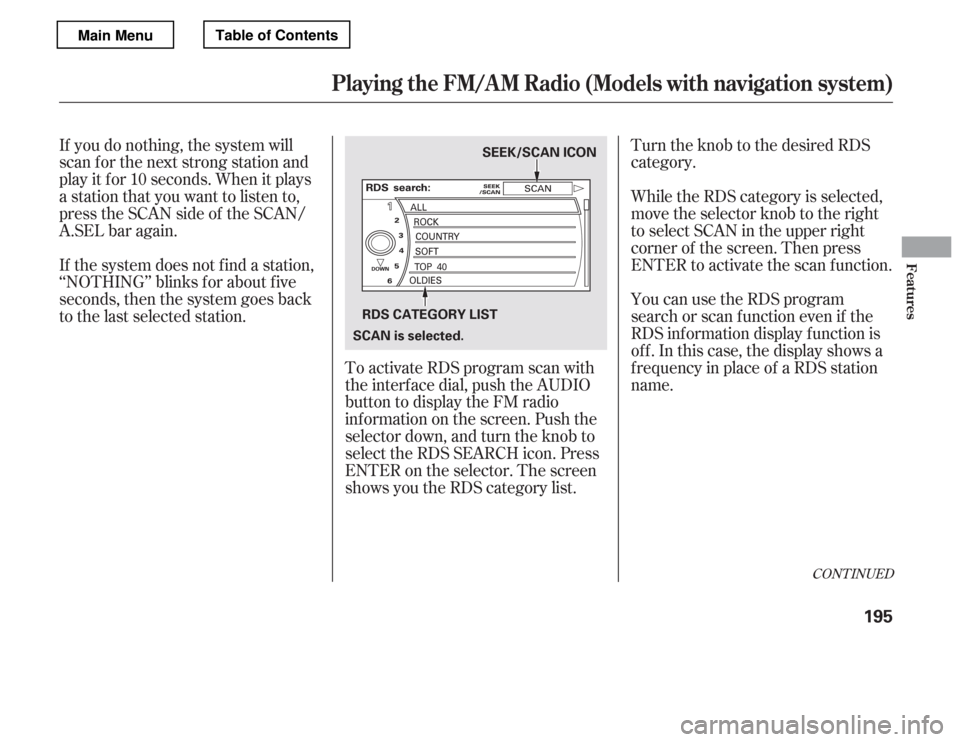

To activate RDS program scan with
the interf ace dial, push the AUDIO
button to display the FM radio
inf ormation on the screen. Push the
selector down, and turn the knob to
select the RDS SEARCH icon. Press
ENTER on the selector. The screen
shows you the RDS category list.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN side of the SCAN/
A.SEL bar again.
If the system does not find a station,
‘‘NOTHING’’ blinks f or about f ive
seconds, then the system goes back
to the last selected station.
While the RDS category is selected,
move the selector knob to the right
to select SCAN in the upper right
corner of the screen. Then press
ENTER to activate the scan function.
You can use the RDS program
search or scan f unction even if the
RDS inf ormation display f unction is
of f . In this case, the display shows a
f requency in place of a RDS station
name.
CONT INUED
Playing the FM/A M Radio (Models with navigation system)
Features
195
SCAN is selected.SEEK/SCAN ICON
RDS CATEGORY LIST
Main MenuTable of Contents
