Optional

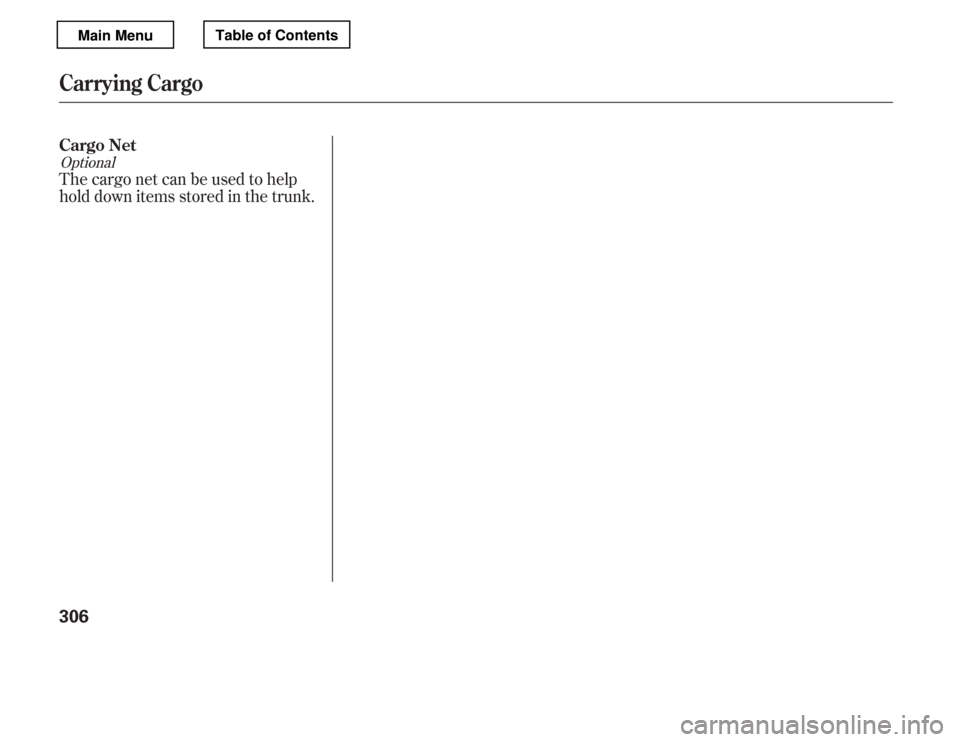

The cargo net can be used to help
hold down items stored in the trunk.
Cargo Net
Carrying Cargo
306
Main MenuTable of Contents

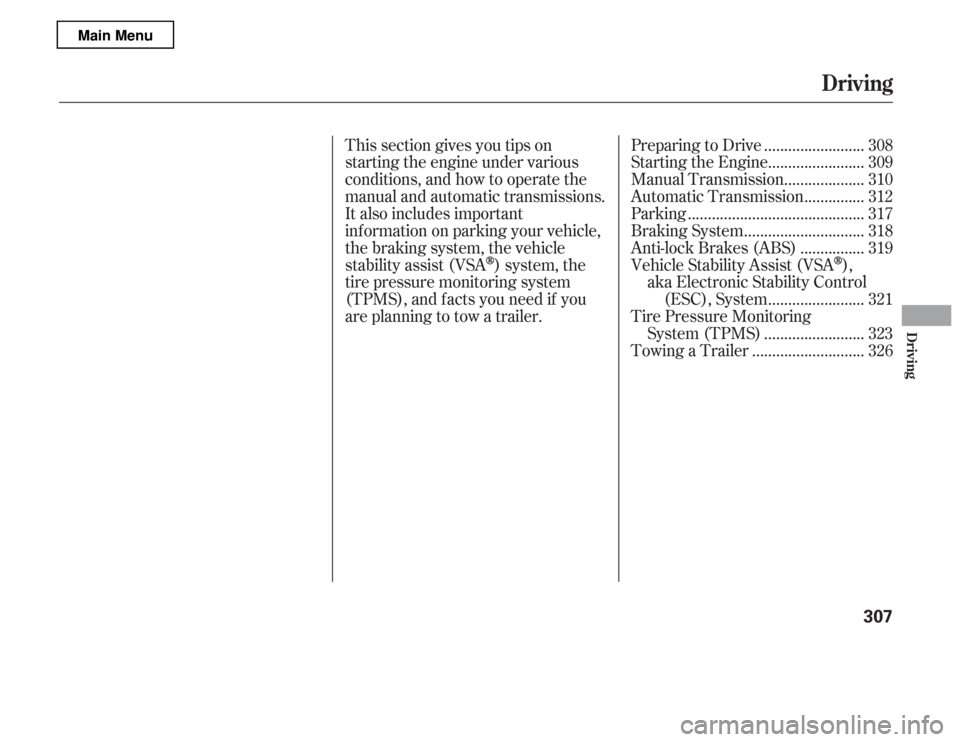

This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important
inf ormation on parking your vehicle,
the braking system, the vehicle
stability assist (VSA
) system, the
tire pressure monitoring system
(TPMS), and f acts you need if you
are planning to tow a trailer. ........................
Preparing to Drive . 308
.......................
Starting the Engine . 309
...................
Manual Transmission . 310
..............
Automatic Transmission . 312
...........................................
Parking . 317
.............................
Braking System . 318
...............
Anti-lock Brakes (ABS) . 319
Vehicle Stability Assist (VSA),
aka Electronic Stability Control .......................
(ESC), System . 321
Tire Pressure Monitoring ........................
System (TPMS) . 323
...........................
Towing a Trailer . 326
Driving
Driving
307
Main Menu

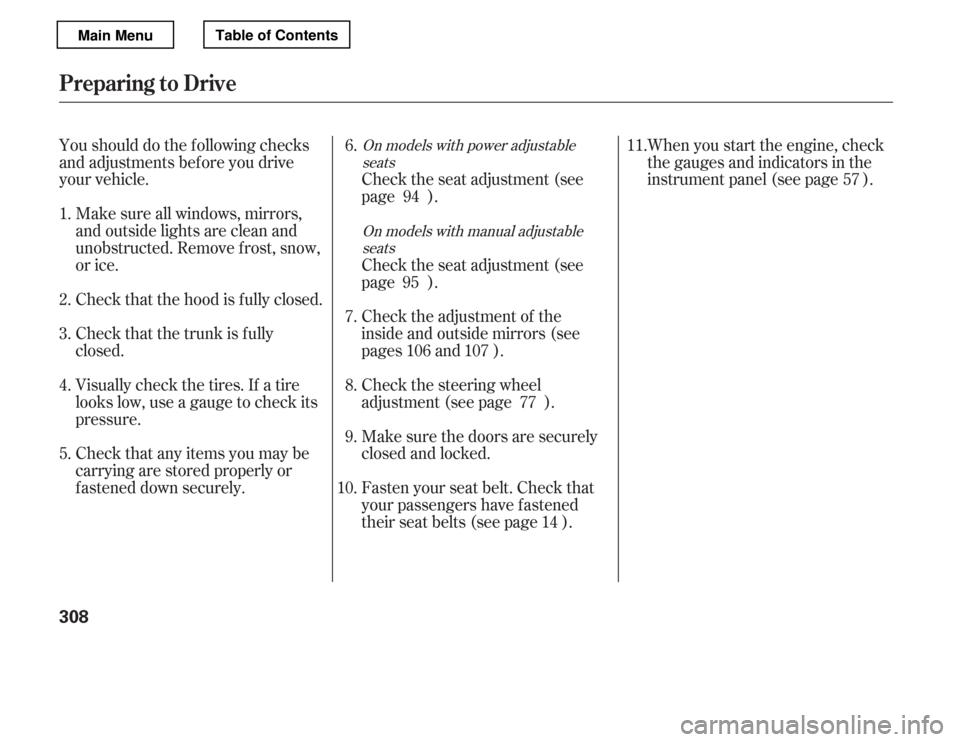

Youshoulddothefollowingchecks
and adjustments bef ore you drive
your vehicle.Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.
Check that the hood is f ully closed.
Check that the trunk is f ully
closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
f astened down securely. When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ).
Make sure the doors are securely
closed and locked.
Check the steering wheel
adjustment (see page ).
Check the seat adjustment (see
page ).
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
pages and ).
3.
2. 1.
4. 5. 6. 7. 8. 9.
10. 1411.
94
95 107
106
77 57On models with power adjustable
seats
On models with manual adjustableseats
Preparing to Drive
308
Main MenuTable of Contents

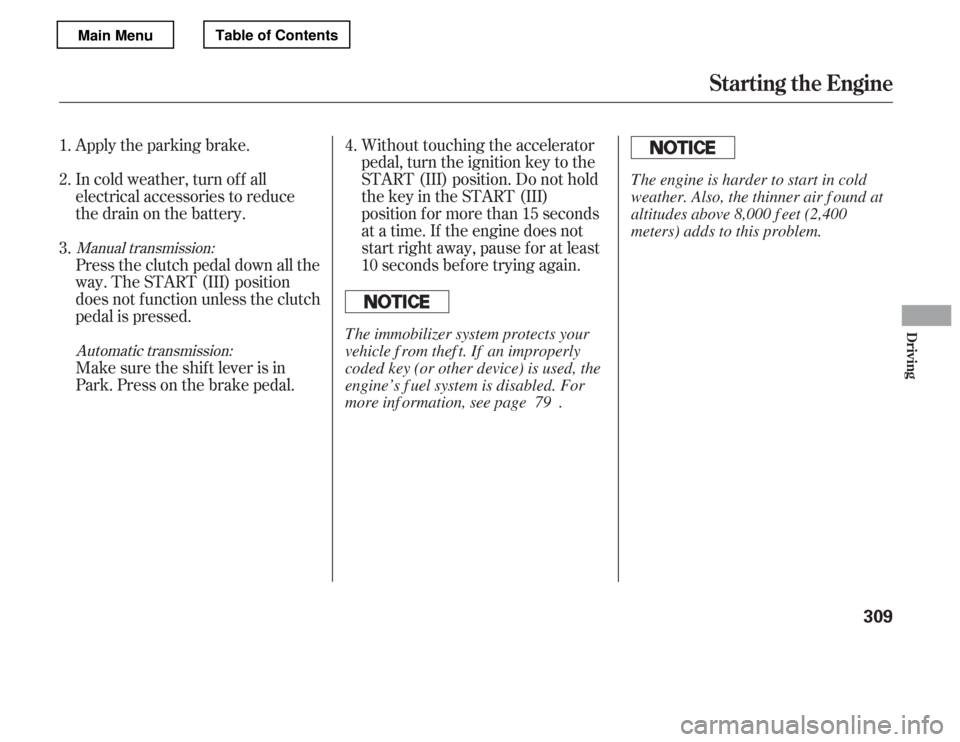

Apply the parking brake.
In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery.
Press the clutch pedal down all the
way. The START (III) position
does not f unction unless the clutch
pedal is pressed.
Make sure the shif t lever is in
Park. Press on the brake pedal.Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position f or more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds bef ore trying again.
1. 2. 3.
4.
Manual transmission:
Automatic transmission:
Starting the Engine
Driving
309
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page . The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
79
Main MenuTable of Contents

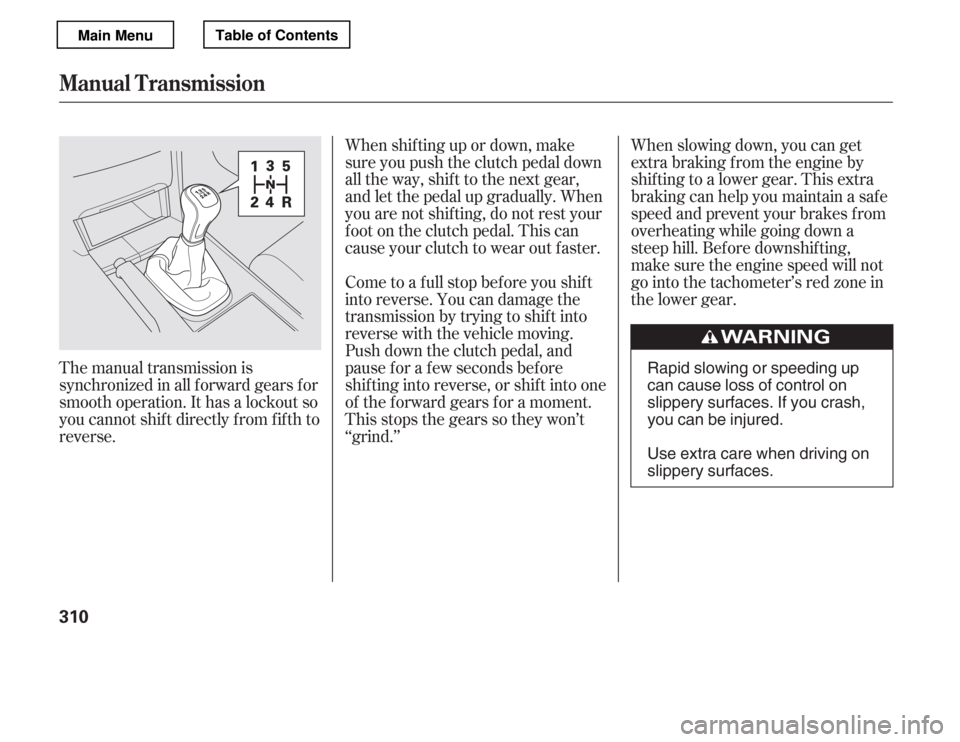

When shif ting up or down, make
sure you push the clutch pedal down
all the way, shif t to the next gear,
and let the pedal up gradually. When
you are not shif ting, do not rest your
f oot on the clutch pedal. This can
cause your clutch to wear out f aster.
Come to a full stop before you shift
into reverse. You can damage the
transmission by trying to shif t into
reverse with the vehicle moving.
Push down the clutch pedal, and
pause f or a f ew seconds bef ore
shif ting into reverse, or shif t into one
of the f orward gears f or a moment.
This stops the gears so they won’t
‘‘grind.’’When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes f rom
overheating while going down a
steep hill. Bef ore downshif ting,
make sure the engine speed will not
go into the tachometer’s red zone in
the lower gear.
The manual transmission is
synchronized in all f orward gears f or
smooth operation. It has a lockout so
you cannot shift directly from fifth to
reverse.
Manual T ransmission
310
Rapid slowing or speeding up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main MenuTable of Contents

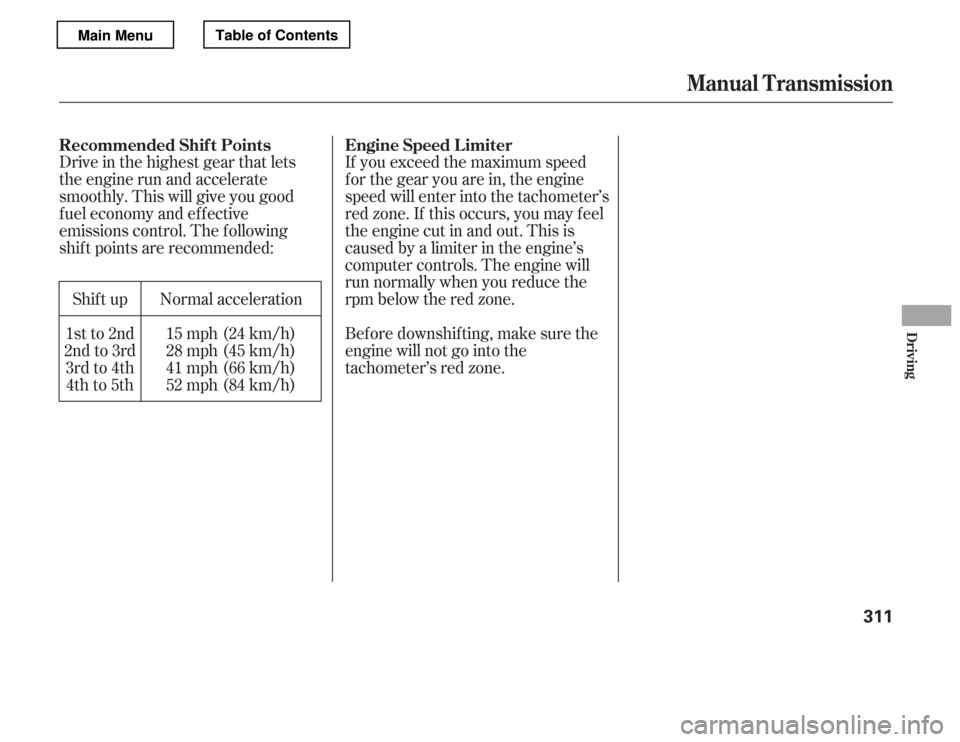

Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
f uel economy and ef f ective
emissions control. The f ollowing
shif t points are recommended:Shif t up
1st to 2nd
2nd to 3rd 3rd to 4th4th to 5th If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Bef ore downshif ting, make sure the
engine will not go into the
tachometer’s red zone.
Normal acceleration
15 mph (24 km/h)
28 mph (45 km/h)
41 mph (66 km/h)
52 mph (84 km/h)
Manual T ransmission
Recommended Shif t Points Engine Speed L imiter
Driving
311
Main MenuTable of Contents

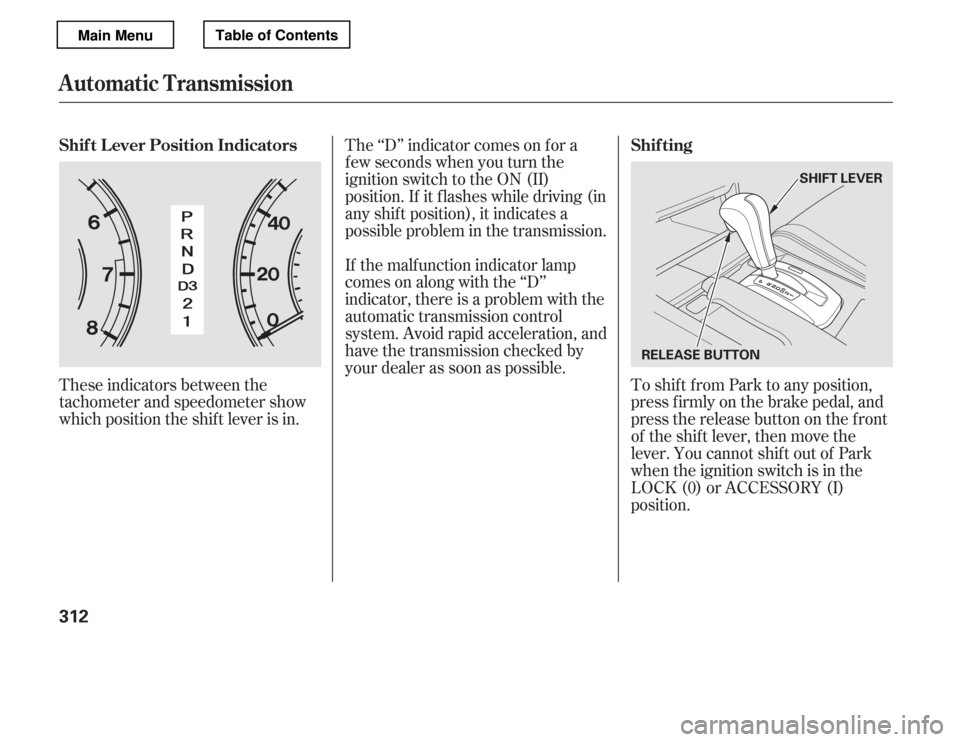

These indicators between the
tachometer and speedometer show
which position the shif t lever is in.The ‘‘D’’ indicator comes on f or a
f ew seconds when you turn the
ignition switch to the ON (II)
position. If it f lashes while driving (in
any shif t position), it indicates a
possible problem in the transmission.
If the malf unction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
To shif t f rom Park to any position,
pressfirmlyonthebrakepedal,and
pressthereleasebuttononthefront
of the shift lever, then move the
lever. You cannot shift out of Park
when the ignition switch is in the
LOCK (0) or ACCESSORY (I)
position.
Shif t L ever Position Indicators
Shif ting
Automatic Transmission
312
SHIFT LEVER
RELEASE BUTTON
Main MenuTable of Contents

µµµ
CONT INUED

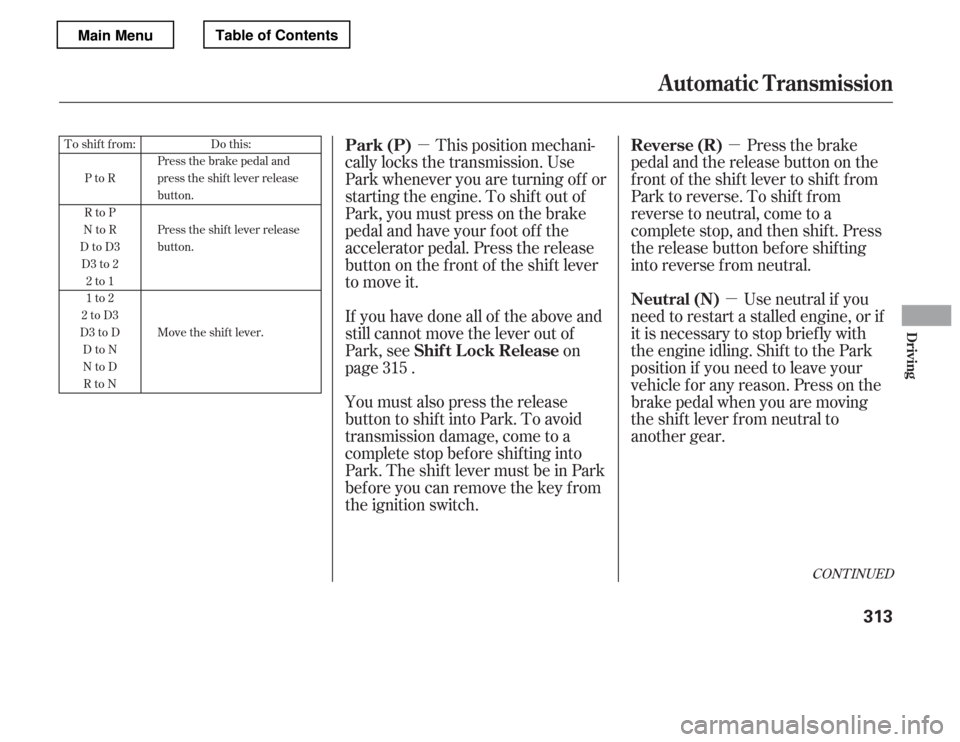

This position mechani-
cally locks the transmission. Use
Park whenever you are turning of f or
starting the engine. To shif t out of
Park, you must press on the brake
pedal and have your f oot of f the
accelerator pedal. Press the release
buttononthefrontof theshiftlever
to move it.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop bef ore shif ting into
Park.TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch. Press the brake
pedal and the release button on the
frontoftheshiftlevertoshiftfrom
Park to reverse. To shif t f rom
reverse to neutral, come to a
completestop,andthenshift.Press
the release button bef ore shif ting
into reverse f rom neutral.
Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop brief ly with
the engine idling. Shif t to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear.
315Do this:
Press the brake pedal and
press the shift lever release
button.
Press the shift lever release
button.
Move the shift lever.
To shift from:
PtoR
RtoP
NtoR
DtoD3 D3 to 2
2to1
1to2
2toD3
D3 to D DtoN
NtoD
RtoN
Automatic Transmission
Park (P)
Shif t L ock Release Reverse (R)
Neutral (N)
Driving
313
Main MenuTable of Contents

µ
µ µ

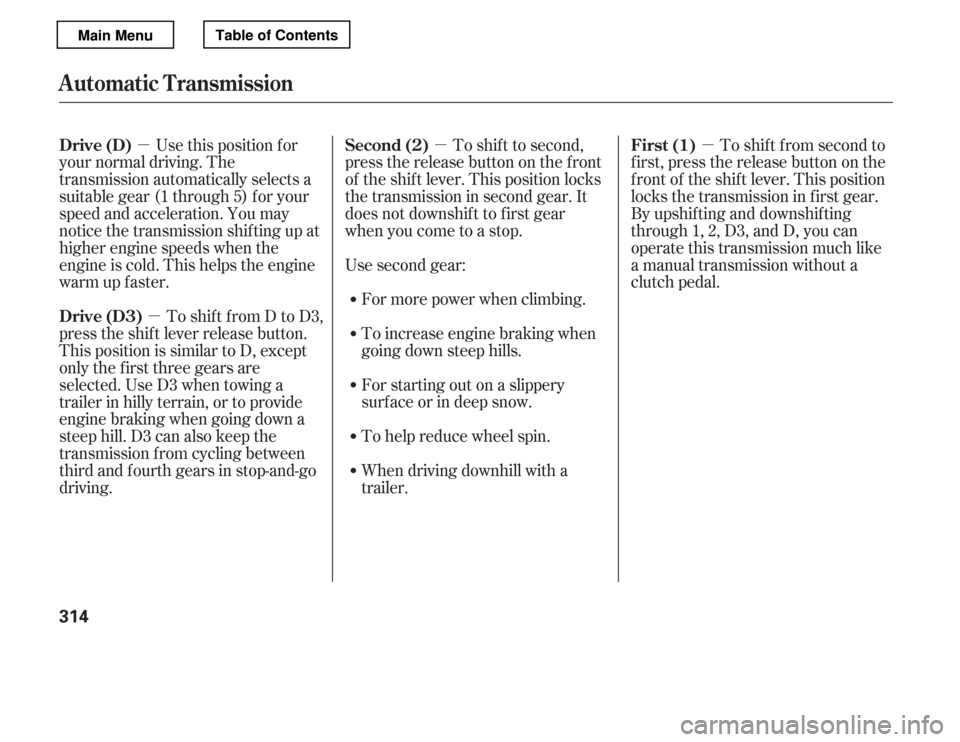

µ To shif t to second,
pressthereleasebuttononthefront
of the shif t lever. This position locks
the transmission in second gear. It
does not downshif t to f irst gear
when you come to a stop.
Use second gear:
For more power when climbing.
To increase engine braking when
going down steep hills.
For starting out on a slippery
surf ace or in deep snow.
To help reduce wheel spin.
When driving downhill with a
trailer.
Use this position f or
your normal driving. The
transmission automatically selects a
suitable gear (1 through 5) f or your
speed and acceleration. You may
notice the transmission shif ting up at
higher engine speeds when the
engine is cold. This helps the engine
warm up f aster. To shif t f rom second to
first, press the release button on the
f ront of the shif t lever. This position
locks the transmission in f irst gear.
By upshif ting and downshif ting
through 1, 2, D3, and D, you can
operate this transmission much like
a manual transmission without a
clutch pedal.
To shift from D to D3,
press the shif t lever release button.
This position is similar to D, except
only the f irst three gears are
selected.UseD3whentowinga
trailer in hilly terrain, or to provide
engine braking when going down a
steep hill. D3 can also keep the
transmission f rom cycling between
third and f ourth gears in stop-and-go
driving.
Automatic Transmission
Second (2)
Drive (D) First (1)
Drive (D3)
314
Main MenuTable of Contents

CONT INUED

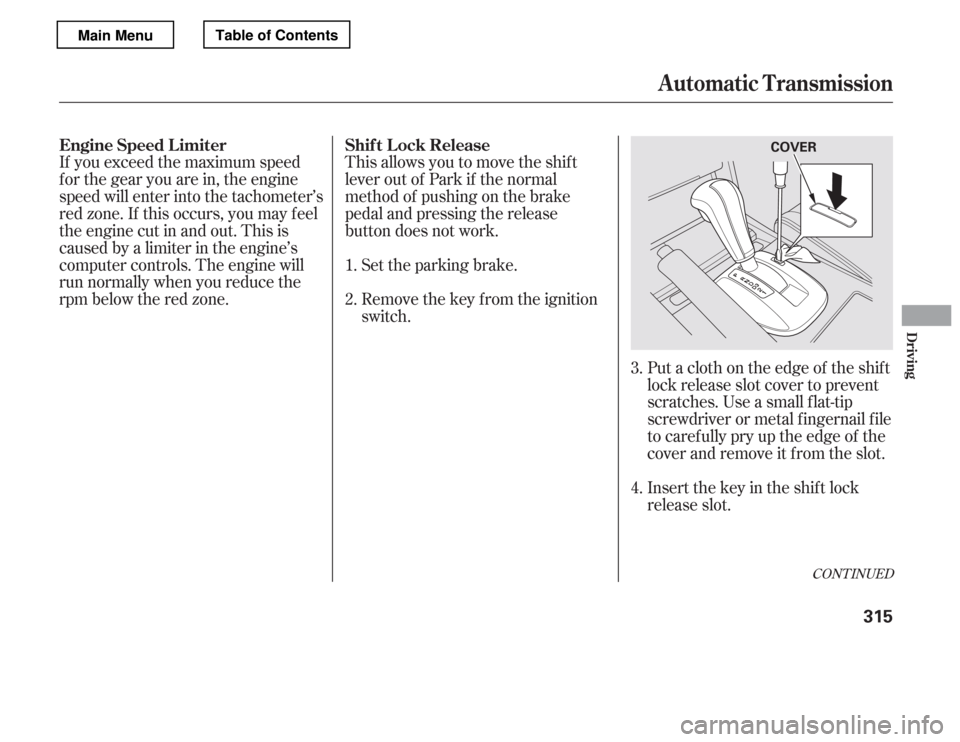

Put a cloth on the edge of the shif t
lock release slot cover to prevent
scratches. Use a small f lat-tip
screwdriver or metal f ingernail f ile
to caref ully pry up the edge of the
cover and remove it from the slot.
Insert the key in the shift lock
release slot.
This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Set the parking brake.
Remove the key from the ignition
switch.
If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
1. 2.
3. 4.
Automatic Transmission
Shif t L ock Release
Engine Speed L imiter
Driving
315
COVER
