The timing belt should be replaced
according to the Maintenance
Minder (see page ).
Replace the timing belt every 60,000
miles (100,000 km) if you regularly
drive your vehicle in any of the
f ollowing conditions:

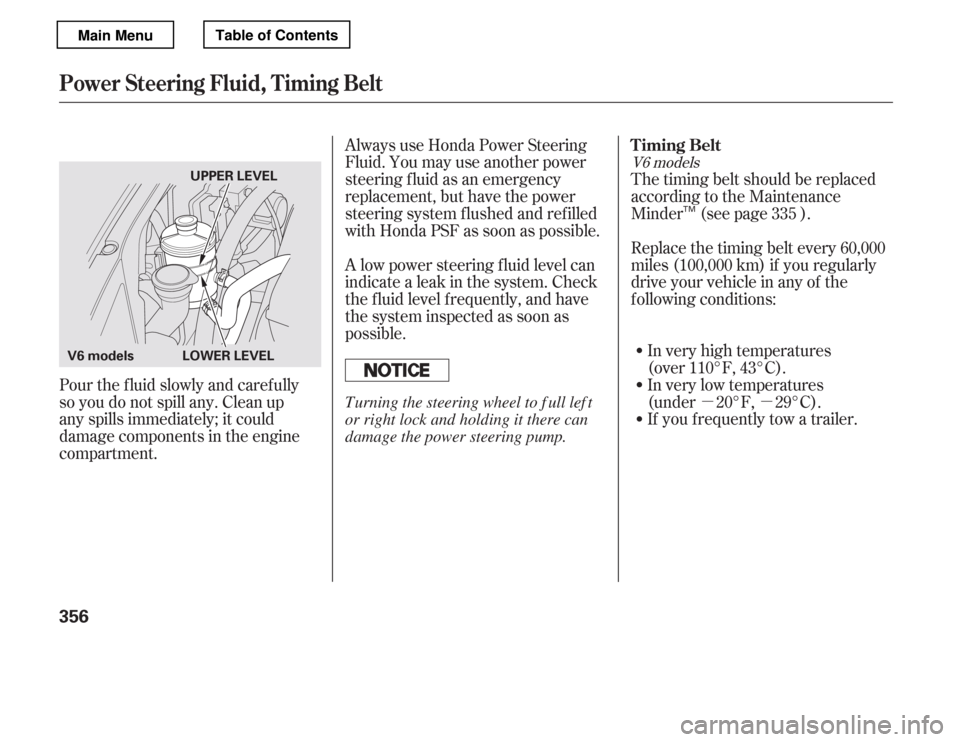

Always use Honda Power Steering
Fluid. You may use another power
steering f luid as an emergency
replacement, but have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently, and have
the system inspected as soon as
possible.
In very high temperatures
(over 110

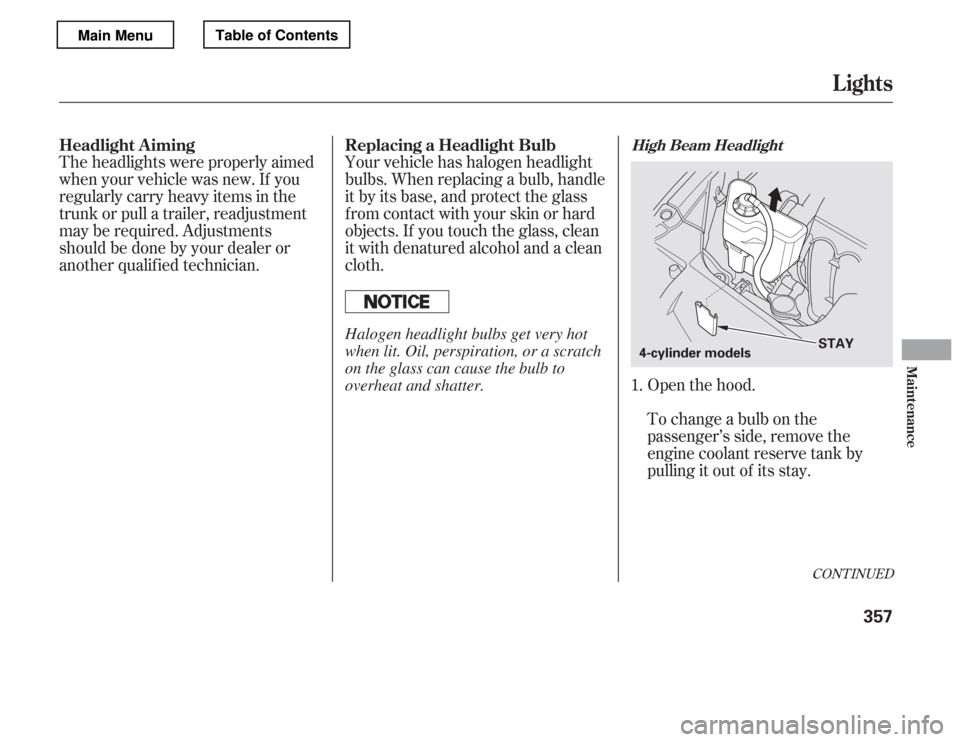

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustments
should be done by your dealer or
another qualif ied technician.Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
f rom contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Open the hood.
To change a bulb on the
passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay.
1.
CONT INUED
Headlight A iming Replacing a Headlight Bulb
Lights
High Beam Headlight
Maint enance
357
STAY
4-cylinder modelsHalogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
Main MenuTable of Contents

Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.

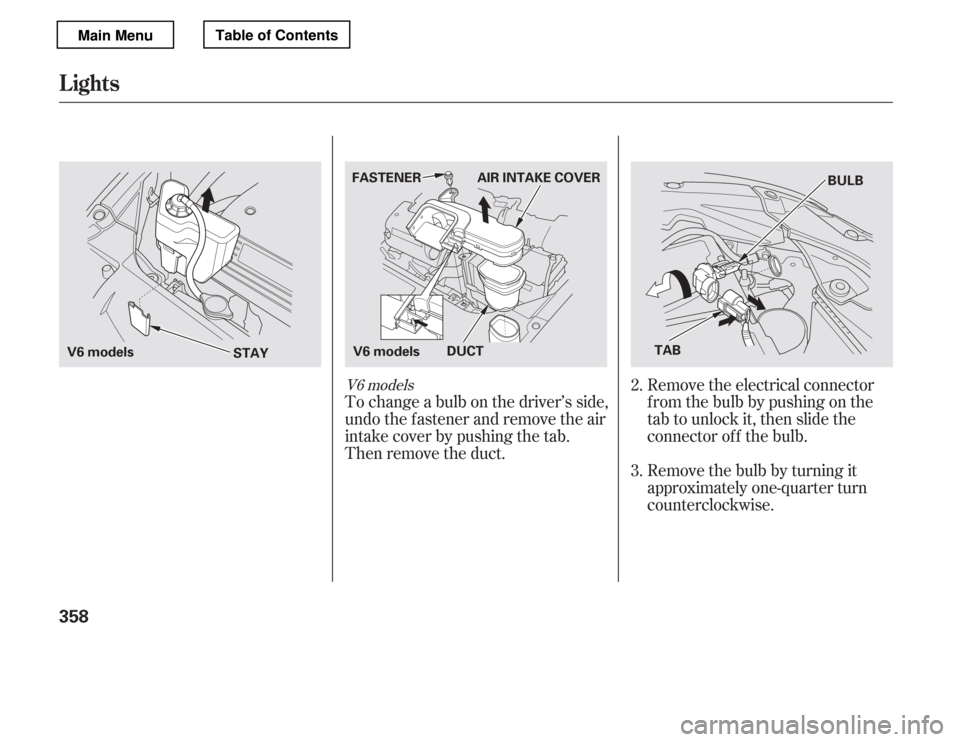

To change a bulb on the driver’s side,
undo the f astener and remove the air
intake cover by pushing the tab.
Then remove the duct.
3.
2.V6 models
Lights
358
FASTENER AIR INTAKE COVER
BULB
V6 models STAYV6 models
TAB
DUCT
Main MenuTable of Contents

To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Pull the inner f ender cover away
f rom the f ender and bumper.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.
Reinstall the air intake cover and
duct securely. Reinstall the
f astener and secure it by pushing
on the head until it locks.
6.
5.
3. 4. 5.
1. 2.
7.
4.
CONT INUED
Passenger’s side

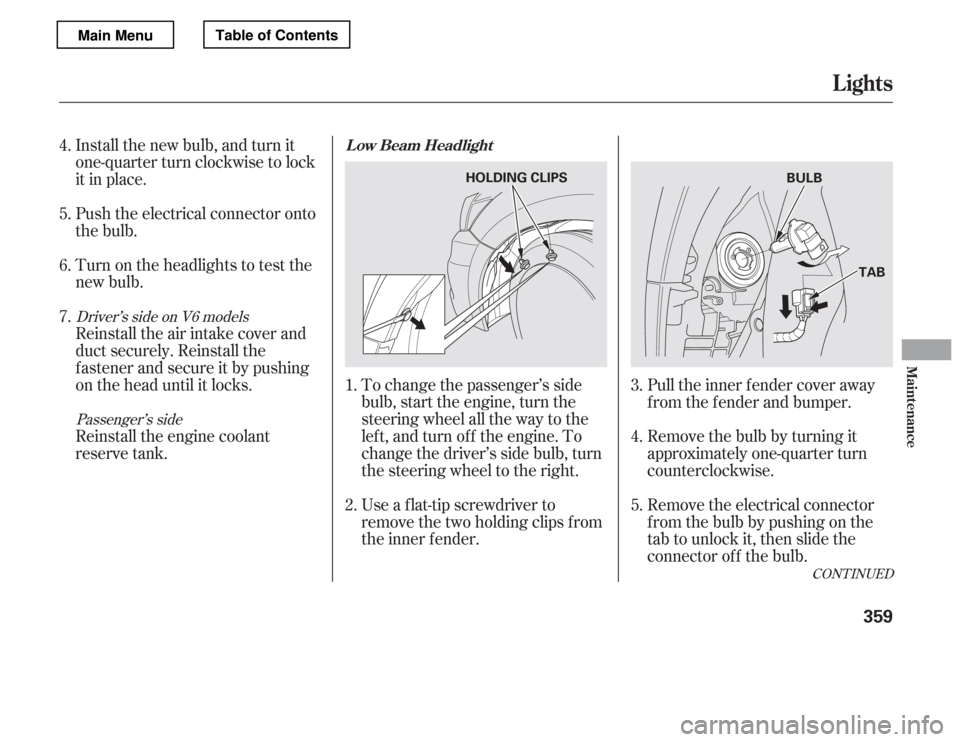

Driver’s side on V6 models L ow Beam Headlight
Lights
Maint enance
359
HOLDING CLIPS
BULB
TAB
Main MenuTable of Contents

Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Put the inner f ender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
Turn on the headlights to test the
new bulb.
Open the hood.
To change the turn signal bulb on
the passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
Remove the air intake duct (see
page ).
1.
2.
8.
7.
6. 9.
3.
358
Driver’s side on V6 models
Lights

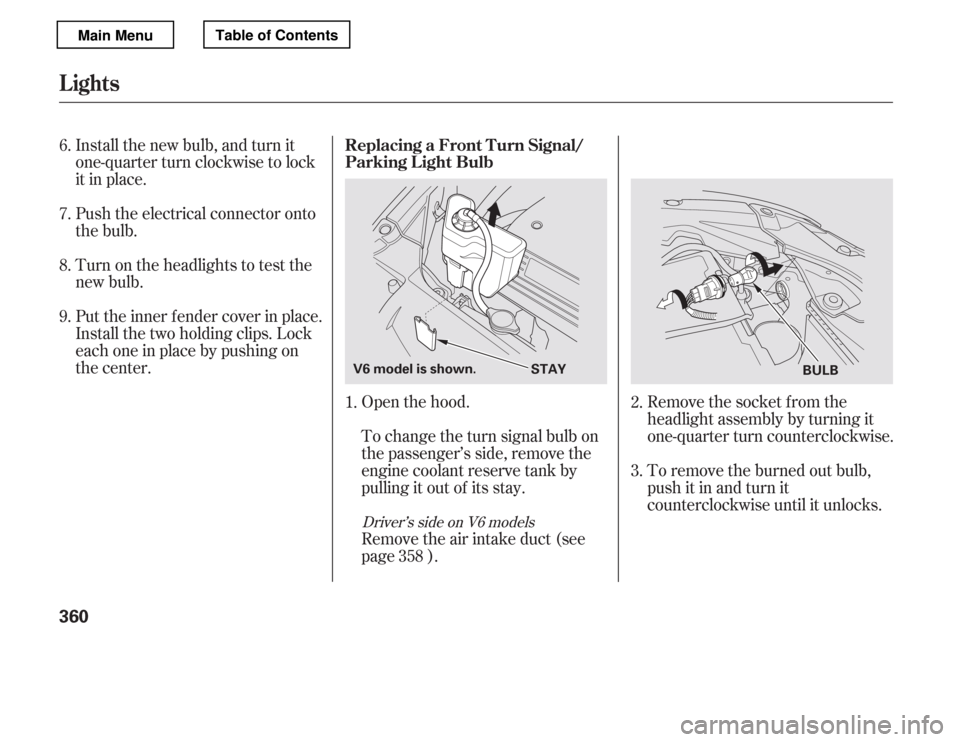

Replacing a Front T urn Signal/
Parking L ight Bulb
360
BULB
STAY
V6 model is shown.
Main MenuTable of Contents

Install the new bulb and turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the coolant reserve tank.To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn of f the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
lef t.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the burned out bulb straight
out of its socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the air intake cover and
duct securely. Reinstall the
f astener and secure it by pushing
on the head until it locks.
6.
1.
7.
5.
4.
2. 3. 4.
CONT INUED
Passenger’s side
Driver’s side on V6 models
Lights

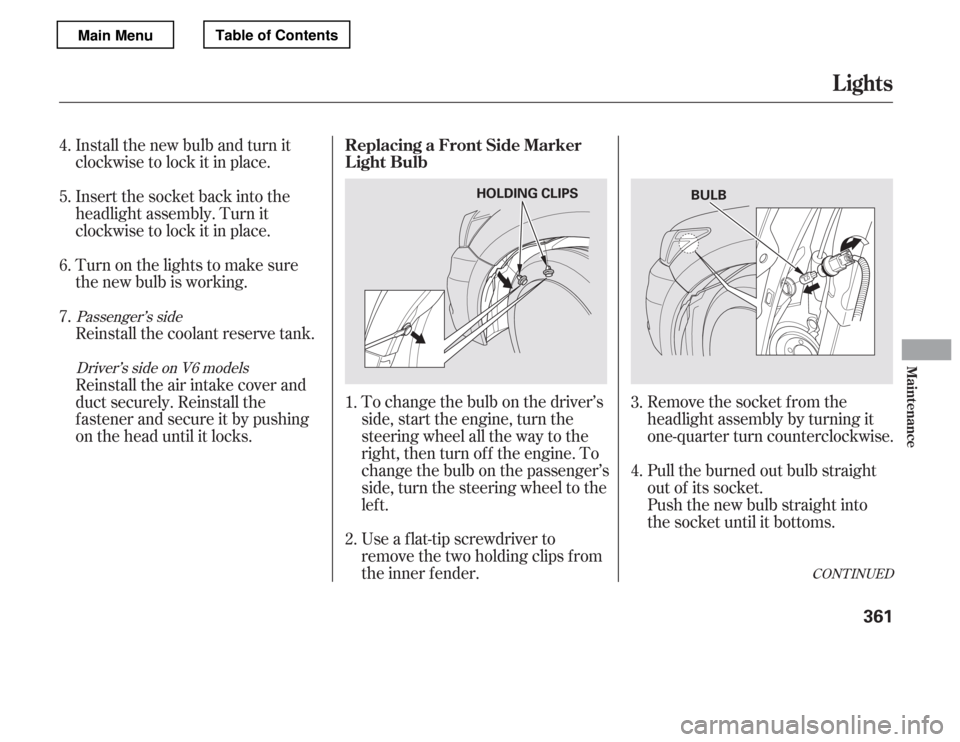

Replacing a Front Side Marker
Light Bulb
Maint enance
361
HOLDING CLIPS BULB
Main MenuTable of Contents

Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the inner f ender cover.
Then reinstall the holding clips,
andlocktheminplacebypushing
on their centers.Open the trunk.
Remove the screw in the center of
the fastener on the side of the
trunk lining. Pull the lining back.
Determine which of the three
bulbs is burned out: stop/taillight,
back-up light or turn signal light.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Remove the socket by turning it
one-quarter turn counterclockwise.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
5. 6. 7.
2.
1.
4.
3. 5.
Lights

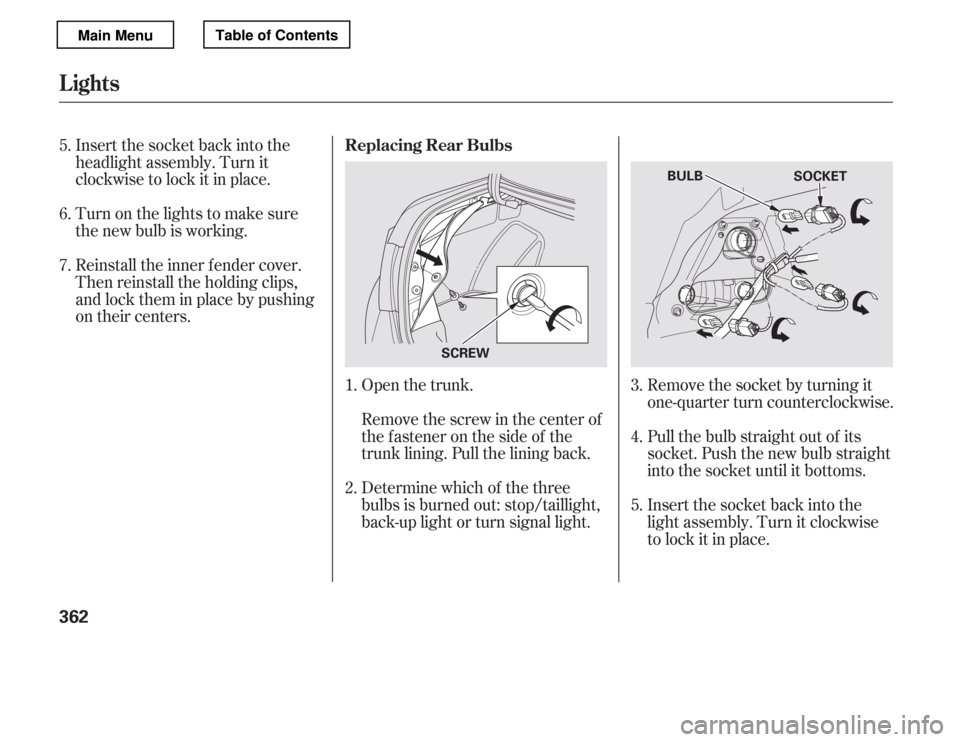

Replacing Rear Bulbs
362
SCREW SOCKET
BULB
Main MenuTable of Contents

Turn on the lights to make sure
the new bulb is working.
Push the trunk lid trim back into
position.
Put the f astener into the hole on
the side of the trunk lining.
Reinstall the screw.Open the trunk, and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.Reinstall the socket. Turn it
clockwise until it locks. Make sure
the new bulb is working.
2.
1. 3.
6. 7.8.
Lights

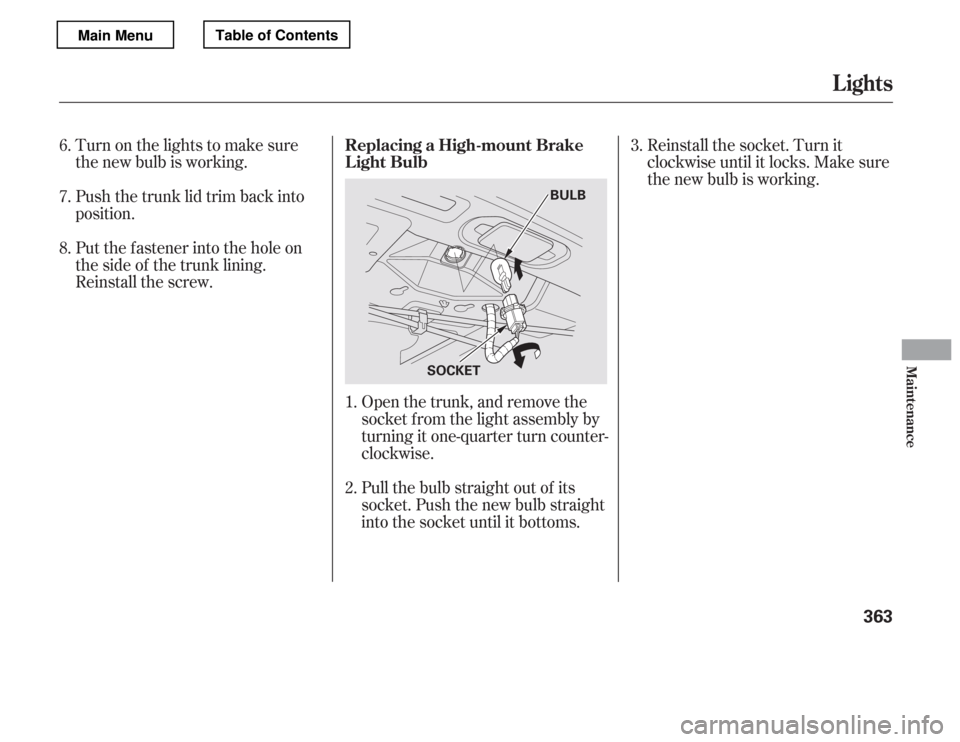

Replacing a High-mount Brake
Light Bulb
Maint enance
363
BULB
SOCKET
Main MenuTable of Contents

If equippedPassenger’s side
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.

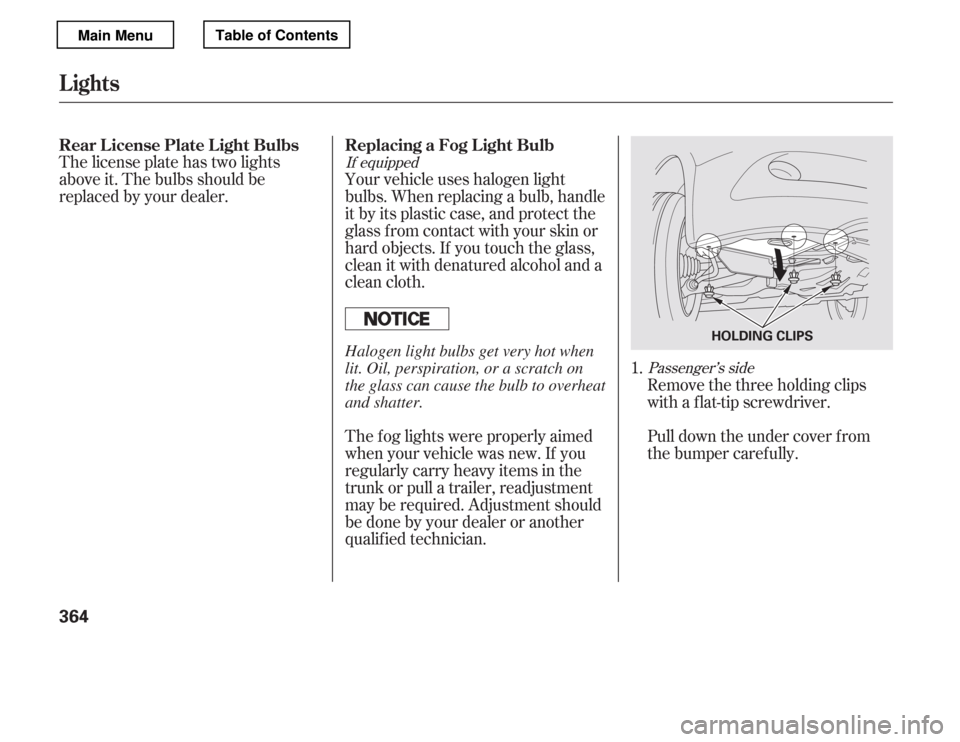

The license plate has two lights
above it. The bulbs should be
replaced by your dealer.
Pull down the under cover f rom
the bumper caref ully.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustment should
be done by your dealer or another
qualif ied technician. Remove the three holding clips
with a flat-tip screwdriver.
1.
Lights
ReplacingaFogLightBulb
Rear License Plate Light Bulbs
364
HOLDING CLIPS
Halogen light bulbs get very hot when
lit. Oil, perspiration, or a scratch on
the glass can cause the bulb to overheat
and shatter.
Main MenuTable of Contents

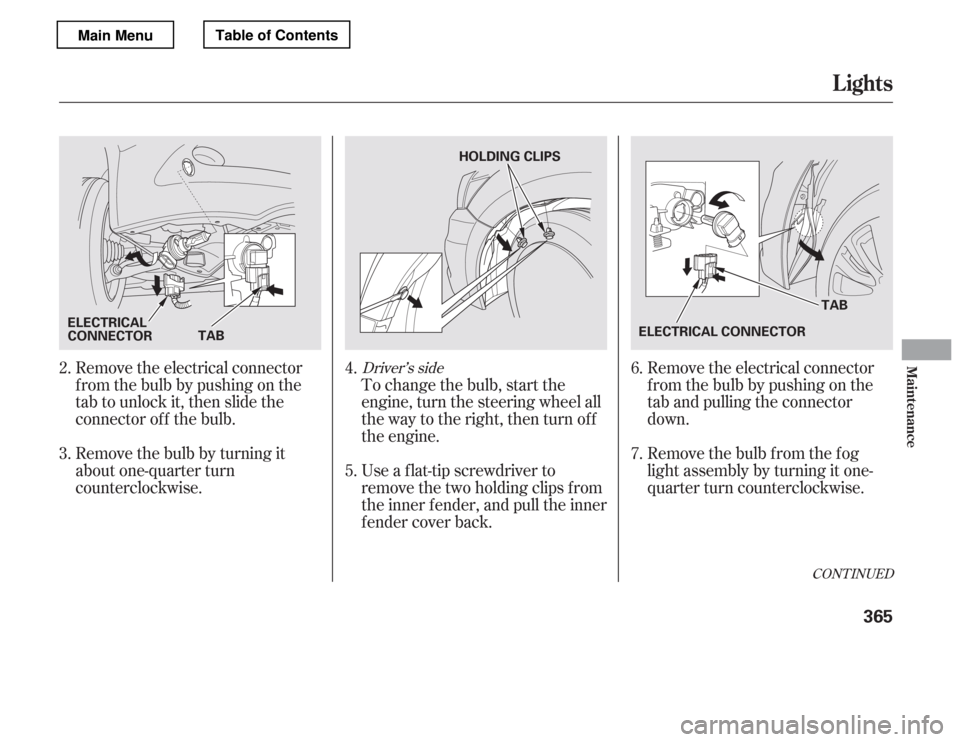

Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb f rom the f og
light assembly by turning it one-
quarter turn counterclockwise.
To change the bulb, start the
engine, turn the steering wheel all
the way to the right, then turn off
the engine.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender, and pull the inner
f ender cover back.
Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
6. 7.
4. 5.
2. 3.
CONT INUED
Driver’s side
Lights
Maint enance
365
ELECTRICAL CONNECTOR
TAB
HOLDING CLIPS
ELECTRICAL
CONNECTOR TAB
